Wastegate flange question

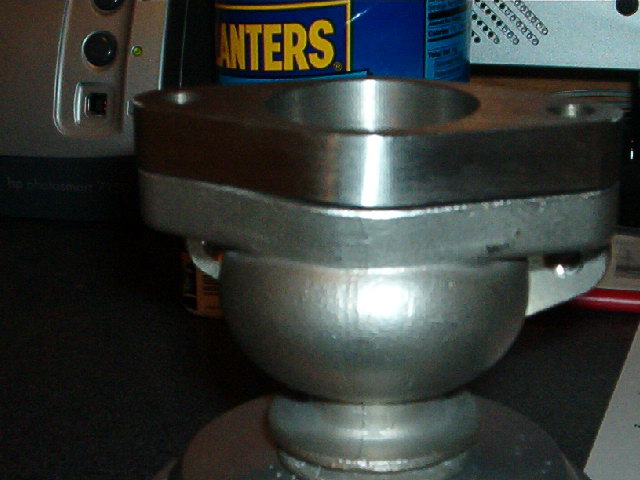

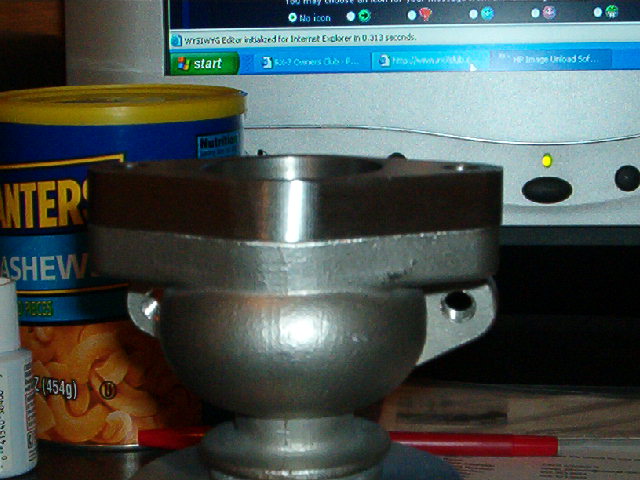

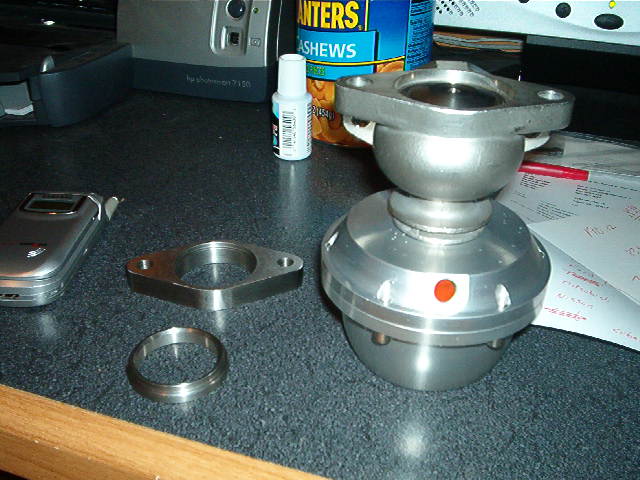

The wastegate has a small ring type thing that fits in the flange by the piston/valve where the exhaust gases enter (shown in first picture). When I sit the flange adapter on top, it doesn't fit flush (second picture). Is it supposed to fit flush? The third picture shows the flange without the ring inside and it fits flush. The directions that came with it don't even show that ring piece.
#2
Apex seal blower
Join Date: Mar 2001
Location: Toronto, Ontario, Canada
Posts: 196
Likes: 0
Received 0 Likes
on
0 Posts
That's a tial wastegate by the looks of it and no the ring doesn't sit flush that's normal. I think when it's mounted it get's pushed in and then sits flush.
Raven
Raven
#3
Open up! Search Warrant!
Thread Starter
Join Date: May 2002
Location: Kicking down doors in a neighborhood near you
Posts: 3,838
Likes: 0
Received 2 Likes
on
2 Posts
Thanks. It sort of looked like the ring would seat better after it gets tightened up, but I wanted to ask before I started wrenching the hardware together.
#4
Uncle P-Dawg the DSMer
Join Date: Jun 2005
Location: Watervliet, MI
Posts: 19
Likes: 0
Received 0 Likes
on
0 Posts
Yes, that ring is design to not sit flush. Once the wastegate is tightened down to the mounting surface, that ring gets pushed in and then sits flush. It pushes into the valve seat making resistance against the valve head to keep a good positive seal.
