teddyrx2

iTrader: (33)

I customed fabbed a turbo manifold for my rx2 now i want to know should i run the waste gate pipe coming of the exhaust manifold from one pipe or both pipes. And how much of difference does this make. Thanks any help offered would help I could post pics up of it

KINETIK_FD3S

i have pics of your manifold.

teddyrx2

iTrader: (33)

Put themmmmm upppppppppppppppppppp

KINETIK_FD3S

teddyrx2

iTrader: (33)

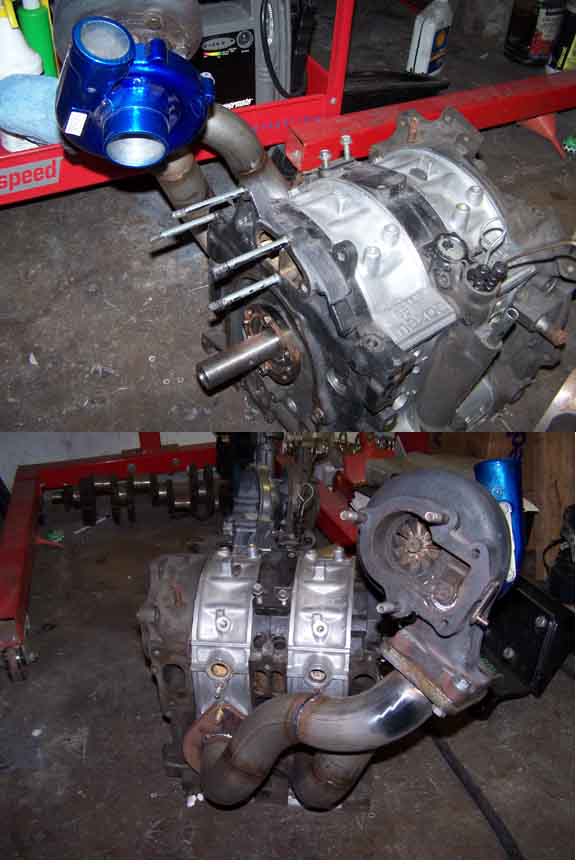

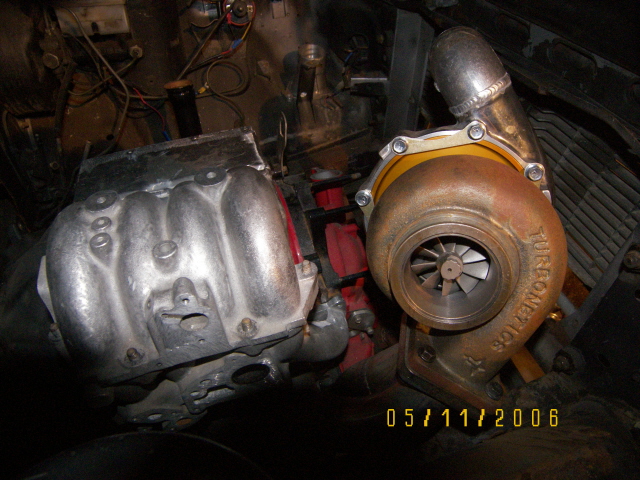

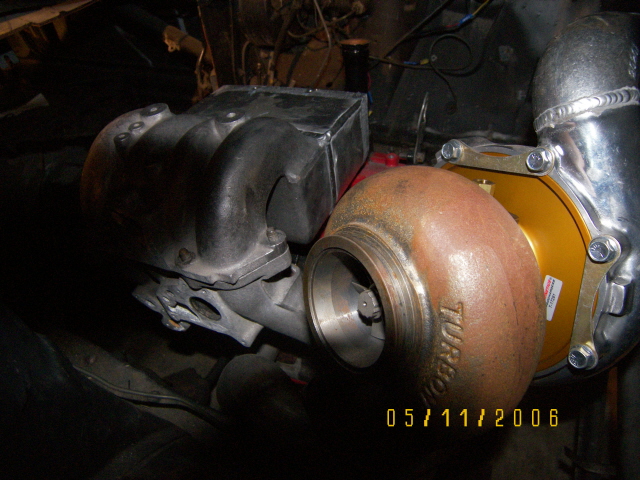

here are the pics thats not turbo im running it was just a mock up what do you guys think about the exhaust and what would be the best way to run the waste gate pipe. Thanks guys!

APEXL8T

I am just ignorant but is there really that small of space that the "T" must be placed outside the engine bay? I am sure you guys want even length but it looks different. Dump the wastegate out the hood on that one...JK.
Pipe the WG straight down and out.

teddyrx2

iTrader: (33)

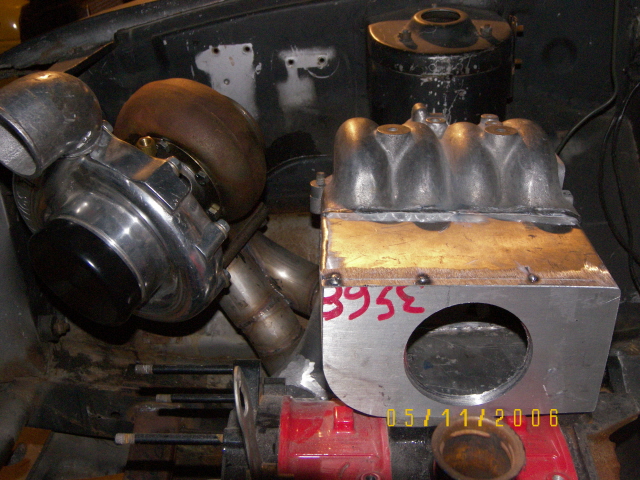

yeah im running the racing beat holley manifold with an 8 injector set up. no room to run it low on the rx2. The intercooler is being mounted outside, and im thinking of running a honda radiator since there small and thin.

Run the WG straight down and out from both pipes or what. I will post more pics

teddyrx2

iTrader: (33)

it looks like it goes all the way but it doesn't the pics do no justice, and the pipes are measured even the pics don't do no justice

APEXL8T

Lets see how it mounts with the water pump w/pulley, oil return line , oil feed line and the turbo size you are using.Yes both should go to a WG or WG+s. I personally am having issues with the HKS 50 being to small.Many shops are using to small Tial's .One on each runner.

teddyrx2

iTrader: (33)

teddyrx2

iTrader: (33)

okay now how should i run the set up

teddyrx2

iTrader: (33)

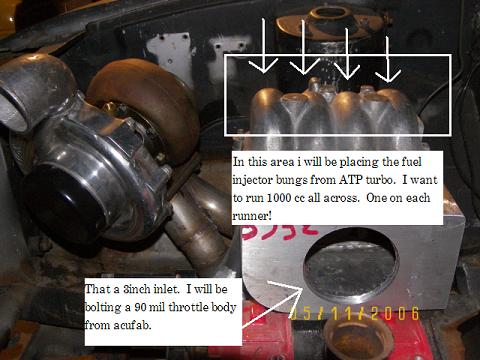

Best spot for the injectors or no
