I am in the process of installing a Greddy Turbo kit. I have an HKS EVC, Apexi Blow off valve and an external wastegate. I am looking for some help on where to hook up the hoses, lines. There are two lines from the wastegate that go???? I also don'y know where to hook up the blow off to. Does it get connected to a manifold vaccum line? The install instructions for these components don't really help with all of these together. Anybody got a diagram?????

rotoboy661

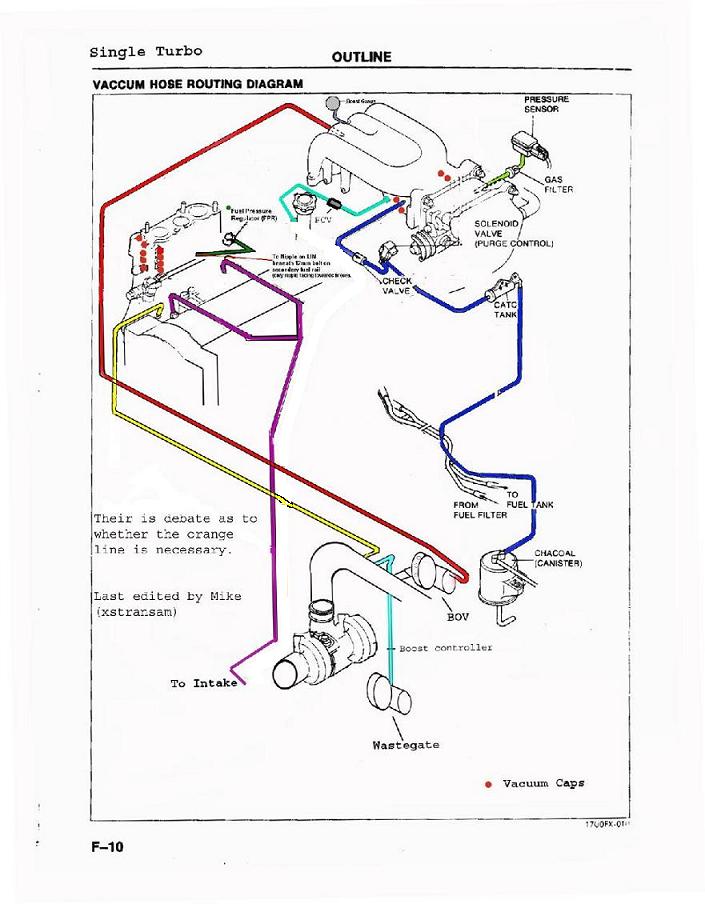

heres ya go

http://dave.newbern.org/gallery/album01?page=1




bov goes to any vac source after the TB, commonly place on the backside side of the UIM

o dont forget to put a BOP on the last drain line (on block)

good luck man, hope that helps yeah goin

Buellmd

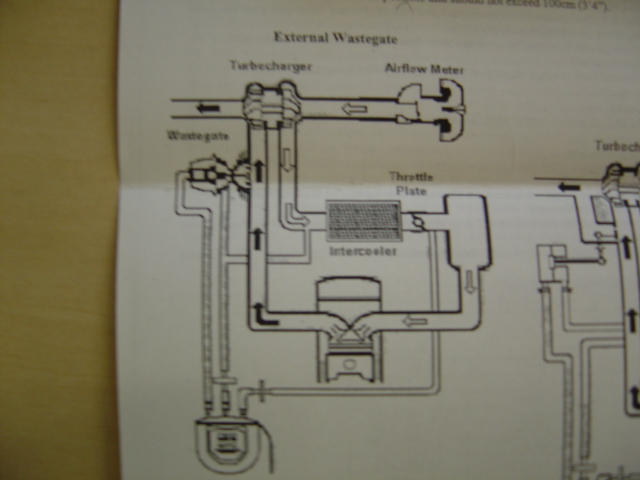

Thanks man> I have both of these diagrams as well but I am still not sure. I wan't to know if I have to tap into my IC (front mount) piping or if there is a different way to hook up the W/G-EVC. The Blow off valve just gets the one line from the UIM, cool, thanks. This is my first project RX and it's becomeing a headache. Any other info would be great!!

rotoboy661

well your turbo shoud have a nipple on the compressor housing but tapping your ic is not that bad bro

well there is diff variations to install the WG but its external and you have aN EBC so thats the way i did it on line ( evc 5)

mike
