I would to get some suggestion or pics of different methods of plumbing the oil coolant lines with out using black rubber hoses and gear clamps.
I was planing on using -6AN fittings on the turbo side but what to do when i get to the coolant nipple? Turbo oil drain is getting-10AN fittings with Teflon hose so that's covered.
I was planing on using -6AN fittings on the turbo side but what to do when i get to the coolant nipple? Turbo oil drain is getting-10AN fittings with Teflon hose so that's covered.
#4
Senior Member
Join Date: Nov 2007
Location: Warwickshire, UK
Posts: 251
Likes: 0
Received 0 Likes
on
0 Posts
I removed the nipples and had a local guy weld on two -6 nipples to the WP housing
I've then used -6 lines to link it up - about to replace them all with Teflon. Can't get photos until the weekend though as it's dark when I get home.
I've then used -6 lines to link it up - about to replace them all with Teflon. Can't get photos until the weekend though as it's dark when I get home.
#5
Senior Member
Exa toy the same as what I had done except I used -8 and put one where the heater line goes back in as it's no longer required on my car. The white looks good I'm interested to see more eng bay pics.
Brad
Brad
#6
Rotary Enthusiast
iTrader: (5)
You can use Earl's superstock hose in -6 size with push on fittings for the turbo side and a tight fit over the nipples on the water pump housing. Same hose in -10 works for the heater hose that runs from the water pump housing to the fire wall.
Here's one of my turbo coolant lines before being fire sleeve'd.
http://i369.photobucket.com/albums/o...s/DSCN0326.jpg
In these pics you can see I'm using the superstock hose for some other coolant lines.
http://i369.photobucket.com/albums/o...s/DSCN0889.jpg
http://i369.photobucket.com/albums/o...s/DSCN0336.jpg
Here's a link to the hole album from my build if you care to see how other lines and such were done.
http://s369.photobucket.com/albums/o.../Build%20Pics/
If I were starting over, I would tap the water pump housing for adapter fittings and not use weld-on fittings with the cast water pump housing. The air pockets in the casting caused some leaks.
Jack
Here's one of my turbo coolant lines before being fire sleeve'd.
http://i369.photobucket.com/albums/o...s/DSCN0326.jpg
In these pics you can see I'm using the superstock hose for some other coolant lines.
http://i369.photobucket.com/albums/o...s/DSCN0889.jpg
http://i369.photobucket.com/albums/o...s/DSCN0336.jpg
Here's a link to the hole album from my build if you care to see how other lines and such were done.
http://s369.photobucket.com/albums/o.../Build%20Pics/
If I were starting over, I would tap the water pump housing for adapter fittings and not use weld-on fittings with the cast water pump housing. The air pockets in the casting caused some leaks.
Jack
#7
Lapping = Fapping
iTrader: (13)

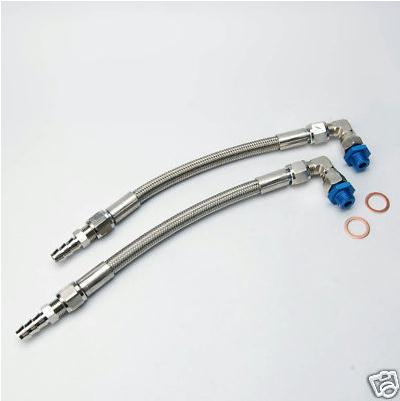

While we're on this subject, are these eBay special -6AN lines with barbs any good? Looks like the M16 x 1.5 fittings (in blue) are correct for my turbo's CHRA. http://cgi.ebay.com/ebaymotors/ws/eB...m=180605776185
Oh, just noticed the barbs are .475". That's almost 1/2". The nipples on my waterpump are only 3/8". I suppose if I got a set of these 3/8" barbs to replace them I'd be fine. http://cgi.ebay.com/ebaymotors/6-x-3...item35aeaac2a3
Thoughts?
Oh, just noticed the barbs are .475". That's almost 1/2". The nipples on my waterpump are only 3/8". I suppose if I got a set of these 3/8" barbs to replace them I'd be fine. http://cgi.ebay.com/ebaymotors/6-x-3...item35aeaac2a3
Thoughts?
