Problems with my dual gate setup? Underboost.
#1
yessir
Thread Starter
iTrader: (24)
Join Date: May 2005
Location: Sebring FL
Posts: 722
Likes: 0
Received 0 Likes
on
0 Posts
Problems with my dual gate setup? Underboost.

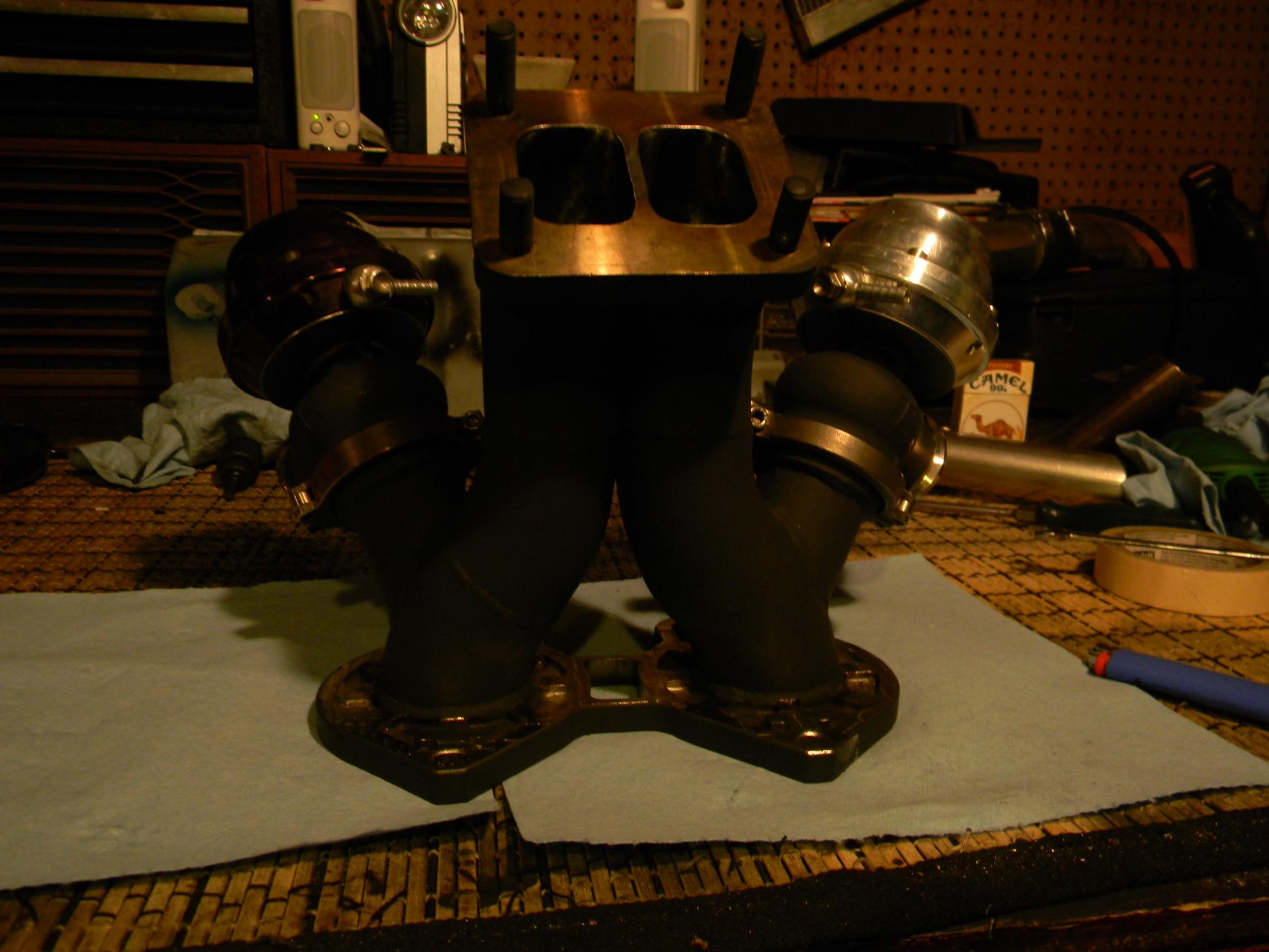

Hey I just made a new manifold, and I went from single tial 44 to dual tial 44, and I upped from 3 in to 4 in exhaust. Also the intercooler pipe got about 4 inches longer.
Other than that nothing has changed. I used to run 13 psi with easy control over boost with my manual boost controller. I had a 7 PSI spring, I now have two 7 psi springs.
After I hooked everything back up the car will only go to 7 psi. I maxed the boost controller, still 7 psi. I unplug one gate completely and I get 8 psi.
What is going on? I think I'm blowing my gates open with exhaust?
I been think about running a hose from a boost source, to the tops of the wastegates with a checkvalve allowing only boost in. Anyone think this is a good idea or will work?
Other than that nothing has changed. I used to run 13 psi with easy control over boost with my manual boost controller. I had a 7 PSI spring, I now have two 7 psi springs.
After I hooked everything back up the car will only go to 7 psi. I maxed the boost controller, still 7 psi. I unplug one gate completely and I get 8 psi.
What is going on? I think I'm blowing my gates open with exhaust?
I been think about running a hose from a boost source, to the tops of the wastegates with a checkvalve allowing only boost in. Anyone think this is a good idea or will work?
#3
If your running the boost controller to the top of each gates and having the lower portion of the gates attached to manifold vacuum then I say you either have a large leak somewhere (possible torn diaphram, bad clamping, bad boost controller, or no fire ring installed). All are just possiblilites. G/L and let us know what you find!!
#7
yessir
Thread Starter
iTrader: (24)
Join Date: May 2005
Location: Sebring FL
Posts: 722
Likes: 0
Received 0 Likes
on
0 Posts
Cap off unused ports? is that MVR only?
I do have my valve seats in.
My vacuum hose just goes from boost reference to MBC to lower wastegate port. The most basic way. I am planning on giving two port hook up a shot, but I had to order two extra fittings...
I do have my valve seats in.
My vacuum hose just goes from boost reference to MBC to lower wastegate port. The most basic way. I am planning on giving two port hook up a shot, but I had to order two extra fittings...
Trending Topics
#10
F-IT
iTrader: (5)
Join Date: Jun 2006
Location: ocala,fl
Posts: 995
Likes: 0
Received 0 Likes
on
0 Posts

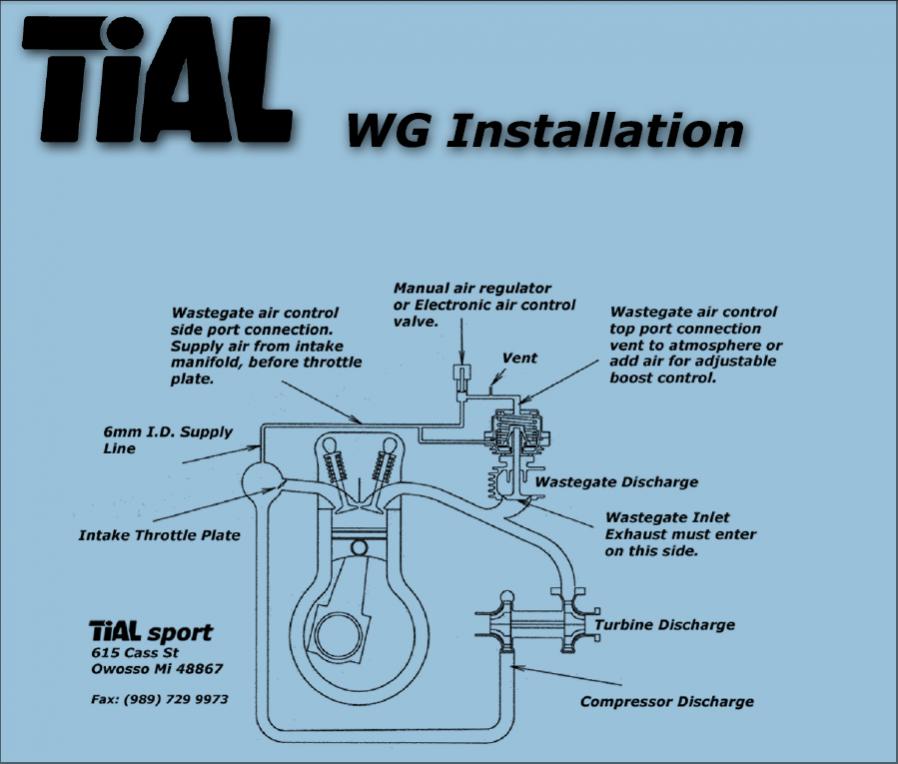

how do you have your lines hooked up to both gates? They should be hoiked up like this, Boost reference to MBC then from there have one hose t-off into 2 and run each hose into the bottom/side port of the wastegate. You leave the top ports open unles you are using a EBC.
#13
Rotary Enthusiast
Join Date: Aug 2006
Location: Melbourne FL/San Antonio TX/Okinawa Japan
Posts: 1,216
Likes: 0
Received 10 Likes
on
10 Posts
Are you turning the manual boost controller clockwise to get boost? The way you have the manual controller installed it looks like you need to turn the controller counterclockwise.
#14
In the burnout box...
iTrader: (32)
MVS and MVR wastegates come with extra vacuum ports to aid in "flexibility" when running wastegate lines. It seems that you're holding boost so the bottom half is setup properly but the fact that you cannot increase boost is due to the missing "plugs" on the top half. Don't confuse the water ports for vacuum ports...
#19
F**K THE SYSTEM!!
When you say you now have 2 7psi springs... are you saying 7psi per wg or 14psi per wg? If it is 14psi per wg. I would suggest unhooking the mbc and hook wg's directly.
