One more question about this Electric Water Pump Business.......................
I've ran into a problem, where to mount my two coolant sensors.
I was thinking, either mount them in the blue t fitting or at the top of the radiator.
If you have any suggestions, please let me know. I thought about mounting them in the radiator, but I wasn't sure how well that would work out.
See the Blue T-Fitting. I would tap on the top and bottom of that and mount the sensors.
Or, have bungs welded to the top of the rad and mount them there.
I was thinking, either mount them in the blue t fitting or at the top of the radiator.
If you have any suggestions, please let me know. I thought about mounting them in the radiator, but I wasn't sure how well that would work out.
See the Blue T-Fitting. I would tap on the top and bottom of that and mount the sensors.
Or, have bungs welded to the top of the rad and mount them there.
Last edited by Viking War Hammer; 05-29-08 at 01:16 PM.
#4
*** Bless The USA
Thread Starter
iTrader: (8)
Join Date: Jan 2007
Location: Saint Louis / Illinois
Posts: 7,139
Received 0 Likes
on
0 Posts
I don't think I can mount those sensors in the AN Fittings, plus I'm sure I'd end up ruining them. Stupid high dollar fittings
I've been emailing back and forth with Carlos Iglesias, he mounted his sensors at the hot point in his radiator and has reported good results.
I've been emailing back and forth with Carlos Iglesias, he mounted his sensors at the hot point in his radiator and has reported good results.
#6
Down for the count...
iTrader: (7)
Join Date: Jan 2002
Location: Cincinnati, OH
Posts: 806
Likes: 0
Received 0 Likes
on
0 Posts
What size are the fittings coming directly out of the motor? -12AN?
http://www.anplumbing.com/shop/index...auge!_Adapters
The gauge adapters on the above page are only up to -8AN, but maybe somewhere makes something like these, only bigger...
Just a thought.
http://www.anplumbing.com/shop/index...auge!_Adapters
The gauge adapters on the above page are only up to -8AN, but maybe somewhere makes something like these, only bigger...
Just a thought.
#7
*** Bless The USA
Thread Starter
iTrader: (8)
Join Date: Jan 2007
Location: Saint Louis / Illinois
Posts: 7,139
Received 0 Likes
on
0 Posts
Then, on the old coolant housing. There was the GM Sensor, and another little sensor which I would imagine is the Fan Switch ?
Trending Topics
#8
*** Bless The USA
Thread Starter
iTrader: (8)
Join Date: Jan 2007
Location: Saint Louis / Illinois
Posts: 7,139
Received 0 Likes
on
0 Posts
What size are the fittings coming directly out of the motor? -12AN?
http://www.anplumbing.com/shop/index...auge!_Adapters
The gauge adapters on the above page are only up to -8AN, but maybe somewhere makes something like these, only bigger...
Just a thought.
http://www.anplumbing.com/shop/index...auge!_Adapters
The gauge adapters on the above page are only up to -8AN, but maybe somewhere makes something like these, only bigger...
Just a thought.
#10
backslash beanbagrace
iTrader: (1)
I plan on welding some scrap bar with decent thickness inbetween 2 weld-on fittings and putting it inline of the coolant outlet from the engine.
Pretty much what is in that pic above, just without the filler neck, and with a nice flat area to tap the sensors into.
Pretty much what is in that pic above, just without the filler neck, and with a nice flat area to tap the sensors into.
#11
Will work for horsepower
Eric just get a small amount of alum. pipe the size of the out let on the block before the an fitting thread it and put the senser in the pipe. Its npt thread any plumber has pipe tap!
Do you follow what im trying to say?
Do you follow what im trying to say?
#14
paying to play
iTrader: (1)

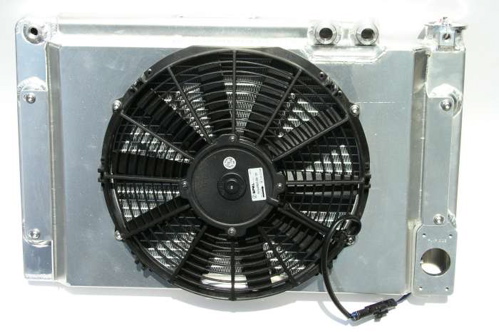

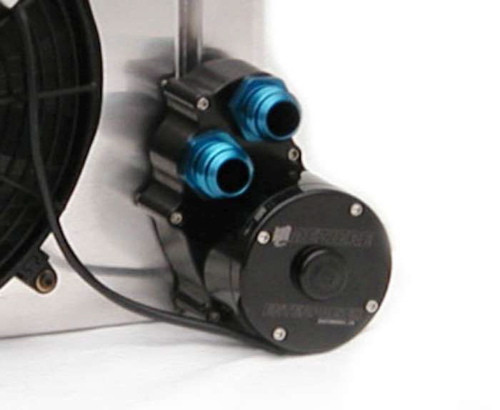

Lookin great, what's the flow rate of your waterpump and would you recommend going electric w.p. for street use/daily driving? I'm toying with the idea of getting the Meziere 55gph pump and their radiator with the mounting holes already included. What alternator bracket are you using? Xtreme Rotaries?
#15
*** Bless The USA
Thread Starter
iTrader: (8)
Join Date: Jan 2007
Location: Saint Louis / Illinois
Posts: 7,139
Received 0 Likes
on
0 Posts
Lookin great, what's the flow rate of your waterpump and would you recommend going electric w.p. for street use/daily driving? I'm toying with the idea of getting the Meziere 55gph pump and their radiator with the mounting holes already included. What alternator bracket are you using? Xtreme Rotaries?
#16
Rotary Freak
Join Date: Nov 2001
Location: trinidad and tobago
Posts: 2,715
Likes: 0
Received 0 Likes
on
0 Posts
Lol , thats why I kept the pump / thermostat housing , it gets a lot more complicated when you opt to loose the assembly and run that little plate adapter thing.
#17
*** Bless The USA
Thread Starter
iTrader: (8)
Join Date: Jan 2007
Location: Saint Louis / Illinois
Posts: 7,139
Received 0 Likes
on
0 Posts
Filled everything up with coolant, but I got a problem. I can’t burp this sucker for nothing.
The radiator sits under the front bumper at a slant, so I can’t fill it from the normal location. I’m using a fill tank that’s plummed into the top of the radiator. The vent also runs into the nipple on that fill tank.
How can I burp this sucker ?
Also, both coolant nipples on the block are capped.
The radiator sits under the front bumper at a slant, so I can’t fill it from the normal location. I’m using a fill tank that’s plummed into the top of the radiator. The vent also runs into the nipple on that fill tank.
How can I burp this sucker ?
Also, both coolant nipples on the block are capped.
#18
Rotary Freak
iTrader: (2)
Join Date: Mar 2006
Location: Wayne NJ
Posts: 2,508
Likes: 0
Received 0 Likes
on
0 Posts
I use a vacume bleeding system from snap on I'm sure you can find a cheap one at the auto parts store it suckes out all the air and uses a vacume to pull the coolant all the way in iv used it so many time and never had air left in the system it has definatly paid it self off takes less then five minutes to bleed the whole system and you dont have a mess or the car even hot
#19
*** Bless The USA
Thread Starter
iTrader: (8)
Join Date: Jan 2007
Location: Saint Louis / Illinois
Posts: 7,139
Received 0 Likes
on
0 Posts
I use a vacume bleeding system from snap on I'm sure you can find a cheap one at the auto parts store it suckes out all the air and uses a vacume to pull the coolant all the way in iv used it so many time and never had air left in the system it has definatly paid it self off takes less then five minutes to bleed the whole system and you dont have a mess or the car even hot
#21
*** Bless The USA
Thread Starter
iTrader: (8)
Join Date: Jan 2007
Location: Saint Louis / Illinois
Posts: 7,139
Received 0 Likes
on
0 Posts
Hmmm
#22
Rotary Apprentice
Join Date: Jan 2005
Location: USA
Posts: 2,181
Likes: 0
Received 0 Likes
on
0 Posts
as long is its in one place that is consistent, you can just tune to compensate.
#24
Rotary Apprentice
Join Date: Jan 2005
Location: USA
Posts: 2,181
Likes: 0
Received 0 Likes
on
0 Posts
just make sure the sensor is on the engine (hot?) side of the thermostat and it will be fine. i just made up this whole hot/cold side business, but its the only way i can think to describe it.
#25
*** Bless The USA
Thread Starter
iTrader: (8)
Join Date: Jan 2007
Location: Saint Louis / Illinois
Posts: 7,139
Received 0 Likes
on
0 Posts
It's at the top of the radiator, the top of the radiator is where coolant flows from the motor to the radiator. So, the sensor is located roughly .5 inch from the -16 bung.
