i have my oil drain leeking,
can anyone please help me to upgrade the lide? the turbo for now is T4 Garret journal bearing. car is an fd.
1)what size line i must use? 10 or 12 AN?
2)where can i find fitings for both the turbo and the engine side?

thanks

unvmyrx7

iTrader: (14)

http://www.atpturbo.com/

Trots*88TII-AE*

iTrader: (11)

This stuff is really easy to work with and install, I'd recommend it. It's supposed to hold up as good as braided anyways. http://www.atpturbo.com/mm5/merchant..._Code=ATP-OIL1

zinx

iTrader: (3)

I did the ss braided line oil drain and feel it was a waste of money since those an fittings are pricey. I'f i were going to do it again, i would just use the line that Trots posted. I can't even see my oil drain anyway.

AchillesGr

iTrader: (1)

hi,
i must use AN10 or 12?
thanks!!

AchillesGr

iTrader: (1)

do you know if this flange fits the engine side?

http://www.atpturbo.com/mm5/merchant...egory_Code=FLA

thanks

zinx

iTrader: (3)

It fits, but i had to modify it so it would clear.

AchillesGr

iTrader: (1)

to modify what? the flange?

take a look to this adapter:
http://cgi.ebay.com/ebaymotors/Funct...item4149e1cf10

anyone with info on that?
thanks

Trots*88TII-AE*

iTrader: (11)

yes, the flange mounting holes need to be widened outwards a bit in order to bolt up to the block. Pretty much all drain flanges are the same dimension.
Again, I'd suggest going with the flexible 5/8" hose I lined at th top, it's much easier to work with and cheaper than SS. Does the same job...

unvmyrx7

iTrader: (14)

-10 is large enough

JEROME

I got tired of leaks and did this.

AchillesGr

iTrader: (1)

there is a larger adapter at the atp site:

http://www.atpturbo.com/mm5/merchant...egory_Code=FLA

do you think that this will fit better?

also there is a flange for the silicone hose you mension :

http://www.atpturbo.com/mm5/merchant...egory_Code=FLA

there are two sizes : one for "gt15 to 35/40" and one for "t3/t4 and larger turbos".

can anyone please tell whitch is the suitable for the fd?
thanks

Zero R

iTrader: (1)

Check here Achilles

http://www.a-spectuning.com/store/in...index&cPath=13

This flange fits perfectly on the block it was made for out kits.

http://www.a-spectuning.com/store/in...products_id=56

If you have no OMP this one works even better, for either the front of the block or the bottom of a 35R CHRA as it is narrower than the standard gasket matched ATP flanges. It is also angled to keep it away further away from the front cover bolt as well as the the turbine housing on the 35R's.

http://www.a-spectuning.com/store/in...products_id=55

Hope that helps.

AchillesGr

iTrader: (1)

Sean ,
i have an omp.
so you recomend for engine the :
http://www.a-spectuning.com/store/in...products_id=56

and for the turbo the extended one :
http://www.a-spectuning.com/store/in...products_id=55

for now i have a garret t4. will this work or i need the bigger one?

is there enouth space for the female AN10 to bolt on these adapters or i bolt the an fitings before i instale the flanges?
thanks!!!

Zero R

iTrader: (1)

Look at the bottom of the turbo and see wether its the smaller GT35R style drain or engine block or if it is the larger style drain such as this one.....

http://www.a-spectuning.com/store/in...products_id=57

Yes that is the correct one if you have the OMP.

fcdrifter7

What size oil feed should I use? I have a -4an line on my T4 PT67 journal bearing and It blown the seals out of the turbo. Should I go to a -3? I have 10 an drains on it. Im no longer running an omp.

mannykiller

iTrader: (93)

i'm just gonna have mine hardlined..... i'll post pics of it tonight...

mannykiller

iTrader: (93)

haha.....yea like JEROME said!

dznutzuk

iTrader: (1)

Achillea, if you want you can just take the gasket and make a flange instead of buying one. The bigger the oil return line is the better.

mannykiller

iTrader: (93)

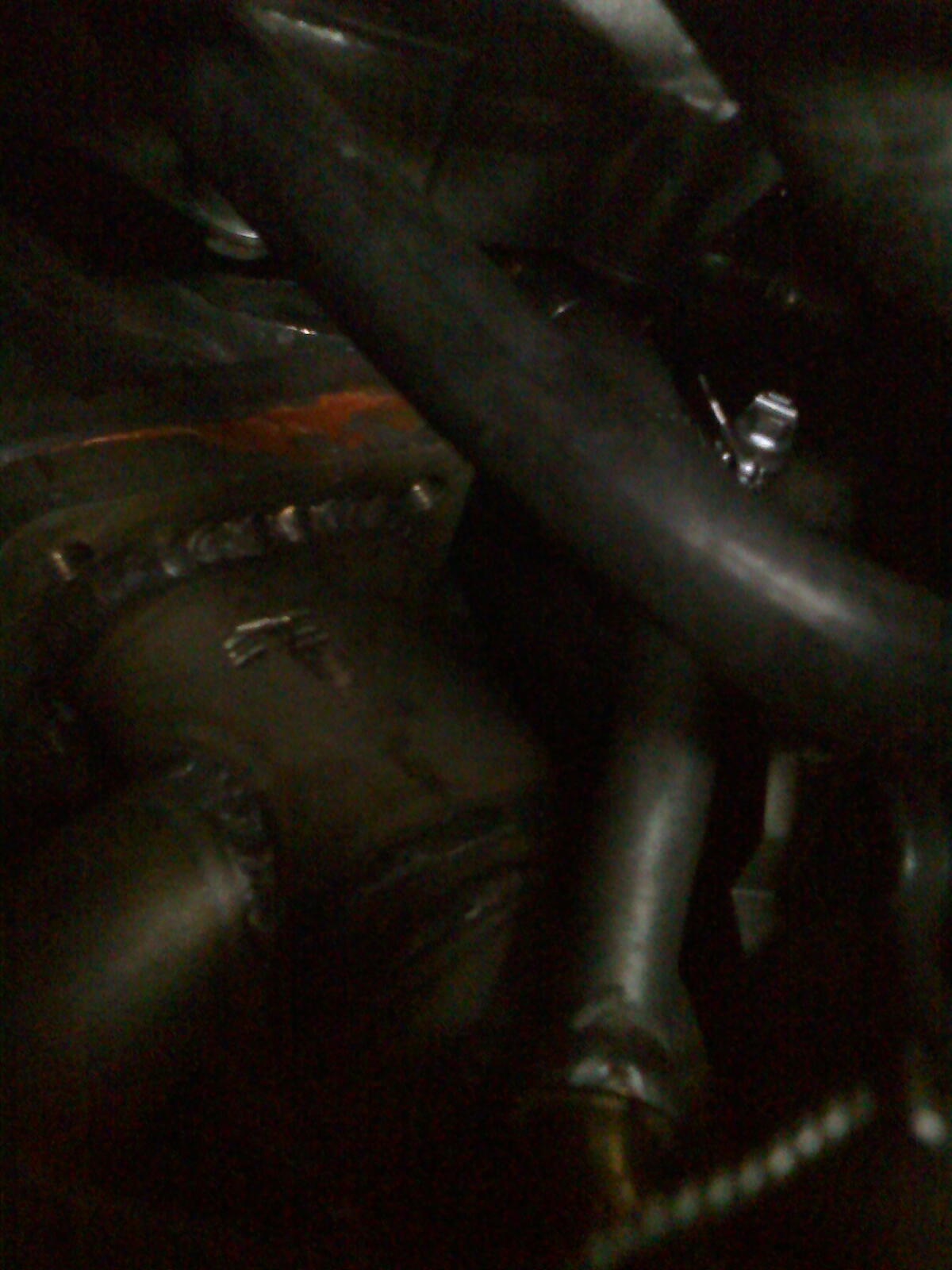

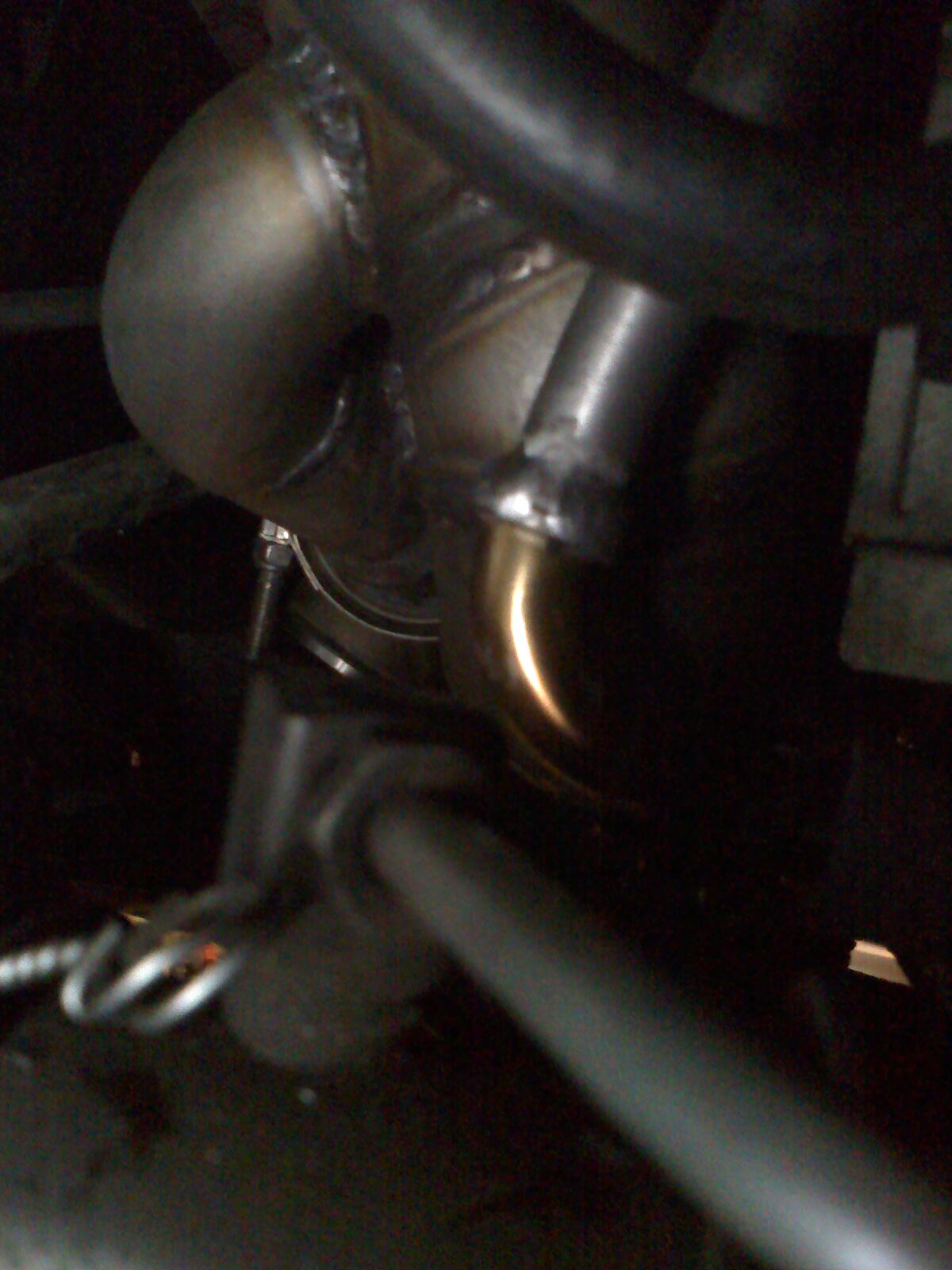

Hardlined.......

AchillesGr

iTrader: (1)

Sean,
i measured the holes distance on my turbo oil outlet and it is about 52mm. should i use the larger :

http://www.a-spectuning.com/store/in...products_id=57

?


is the ss braided line enouth for the temperatures or should i use the silicone tube?what do you suggest??i assume that the hardlined is better but i have no way to do it.


thanks!!

zenofspeed

iTrader: (1)

Manny: Is the original hard-line that comes from your turbo curved??? I WANT THAT! Where can i get one for a GT35r?

I'm currently having an issue with my oil drain fitting; it is very short and it is straight. So the return line actually touches the manifold/turbo flange. Even with heat shielding it gets toasted after about 1500 miles.

Barry Bordes

I adapted the TII oil drain line to the REW flange.

The front case can be opened to 3/4".

It uses a bellows to allow for slight expansion/misalignment.

Barry

Zero R

iTrader: (1)

52mm mean you will need the larger one yes. If you're talking about the braided lines we use yes, if you're talking about the standard aeroquip stuff you will want to get a length of thermal sleeving to cover it. Straight fitting tend to sit close to the manifold and will dry out the rubber of the hose.

~S~

AchillesGr

iTrader: (1)

Do i need to remove the turbo to install the line?
do i first bolt the AN finings on the flanges and then the flanges to the engine and to the CHRA?
thanks!!
