New Gt35R Turbo Combination

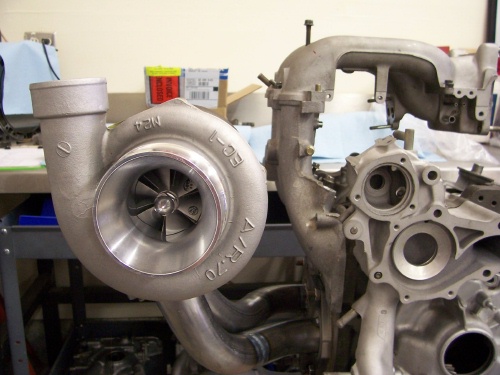

Hopefully be testing this unit out soon; BB Gt35R mated to a StageV Turbine wheel in a 1.0 Divided T4 Turbine Housing. From what I'm being told this is the first unit of its kinda, specifically the turbine housing combination; stageV(s) have never been available from Garrett in a T4 turbine housing. I believe Precision has offered this before, but it was an open volute housing. Its also features a cool seamless machined turbine discharge. It has a centering inner ring that should help prevent leaks.
#4
NASA geek
iTrader: (2)
Stage 5 Turbine:
Wheel Style = T350
Wheel inducer = 2.795"
Wheel exducer = 2.437"
Wheel trim = 76

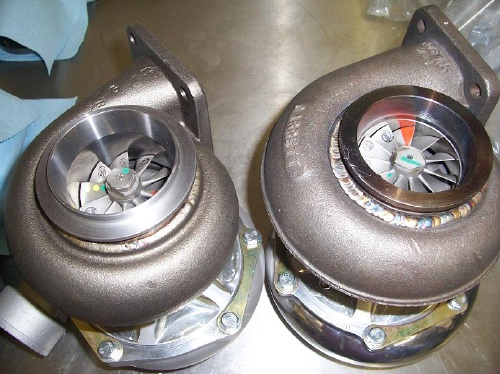

For reference, here's a P-Trim:
Inducer diam. = 2.922"
Exducer Diam. = 2.544"
It's still smaller then a Standard P-Trim, but its a newer design and should be more efficient for its size. I haven't looked at any flow maps yet.
~Mike............
Wheel Style = T350
Wheel inducer = 2.795"
Wheel exducer = 2.437"
Wheel trim = 76
For reference, here's a P-Trim:
Inducer diam. = 2.922"
Exducer Diam. = 2.544"
It's still smaller then a Standard P-Trim, but its a newer design and should be more efficient for its size. I haven't looked at any flow maps yet.
~Mike............
Trending Topics
#13
Just in time to die
iTrader: (1)
We ran the stage 5 wheel here on our little honda last season it performed pretty well. If I had to do it again it would be the 62/62. Wait we just got a 67 billet so scratch that
