Need some help on my AF61R, BLOWN????
#1
Senior Member
Thread Starter
Join Date: Jun 2003
Location: NC
Posts: 508
Likes: 0
Received 0 Likes
on
0 Posts
Need some help on my AF61R, BLOWN????

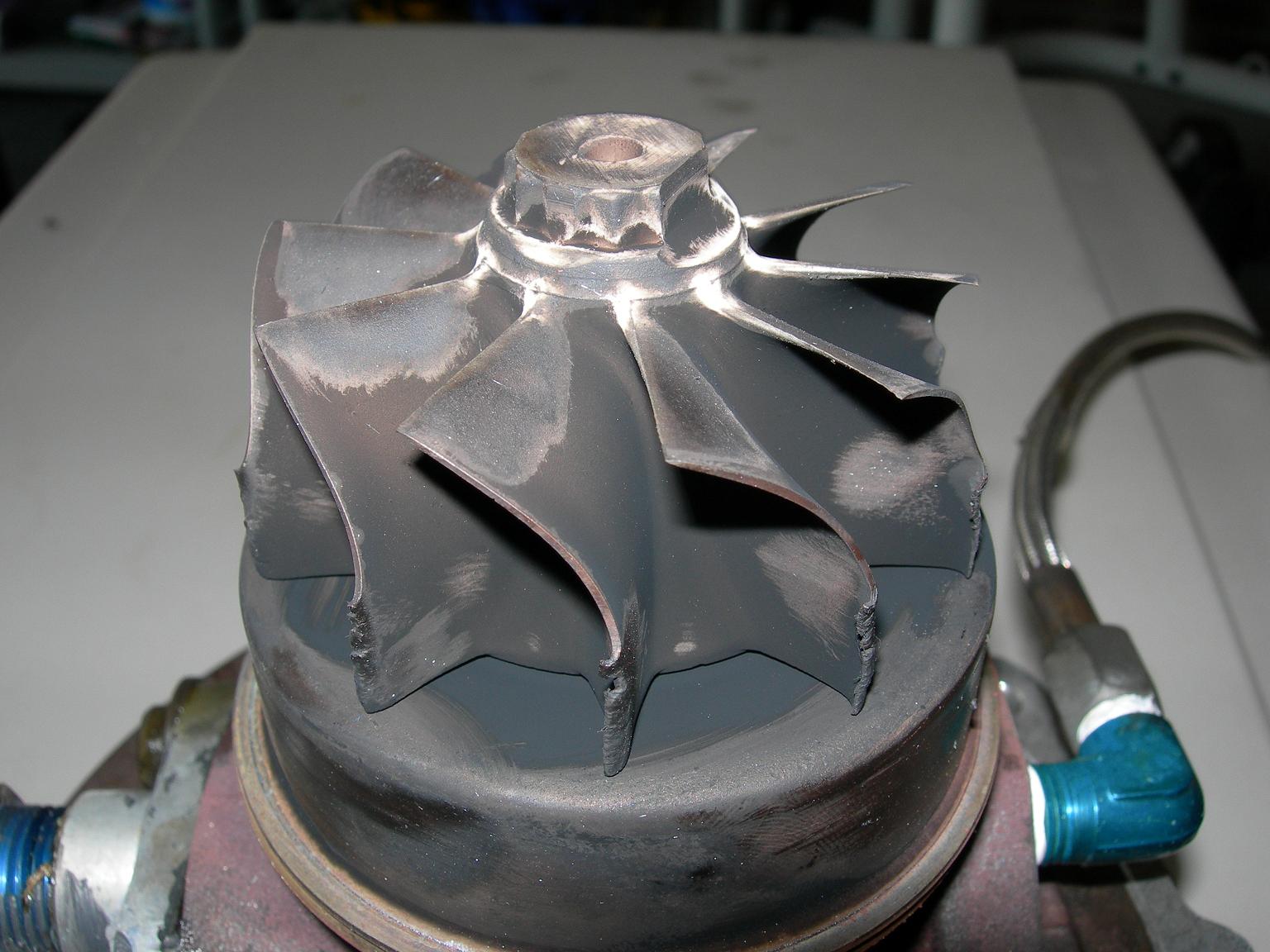

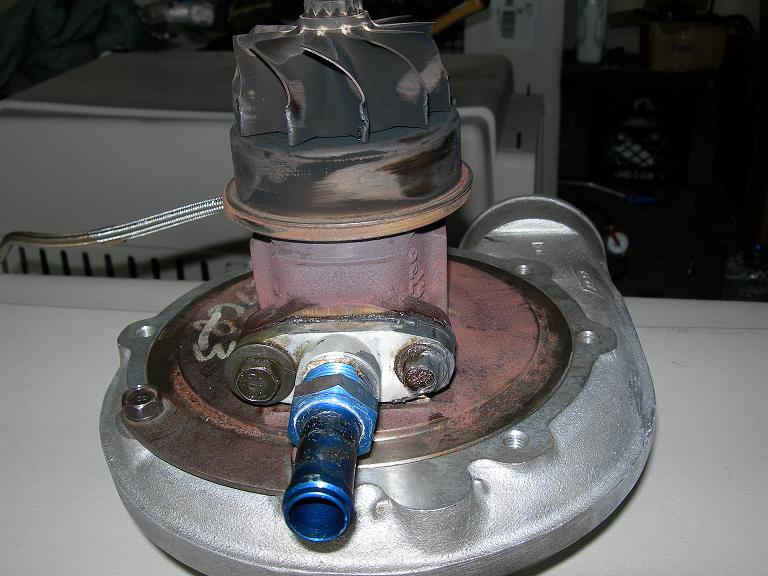

So I removed, and go to clean my tubro, pushing it out for sale and discover the fins that go into the mani. are bent on the end, no trace of oil, and the bearings are fine.
One opinion was I threw an apex seal.
Is there a place where I can get a part to replace fins.
opinions?
Also, how much could I get with the current damage for the entire setup.
The turbo kit has a thermal wrapped 3 Inch DP, thermal wrapped wastegate lines, and is in excellent condition. It comes with turbo, CAST manifold, Wastegate, dump tube, oil lines, heat wrapped downpipe.
AF61R the specs are:
t-4 flange
modular center/backwall
.313 dia. shaft
compressor has 4" inlet x 3" outlet
1.0 divided turbine w/4" outlet
small "Q" trim turbine 76mm x 68mm
compressor is 61mm x 84mm rated 82% @ 18psi 64#/min.
One opinion was I threw an apex seal.
Is there a place where I can get a part to replace fins.
opinions?
Also, how much could I get with the current damage for the entire setup.
The turbo kit has a thermal wrapped 3 Inch DP, thermal wrapped wastegate lines, and is in excellent condition. It comes with turbo, CAST manifold, Wastegate, dump tube, oil lines, heat wrapped downpipe.
AF61R the specs are:
t-4 flange
modular center/backwall
.313 dia. shaft
compressor has 4" inlet x 3" outlet
1.0 divided turbine w/4" outlet
small "Q" trim turbine 76mm x 68mm
compressor is 61mm x 84mm rated 82% @ 18psi 64#/min.
#3
*** Bless The USA
iTrader: (8)
Join Date: Jan 2007
Location: Saint Louis / Illinois
Posts: 7,139
Received 0 Likes
on
0 Posts
Damn ! You chewed something up !
I bought a RX7 yesterday that has a AF61R turbo on it. It only has 3,000 miles on it but I'm selling the turbo for a larger one.
$500 if you want it.
I bought a RX7 yesterday that has a AF61R turbo on it. It only has 3,000 miles on it but I'm selling the turbo for a larger one.
$500 if you want it.
#5
Senior Member
Thread Starter
Join Date: Jun 2003
Location: NC
Posts: 508
Likes: 0
Received 0 Likes
on
0 Posts
Interested in that turbo...send me pics at bulamike@yahoo.com
Yea, thats what it looks like.
Yea, thats what it looks like.
#6
*** Bless The USA
iTrader: (8)
Join Date: Jan 2007
Location: Saint Louis / Illinois
Posts: 7,139
Received 0 Likes
on
0 Posts
Interested in that turbo...send me pics at bulamike@yahoo.com
Yea, thats what it looks like.
Yea, thats what it looks like.
