My Beveled S5 Turbo Rotors *Pics*
#1
Senior Member
Thread Starter
My Beveled S5 Turbo Rotors *Pics*
I just finished these today too. As some other people have done, I have cut on the trailing side to increase intake duration. This should move the torque curve to the right (better filling at higher rpm). Hopefully, paired with the twin scroll setup (which should move the torque curve to the left, or hold it even, with a larger turbo) I will end up with a larger/flatter torque curve.
I just used a ruler, Sharpie and a 1/4 die grinder with a carbide burr. It took a couple of hours. I also plan to ceramic coat the faces with this CBX powerkote:
http://techlinecoatings.com/BulkEngine.htm

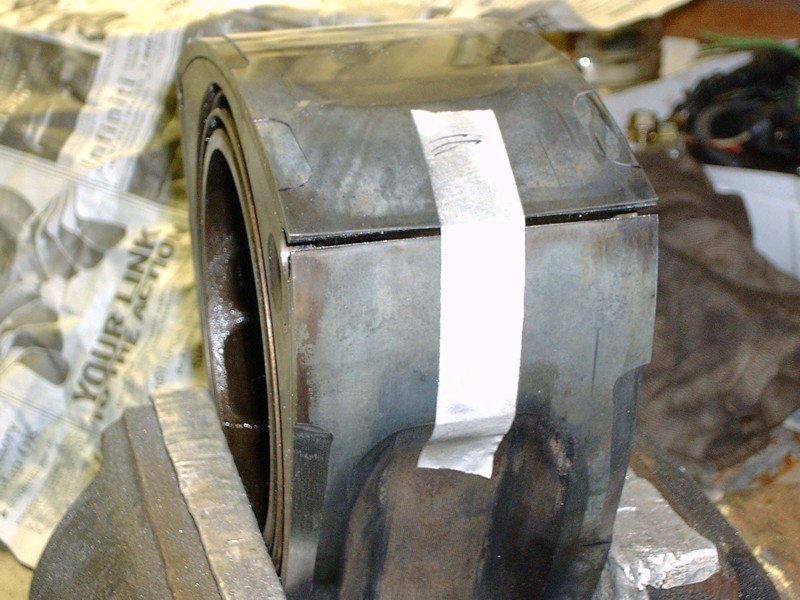

Here are some pics:
I also weighed these before and after:
Rotor 1=> Letter="C" => Before=>4342.11g After=>4312.68g Net=>29.43g
Rotor 2=> Letter="B" => Before=>4377.57g After=>4347.83g Net=>29.74g
As seen above this should not pose any vibration issues as far as counterweights are concerned. Mazda allows up to 2 letters difference in a factory build. The weight difference between this "C" and "B" rotor is 35.46g. This is more than I removed (~30g)!
This too has to wait until this spring to get tested. I should have the engine together by June.
Justin
I just used a ruler, Sharpie and a 1/4 die grinder with a carbide burr. It took a couple of hours. I also plan to ceramic coat the faces with this CBX powerkote:
http://techlinecoatings.com/BulkEngine.htm
Here are some pics:
I also weighed these before and after:
Rotor 1=> Letter="C" => Before=>4342.11g After=>4312.68g Net=>29.43g
Rotor 2=> Letter="B" => Before=>4377.57g After=>4347.83g Net=>29.74g
As seen above this should not pose any vibration issues as far as counterweights are concerned. Mazda allows up to 2 letters difference in a factory build. The weight difference between this "C" and "B" rotor is 35.46g. This is more than I removed (~30g)!
This too has to wait until this spring to get tested. I should have the engine together by June.
Justin
#3
development
Though you have retained a good weight ratio...I would think taking weight out of a rotating assembly (anywhere), throws the rotational weight distribution out some what? Have you talked with engine builders who are familiar with this type of port phasing?
why not just bridge port the irons if this was all you wanted? "increase intake duration"
It appears these rotors, have a little more attention than just grinding some metal out...
Good luck with the project, should be interesting!!
why not just bridge port the irons if this was all you wanted? "increase intake duration"
It appears these rotors, have a little more attention than just grinding some metal out...
Good luck with the project, should be interesting!!
#4
Senior Member
Thread Starter
Originally Posted by APEXL8T
So you plan to send them off to get re balanced?
No. I wasnt planning on it. I have my doubts that it is any worse than something Mazda would let go out the door.
Does anyone have the spec to which Mazda balances the individual rotors?
For kicks: Lets assume that one pair of cuts (on one face) had 10% more material removed than either of the other faces.
The total weight removed was 30g, divide by 3=10grams each face, multiply by 10%. That means that my rotor apexes should be within 1g of each other at worst.
Is this bad? I dont know.
Justin
#5
Senior Member
Thread Starter
Originally Posted by dubulup
Though you have retained a good weight ratio...I would think taking weight out of a rotating assembly (anywhere), throws the rotational weight distribution out some what?
Originally Posted by pistonuk
I also weighed these before and after:
Rotor 1=> Letter="C" => Before=>4342.11g After=>4312.68g Net=>29.43g
Rotor 2=> Letter="B" => Before=>4377.57g After=>4347.83g Net=>29.74g
As seen above this should not pose any vibration issues as far as counterweights are concerned. Mazda allows up to 2 letters difference in a factory build. The weight difference between this "C" and "B" rotor is 35.46g. This is more than I removed (~30g)!
Rotor 1=> Letter="C" => Before=>4342.11g After=>4312.68g Net=>29.43g
Rotor 2=> Letter="B" => Before=>4377.57g After=>4347.83g Net=>29.74g
As seen above this should not pose any vibration issues as far as counterweights are concerned. Mazda allows up to 2 letters difference in a factory build. The weight difference between this "C" and "B" rotor is 35.46g. This is more than I removed (~30g)!
Originally Posted by dubulup
Have you talked with engine builders who are familiar with this type of port phasing?
Originally Posted by dubulup
why not just bridge port the irons if this was all you wanted? "increase intake duration"
Originally Posted by dubulup
It appears these rotors, have a little more attention than just grinding some metal out...
Originally Posted by dubulup
Good luck with the project, should be interesting!!
Justin
#7
Racing Beat can balance the rotating assembly (e-shaft, rotors, counterweights) for a modest amount of money. Your reasoning that you are still within the Mazda factory specs seems valid (assuming the quoted numbers are correct), but it is nice to ensure tight tolerances on the balance, particularly if you plan to raise the redline.
I had my current engine balanced, and it is very smooth. I haven't done a direct comparison to an engine that wasn't balanced in this way, but it is a neat test to hold the revs near redline in neutral for a moment and witness how smooth it is (and with little exhast noise, as you would expect in any unloaded rotary). The balanced engine seems smoother than my last engine, but I don't trust my memory enough to make a strong claim to that effect.
-Max
I had my current engine balanced, and it is very smooth. I haven't done a direct comparison to an engine that wasn't balanced in this way, but it is a neat test to hold the revs near redline in neutral for a moment and witness how smooth it is (and with little exhast noise, as you would expect in any unloaded rotary). The balanced engine seems smoother than my last engine, but I don't trust my memory enough to make a strong claim to that effect.
-Max
Trending Topics
#8
Seduced by the DARK SIDE
Join Date: Apr 2001
Location: Orange Park FL (near Jax)
Posts: 7,323
Likes: 0
Received 2 Likes
on
2 Posts
Rotor bevel template
After making the 1st cuts, I made this template to keep them all exactly the same.
Mazda does rotational balance the rotors, and I didn't want to interfere with that.
Mazda does rotational balance the rotors, and I didn't want to interfere with that.
#9
Senior Member
Thread Starter
Originally Posted by SureShot
After making the 1st cuts, I made this template to keep them all exactly the same..
Originally Posted by SureShot
Mazda does rotational balance the rotors, and I didn't want to interfere with that.
Justin
#12
Racing Rotary Since 1983
iTrader: (6)
congratulations.
it is always the best moment to see someone doing something differently. with apologies to Carlos Lopez of course. i do appreciate your shirtsleeve-engineering efforts to creatively improve the breed.
continued good luck and keep us updated.
howard coleman
p.s. 'looks like it might just work
it is always the best moment to see someone doing something differently. with apologies to Carlos Lopez of course. i do appreciate your shirtsleeve-engineering efforts to creatively improve the breed.
continued good luck and keep us updated.
howard coleman
p.s. 'looks like it might just work
#13
Senior Member
Thread Starter
Originally Posted by sholitz
Suuuuuuper old i know...but I'm curious as to how this project turnned out? did your diy work?
It's killing me to find out. The thing is I dont have my car with me here at school. I graduate this May, then its home to my car and a paycheck
I will definitely update this thread when I get some results.
My hand calcs show that the balance shouldn't be any worse than the factory setups. SureShot has a very similar setup, his seems to be doing fine too.
Justin
#15
~!@#$%^&*()_+
Join Date: Oct 2001
Location: Mpls, MN
Posts: 461
Likes: 0
Received 0 Likes
on
0 Posts
Our local engine shop charges $150 to balance the rotating assembly.
Each rotor individually and make them the same weight.
then balance the rotating assy.
Then polish the e-shaft(dont know why they call this polishing when they use 400 grit to do it)
Im sure most places charge < @200
At that price youd be dumb not to get it balanced.
Each rotor individually and make them the same weight.
then balance the rotating assy.
Then polish the e-shaft(dont know why they call this polishing when they use 400 grit to do it)
Im sure most places charge < @200
At that price youd be dumb not to get it balanced.
#16
Senior Member
Thread Starter
Originally Posted by GregW
Our local engine shop charges $150 to balance the rotating assembly..
Originally Posted by GregW
[balanced] Each rotor individually and make them the same weight..
Originally Posted by GregW
At that price youd be dumb not to get it balanced.
I'm not trying to sling hate. I just want to illustrate that nothing is perfect, but my in-expensive setup might be just as good as "professionally balanced" setup.
If someone can give me a spec used by a professional balancer then I will be able to determine if my setup is still within "spec."
Pondering:
Lets assume that it was possible to "perfectly" balance both the rotors individually and the entire assembly. What happens when oil is injected in to the rotors to cool them? Can anyone ensure an exact oil mass-distribution?
Thanks,
Justin
#17
Banned. I got OWNED!!!
Join Date: Jun 2003
Location: Central Florida
Posts: 1,619
Likes: 0
Received 0 Likes
on
0 Posts
I have this done to my rotors except we had ours done by a computer controled lathe and such.. mine are quite simular to the ones posted earlier in the post that were done by carlos. All I can say as it does the same job as a bridge port without the shitty idle. If you have your assembly ballanced you will not regret the money spent, if you plan to run your engine into the higher rpms its a must! Anyways good luck on getting it all backtogether and running, good job takes alot of ***** to do that yourself with your own hands lol..
#20
Fabricator and builder
Join Date: Jun 2003
Location: Innisfil, Ontario
Posts: 936
Likes: 0
Received 0 Likes
on
0 Posts
I believe that balancing the assembly is a good idea, however if you keep the rpms under 8500 can't see it being a problem. As for the rotors, I don't see how taking equal amounts of material off all three sides would through it out of balance. Maybe I'm wrong, but I think it'll be great. You've got my vote.
Brent
Brent
#21
Senior Member
Thread Starter
Originally Posted by dubulup
like I've said since the beginning...balance these rotors w/ your counterweights. You won't regret it.
Should I have my window crank handle balanced? No, because due to its function it can be very far out of balance and function properly.
As I mentioned before. Nothing is "balanced." Things can be balanced to a spec. Until this spec is known, there is nothing to say your $100-300 worth of balancing means squat.
If someone has this spec then please post it.
Until then I will compare my setup to what I have observed Mazda's spec to be, which apparently allows for rotor weights to range upto ~70grams without changing the counterweights*, and the rotors weight deviation to be around 35grams.**
* Does mazda dynamicly balance each rotating assembly? What is their spec for this?
**This info was found by weighing (3) rotors (B,C and D), then comparing the weights. If someone has more than three it would be nice to get a better distribution of the weights.
So if I had two identical weight rotors and then I removed 29.XX grams (this is how much i had to remove) on one rotor then I could install it with with one uncut rotor and still be within Mazda's spec!
I removed <0.3grams more from one rotor than the other. Is this is out of spec?
Justin
#22
~!@#$%^&*()_+
Join Date: Oct 2001
Location: Mpls, MN
Posts: 461
Likes: 0
Received 0 Likes
on
0 Posts
Yes there is no such thing as perfectly balanced but you can get it very ******* close. Hows that for a spec: "VERY ******* CLOSE". You can basically get it as close as you can measure.
Its not rocket science, ANY engine shop can do it. Its also a dirt cheap mod.
As for the oil. Centrepedal force spins the oil to an even level inside the rotor.
So yeah, thats not part of the equation.
But yeah, your right, it will prolly be just fine without balancing. $150 is a cheap insurance policy though.
Why do you say impossible? Ive seen it done and will have it done in the very near future.
With a balanced and speced engine I have no problems with bouncing of 10k now and then. If I miss a shift I have peace of mind.
Why the **** did you post pics to a FORUM if your going to be such a bitch about people making suggestions to you. Especially if they have already done what your doing?
Its not rocket science, ANY engine shop can do it. Its also a dirt cheap mod.
As for the oil. Centrepedal force spins the oil to an even level inside the rotor.
So yeah, thats not part of the equation.
But yeah, your right, it will prolly be just fine without balancing. $150 is a cheap insurance policy though.
Why do you say impossible? Ive seen it done and will have it done in the very near future.
With a balanced and speced engine I have no problems with bouncing of 10k now and then. If I miss a shift I have peace of mind.
Why the **** did you post pics to a FORUM if your going to be such a bitch about people making suggestions to you. Especially if they have already done what your doing?
Originally Posted by pistonsuk
Balanced to what? There is no such thing as perfectly balanced, there must have been some spec used. I wonder what this spec is?
Also impossible. To what spec were they balanced?
My price is $0 and it might already be "balanced". With the spec defined as "any better and there would be no noticable difference or benefit".
I'm not trying to sling hate. I just want to illustrate that nothing is perfect, but my in-expensive setup might be just as good as "professionally balanced" setup.
If someone can give me a spec used by a professional balancer then I will be able to determine if my setup is still within "spec."
Pondering:
Lets assume that it was possible to "perfectly" balance both the rotors individually and the entire assembly. What happens when oil is injected in to the rotors to cool them? Can anyone ensure an exact oil mass-distribution?
Thanks,
Justin
Also impossible. To what spec were they balanced?
My price is $0 and it might already be "balanced". With the spec defined as "any better and there would be no noticable difference or benefit".
I'm not trying to sling hate. I just want to illustrate that nothing is perfect, but my in-expensive setup might be just as good as "professionally balanced" setup.
If someone can give me a spec used by a professional balancer then I will be able to determine if my setup is still within "spec."
Pondering:
Lets assume that it was possible to "perfectly" balance both the rotors individually and the entire assembly. What happens when oil is injected in to the rotors to cool them? Can anyone ensure an exact oil mass-distribution?
Thanks,
Justin
