Mounting an aeromotive FPR
I just purchased an aeromotive FPR for my Fd and i dont know were to mount it. Can anyone give me any tips on how to mount this thing. Also If there are any brackets of fittings i can pick up at homedepote please let me know. Thanks
#3
In rotor we trust!
Join Date: Aug 2004
Location: Moscow, Russia
Posts: 258
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by floman
I just purchased an aeromotive FPR for my Fd and i dont know were to mount it. Can anyone give me any tips on how to mount this thing. Also If there are any brackets of fittings i can pick up at homedepote please let me know. Thanks
I'll mount it at back of engine bay
#7
Rotary Enthusiast
I did the same thing as FD Rey did.

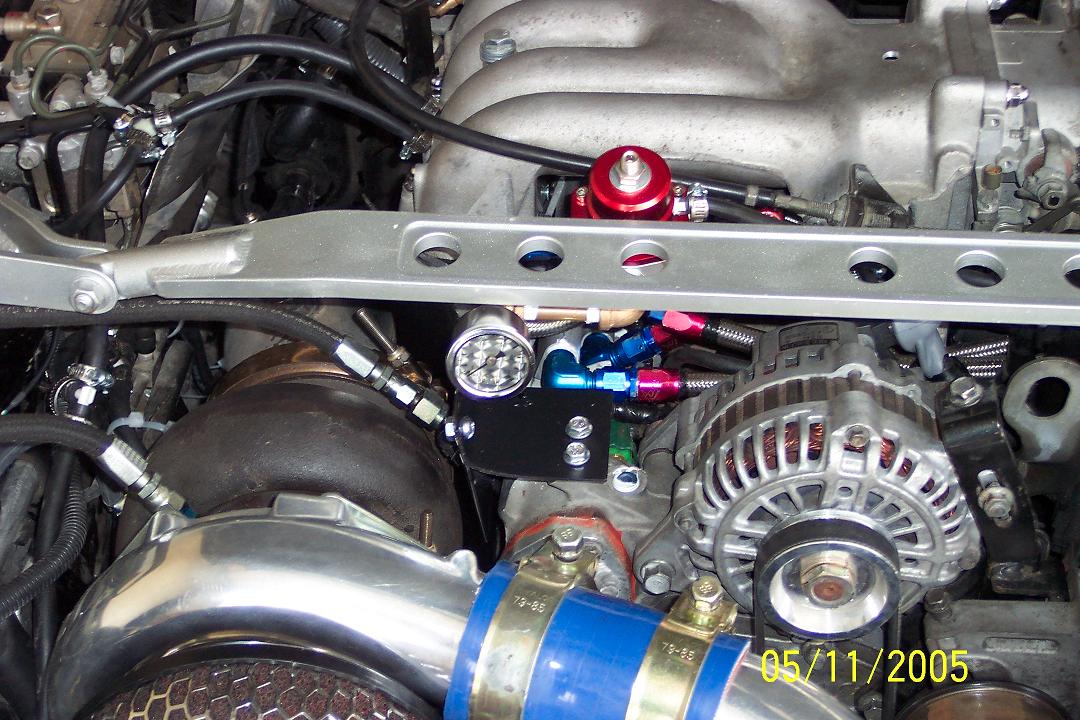

There's the small bar on the UIM in the front that can be used for mounting.
I created a small bracket, drilled and tapped that small bar and bolted the bracket to it. I then bolted up the FPR to the bracket. One trick for my setup was that there's two small screws in the back of the FPR that mounts the bracket. I drilled 2 holes in my bracket so I can get an allan wrench in to put it on.
More pictures here: https://www.rx7club.com/showthread.p...3&page=2&pp=40
There's the small bar on the UIM in the front that can be used for mounting.
I created a small bracket, drilled and tapped that small bar and bolted the bracket to it. I then bolted up the FPR to the bracket. One trick for my setup was that there's two small screws in the back of the FPR that mounts the bracket. I drilled 2 holes in my bracket so I can get an allan wrench in to put it on.
More pictures here: https://www.rx7club.com/showthread.p...3&page=2&pp=40
