Manifold fitment!
#1
fiz-e
Thread Starter
iTrader: (19)
Join Date: Nov 2008
Location: Bethpage , NY
Posts: 791
Likes: 0
Received 0 Likes
on
0 Posts
Manifold fitment!
So I am trying to find a manifold that will fit a Turbonetics T-66 on my FD. I currently have a HKS cast iron but I would need to do some modifications to make it fit and I was looking for something that would get it to fit with no mods and sit higher up than the HKS one does.
Does anyone one have any experience with this turbo and fitment? and anyone have one for sale that would fit?
Does anyone one have any experience with this turbo and fitment? and anyone have one for sale that would fit?
#3
fiz-e
Thread Starter
iTrader: (19)
Join Date: Nov 2008
Location: Bethpage , NY
Posts: 791
Likes: 0
Received 0 Likes
on
0 Posts
because the manifold is so low and the flange is so close to the block, the compressor housing hits both the LIM and the frame on the other side! seams like i would need to cut a good inch out of the frame to get it to clear! which I don't want to do.
It looks like I need a manifold that will push the turbo enough forward to get the turbo enough forward and higher to clear the frame edge and the LIM.
It looks like I need a manifold that will push the turbo enough forward to get the turbo enough forward and higher to clear the frame edge and the LIM.
#5
fiz-e
Thread Starter
iTrader: (19)
Join Date: Nov 2008
Location: Bethpage , NY
Posts: 791
Likes: 0
Received 0 Likes
on
0 Posts
Hey, your not the first one to ask me about if it was for a FC and not a FD... I bought it off a guy on the form saying it was for a FD... I guess I might have got duped!?!? I mean maybe it will fit a smaller frame turbo in there. but yeah NO way the T66 was fitting in there that low.
here is a picture of the manifold,
here is a picture of the manifold,
Trending Topics
#8
fiz-e
Thread Starter
iTrader: (19)
Join Date: Nov 2008
Location: Bethpage , NY
Posts: 791
Likes: 0
Received 0 Likes
on
0 Posts
I only snapped two photos from the front. I at no point was able to get the flange to align with the manifold... it either hits the wall or the LIM. the photos are of the turbo sitting on the manifold as close as it can get, and if you look, its at a angle because I could not get it flush in there.
#9
fiz-e
Thread Starter
iTrader: (19)
Join Date: Nov 2008
Location: Bethpage , NY
Posts: 791
Likes: 0
Received 0 Likes
on
0 Posts
and this is what it looks like fitting in ok with the new manifold! I don't know, I mean I was there with my friend and we were just shocked at how the hks fit... I know my mounts are bad and the motor maybe shifted a little bit, but it was extreme... If I end up having to take this manifold off before I finish the set up I will take more pics of the fitment and layout!
#10
Junior Member
Join Date: Jul 2010
Location: OKLAHOMA CITY
Posts: 18
Likes: 0
Received 0 Likes
on
0 Posts
I hate to admit this but i'm having the same problem with the same manifold but with a borg s366. gonna figure it out tonight. brad from rotary inspired performance is coming by to take a look at it. so we'll see! I was truly bummed
#12
fiz-e
Thread Starter
iTrader: (19)
Join Date: Nov 2008
Location: Bethpage , NY
Posts: 791
Likes: 0
Received 0 Likes
on
0 Posts
bummed is a understatement probably... I was so upset when I saw mine did not fit... I'm sure you felt the same way JDAM
Got_hp funny you mention the mounts... I have been having issues with my mounts ever since I installed then last winter. my motor was sitting about a half a inch higher than normal... which in my turbo case would have been great because it would have cleared the frame... lol... but while I had my car apart we noticed what was wrong with my mounts and I fixed it and its sitting at the right height, but that all happened before I put the turbo in. lol. wish that was my issue!
GOOD LUCK JDAM, hope it fits in!
Got_hp funny you mention the mounts... I have been having issues with my mounts ever since I installed then last winter. my motor was sitting about a half a inch higher than normal... which in my turbo case would have been great because it would have cleared the frame... lol... but while I had my car apart we noticed what was wrong with my mounts and I fixed it and its sitting at the right height, but that all happened before I put the turbo in. lol. wish that was my issue!
GOOD LUCK JDAM, hope it fits in!
#13
Junior Member
Join Date: Jul 2010
Location: OKLAHOMA CITY
Posts: 18
Likes: 0
Received 0 Likes
on
0 Posts

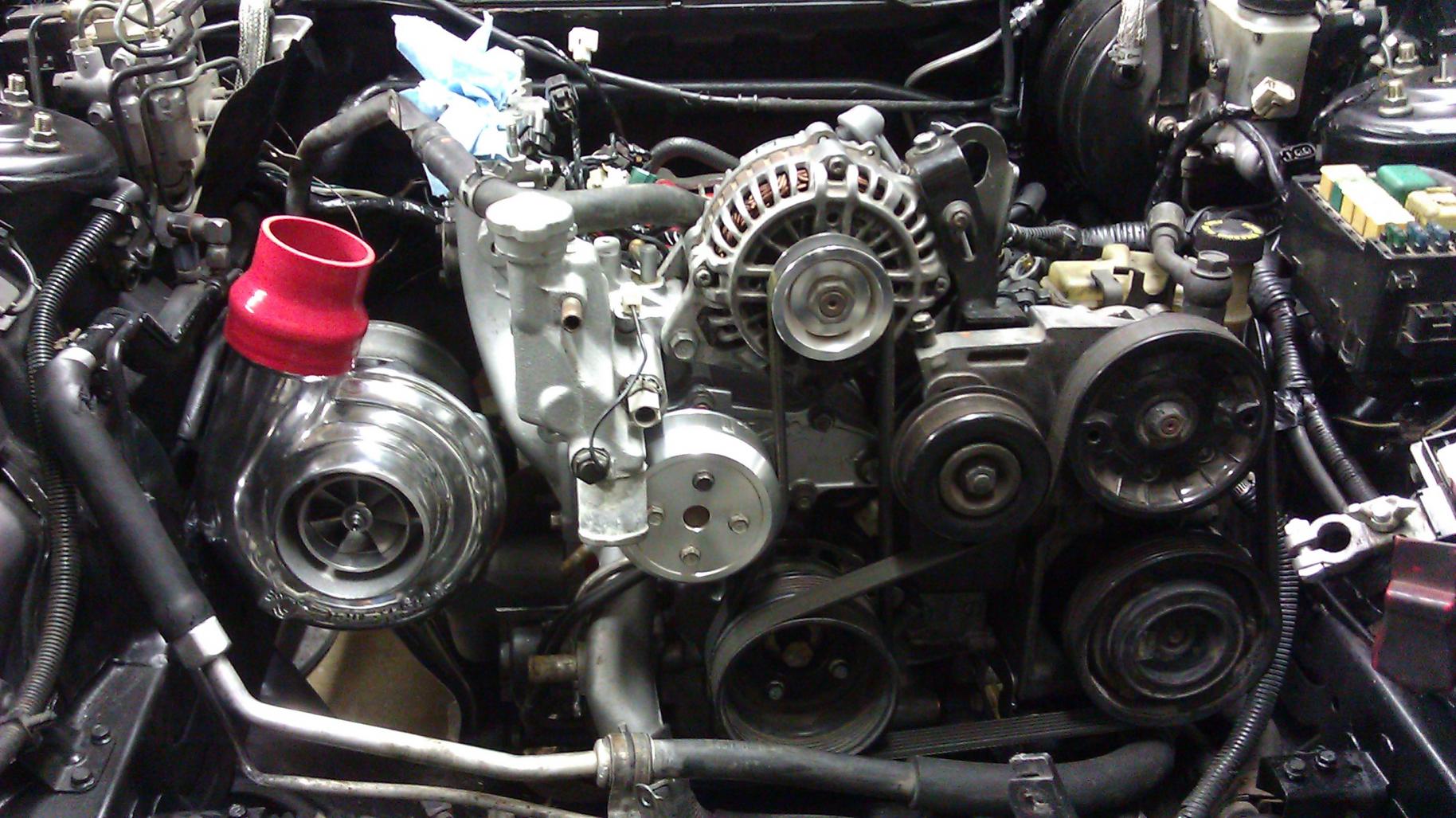

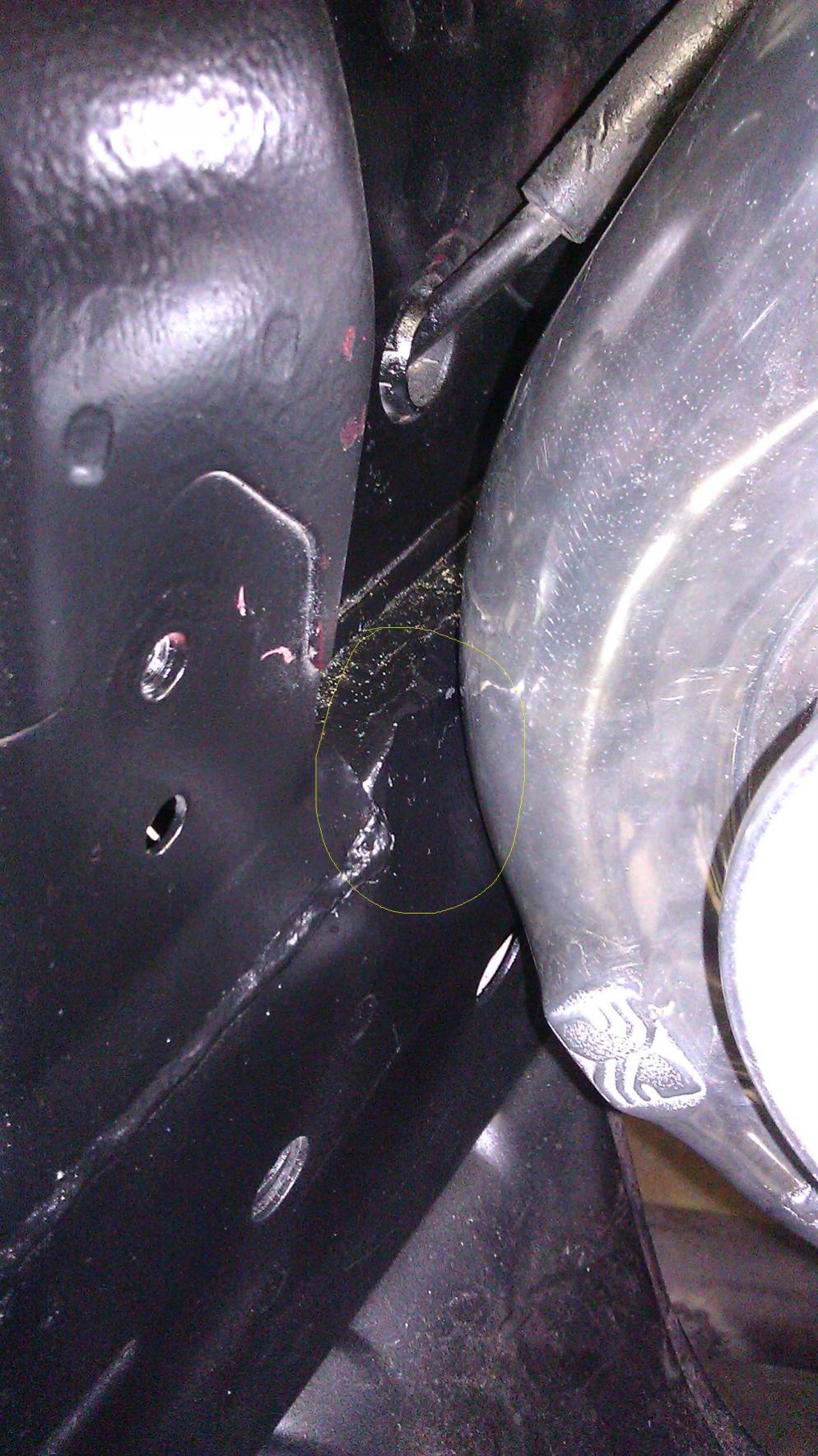

We got it to fit. motor mounts were the exact problem. I replaced them with aftermarkets which set the motor about 1/2 in. lower. we just gave the frame rail a lil lovin and the s366 fit perfect!
#15
fiz-e
Thread Starter
iTrader: (19)
Join Date: Nov 2008
Location: Bethpage , NY
Posts: 791
Likes: 0
Received 0 Likes
on
0 Posts
Glad it fit in there man! sweet! post a pic!
Yeah that's the 5pointz spot, not too far from my old place... took the photo when we had that big 5pointz meet last year!
#16
Junior Member
Join Date: Jul 2010
Location: OKLAHOMA CITY
Posts: 18
Likes: 0
Received 0 Likes
on
0 Posts
That's dope! I had one of your pics from there as my screen saver at work. do you write? I've been into graff since I was 16 and I have always wanted to visit that spot.
#17
Junior Member
Join Date: Jul 2010
Location: OKLAHOMA CITY
Posts: 18
Likes: 0
Received 0 Likes
on
0 Posts
Yours sat lower! I wish aftermarket mounts were more standard! I know they will be different... but a half inch is crazy! I mean your were lower, mine sat higher. so high I have a nice hole in my hood from the IC pipe hitting it and another piece hitting it!
Glad it fit in there man! sweet! post a pic!
Yeah that's the 5pointz spot, not too far from my old place... took the photo when we had that big 5pointz meet last year!
Glad it fit in there man! sweet! post a pic!
Yeah that's the 5pointz spot, not too far from my old place... took the photo when we had that big 5pointz meet last year!
#18
fiz-e
Thread Starter
iTrader: (19)
Join Date: Nov 2008
Location: Bethpage , NY
Posts: 791
Likes: 0
Received 0 Likes
on
0 Posts
nah I don't write, I never got too into that, I appreciate the art because I am a designer but cannot for th life of me write... even when I used to just tag up in was F'd up. haha.
#19
fiz-e
Thread Starter
iTrader: (19)
Join Date: Nov 2008
Location: Bethpage , NY
Posts: 791
Likes: 0
Received 0 Likes
on
0 Posts
thanks for sharing the pic's yeah the hammer is one of my options... and the other is to shave down the compressor housing a little, it has some meat on it so I might be able to get away with that. I am hesitant to smash the frame because then the frame will never be straight again, and the value would be lost... not that anything else on the car holds it value with all the changes. but I need to figure it out soon
#22
fiz-e
Thread Starter
iTrader: (19)
Join Date: Nov 2008
Location: Bethpage , NY
Posts: 791
Likes: 0
Received 0 Likes
on
0 Posts
yeah man it was a pain, I did not want to deal with all that problem and work around for it, went with another manifold! even now I still got a issue, but I am just going to hammer it in a little or shave the compressor housing a little.
#23
fiz-e
Thread Starter
iTrader: (19)
Join Date: Nov 2008
Location: Bethpage , NY
Posts: 791
Likes: 0
Received 0 Likes
on
0 Posts
So I found out why my t66 was not fitting in... because it was not a t66... it turns out the turbo is a t70... the guy who sold it to me said it was a t66 but I guess he did not know what he was talking about... that solves fitment issues from one perspective.
