HX35W + OBX manifold Fitment or HKS cast? On a RHD FD, Need help!
Hey guys,
So ive decided to use an HX35 turbo for my RHD FD, currently trying to find any T4 housing for it so that it can be matted up to a standard T4 manifold... Should be a housing around 1.00AR. Currently the housing is a 12cm^2 (~0.89 A/R).
What manifold do you guys reckon will work with the HX35? I dont mind modifying the manifold slightly in terms of the wastegate placement and/or the use of spacer, however I NO NOT want to have to totally rebuild it, because at that point I may as well get a custom manifold made.
I have carefully read all OBX manifold related threads, the newer ones seem to work ALRIGHT. Obviously I would much rather buy an A-spec manifold, but unfortunately the budget does not allow for a 1200$ manifold... The HKS cast would either work or not, obviously it can only be modified with spacers and such.
I just really want some good opinions on the fitment of this combo before i go ahead and buy the manifold.
Here is a comparison between the HX35 and a blown T04E I had laying around. Obviously I would take off the wastegate diaphragm and grind the housing flat.
HX35: 4" inlet, 2.5" compressor out, T3 12cm turbine (0.89 AR) housing internally wastegated with 3" out. 56mm/76mm 54 trim ( http://www.turbo-mopar.com/forums/vb...&articleid=122 )
T04E: 3" inlet, 1.75" out?, .70 AR compressor housing and .70 T4 turbine housing.

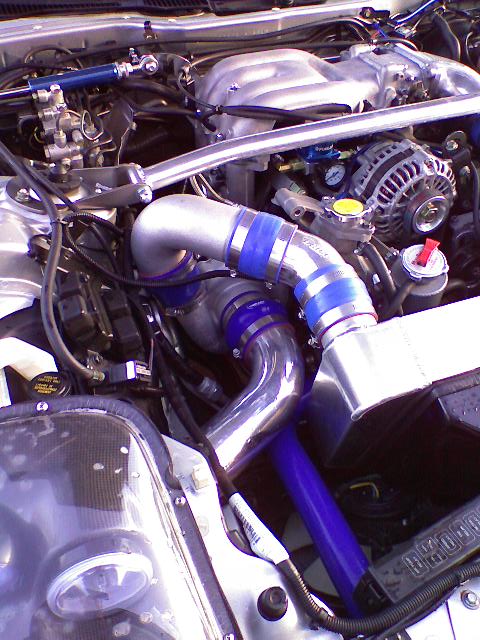

Here is a picture of a 60-1 compressor with a .84 hotside sitting on an OBX.
https://www.rx7club.com/attachment.p...0&d=1220285842
The OBX manifold sits pretty far forward, so i hope the HX35 compressor housing will clear the LIM.
http://ludeatic.com/ebay/RX7%20Turbo%20Manifold%203.jpg
Thanks a lot for any help guys,
=Ben
So ive decided to use an HX35 turbo for my RHD FD, currently trying to find any T4 housing for it so that it can be matted up to a standard T4 manifold... Should be a housing around 1.00AR. Currently the housing is a 12cm^2 (~0.89 A/R).
What manifold do you guys reckon will work with the HX35? I dont mind modifying the manifold slightly in terms of the wastegate placement and/or the use of spacer, however I NO NOT want to have to totally rebuild it, because at that point I may as well get a custom manifold made.
I have carefully read all OBX manifold related threads, the newer ones seem to work ALRIGHT. Obviously I would much rather buy an A-spec manifold, but unfortunately the budget does not allow for a 1200$ manifold... The HKS cast would either work or not, obviously it can only be modified with spacers and such.
I just really want some good opinions on the fitment of this combo before i go ahead and buy the manifold.
Here is a comparison between the HX35 and a blown T04E I had laying around. Obviously I would take off the wastegate diaphragm and grind the housing flat.
HX35: 4" inlet, 2.5" compressor out, T3 12cm turbine (0.89 AR) housing internally wastegated with 3" out. 56mm/76mm 54 trim ( http://www.turbo-mopar.com/forums/vb...&articleid=122 )
T04E: 3" inlet, 1.75" out?, .70 AR compressor housing and .70 T4 turbine housing.
Here is a picture of a 60-1 compressor with a .84 hotside sitting on an OBX.
https://www.rx7club.com/attachment.p...0&d=1220285842
The OBX manifold sits pretty far forward, so i hope the HX35 compressor housing will clear the LIM.
http://ludeatic.com/ebay/RX7%20Turbo%20Manifold%203.jpg
Thanks a lot for any help guys,
=Ben
#3
Rotary Enthusiast
Thread Starter
And, how is the fitment and with what turbo? Could you take some pictures perhaps, front, side shot and perhaps from underneath. This would be MUCH appreciated as the only picture i have is the one provided in my original post.
Thanks in advance.
=Ben
Thanks in advance.
=Ben
#4
Rotary Enthusiast
Thread Starter
Bump?
Well if no one has any information on this fitment issue, then the next question is what size of housing will I need to get ~400rwhp?
I picked up an externally wastegated 18.5cm holset housing today, I am going to get a 21cm.. Unfortunately it does not look like I will be able to get any HX35 housing in a T4... So I will have to run some sort of an adapter to properly mate the turbo to the manifold.
The engine will be dynamically balanced with a large street port from Forcefed racing, we will run the Rx7 store ultimate fuel system along with a 255lpm walbro pump with a microtech lt10 hopefully, 4" custom SS exhaust along with 3" intercooler piping to a large v mounted core.
So T3 18.5cm or T3 21cm to achieve ~400rwhp?
=Ben
Well if no one has any information on this fitment issue, then the next question is what size of housing will I need to get ~400rwhp?
I picked up an externally wastegated 18.5cm holset housing today, I am going to get a 21cm.. Unfortunately it does not look like I will be able to get any HX35 housing in a T4... So I will have to run some sort of an adapter to properly mate the turbo to the manifold.
The engine will be dynamically balanced with a large street port from Forcefed racing, we will run the Rx7 store ultimate fuel system along with a 255lpm walbro pump with a microtech lt10 hopefully, 4" custom SS exhaust along with 3" intercooler piping to a large v mounted core.
So T3 18.5cm or T3 21cm to achieve ~400rwhp?
=Ben
#5
SLEEPER
iTrader: (3)
Bump?
Well if no one has any information on this fitment issue, then the next question is what size of housing will I need to get ~400rwhp?
I picked up an externally wastegated 18.5cm holset housing today, I am going to get a 21cm.. Unfortunately it does not look like I will be able to get any HX35 housing in a T4... So I will have to run some sort of an adapter to properly mate the turbo to the manifold.
The engine will be dynamically balanced with a large street port from Forcefed racing, we will run the Rx7 store ultimate fuel system along with a 255lpm walbro pump with a microtech lt10 hopefully, 4" custom SS exhaust along with 3" intercooler piping to a large v mounted core.
So T3 18.5cm or T3 21cm to achieve ~400rwhp?
=Ben
Well if no one has any information on this fitment issue, then the next question is what size of housing will I need to get ~400rwhp?
I picked up an externally wastegated 18.5cm holset housing today, I am going to get a 21cm.. Unfortunately it does not look like I will be able to get any HX35 housing in a T4... So I will have to run some sort of an adapter to properly mate the turbo to the manifold.
The engine will be dynamically balanced with a large street port from Forcefed racing, we will run the Rx7 store ultimate fuel system along with a 255lpm walbro pump with a microtech lt10 hopefully, 4" custom SS exhaust along with 3" intercooler piping to a large v mounted core.
So T3 18.5cm or T3 21cm to achieve ~400rwhp?
=Ben
#6
Rotary Enthusiast
iTrader: (1)
Join Date: Jul 2003
Location: Prosser Washington
Posts: 1,248
Likes: 0
Received 0 Likes
on
0 Posts
Bump?
Well if no one has any information on this fitment issue, then the next question is what size of housing will I need to get ~400rwhp?
I picked up an externally wastegated 18.5cm holset housing today, I am going to get a 21cm.. Unfortunately it does not look like I will be able to get any HX35 housing in a T4... So I will have to run some sort of an adapter to properly mate the turbo to the manifold.
The engine will be dynamically balanced with a large street port from Forcefed racing, we will run the Rx7 store ultimate fuel system along with a 255lpm walbro pump with a microtech lt10 hopefully, 4" custom SS exhaust along with 3" intercooler piping to a large v mounted core.
So T3 18.5cm or T3 21cm to achieve ~400rwhp?
=Ben
Well if no one has any information on this fitment issue, then the next question is what size of housing will I need to get ~400rwhp?
I picked up an externally wastegated 18.5cm holset housing today, I am going to get a 21cm.. Unfortunately it does not look like I will be able to get any HX35 housing in a T4... So I will have to run some sort of an adapter to properly mate the turbo to the manifold.
The engine will be dynamically balanced with a large street port from Forcefed racing, we will run the Rx7 store ultimate fuel system along with a 255lpm walbro pump with a microtech lt10 hopefully, 4" custom SS exhaust along with 3" intercooler piping to a large v mounted core.
So T3 18.5cm or T3 21cm to achieve ~400rwhp?
=Ben
#7
Rotary Enthusiast
Thread Starter
I am unsure of what fuel pump setup I will need, currently doing research before I purchase a pump(s).
The H1E was the predecessor to the HX40 was it not? Do you know if the HX40 housing will work??
Thanks guys.
=Ben
