GTX35 compressor with a p-trim 1.15 turbine, what to expect?
01-31-12, 02:53 PM
#27
Junior Member
Join Date: Mar 2001
Posts: 34
Likes: 0
Received 0 Likes
on
0 Posts
Thanks
JR
01-31-12, 03:38 PM
#29
still no updates sorry
my dd blew the head gasket at 233k miles (2000 mazda protege) so I'm having it repaired and daily driving the FD for the time being.

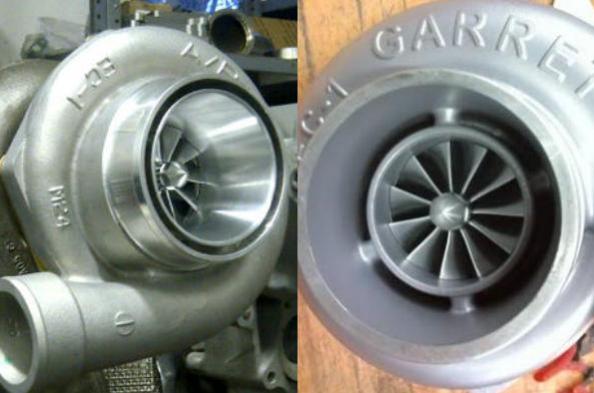

the second TDX61 pictured actually has a custom intake on the compressor cover that Turblown offers, mine has the stock compressor cover. Both are ported shroud but the custom one SHOULD have smoother intake flow due to extending the shroud. Look closely and you'll see. The compressor nuts are also custom by Turblown.
my dd blew the head gasket at 233k miles (2000 mazda protege) so I'm having it repaired and daily driving the FD for the time being.the second TDX61 pictured actually has a custom intake on the compressor cover that Turblown offers, mine has the stock compressor cover. Both are ported shroud but the custom one SHOULD have smoother intake flow due to extending the shroud. Look closely and you'll see. The compressor nuts are also custom by Turblown.
02-01-12, 10:05 AM
#31
nice turbo setup. i dont remember seeing this thread when it was started. with the ptrim wheel and 1.15 housing you should have no problem getting to 30psi. no sure if it will make it that high compressor wise. but garretts new design is good so it might. it will be close that is for sure. on my 35r cast style it ended at 22psi any more boost it would still make the same power.
as for the billets they are great setups. on 15psi you will see the same if not a little less then a normal cast 61. once you pass 20-22psi that thing will wake up. on my precision billet 6765 i made 395whp at 18-19psi and then 473whp at 22-23psi it jumped up quiet a bit after 20psi.
as for the billets they are great setups. on 15psi you will see the same if not a little less then a normal cast 61. once you pass 20-22psi that thing will wake up. on my precision billet 6765 i made 395whp at 18-19psi and then 473whp at 22-23psi it jumped up quiet a bit after 20psi.
02-21-12, 09:35 AM
#41
4th string e-armchair QB
iTrader: (11)
Join Date: May 2005
Location: North Bay, Ontario
Posts: 2,745
Likes: 0
Received 0 Likes
on
0 Posts
^The stage V turbine is smaller than the P-trim wheel (2.797 inducer, 2.437" exducer VS. P-Trim 2.921 inducer, 2.543 exducer)
Plus his compressor wheel is the newer, higher-flowing billet model from Garrett.
Plus his compressor wheel is the newer, higher-flowing billet model from Garrett.
02-22-12, 08:58 PM
#43
35r 13b first gen
iTrader: (3)
Join Date: Apr 2002
Location: Richland Center WI
Posts: 1,290
Likes: 0
Received 0 Likes
on
0 Posts
Cool.. I thought you would reply
I was just curious on the specs and all that stuff... So are they both considered 3582s? the last two digits are the diameter of the compressor exducer?? is that correct? but the x has a newer design compressor and the p trim is slightly larger turbine like stated above? If i am on the right page the stage V should spool slightly quicker but not have as much up top? please correct me where im wrong... (probably all of it). Im just still trying to get more familiar with all the nomenclature and how differences affect things.
thanks
I was just curious on the specs and all that stuff... So are they both considered 3582s? the last two digits are the diameter of the compressor exducer?? is that correct? but the x has a newer design compressor and the p trim is slightly larger turbine like stated above? If i am on the right page the stage V should spool slightly quicker but not have as much up top? please correct me where im wrong... (probably all of it). Im just still trying to get more familiar with all the nomenclature and how differences affect things.thanks
02-22-12, 09:43 PM
#44
Yes to all your questions. In a 4th gear pull on the dyno they will spool within 50 rpms of each other, but transient response is slightly better with the stageV Gt35R. StageV Gt35R is basically same wheels sizes a Garrett's GT35R. We just offer that turbo to A) be able to get a journal bearing GT35R, and B) get a true T4 turbine housing.
02-23-12, 12:45 AM
#45
Doing the Ricky Bobby
iTrader: (1)
Join Date: Jan 2008
Location: Dallas, Texas
Posts: 137
Likes: 0
Received 0 Likes
on
0 Posts
TurboBlown, Have you tested some of the smaller Borg EFR turbos? It seems like the 8374 which is a 62.6mm turbo (vs the gt35r's 62.5) seems to have a slight advantage in flow, and seems to have an edge on technology used. Reference on the two turbos compressor maps for those too lazy to look it up for themselves:
The Borg EFR 8374 compressor map:
The GTX35r compressor map:
Once I get done with my build and have a bit of time to let my wallet recover I am planning on picking up a an EFR 9180 and see what it can do. A 67mm turbo that flows 94lbs/min seems very appealing.
The Borg EFR 8374 compressor map:
The GTX35r compressor map:
Once I get done with my build and have a bit of time to let my wallet recover I am planning on picking up a an EFR 9180 and see what it can do. A 67mm turbo that flows 94lbs/min seems very appealing.
02-23-12, 10:49 AM
#46
I've been asked to in the past, but you can never get your hands on those turbos..
I have some more billet options coming in about 3 months, that will be backed up by flow maps. Wheels will also be available individually. First one will be a billet GT40 with a 68mm compressor wheel.. Should be the biggest one would ever need on the street...
I have some more billet options coming in about 3 months, that will be backed up by flow maps. Wheels will also be available individually. First one will be a billet GT40 with a 68mm compressor wheel.. Should be the biggest one would ever need on the street...
02-23-12, 12:28 PM
#47
TurboBlown, Have you tested some of the smaller Borg EFR turbos? It seems like the 8374 which is a 62.6mm turbo (vs the gt35r's 62.5) seems to have a slight advantage in flow, and seems to have an edge on technology used. Reference on the two turbos compressor maps for those too lazy to look it up for themselves:
The Borg EFR 8374 compressor map:
The GTX35r compressor map:
Once I get done with my build and have a bit of time to let my wallet recover I am planning on picking up a an EFR 9180 and see what it can do. A 67mm turbo that flows 94lbs/min seems very appealing.
The Borg EFR 8374 compressor map:
The GTX35r compressor map:
Once I get done with my build and have a bit of time to let my wallet recover I am planning on picking up a an EFR 9180 and see what it can do. A 67mm turbo that flows 94lbs/min seems very appealing.
Good luck with trying to get the 9180...I was trying to purchase that turbo, but they said I wouldn't be able to get mine until around May 1 (tentative date) of this year, this was when I tried to order in early January...I didn't have that much time to wait so I just ordered the Precision 6766 which ironically I'm still waiting on to come in since Precision is waiting for the shipment of turbines to come in.
02-23-12, 08:19 PM
#48
Doing the Ricky Bobby
iTrader: (1)
Join Date: Jan 2008
Location: Dallas, Texas
Posts: 137
Likes: 0
Received 0 Likes
on
0 Posts
Good luck with trying to get the 9180...I was trying to purchase that turbo, but they said I wouldn't be able to get mine until around May 1 (tentative date) of this year, this was when I tried to order in early January...I didn't have that much time to wait so I just ordered the Precision 6766 which ironically I'm still waiting on to come in since Precision is waiting for the shipment of turbines to come in.
