GT-K series turbonetics turbo
04-25-07, 11:31 PM
#2
Originally Posted by rx7__newbie
Any ideas guys... debating GT42r against that one...
Turbonetics has finally joined the present decade by offering the GTK turbos. The turbine wheels are very familar to the S-trim/GT42 turbine wheel.
They do have an interesting twist to the anti surge design though.
Last edited by crispeed; 04-25-07 at 11:57 PM.
04-26-07, 07:36 AM
#6
Please somebody help!!!
iTrader: (1)
Join Date: Sep 2005
Location: Woodridge, IL
Posts: 1,442
Likes: 0
Received 0 Likes
on
0 Posts
I've created at least one or two threads on the GT-K's trying to figure out if they lived up to the hype. *no-one* has dyno comparos for these things and I don't expect turbonetics to release flow maps any time soon.
Any word from distributors?
Any word from distributors?
04-26-07, 07:39 AM
#7
Originally Posted by NissanConvert
I've created at least one or two threads on the GT-K's trying to figure out if they lived up to the hype. *no-one* has dyno comparos for these things and I don't expect turbonetics to release flow maps any time soon.
Any word from distributors?
Any word from distributors?
i think they just started shipping....mine will be here in a month
Trending Topics
04-26-07, 08:14 AM
#11
Full Member
Join Date: Mar 2007
Location: usa
Posts: 134
Likes: 0
Received 0 Likes
on
0 Posts
The GTK uses a smaller turbine wheel then the GT42's. The compressor wheel though is virtually indentical in design. The GTK though is more compact in size and will make 1000crank hp, where the GT4276 will make 1150-1200hp.
04-27-07, 01:29 PM
#17
Senior Member
Join Date: Oct 2005
Location: Kirkland, WA
Posts: 324
Likes: 0
Received 0 Likes
on
0 Posts

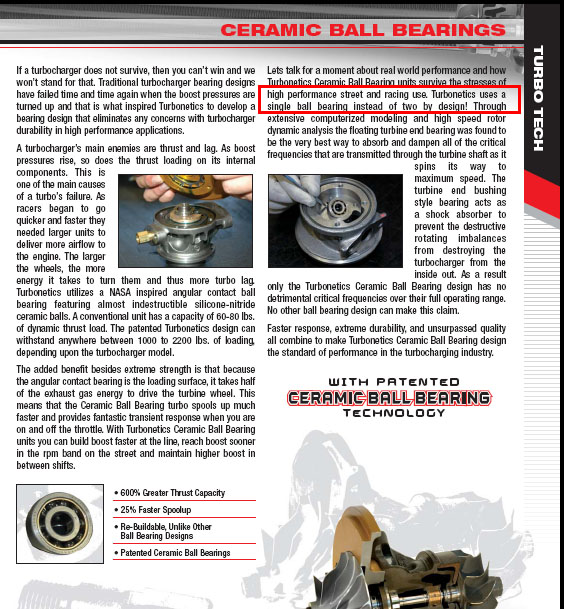

maybe this is an obvious question, but whats wrong with single ball bearing vs. dual ball bearing? Does it make that big of a difference? Seems like single might be more robust where dual has a bit less friction?
05-08-07, 09:41 PM
#18
Please somebody help!!!
iTrader: (1)
Join Date: Sep 2005
Location: Woodridge, IL
Posts: 1,442
Likes: 0
Received 0 Likes
on
0 Posts
I've been talking with Robert over on the turbonetics owners club forums. The only GTK's with rotary friendly a/r's are the 800 & 1000.
I'll call and ask if they can Frankenstein the compressors & turbines for a more useful turbo for our unique engines. I figure if they can retrofit old turbos with new ball bearing CHRAs they should be able to do this...
I'll call and ask if they can Frankenstein the compressors & turbines for a more useful turbo for our unique engines. I figure if they can retrofit old turbos with new ball bearing CHRAs they should be able to do this...
05-09-07, 07:39 AM
#22
05-09-07, 07:45 AM
#23
they havent released them yet. only certain dealers have access to the turbos right now. june 1st they will be available to the general public through turbonetics.
i am not opposed to measuring. the only thing they had was a .96 but he said he would swap that out for me when he gets some. i just needed it to make the manifold.
05-09-07, 10:28 AM
#25
Please somebody help!!!
iTrader: (1)
Join Date: Sep 2005
Location: Woodridge, IL
Posts: 1,442
Likes: 0
Received 0 Likes
on
0 Posts
It's a shame i can't edit, would have saved space. Anywho:
The F1 P trim is a T4 turbine with a F1 65 trim turbine, they used to call it an F1 P trim turbine wheel.
The standard T4 P trim has a 2.542" exducer and a 2.920" major diameter. The F1 wheels have a taller tip height and are all 10 blade turbine wheels.
He's digging deeper to see if they've "released" any other data.
The F1 P trim is a T4 turbine with a F1 65 trim turbine, they used to call it an F1 P trim turbine wheel.
The standard T4 P trim has a 2.542" exducer and a 2.920" major diameter. The F1 wheels have a taller tip height and are all 10 blade turbine wheels.
He's digging deeper to see if they've "released" any other data.
