I did some low boost testing to compare differential fuel flow at 1bar between the old bosch 044 and new Walbro 450.

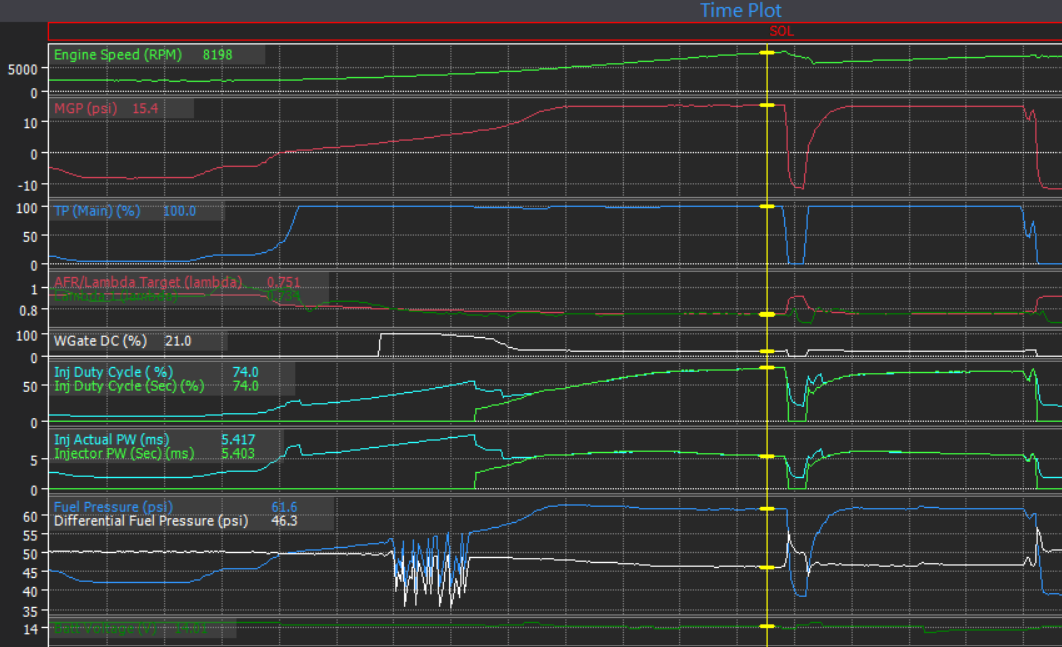

Bosch 044 - This run started off base fuel pressure with the bosch 044 at 50psi dropping to 46.8psi on the top of 3rd stabilizing to 47psi for the rest of 4th gear. 100-200 was completed in 7.81s,

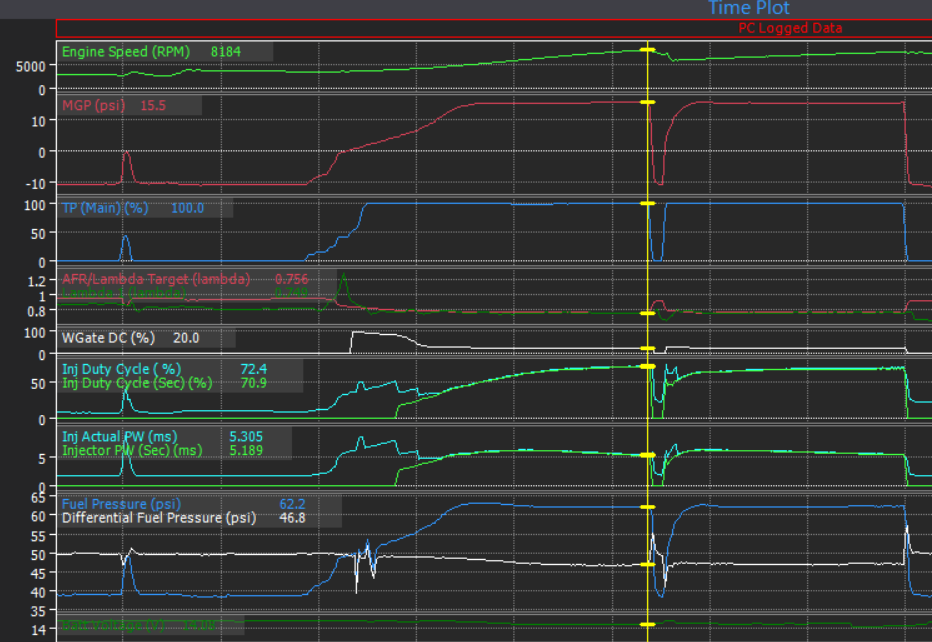

The walbro 450 started the run with 50psi and shows a similar differential fuel pressure drop. Its not the end of the world as there could be some parasitic loss but i was hoping the walbro being more modern and powerful pump could have pushed through it and held a stable 50psi diff fp. The 100-200 was completed in 7.62 so no performance loss and within 0.2s of the previous pump at this level on a very safe and conservative tune.
On paper the walbro 450 is meant to flow more at 50psi base + 15.5 boost = approx 65psi. An approx 23% increase in fuel flow....yet in reality the logs confirm its no better than the older 044. It's truly very strange, perhaps a single walbro 450 is not better than the old school 044.

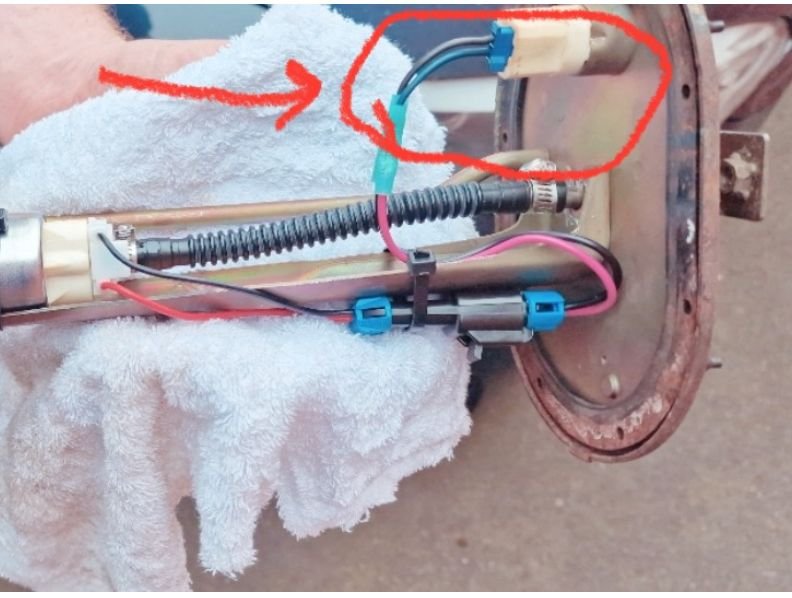

Careful with this bulkhead connector.
When you run bigger pumps that connector will melt and short out.
The stock FD wiring cannot support the draw from bigger pumps.
I changed mine out to a ATL bulkhead and fuel safe wiring.
Careful with this bulkhead connector.
When you run bigger pumps that connector will melt and short out.
The stock FD wiring cannot support the draw from bigger pumps.
I changed mine out to a ATL bulkhead and fuel safe wiring.
Steve
Hey thanks for the heads up, will have to do the same thing eventually.
You definitely need wiring to support higher demand, it will turn the pump harder with higher actual voltage at the pump. More injector and lower base pressure will net more total flow from the same pump too.
That is data for the AEM knock-off of the Bosch '044 pump.
Back when Bosch still made genuine '044 I saw data from comparisons where the real '044s outflowed the knock-offs at high pressures.
Bosch now sells the higher flowing (0-580-464-200) fuel pump to replace the '044 (0 580 254 044)
Ahh that would be the most sensible conclusion as the low boost data suggests the bosch 044 seems to flow similar to the walbro 450. Strange that knock offs would be used in a fuel flow test. I may try one high boost hit and see if the differential fuel pressure does the same as the bosch or holds more stable. Looking at the low boost data it doesnt look promising.
You definitely need wiring to support higher demand, it will turn the pump harder with higher actual voltage at the pump. More injector and lower base pressure will net more total flow from the same pump too.
That's def a good shout.
Currently, I'm running AN6 lines throughout. I've integrated two inline filters, which I plan to disassemble and clean to assess any impact.
One consideration is the lack of 10 AWG wiring within the submersible section of the fuel hanger causing a voltage drop. Although I've ensured 10 AWG wiring from the battery to the fuel hanger, there's a possibility that the internal electrical connector might not handle the full electrical load as mentioned by Steve in the previous post. I've ordered the bulkhead to ensure 10awg wire goes into the submersible part of the pump to address this issue.
Another potential factor is the accuracy of the fuel flow data I acquired for the Bosch 044 fuel pump from the above link and as stated by blue tii.

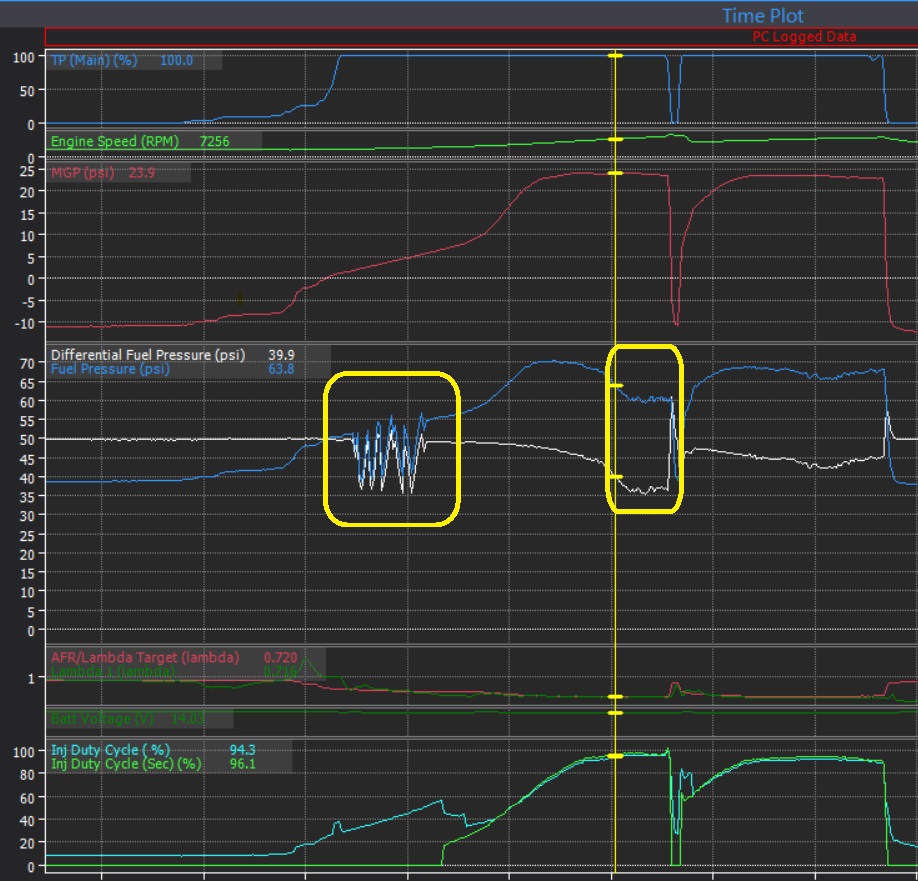

here's a sample of my diff fuel pressure. variance about 2 tenths of a pound, logged around 30 hz. one 285 pump. 33% E. in a later dyno at 77% E my diff FP dropped to 19. i have since added another (274) pump and a 320 amp alternator as voltage had dropped to 13.9. this is w the Radium sump setup and a 267 lift pump. agree w Speed of Light and Slides as to the "why".
Thanks guys, running the standard oem damper from the primary line, clearly not good enough.
Nice one Howard, that looks way better. Which turbo are you running on this setup?
I upgraded to the link g4x today and ive run into some teething issues with the ecu transfer, the fuel and oil pressure calibrations dont seem to be playing ball with the g4x and the live logging parameters seem to not record anything.
Also got some interesting data about fuel injection timing confirmed by Adam at link for the link ecu platforms.

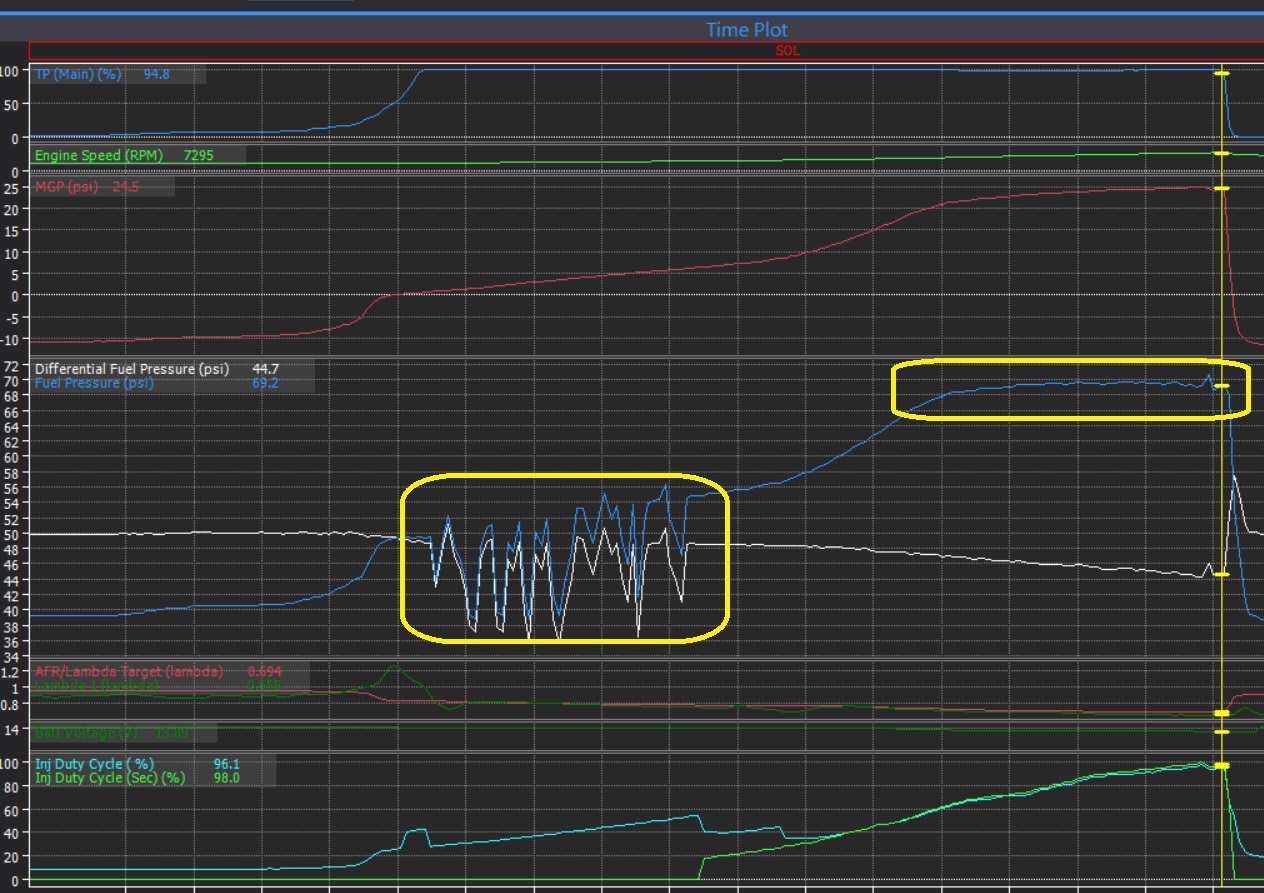

That much oscillation would show in your lambda curve (And it seemingly does not). I would be more suspicious of the wiring of the sensor rather than a "pulsation" issue.
I would be curious to see what a fuel pump relay would do if anything. Agree with other statements that the stock wiring is inadequate. Since your battery is next to the fuel pump, maybe try a relay to see if it changes anything.
This does not fix the stock bulkhead issue, but will make sure that your pumps are in fact getting the correct voltage. Wondering is the similar performance in the 044 and 450 is simply due to the aging wiring.

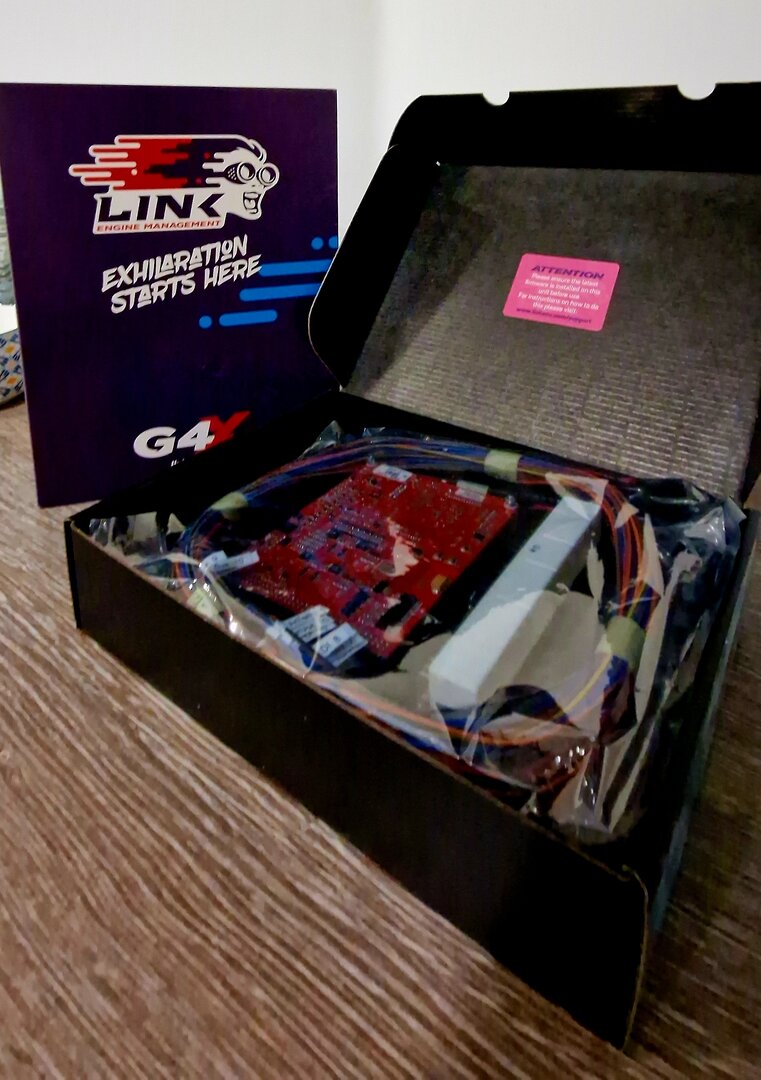

Completely forgot about this! I bought this back in September 2023 and just stumbled upon it in storage. It was time to dig it out and finally get it loaded in the car.
The Old Faithful Link G4+ (EPIC ECU) boxed up in its new oem case ready to be shipped out to its new owner. It's an epic modern ECU that got me knocking on the door of 5-second 100-200 times. It would push even harder if my fuel system wasn't holding it back.

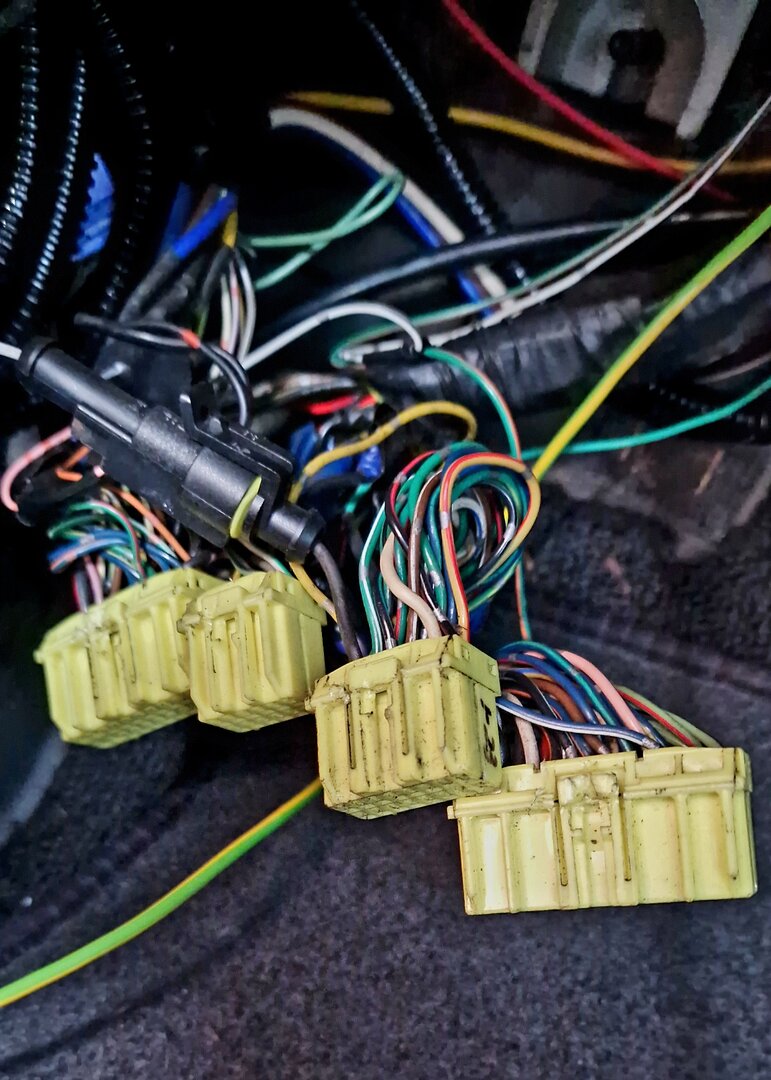

Alright, all you garage queens and wiring wizards with a touch of the OCD, look away! I'm still rocking the stock ECU harness on this bad boy with all the battle scars. It's 32 years old, a tangled mess of wires held together by hope and zip ties, but damn it gets the job done. This thing pulled me into the 5-second club for the 100-200 and fires up every time I grab the keys and unleash the fury of the FD. Don't need fancy, new-age stuff when the old relic does the trick!
Hold my beer! Just shoved a brand new Link G4X ECU into the crusty old case of my 32-year-old OEM ECU. It may look like a junkyard find, but inside it's rocking the latest tech. Talk about sleeper engine management, nothing to see here Mr Officer, its just a stock ECU.
I got most of the sensors dialed in nice and easy. But for the love of all things boost, the oil and fuel pressure sensors were being total gremlins. Calibrated them a million times, checked every setting, but no dice. Decided to take a closer look, and wouldn't you know it, the culprit showed its face right away. Turns out a signal wire must have gotten pinched or something during the swap, because it popped right out of its crimp. At least its a simple fix.
Here's the battle plan to crank up to 2bar ~29psi on pump fuel and wmi.
Gotta fix that busted G4X expansion loom. Contacted a local motorsport wiring shop and hoping they can whip up a new one. No dodgy wires holding me back this time and hopefully clean up the data from the sensors.
Order a radium 4-port secondary fuel rail to throw in 2 additional 1500cc injectors. Should slash my injector duty cycle from a scary 95% down to a much safer 70%, giving me the headroom I need.
Ditching the tired fuel pump wiring - it's time for a modern upgrade. Hoping the local motorsport wiring shop can fit me in sooner rather than later.
Once everything's dialed in, time to crank it up to 2 bar and see how it blasts through the 100-200. That's the real test!
But that's not all folks, got two more mods waiting in the wings to see if 2 bar can do even better.

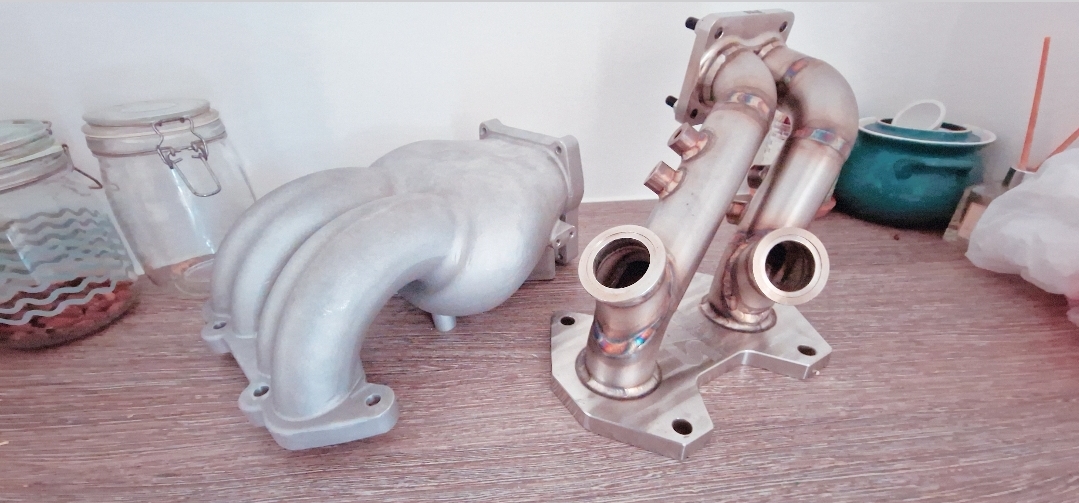

These are the final boss mods (if you know, you know). Soon it will be time to see if the below mods can do better than the stock upper intake manifold and the old-school HKS cast iron manifold? Are they all hype (dyno queens) with no bark? or all the hype with the 100-200 to back it up? I dont know but will find out... if all goes well. Pray for me!
Sas Autoworks, fabricator from the UK. The only downside is he holds no stock and orders can take a while to complete. I had to wait about 5 months from order date to manifold being delivered.
