Full-race turbo kit
Hey guys I have a full-race turbo kit for my FD. It consists of a Borg Warner S400SX (76mm), Full-Race T4 twinscroll manifold and twin Tial 44mm mvr wastegates. I'm just seeing if anyone else has this set up, and to see if so what size steel braided lines you use and fittings as well. I also would like to have some help on the an fittings as well.
RX-713B is offline
Reply Like
Old 08-23-13, 08:32 AM
  #2
Rotating Performance.

iTrader: (42)

cr7684's Avatar

Join Date: Jul 2005
Location: Miami, FL.
Posts: 1,820
Likes: 0
Received 0 Likes on 0 Posts
-4 feed and -10 return is what I am using.
cr7684 is offline
Reply Like
Old 08-23-13, 01:36 PM
  #3
Full Member
Thread Starter
iTrader: (2)

RX-713B's Avatar

Join Date: Nov 2012
Location: Colorado
Posts: 102
Likes: 0
Received 0 Likes on 0 Posts
Do you use steel briaded boost lines and do they hold up?
RX-713B is offline
Reply Like
Old 08-23-13, 02:32 PM
  #4
BadAss DoItYourselfer

iTrader: (9)

jetlude's Avatar

Join Date: Jun 2008
Location: Paradise
Posts: 869
Received 3 Likes on 2 Posts
Any pics?
jetlude is offline
Reply Like
Old 08-23-13, 04:04 PM
  #5
Full Member
Thread Starter
iTrader: (2)

RX-713B's Avatar

Join Date: Nov 2012
Location: Colorado
Posts: 102
Likes: 0
Received 0 Likes on 0 Posts

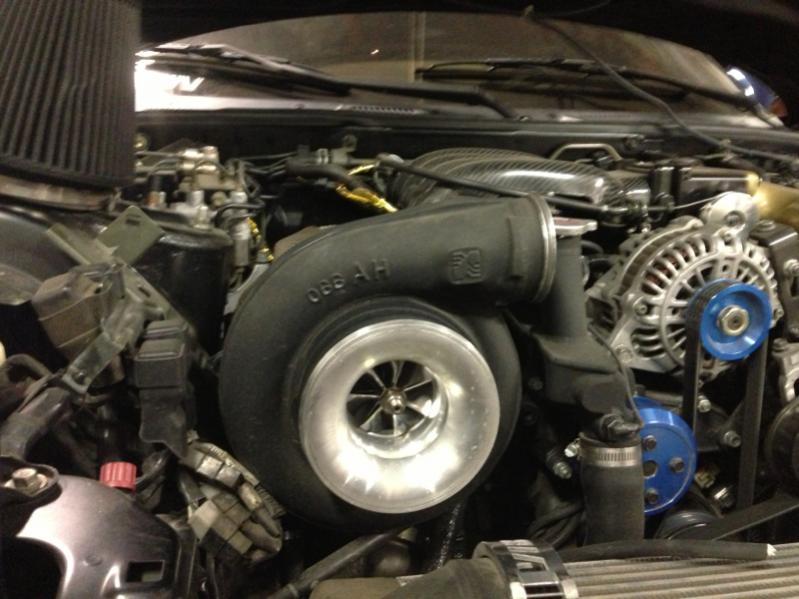

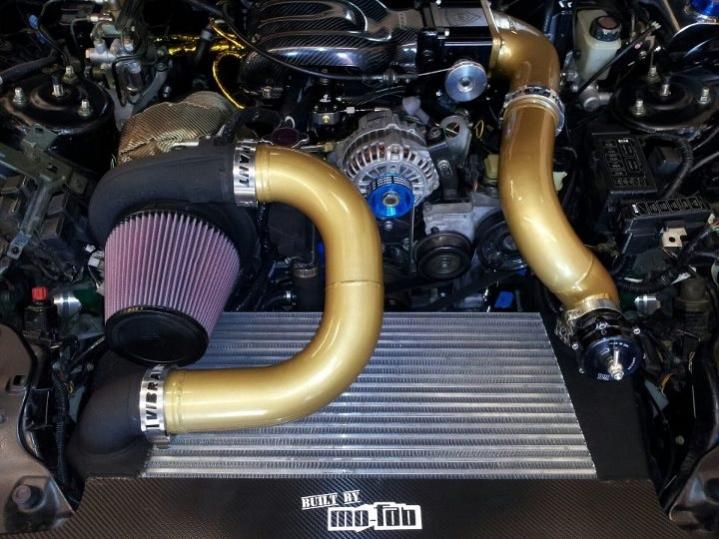

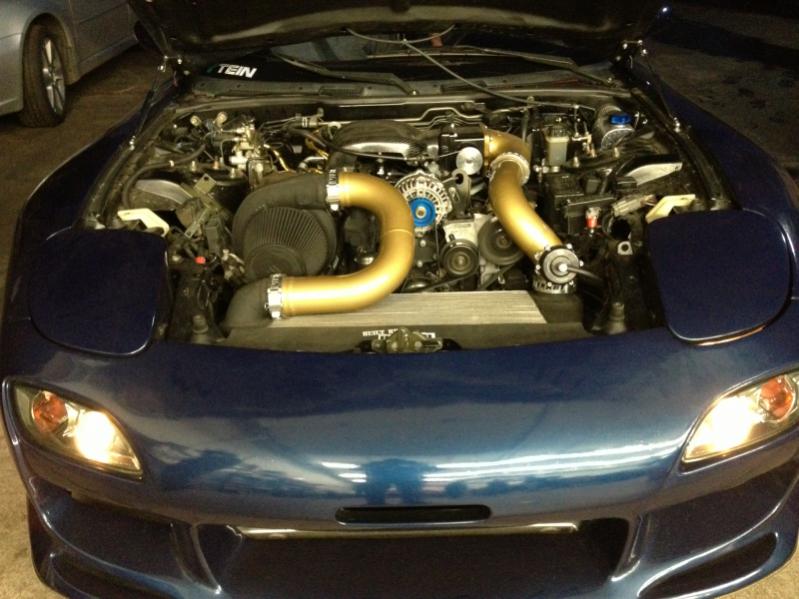

I don't have any from underneath but it's all tucked underneath. The lines are pretty damn close to the manifold.
Attached Thumbnails Full-race turbo kit-image-2821538001.jpg   Full-race turbo kit-image-461155006.jpg   Full-race turbo kit-image-4153819138.jpg
RX-713B is offline
Reply Like
Old 08-23-13, 04:07 PM
  #6
Full Member
Thread Starter
iTrader: (2)

RX-713B's Avatar

Join Date: Nov 2012
Location: Colorado
Posts: 102
Likes: 0
Received 0 Likes on 0 Posts

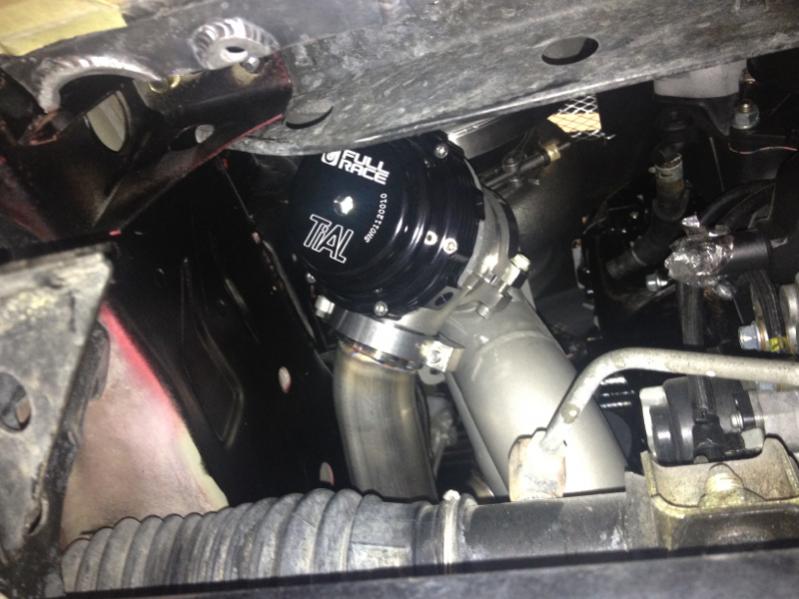

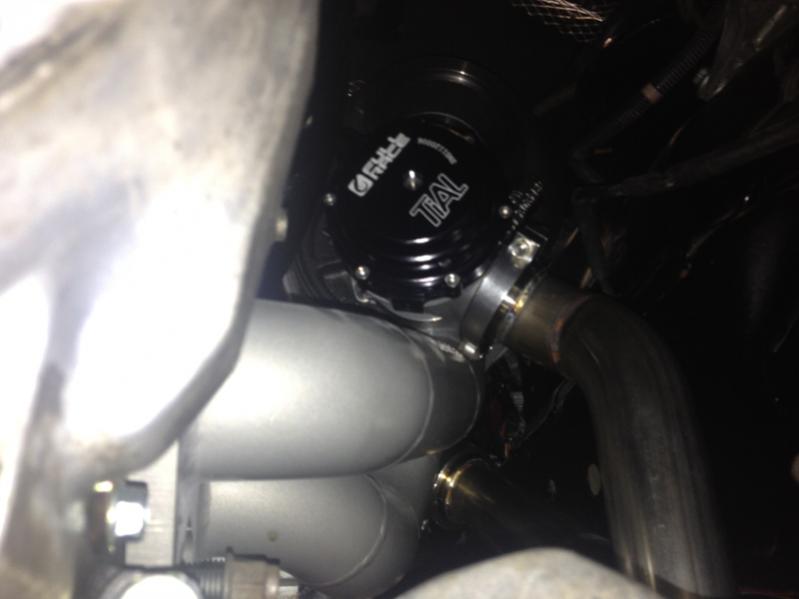

Best I have to show the wg's
Attached Thumbnails Full-race turbo kit-image-3440339699.jpg   Full-race turbo kit-image-3734869659.jpg
RX-713B is offline
Reply Like
Old 08-23-13, 05:05 PM
  #7
FD Project

iTrader: (58)

BLACK MAMBA's Avatar

Join Date: Apr 2009
Location: Palm Beach, FL
Posts: 2,376
Received 4 Likes on 4 Posts
3AN feed and 10 AN drain, I'm running hard lines on Wastegates because heat was melting the silicone and burning thru the braided ones.
BLACK MAMBA is offline
Reply Like

Trending Topics

Old 08-23-13, 05:06 PM
  #8
Full Member
Thread Starter
iTrader: (2)

RX-713B's Avatar

Join Date: Nov 2012
Location: Colorado
Posts: 102
Likes: 0
Received 0 Likes on 0 Posts
They're daisy chained too I forgot
RX-713B is offline
Reply Like
Old 08-24-13, 12:58 AM
  #9
Full Member
Thread Starter
iTrader: (2)

RX-713B's Avatar

Join Date: Nov 2012
Location: Colorado
Posts: 102
Likes: 0
Received 0 Likes on 0 Posts
Ya the hard lines I was thinking about doing now that you have if encourages me better.. Thanks man
RX-713B is offline
Reply Like
Old 08-24-13, 12:59 AM
  #10
Full Member
Thread Starter
iTrader: (2)

RX-713B's Avatar

Join Date: Nov 2012
Location: Colorado
Posts: 102
Likes: 0
Received 0 Likes on 0 Posts
What are the an fitting and steel braided line for if the they're not for the wastegates? Coolant hooked up to the wastegates?
RX-713B is offline
Reply Like
Old 08-24-13, 10:15 AM
  #11
FD Project

iTrader: (58)

BLACK MAMBA's Avatar

Join Date: Apr 2009
Location: Palm Beach, FL
Posts: 2,376
Received 4 Likes on 4 Posts
Drain and feed im running braided
BLACK MAMBA is offline
Reply Like
Old 08-24-13, 10:43 AM
  #12
Full Member
Thread Starter
iTrader: (2)

RX-713B's Avatar

Join Date: Nov 2012
Location: Colorado
Posts: 102
Likes: 0
Received 0 Likes on 0 Posts
Did you have the hard lines custom made?
RX-713B is offline
Reply Like
Old 08-24-13, 09:49 PM
  #13
FD Project

iTrader: (58)

BLACK MAMBA's Avatar

Join Date: Apr 2009
Location: Palm Beach, FL
Posts: 2,376
Received 4 Likes on 4 Posts
Had a local shop made them out of brake lines.
BLACK MAMBA is offline
Reply Like
Old 08-24-13, 10:42 PM
  #14
Full Member
Thread Starter
iTrader: (2)

RX-713B's Avatar

Join Date: Nov 2012
Location: Colorado
Posts: 102
Likes: 0
Received 0 Likes on 0 Posts
What wastegates you have?
RX-713B is offline
Reply Like
Old 08-25-13, 06:23 AM
  #15
FD Project

iTrader: (58)

BLACK MAMBA's Avatar

Join Date: Apr 2009
Location: Palm Beach, FL
Posts: 2,376
Received 4 Likes on 4 Posts
38mm Tial MVR
BLACK MAMBA is offline
Reply Like
Old 08-25-13, 10:44 AM
  #16
Too Many Projects

iTrader: (10)

0110-M-P's Avatar

Join Date: Feb 2003
Location: Atlanta, GA
Posts: 1,410
Likes: 0
Received 2 Likes on 2 Posts
Originally Posted by FC3S1991
38mm Tial MVR
There is no such wastegate...its either a 38mm MV-S or 44mm MV-R.

My Full-Race manifold has flanges for the 44mm Tial or 45mm Turbosmart wastegates.
0110-M-P is offline
Reply Like
Old 08-25-13, 04:46 PM
  #17
FD Project

iTrader: (58)

BLACK MAMBA's Avatar

Join Date: Apr 2009
Location: Palm Beach, FL
Posts: 2,376
Received 4 Likes on 4 Posts
Originally Posted by 0110-M-P
There is no such wastegate...its either a 38mm MV-S or 44mm MV-R.

My Full-Race manifold has flanges for the 44mm Tial or 45mm Turbosmart wastegates.
Thank you for the correction, I really dont pay attention to stupid **** like that, so MVS it is.
BLACK MAMBA is offline
Reply Like
Old 08-26-13, 08:50 AM
  #18
Rotary Enthusiast

iTrader: (26)

Sandrock's Avatar

Join Date: Mar 2009
Location: Clayton NC
Posts: 1,071
Received 0 Likes on 0 Posts
Im pretty sure full race is Dual Tial MV-S 38mm.
Sandrock is offline
Reply Like
Old 08-26-13, 02:10 PM
  #19
Too Many Projects

iTrader: (10)

0110-M-P's Avatar

Join Date: Feb 2003
Location: Atlanta, GA
Posts: 1,410
Likes: 0
Received 2 Likes on 2 Posts
Originally Posted by Sandrock
Im pretty sure full race is Dual Tial MV-S 38mm.
They may have been dual 38mm in the past, but currently they are dual 44mm.
0110-M-P is offline
Reply Like
Old 08-27-13, 01:59 AM
  #20
Full Member
Thread Starter
iTrader: (2)

RX-713B's Avatar

Join Date: Nov 2012
Location: Colorado
Posts: 102
Likes: 0
Received 0 Likes on 0 Posts
Ya mine are 44's
