dynoed 427whp with the gt35r...
11-04-06, 04:51 PM
#1
dynoed 427whp with the gt35r...

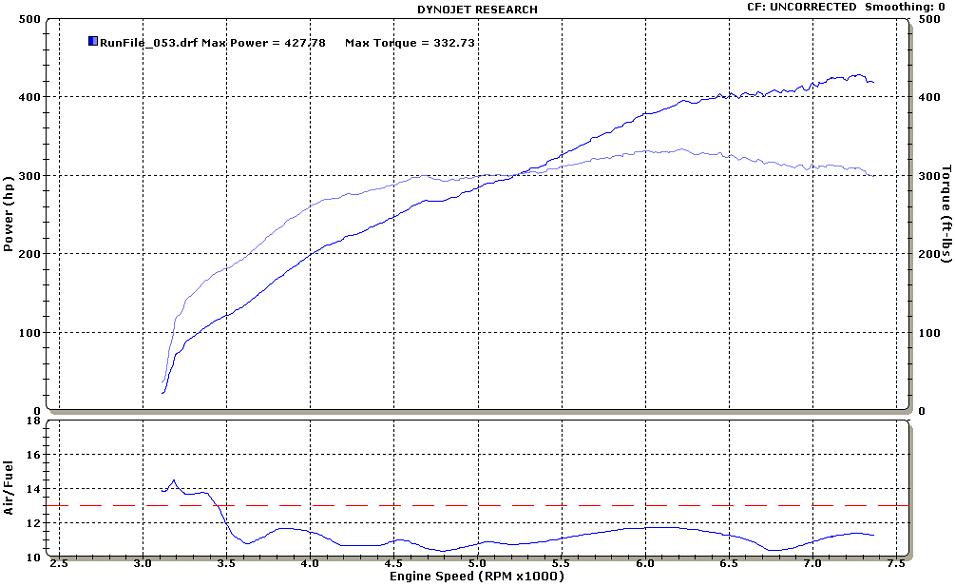

got my fuel system finally working properly, and got a chance to put it on the dyno today. put down 427whp at 1.06 bar (15.4 psi). i was pretty impressed with the numbers, knock didnt got over 30. shell 93 pump gas was used. finished off at 425whp, cleaned up the afr's some more. here are the sheets.
Trending Topics
11-04-06, 10:40 PM
#9
no its a t3 1.06 a/r, short runner, open wastegate. the power came from the port work. it was done by lowe's performance in sarasota,fl. i dont think he is well known but he does great work. car idles great too. injector dutys were at 83%.
11-04-06, 11:13 PM
#10
lowes knows here stuff I was told awhile back. My dad bought a T-II off him 4-5 years ago. Also there is a local guy here in Huntsville , AL. "Van Cleef Racing" mostly Supras, but he uses Mike Lowe for any rotary rebuilds. Great numbers for pump and even better numbers than I woulkd have thought possible with a T3 and the short runners!! WOW!
11-05-06, 09:45 AM
#15
600+rwhp club member
My friend Matt put down 410rwhp at 14.7psi on 93 octane with a long runner manifold and T3 35R with 1.06 hotside.
Nice numbers smg944. And very nice cars too.
Nice numbers smg944. And very nice cars too.
11-05-06, 10:06 AM
#16
Nearing Completion...
iTrader: (473)
Join Date: Aug 2006
Location: Chicago
Posts: 4,735
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by mr2foryou
My friend Matt put down 410rwhp at 14.7psi on 93 octane with a long runner manifold and T3 35R with 1.06 hotside.
Nice numbers smg944. And very nice cars too.
Nice numbers smg944. And very nice cars too.
Back to topic: Those are great numbers. I really wouldn't have expected those from a T3 and especially on pump. Nice Job!!!
11-05-06, 11:33 AM
#17
boxed in and drawn out
Join Date: Dec 2003
Location: Bayouself
Posts: 555
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by smg944
got my fuel system finally working properly, and got a chance to put it on the dyno today. put down 427whp at 1.06 bar (15.4 psi). i was pretty impressed with the numbers, knock didnt got over 30. shell 93 pump gas was used. finished off at 425whp, cleaned up the afr's some more. here are the sheets.
now send me your IGL map!
11-05-06, 11:43 AM
#18
Speed Mach Go Go Go
iTrader: (2)
Join Date: Oct 2001
Location: My 350Z Roadster kicks my RX7's butt
Posts: 4,772
Likes: 0
Received 2 Likes
on
2 Posts
That's very impressive without the T4 and 500R wheel! I wonder how much of a difference 93oct 15.4lbs is compared to 91oct at 15lbs? Any pics or idea of how large the exteneded race ports are? Was it a Judge Ito template or his own port work?
11-05-06, 03:23 PM
#19
i have pics of the ports. its tough to tell by the pics. the secret is a full port. not just opening the face hole. my port was all the way through. from where the intake manifold connects to the rotor opening. i had him port it and i built the motor myself with mazda 2mm seals.
btw here are some vids if anyone would like to see. they are on the top of the page. also the vids are 3rd gear which i was doing most of the tuning. the highest hp and final dynos were in 4th gear.
http://www.dropshots.com/smg944
btw here are some vids if anyone would like to see. they are on the top of the page. also the vids are 3rd gear which i was doing most of the tuning. the highest hp and final dynos were in 4th gear.
http://www.dropshots.com/smg944
Last edited by smg944; 11-05-06 at 03:49 PM.
11-05-06, 05:48 PM
#21
Guys those are good numbers for a ported 35R T3 setup, the T4's are getting roughly 10-12 hp more on average with better response. It just shows that when setup correctly you will see good results, and a lot can play into that.
Credit to the builder!
-S-
Credit to the builder!-S-
11-05-06, 10:18 PM
#23
thanks to all the responces...
the ambient temp was 76*f with 5% humidity. it was actually 50* outside, but the dyno room is small so it heats up some. i was seeing 39-41c air temps. the dyno was located in MA, cd performance, he said steve kan had gone there a few years back to tune some rx7s.
the ambient temp was 76*f with 5% humidity. it was actually 50* outside, but the dyno room is small so it heats up some. i was seeing 39-41c air temps. the dyno was located in MA, cd performance, he said steve kan had gone there a few years back to tune some rx7s.
