dual walbro fuel pumps
#1
Senior Member
Thread Starter
Join Date: Mar 2004
Location: ava mo
Posts: 517
Likes: 0
Received 0 Likes
on
0 Posts
dual walbro fuel pumps
I have been searching for the picture of the 2 walbro fuel pumps banded together. I cant seem to find it. If someone would post it on here I would be much obliged
#3
Senior Member
Join Date: Jan 2004
Location: Colorado
Posts: 341
Likes: 0
Received 0 Likes
on
0 Posts
https://www.rx7club.com/forum/showthread.php?t=152421
There is a oicture inthere somewhere, not sure if it was two walbros.
I am interested in how the pumps are wired. Anyone has info on that?
Thanks
CW
There is a oicture inthere somewhere, not sure if it was two walbros.
I am interested in how the pumps are wired. Anyone has info on that?
Thanks
CW
#5
#7
Freedoms worth a buck o'5
Join Date: May 2001
Location: Calgary Alberta Canada
Posts: 2,544
Likes: 0
Received 1 Like
on
1 Post
How were you going to run these? I am running 2 staged at the moment via the haltech e6k, I tried running them both at the same time, but my Fuel pressure reg(mallory) loses control of the fuel pressure with so much fuel and won't drop below 40 psi no matter what the setting, and thats with a 5/8" return line to the tank... Would like to see how this works with other FPR's..Max
Trending Topics
#8
Senior Member
Thread Starter
Join Date: Mar 2004
Location: ava mo
Posts: 517
Likes: 0
Received 0 Likes
on
0 Posts

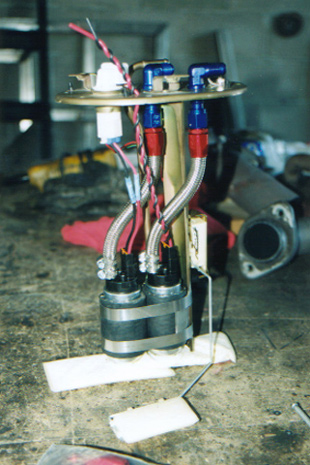

Ok these are the pictures i asked for. You ran these and cant turn the fuel pressure down huh. I was kinda wondering about that. I am in need of more fuel but not for shure the best way to go. I have two walbro pumps. I would rather do a single pump but i dont know if there is one that can pump enough fuel. I have a large street port with a t51r kai turbo and water injection. Need a high amount of fuel. I have the aeromotive fuel reg. Any ideas?
Thanks for the pics guys.
Thanks for the pics guys.
#9
Hey, where did my $$$ go?
Join Date: Feb 2001
Location: Bimingham, AL
Posts: 4,413
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Maxthe7man
How were you going to run these? I am running 2 staged at the moment via the haltech e6k, I tried running them both at the same time, but my Fuel pressure reg(mallory) loses control of the fuel pressure with so much fuel and won't drop below 40 psi no matter what the setting, and thats with a 5/8" return line to the tank... Would like to see how this works with other FPR's..Max
Whats wrong with a base of 40psi?
#11
Hey, where did my $$$ go?
Join Date: Feb 2001
Location: Bimingham, AL
Posts: 4,413
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by z8cw
I am interested in how the pumps are wired. Anyone has info on that?
Thanks
CW
Thanks
CW
The best way to wire them is to run two 10 ga wires from the battery straight to the pumps as well as thier own 10ga ground wires. Each power wire has a 25amp fuse by the battery and a 30A/40A switched relay in the hatch, mine are hidden behind one of the plastic panels. You use the stock power wire for a trigger switch wire on the new switched relays.
When you run your 2 power and 2 ground wires in thru the tank you'll need to drill two holes, one for the powers and one for the grounds. Make the holes just a little bigger than the two wires, install a grommet in the hole then fill in all around the wires with a good fuel safe epoxy, silicone might work but its soft and the wires might move around easier than if it was epoxy.
Thats how I did mine....sorry I dont have any pics
Stephen
Last edited by SPOautos; 01-19-05 at 01:25 PM.
#12
Freedoms worth a buck o'5
Join Date: May 2001
Location: Calgary Alberta Canada
Posts: 2,544
Likes: 0
Received 1 Like
on
1 Post
Originally Posted by SPOautos
Whats wrong with a base of 40psi?
#13
Senior Member
Join Date: Jan 2004
Location: Colorado
Posts: 341
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by SPOautos
The best way to wire them is to run two 10 ga wires from the battery straight to the pumps as well as thier own 10ga ground wires. Each power wire has a 25amp fuse by the battery and a 30A/40A switched relay in the hatch, mine are hidden behind one of the plastic panels. You use the stock power wire for a trigger switch wire on the new switched relays.
When you run your 2 power and 2 ground wires in thru the tank you'll need to drill two holes, one for the powers and one for the grounds. Make the holes just a little bigger than the two wires, install a grommet in the hole then fill in all around the wires with a good fuel safe epoxy, silicone might work but its soft and the wires might move around easier than if it was epoxy.
Thats how I did mine....sorry I dont have any pics
Stephen
When you run your 2 power and 2 ground wires in thru the tank you'll need to drill two holes, one for the powers and one for the grounds. Make the holes just a little bigger than the two wires, install a grommet in the hole then fill in all around the wires with a good fuel safe epoxy, silicone might work but its soft and the wires might move around easier than if it was epoxy.
Thats how I did mine....sorry I dont have any pics
Stephen
that is very involved. I guess just splicing the additional pump in in the back would burn out the one relay?
Last edited by z8cw; 01-19-05 at 11:06 PM.
#15
Rotary Enthusiast
iTrader: (6)
Join Date: Aug 2001
Location: Cincinnati
Posts: 948
Likes: 0
Received 0 Likes
on
0 Posts
I run two wal's with one feeding the primary - other secondary rail. To do this simply tap a hole in the top of the tank lid for a bulk head fitting. Run each pump to one of the stock inlet/outlet holes. Run each line up to the front via seperate hard lines. Run each line to a rail. The the exit run a seperate line from each rail back to both sides of the FPR. The center exit from the FPR goes back to tank via the third hard line (Vent line). In the rear connect to the bulk head fitting.
Additionally you will need to run a length of tubing from the bulk head fitting down to the bottom of the tank. This keeps the fuel from splashing and creating excess gas.
For power you can simply splice the lines in the tank to the current lines. One the exterior replace your lines with 10guage wire. Replacing all of the stock wire up to the front.
Lastly, bring the fuel relay in the front of the car to keep full power to the pumps.
I am using an SX regulator, 6an SS lines, and I can pull my fuel pressure down to ~28psi at idle. I run stock 40 psi with 890's and 1680's. My tuning was done with a PDF, Datalogit, and Techedge.
I have never had a problem with running out of juice or problemw with the fuel system.
Goodluck
Chris
Additionally you will need to run a length of tubing from the bulk head fitting down to the bottom of the tank. This keeps the fuel from splashing and creating excess gas.
For power you can simply splice the lines in the tank to the current lines. One the exterior replace your lines with 10guage wire. Replacing all of the stock wire up to the front.
Lastly, bring the fuel relay in the front of the car to keep full power to the pumps.
I am using an SX regulator, 6an SS lines, and I can pull my fuel pressure down to ~28psi at idle. I run stock 40 psi with 890's and 1680's. My tuning was done with a PDF, Datalogit, and Techedge.
I have never had a problem with running out of juice or problemw with the fuel system.
Goodluck
Chris
#18
Rotary Enthusiast
iTrader: (6)
Join Date: Aug 2001
Location: Cincinnati
Posts: 948
Likes: 0
Received 0 Likes
on
0 Posts
Looking back I have an issue with SPOauto's post about drilling a hole in the top of the tank or tank lid. ShawnK did this and had a horrible time keeping pressure in the tank. In fact when it got hot outside the fuel smell was horrible. There are alot of pressures on the tank and lid. Use a bulk head fitting with a 90 degree in it. Run the wires through and fill full of silicone. Lastly crimp the ends closed a little. No problems. The grommit way did not work for Shawn and I.
Chris
Chris
#19
Senior Member
Join Date: Nov 2001
Location: Spearfish, SD
Posts: 725
Likes: 0
Received 0 Likes
on
0 Posts
I was planning on doing AN lines and an inline pump w/ aftermarket regulator, but this thread got me thinking. I have walbro in tank right now w/ stock lines and regulator w/ 550 primaries and 1600 secondaries. I still have my stock pump, so could I just use that and the walbro, have 2 separate systems so the pressures didnt matter so much. Have the stock pump feed the primary rail and get another stock regulator, and have the walbro feed the secondary rail w/ the stock regulator on it. Then run a new return line of course. Then tune the bitch out w/ my micro and wideband. How does this sound?
#20
Rotary Enthusiast
iTrader: (6)
Join Date: Aug 2001
Location: Cincinnati
Posts: 948
Likes: 0
Received 0 Likes
on
0 Posts
I know someone that has a wal and stock pump in the tank. I would put the stock pump on the primary side. Splice together the wires and hotwire the regulator.
You don't need to run a full return line. There is three hard pipes beside each other. Use the third and disconnect and throw away the charcoal thing. Tap the lid of the tank with a bulkhead and your done.
Tune the reg to get you back to stock and they start with the computer.
Chris
You don't need to run a full return line. There is three hard pipes beside each other. Use the third and disconnect and throw away the charcoal thing. Tap the lid of the tank with a bulkhead and your done.
Tune the reg to get you back to stock and they start with the computer.
Chris
#22
Will work for horsepower
The fuel pressure regulater does the same thing for free. And if you loose a pump with any setup that runs duel pumps your probley screwed, that includes me.
#24
Will work for horsepower
And if you loose the charcoal thingie dont forget to create a vent for the fuel tank as thats one of its uses. With no vent you would be suprised how much pressure it makes[ ask how i know]
