Hey guys,

I wanted to make available this PDF we've put together for everyone to take a peek at if it interests them. Would love to have some discussion or even answer questions.

We're proud of this product, and we have spend so much time perfecting it to be the way we want it. It's all in the small details, and we're boarder line arrogant about them. 321 stainless, billet collectors, SO good. We have a lot of new shops getting on board too.

Another fact that's hard to look past is that this product is build by us, in Canada. That means anyone from the USA is buying these manifolds for 30% less, just for exchanging your money to canadian. It makes these manifolds obnoxiously affordable, even more than they are already.

I've attached the PDF in this post, and here's a link to the Vendor section that is a quicker view of all of the facts. Appreciate all the support in the last few months!

https://www.rx7club.com/vendor-class...npipe-1085128/



The question came up if this manifold will fit a 9180 with an xcessive LIM, and one of our shops have confirmed they do. Thanks for the feedback!

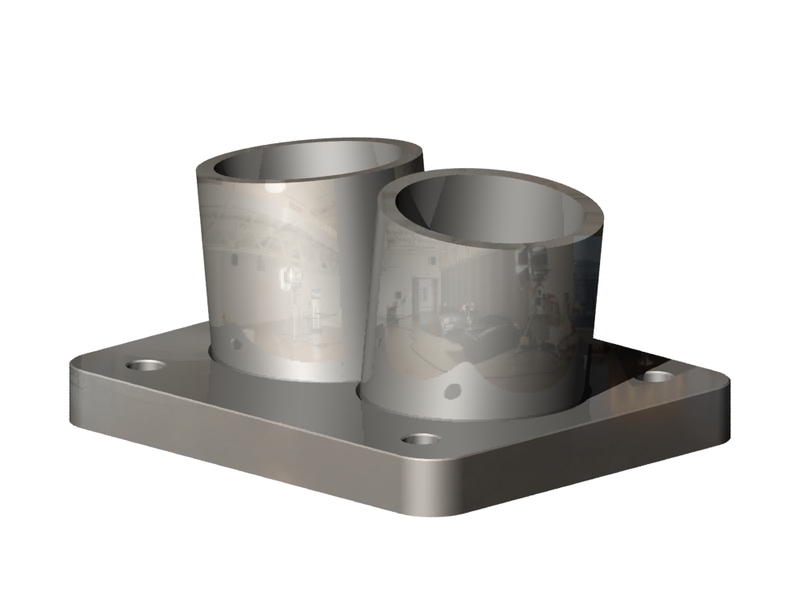

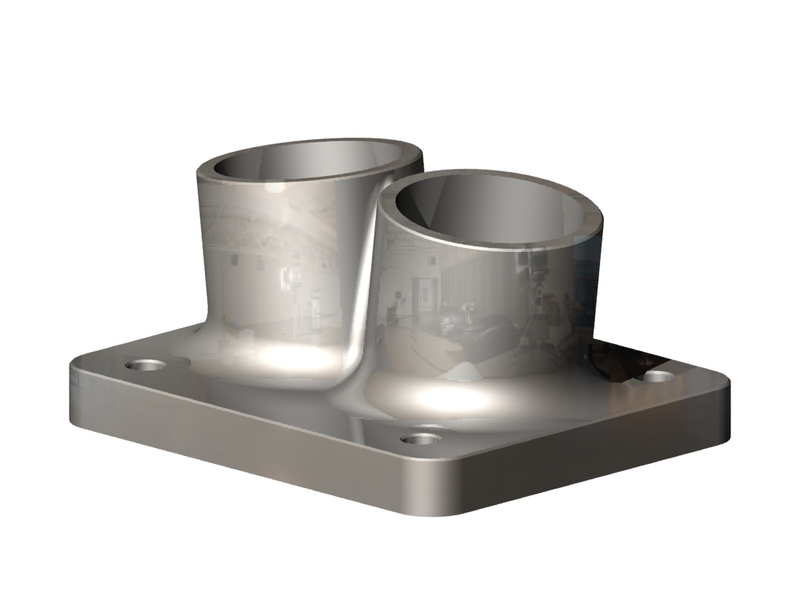

Our Billet Collectors are almost finished up and ready for a group buy. Machined from a solid block of 304 stainless. They give the ability to perfectly taper from the primaries to the T4 inlet, standard sch40 pipes taper is limited to it's own wall thickness. Billet is also twice as strong as any cast or welded collector, ever.

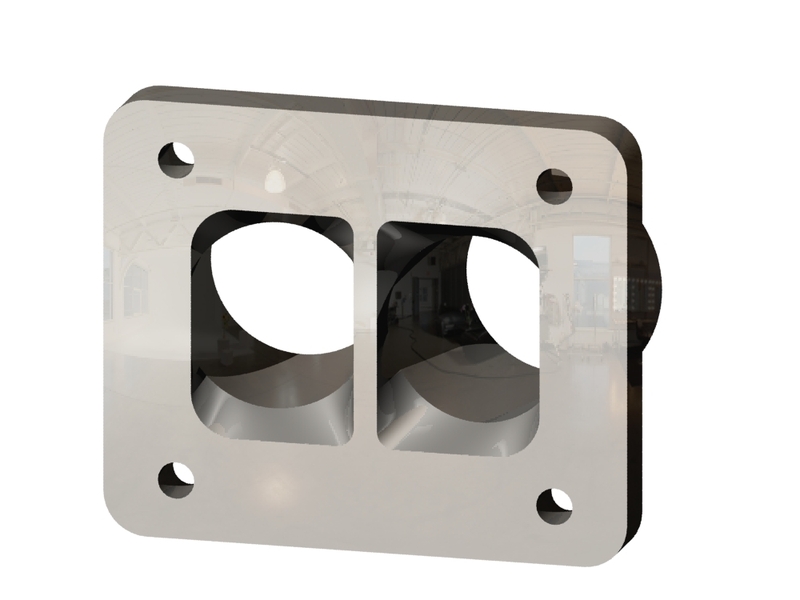

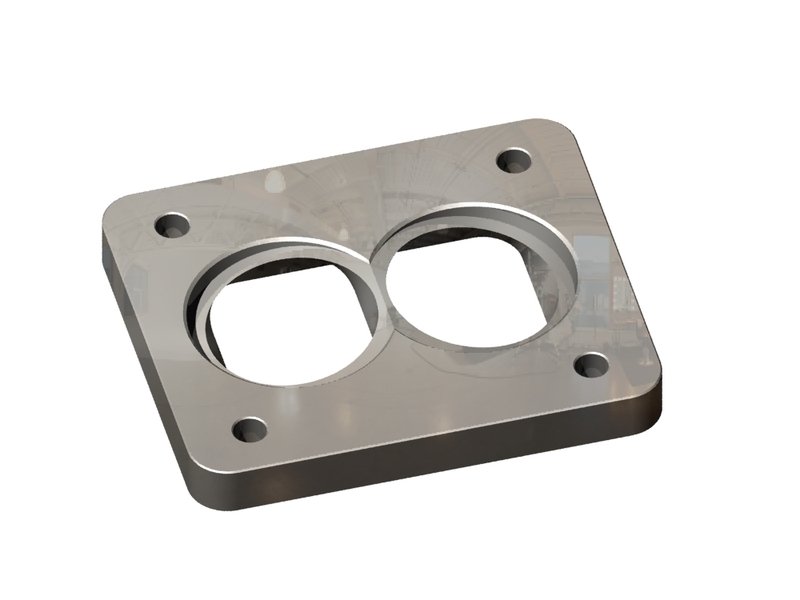

Our new CNC Ported and Tapered T4 flange will be ready at the same time, and is the new standard replacement welded option on all manifolds. These will flow very, very well.



man i wish you guys had a "3-rotor in an fc" manifold.....or even a trippel collector!
looks like quality work!



Do you know the price of the collector and the ported flange yet?

Thanks,
Kevin



The ported flange will soon be standard on all of our manifolds, pricing will remain the same. Working on the billet series currently. I'll post it up when we're confident.



So I take it your not going to sell just the flange?



Correct, but if you need a collector built for a manifold I've done them for shops before. Pm me if I can help you.



The billet flange is a great idea, but I'm looking at that vagina area between the runners thinking "Gee, that will be fun to TIG". 1.5" of tungsten extension, a zillion CFM and a gas lens on a small WP17.



If you're particularly enamored, Prostreet Performance over here will sell you one with a pair of integrated wastegate runners...5 axis work looks like, not especially cheap.

Hmm, must be an oxymoron!



Thanks Aaron! Absolutely right, 2" of stick out, a big fat Pyrex gas lense, and 35cfh . No prob!



If I'm making another T4 manifold, I'll definitely give it a try.



Billet Series manifolds are here!

https://www.rx7club.com/vendor-class...nside-1091491/



From concept to reality! Three spots left on the Pre-Order.

https://www.rx7club.com/vendor-class...nside-1091491/



For those who don't want or need the Billet Collector, all non Billet Series Manifolds now come standard with 3D CNC flanges on both ends. Perfectly symmetrical, one pass weld, and high flow. This is a huge upgrade and we aren't changing the price at all. Still only $720 USD.

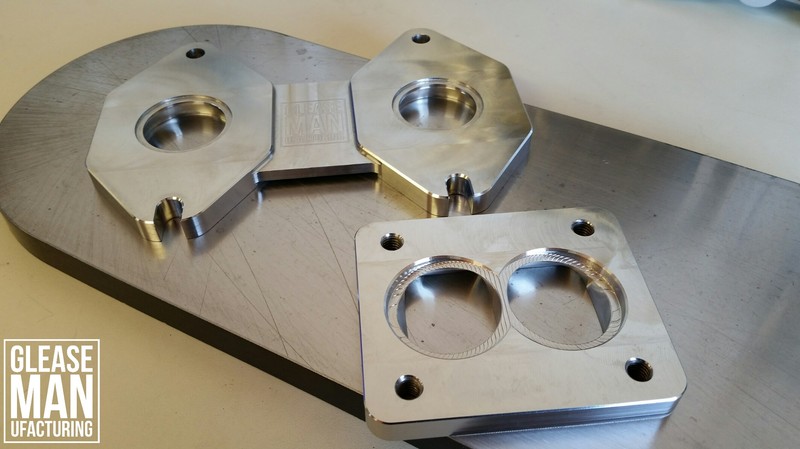

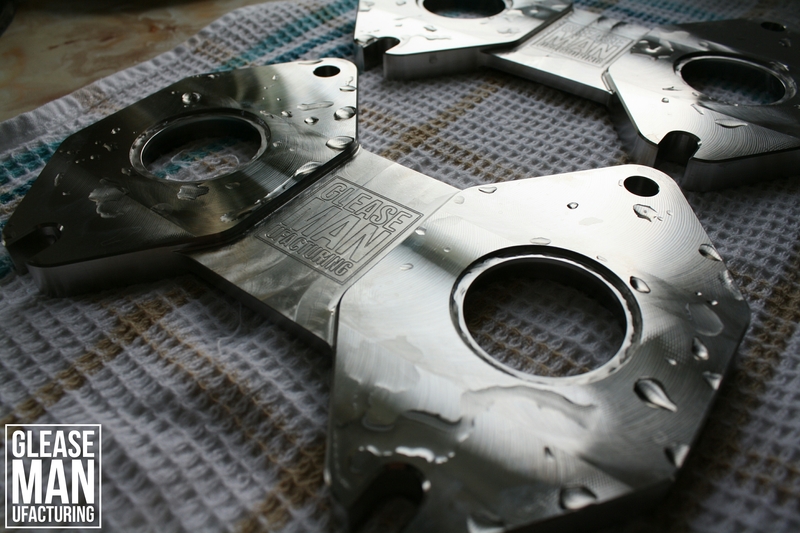

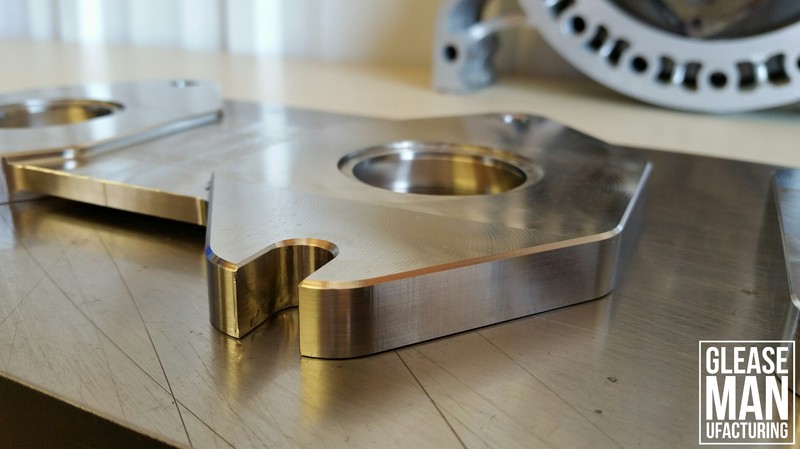

A close up of the newly revamped slotted lower engine flange that allows slick installation and removal.



Used my Potato for pictures.. Better ones when I have a wee bit more time.




À

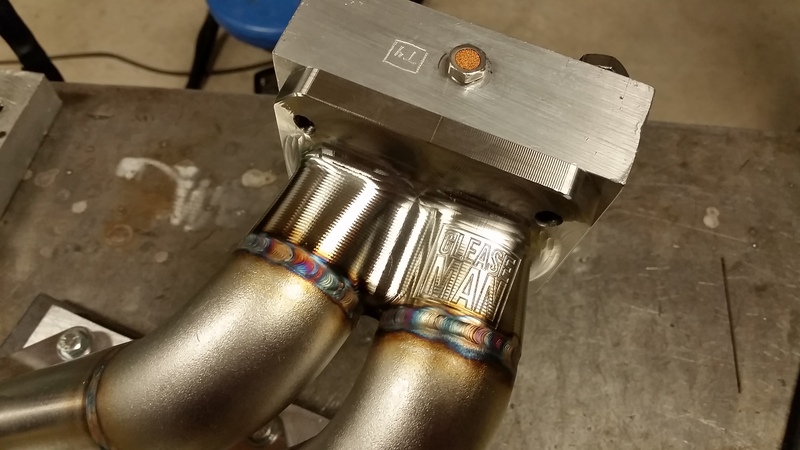

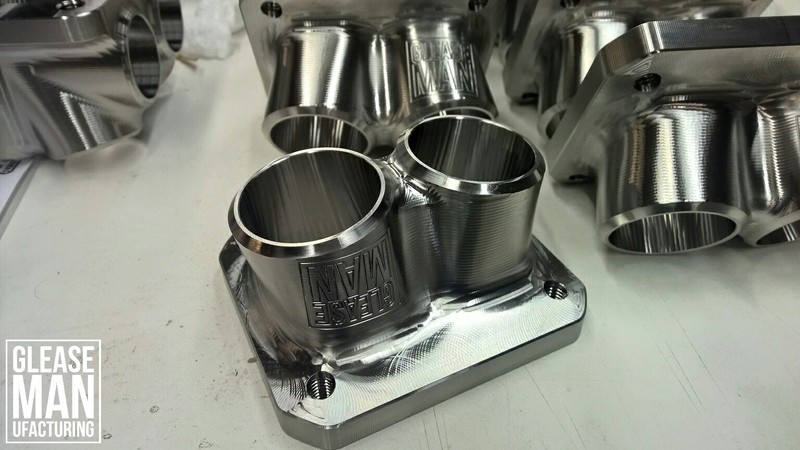

Close up of the Billet Series

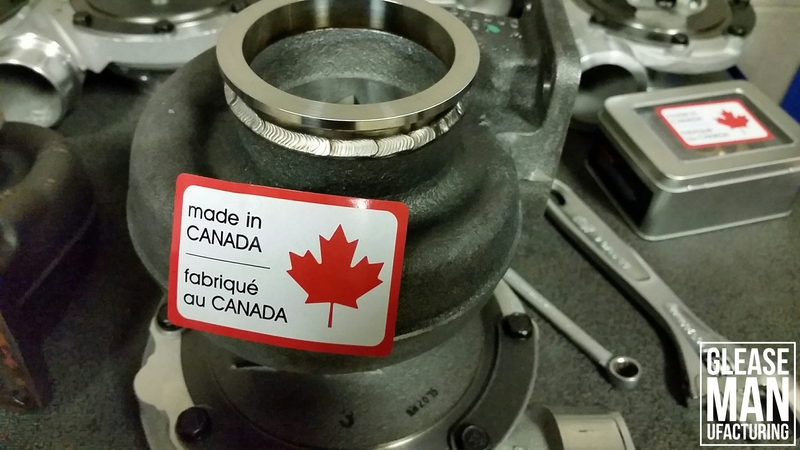

Here's some of the process of machining the S300 Series Borg Warner Turbos to accept a 3"vband setup, instead of the Marmon Flange. Included in all of our kits, and optional on all turbo sales.




Here's a time lapse of welding up some non-billet series Collectors. Lots of welding time into these manifolds.





Here's some of the process of machining the S300 Series Borg Warner Turbos to accept a 3"vband setup, instead of the Marmon Flange. Included in all of our kits, and optional on all turbo sales.




Here's a time lapse of welding up some non-billet series Collectors. Lots of welding time into these manifolds.



any setups with wastegates as a recirc to the downpipe?? I have turblown dual scroll and really want to change it due to the noise.



Right now we don't have any recirculation options, sorry!



I was looking at your stuff and it's like Artwork. Also was hunting around for a plumbed waste gate option and was sad to see you didn't.



Ah thanks a lot! We'll have a solution for rerouting soon enough, but we're still in the process of perfecting our current setup. Lots of people don't like the ewg noise, and that's completely understood.

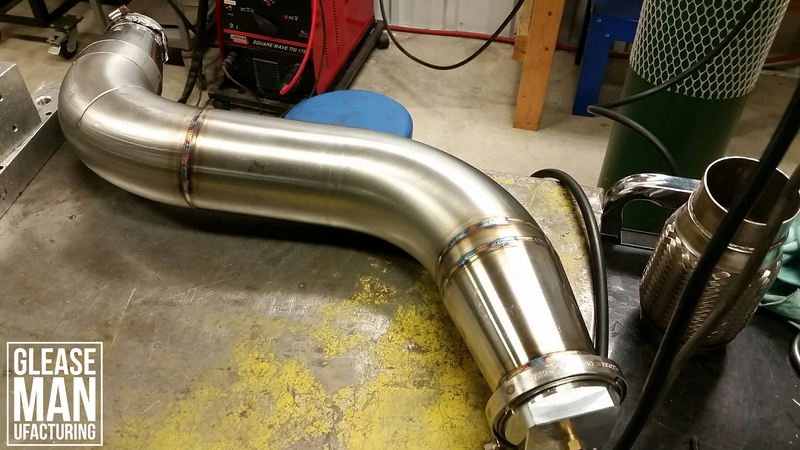

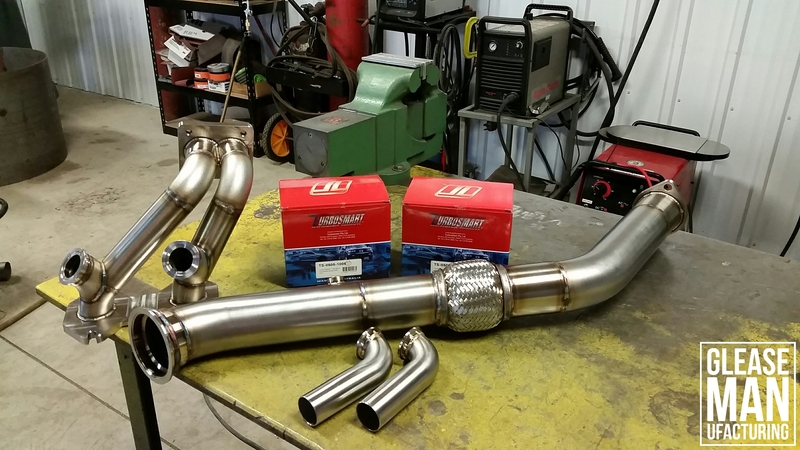

More goodies.

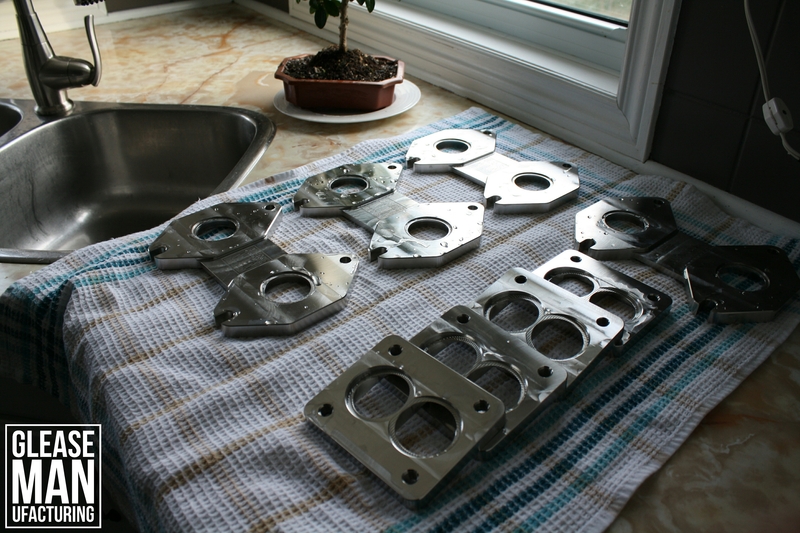

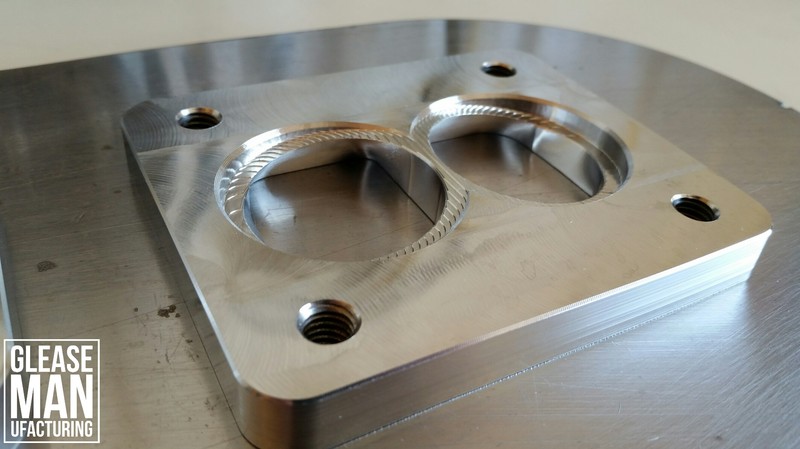

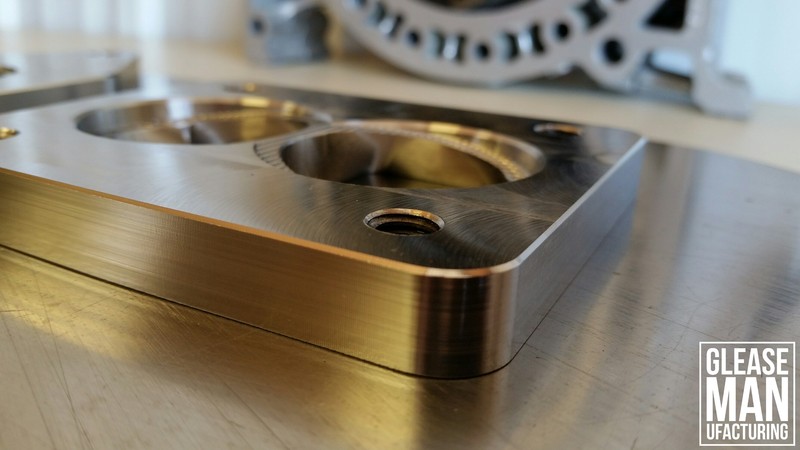

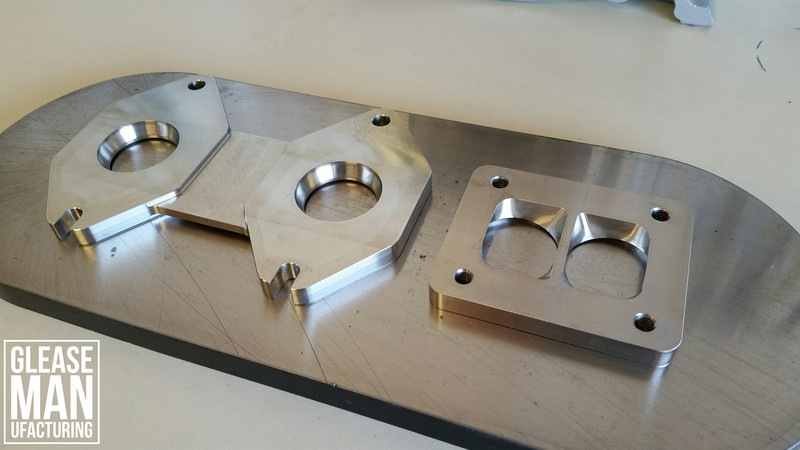

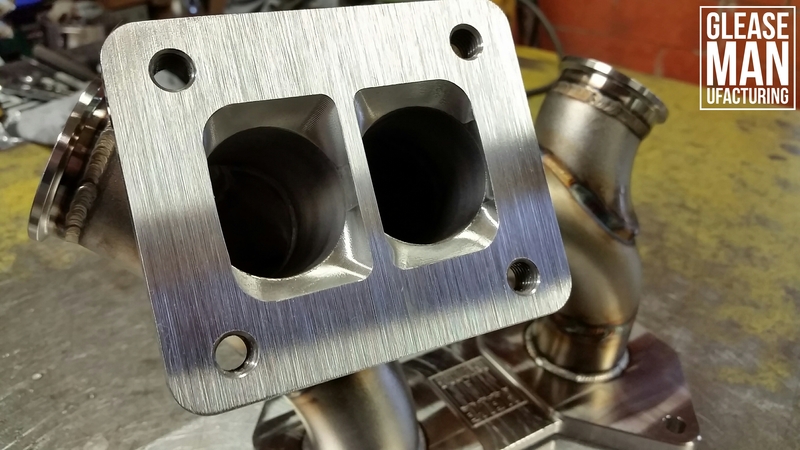

A view of the CNC Ported Flanges that are standard on all Non-Billet Manifolds

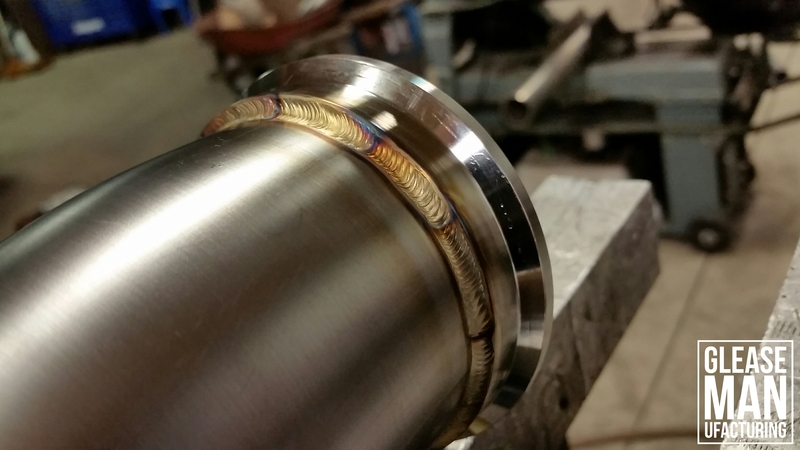

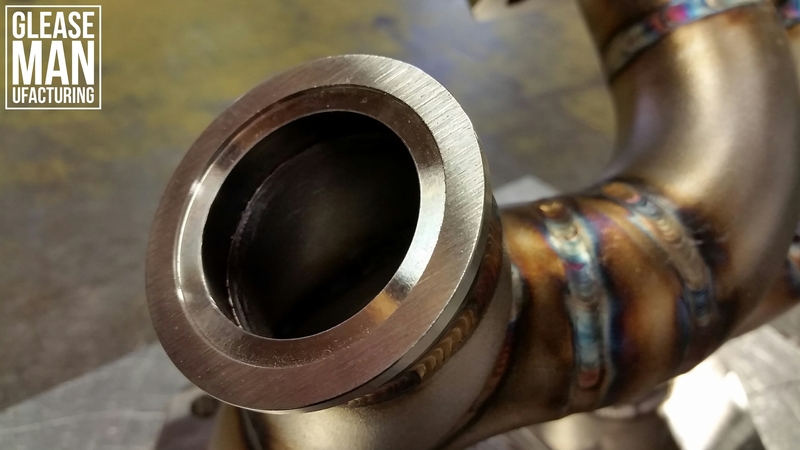

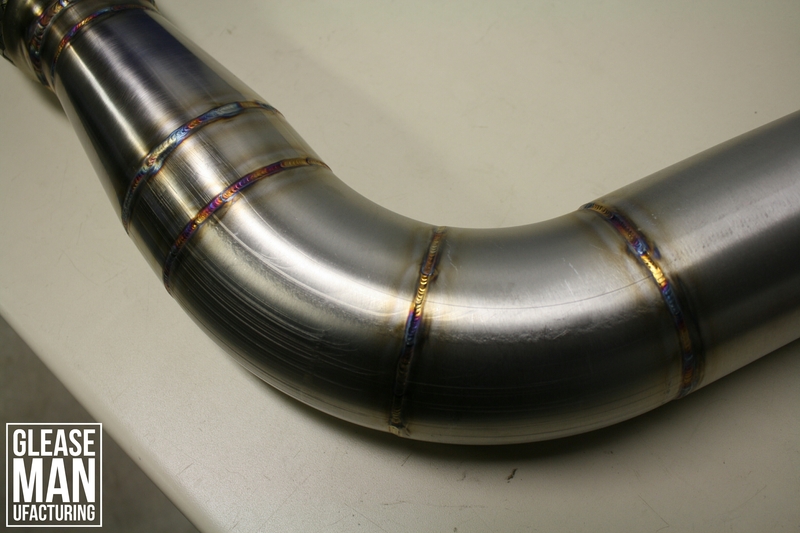

V-Band weld on the downpipe

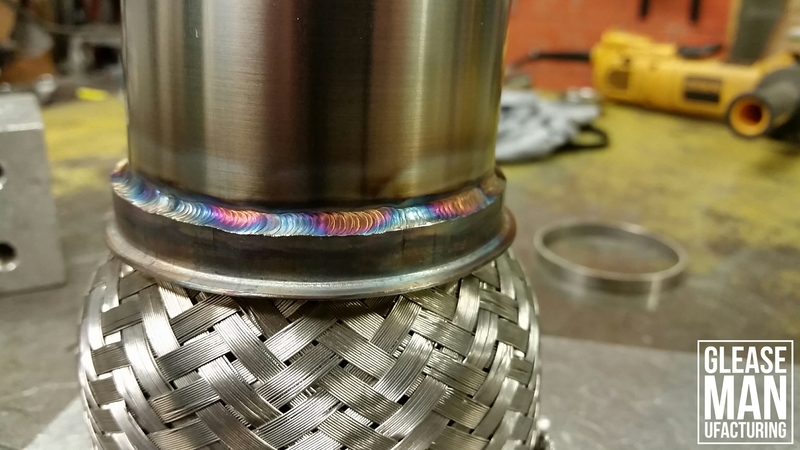

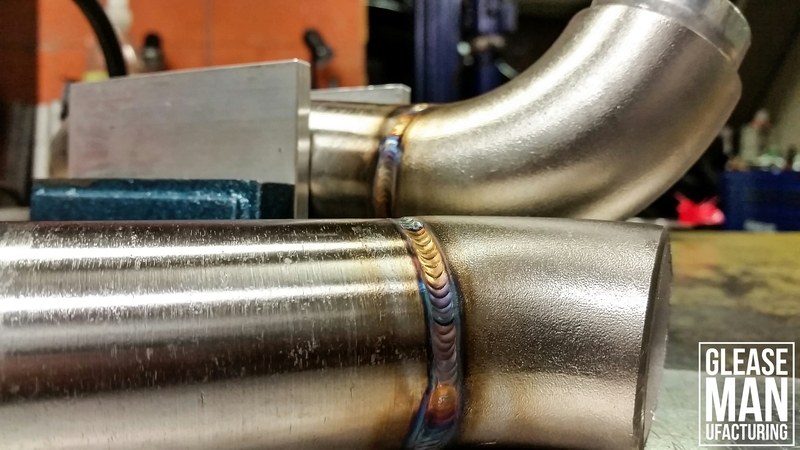

Flex Pipe Weld

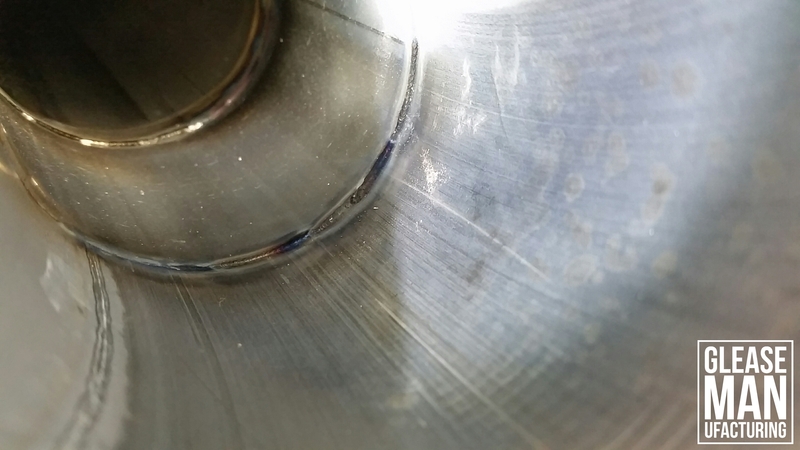

Inside view of the downpipe, showing the penetration and back purge. Anything less than this is unacceptable to us.

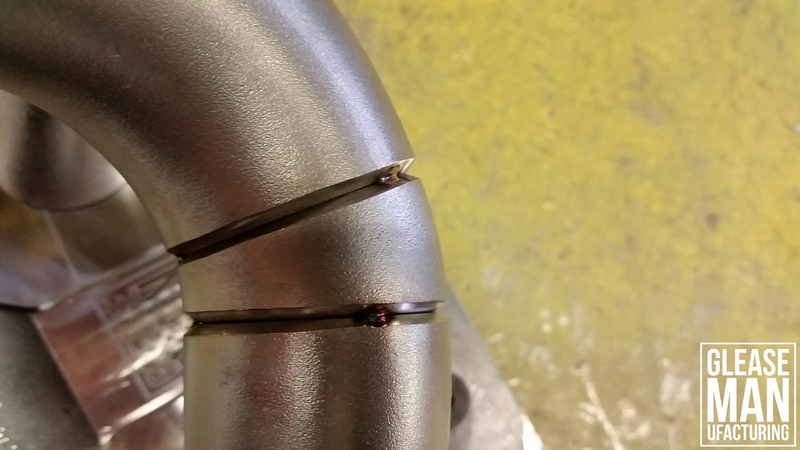

Joint prep, shows how thick these primaries are.




Every sealing surface is sanded to perfection.



Any possibilitys to get a 3-2 t4 flange made(20b)?



I can make you one no problem, but it won't be billet. Need a larger order. john@gleasemanufacturing.com

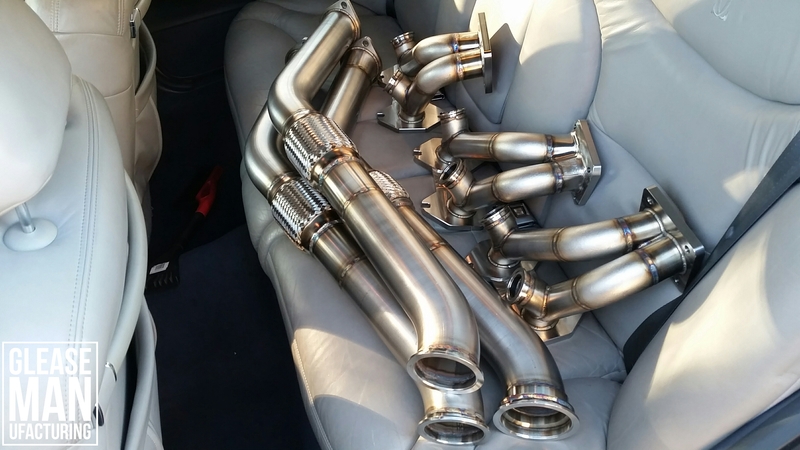

More pictures for you guys! These manifolds are slowly making their way into amazing builds all around the world! Some cool stuff coming up soon, stay tuned.

Every flange is meticulously prepped for welding.



NSFW


A look at the entry ports.

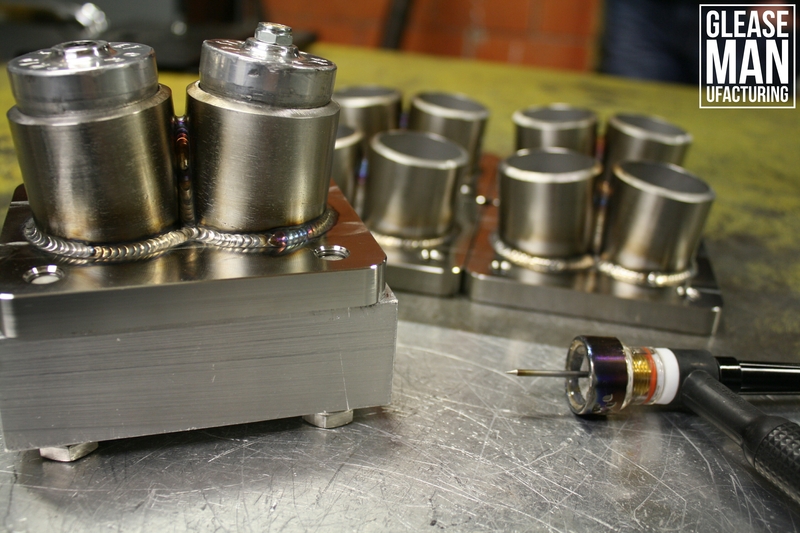

Welding up a batch of CNC Ported T4 Flanges. (For the non-billet series)

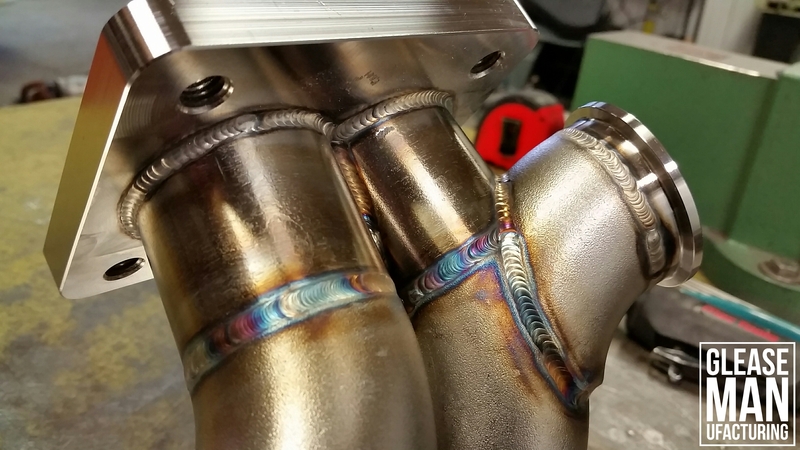

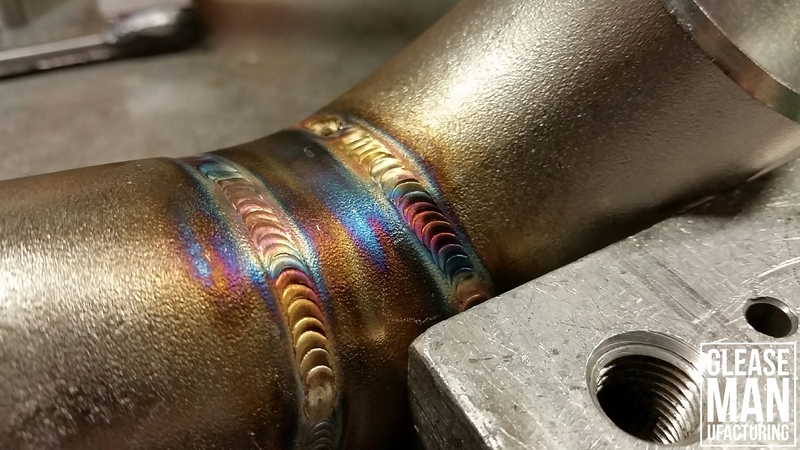

Primary Welds

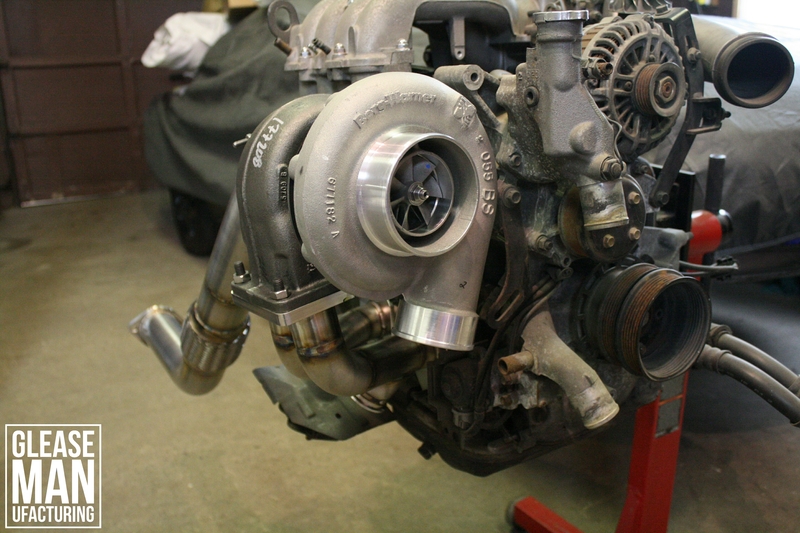

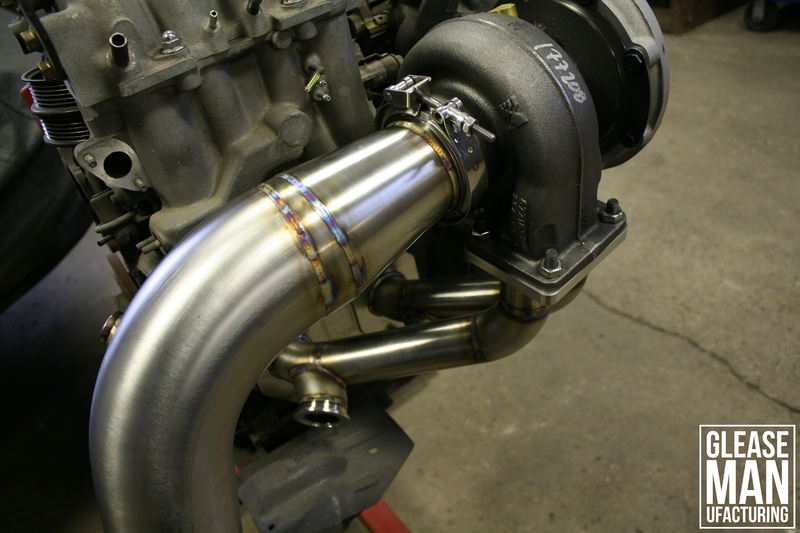

S366 with a 4" Stock Location downpipe mocked up.





Back Purging
