Cast EFR 8374 IWG Large StreetPort FC3S Dyno 503rwhp @ 17.5psi

Reply



Old 07-20-16, 08:00 PM
  #1
Adaptronic Distributor
RX7Club Vendor
Thread Starter
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 6,671
Thanked 3 Times in 3 Posts
Cast EFR 8374 IWG Large StreetPort FC3S Dyno 503rwhp @ 17.5psi

Adaptronic S4 PNP ECU
Flex Fuel ; E77
Large Pineapple StreetPort
3" exhaust with RB catback( no cat)
2.5" water to air intercooler system we built
ID1300/ID1700
Stock coils
503rwhp/355rwtq @ 17.5psi peak pressure.

SAE is 496rwhp FYI and it was 98 deg F in the dyno room today...
Attached Thumbnails Cast EFR 8374 IWG Large StreetPort FC3S Dyno 503rwhp @ 17.5psi-chads-cast-efr-8374-fc-dyno.jpg   Cast EFR 8374 IWG Large StreetPort FC3S Dyno 503rwhp @ 17.5psi-chads-cast-efr-8374-fc-dyno2.jpg
Turblown is offline
Reply With Quote
Old 07-20-16, 08:35 PM
  #2
Brap Brap, Fap Fap
iTrader: (7)

Shainiac's Avatar

Join Date: Jun 2006
Location: Lyme, CT
Posts: 1,413
Thanks: 0
Thanked 3 Times in 3 Posts
Very nice! What were IATs at the end up the run? I should have my W2A 9180 on the rollers within a couple weeks. I'm seeing 4F temp rise on a 3rd gear street pull with 85F ambient
Shainiac is offline
Reply With Quote
Old 07-20-16, 09:59 PM
  #3
247 RWBBQ

ColinShark's Avatar

Join Date: Jul 2004
Location: Detroit, MI
Posts: 298
Thanks: 0
Thanked 2 Times in 2 Posts
Wow that rips. Very nice torque curve. Done right.

Is this motor studded?

Last edited by ColinShark; 07-20-16 at 10:02 PM.
ColinShark is offline
Reply With Quote
Old 07-20-16, 10:05 PM
  #4
Rotary Enthusiast
iTrader: (8)

DC5Daniel's Avatar

Join Date: Jul 2012
Location: GA
Posts: 1,244
Thanks: 0
Thanked 1 Time in 1 Post
Way to go, Elliot. Never a disappointment whenever I open one of your threads.
DC5Daniel is online now
Reply With Quote
Old 07-20-16, 10:25 PM
  #5
Let's get silly...
iTrader: (7)

RockLobster's Avatar

Join Date: May 2004
Location: Rosemount, MN
Posts: 1,692
Thanks: 0
Thanked 1 Time in 1 Post
Actually a mild street port. And no, the engine was not studded...
RockLobster is offline
Reply With Quote
Old 01-24-17, 10:51 AM
  #6
Let's get silly...
iTrader: (7)

RockLobster's Avatar

Join Date: May 2004
Location: Rosemount, MN
Posts: 1,692
Thanks: 0
Thanked 1 Time in 1 Post

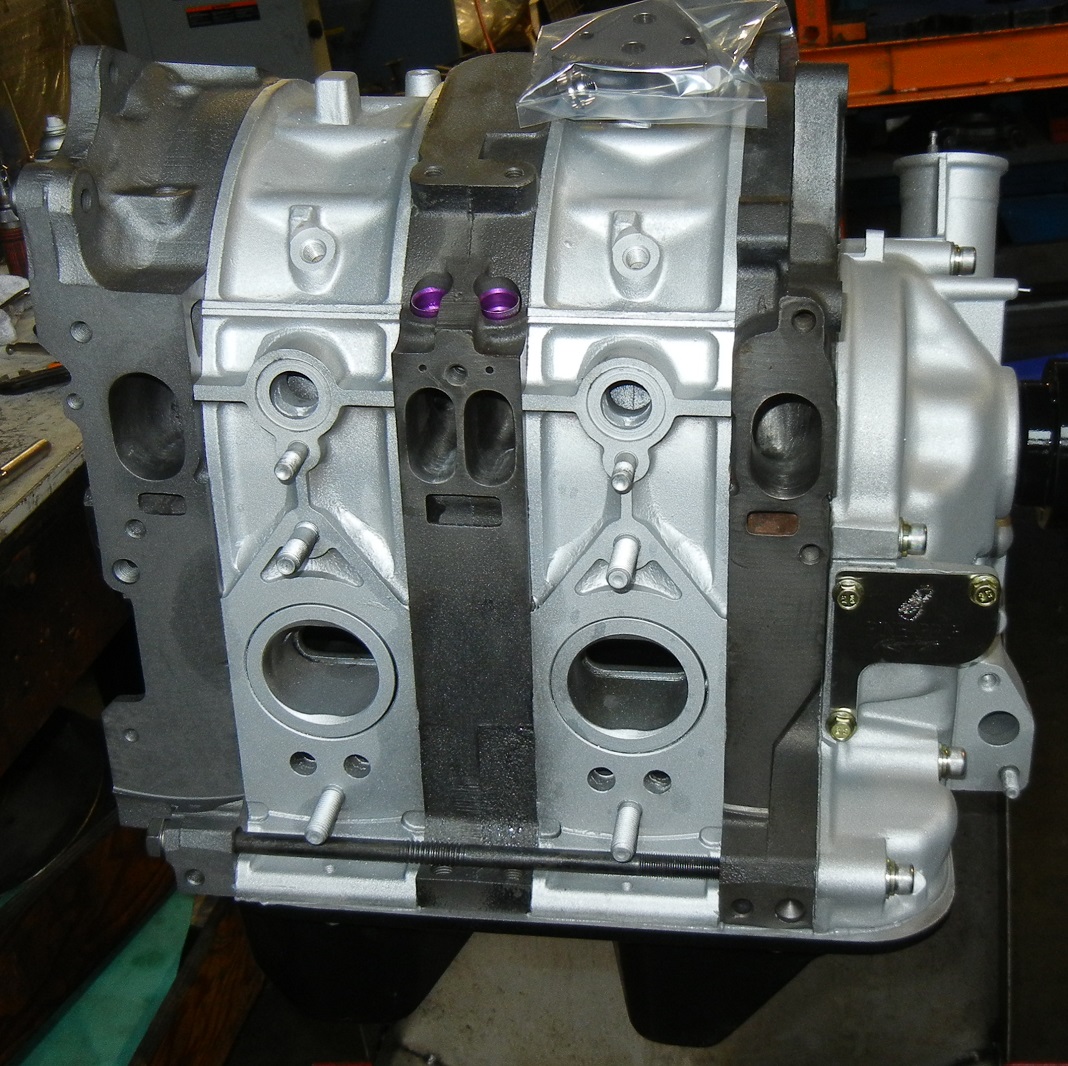

Fixed and ready to go back in...and handle 500 whp...
Attached Thumbnails Cast EFR 8374 IWG Large StreetPort FC3S Dyno 503rwhp @ 17.5psi-01-20-17-martin-t2.jpg   Cast EFR 8374 IWG Large StreetPort FC3S Dyno 503rwhp @ 17.5psi-01-20-17-martin-t2-pic-2.jpg
RockLobster is offline
Reply With Quote
Old 01-24-17, 04:14 PM
  #7
Senior Member
iTrader: (4)

Join Date: Jul 2014
Location: Ontario, Canada
Posts: 257
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by RockLobster View Post
Fixed and ready to go back in...and handle 500 whp...
did it blow?
rollcoal is offline
Reply With Quote
Old 01-24-17, 04:46 PM
  #8
Let's get silly...
iTrader: (7)

RockLobster's Avatar

Join Date: May 2004
Location: Rosemount, MN
Posts: 1,692
Thanks: 0
Thanked 1 Time in 1 Post
cracked rear iron

has pineapple solid dowels now and an infini rear iron
RockLobster is offline
Reply With Quote
Old 01-25-17, 05:22 AM
  #9
Exhaust Manifold Leak

Rub20B's Avatar

Join Date: Jun 2005
Location: western europe
Posts: 616
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by RockLobster View Post
cracked rear iron

has pineapple solid dowels now and an infini rear iron
Did it knock? or just because of torque?
Rub20B is offline
Reply With Quote
Old 01-25-17, 07:48 AM
  #10
Adaptronic Distributor
RX7Club Vendor
Thread Starter
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 6,671
Thanked 3 Times in 3 Posts
No knock, and nothing wrong internally. It was not an agressive tune either, not even close. I am starting to wonder if tranny movement is also apart of this problem on the 2nd gens.

Originally Posted by Rub20B View Post
Did it knock? or just because of torque?
Turblown is offline
Reply With Quote
Old 01-25-17, 08:06 AM
  #11
Exhaust Manifold Leak

Rub20B's Avatar

Join Date: Jun 2005
Location: western europe
Posts: 616
Thanks: 0
Thanked 0 Times in 0 Posts
I had this once when I had fuel pressure drop. it said pingping and cracked at same place at oil filter pedestral.

there are people running 30 psi and more on non studded engine on pump and water inj. so it makes me believe knock, or abnormal combustion (as in too much chamber pressure too early in the cycle) should must be the main effect, an not engine torque.

I heared some theories one could also cut the ribs in the rotor housing nearest to the dowel location. this should prevent the pressure wave during pre iginition not be able to be transferred to the dowel boss. the rotor housing liner will bend somewhat but this is said not be a problem as its flexible.

I didnt try above technique myself yet.
Rub20B is offline
Reply With Quote
Old 01-25-17, 10:20 AM
  #12
Let's get silly...
iTrader: (7)

RockLobster's Avatar

Join Date: May 2004
Location: Rosemount, MN
Posts: 1,692
Thanks: 0
Thanked 1 Time in 1 Post
Yeah this was not meant as any kind of reflection on the tune/fuel/turbo system at all. When i had the block built 10 years ago it was not built for that kind of power it had the early 2nd gen rear plate.

It was due for a refresh anyway. I got 10 years of hard track and street use out of it then decided to push it. I figured better to get it set up and mostly tuned before the refresh in case something happens. It's good to go now...

Turblown/Turbosource did a great job with it. Other than the IWG on the EFR turbos being SOMETIMES susceptible to boost creep everything worked perfectly. Tune was great, car pulls like a mule.
RockLobster is offline
Reply With Quote
Old 01-25-17, 02:19 PM
  #13
Adaptronic Distributor
RX7Club Vendor
Thread Starter
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 6,671
Thanked 3 Times in 3 Posts
Originally Posted by Rub20B View Post
I had this once when I had fuel pressure drop. it said pingping and cracked at same place at oil filter pedestral.

there are people running 30 psi and more on non studded engine on pump and water inj. so it makes me believe knock, or abnormal combustion (as in too much chamber pressure too early in the cycle) should must be the main effect, an not engine torque.

I heared some theories one could also cut the ribs in the rotor housing nearest to the dowel location. this should prevent the pressure wave during pre iginition not be able to be transferred to the dowel boss. the rotor housing liner will bend somewhat but this is said not be a problem as its flexible.

I didnt try above technique myself yet.
When you say running that setup at that much boost pressure you are probably talking about an FD motor, no a small dowel S4 T2 engine.

I have cracked these irons before, and literally just put the big S5 rear on with our 10mm stud kit and without changing anything it did not happen again. I also cracked my personal S4 iron at 33psi on the 9180, and nothing was wrong inside. This was on OEM 3 piece apex seals too. I also know what the housings, and rotors etc look like when they move around or knock each other etc.

I plan on getting to the bottom of it once and for all on my S4 block( I am putting an S4 rear iron back on, and will just use our stud kit and a tranny brace).
Turblown is offline
Reply With Quote
Old 01-25-17, 03:47 PM
  #14
Lacks Ample Funds
iTrader: (1)

ACR_RX-7's Avatar

Join Date: May 2014
Location: PNW
Posts: 958
Thanked 8 Times in 7 Posts
I have a S4 turbo block kicking about the garage. Eventually I plan on putting the EFR on it, but what exactly do you mean by tranny brace? I would prefer to not buy a rear iron if I do not have to. i'm also planning on staying below 400hp
ACR_RX-7 is offline
Reply With Quote
Old 01-26-17, 10:51 AM
  #15
Adaptronic Distributor
RX7Club Vendor
Thread Starter
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 6,671
Thanked 3 Times in 3 Posts
Turblown is offline
Reply With Quote
Old 01-26-17, 11:46 AM
  #16
Lacks Ample Funds
iTrader: (1)

ACR_RX-7's Avatar

Join Date: May 2014
Location: PNW
Posts: 958
Thanked 8 Times in 7 Posts
Guessing it installs to the passenger strut tower and firewall on one side and iron on the other?
ACR_RX-7 is offline
Reply With Quote
Old 01-26-17, 01:26 PM
  #17
Rotary Enthusiast
iTrader: (8)

DC5Daniel's Avatar

Join Date: Jul 2012
Location: GA
Posts: 1,244
Thanks: 0
Thanked 1 Time in 1 Post
Thanks for sharing, Eliott. Have you installed one on a customer car before, or would your car be the first?
DC5Daniel is online now
Reply With Quote
Old 01-26-17, 01:28 PM
  #18
Let's get silly...
iTrader: (7)

RockLobster's Avatar

Join Date: May 2004
Location: Rosemount, MN
Posts: 1,692
Thanks: 0
Thanked 1 Time in 1 Post
I'm worried about vibration with something like that... My TII is a part time street car and i hate NVH for street cruising. I had to ditch the banzai engine and trans mounts to get rid of the NVH that kept rattling dash parts to dust...
RockLobster is offline
Reply With Quote
Old 01-26-17, 02:24 PM
  #19
Lives on the Forum
iTrader: (8)

BLUE TII's Avatar

Join Date: Mar 2001
Location: CA
Posts: 6,402
Thanked 26 Times in 25 Posts
I had a straight torque brace from the alternator bracket to the strut tower bar as well as Mazda comp engine/trans/rear mounts.

It always bent/cracked my center iron where the passenger side motor mount bolts on.



It would still occasionally break the rear iron at the upper dowel with detonation (damage present elsewhere in engine).

I removed the torque brace on my last engine to save the center iron and it broke the front iron at the upper dowel.

No damage/wear inside the engine- looked good to go.

FD has the right idea mounting the engine by the rear plate so the drivetrain torque can't unduly twist the loosely held together engine stack anymore than just transferring torque to the e-shaft already does.
BLUE TII is offline
Reply With Quote
Old 01-26-17, 02:27 PM
  #20
Lives on the Forum
iTrader: (8)

BLUE TII's Avatar

Join Date: Mar 2001
Location: CA
Posts: 6,402
Thanked 26 Times in 25 Posts
BLUE TII is offline
Reply With Quote
Old 01-26-17, 09:40 PM
  #21
Adaptronic Distributor
RX7Club Vendor
Thread Starter
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 6,671
Thanked 3 Times in 3 Posts
Originally Posted by DC5Daniel View Post
Thanks for sharing, Eliott. Have you installed one on a customer car before, or would your car be the first?
My car will be the first.

I know how to 100% prevent crack plates on FD engines, just not positive yet on the weak dowel S4 motors..
Turblown is offline
Reply With Quote
Old 01-27-17, 10:49 AM
  #22
Lacks Ample Funds
iTrader: (1)

ACR_RX-7's Avatar

Join Date: May 2014
Location: PNW
Posts: 958
Thanked 8 Times in 7 Posts
If you can find a viable answer, I'm all ears. I did originally plan on getting an REW for my project, but I now have an abundance of S4 engines I picked up for almost free, so I want to use what I have first.
ACR_RX-7 is offline
Reply With Quote
Old 01-30-17, 08:18 AM
  #23
"Elusive, not deceptive!

Barry Bordes's Avatar

Join Date: May 2007
Location: Slidell, LA
Posts: 900
Thanks: 0
Thanked 1 Time in 1 Post
Are you guys spraying any water when you crack these plates?
Barry Bordes is offline
Reply With Quote
Old 01-30-17, 10:44 AM
  #24
Let's get silly...
iTrader: (7)

RockLobster's Avatar

Join Date: May 2004
Location: Rosemount, MN
Posts: 1,692
Thanks: 0
Thanked 1 Time in 1 Post
Negative. But using somewhere between E50 and E85 fuel.

As Elliot said it was not detonation or knock. Just the engine making more power (bigger bang) than what the plate can handle.
RockLobster is offline
Reply With Quote
Old 01-30-17, 10:56 AM
  #25
Lacks Ample Funds
iTrader: (1)

ACR_RX-7's Avatar

Join Date: May 2014
Location: PNW
Posts: 958
Thanked 8 Times in 7 Posts
500 RWHP is really quite a bit on a small engine. If you assume a 13B flows about the same air as a 2.6L piston engine, then a 13B is making the equivalent to a 1200RWHP LS1 as far as displacement/power ratios are concerned.
ACR_RX-7 is offline
