Cast EFR 8374 IWG Large StreetPort FC3S Dyno 503rwhp @ 17.5psi - Page 2 - RX7Club.com - Mazda RX7 Forum

Go Back  RX7Club.com - Mazda RX7 Forum > Tech and Performance > Single Turbo RX-7's
Reload this Page > Cast EFR 8374 IWG Large StreetPort FC3S Dyno 503rwhp @ 17.5psi
Single Turbo RX-7's Questions about all aspects of single turbo setups.

Cast EFR 8374 IWG Large StreetPort FC3S Dyno 503rwhp @ 17.5psi

Reply



Old 01-30-17, 12:36 PM
  #26
Lives on the Forum
iTrader: (8)

BLUE TII's Avatar

Join Date: Mar 2001
Location: CA
Posts: 6,402
Thanked 26 Times in 25 Posts
Are you guys spraying any water when you crack these plates?
Just 110 leaded gas for me.
BLUE TII is offline
Reply With Quote
Old 01-30-17, 03:29 PM
  #27
Adaptronic Distributor
RX7Club Vendor
Thread Starter
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 6,671
Thanked 3 Times in 3 Posts
Originally Posted by Barry Bordes View Post
Are you guys spraying any water when you crack these plates?
In the past yes, I broke a S4 t2 plate at 450rwhp 10 years ago on stock dowels/tension bolts with 2 stages of 50/50 water alcohol.

Literally slapped a new S5 big dowel rear pate on and our 10mm stud kit and it did not happen again...
Turblown is offline
Reply With Quote
Old 01-31-17, 11:22 AM
  #28
"Elusive, not deceptive!

Barry Bordes's Avatar

Join Date: May 2007
Location: Slidell, LA
Posts: 900
Thanks: 0
Thanked 1 Time in 1 Post
I haven't done any testing with E85 so I have no real-world detonation limits to share.
Each power event is different as you accelerate to 8000 rpm it only takes a few to set up preignition and detonation.
My thought is to always use water in the mix to delay detonation.


This is my 8374 on the ragged edge. Boost is 18 psi with the correct amount of advance for 93 oct.

But the pressure is going to high (1430 psi). I feel that the Water/meth stabilizes the burn rate and allows this engine to live at these pressures (and higher).

I also endorse the 3rd gen plates.
Attached Thumbnails Cast EFR 8374 IWG Large StreetPort FC3S Dyno 503rwhp @ 17.5psi-520-hp-6646-rpm.jpg
Barry Bordes is offline
Reply With Quote
Old 01-31-17, 11:24 AM
  #29
Lives on the Forum
iTrader: (8)

BLUE TII's Avatar

Join Date: Mar 2001
Location: CA
Posts: 6,402
Thanked 26 Times in 25 Posts
Very nice, I have always wanted to set-up and log combustion pressure!
BLUE TII is offline
Reply With Quote
Old 01-31-17, 02:55 PM
  #30
Exhaust Manifold Leak

Rub20B's Avatar

Join Date: Jun 2005
Location: western europe
Posts: 616
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by Barry Bordes View Post
I haven't done any testing with E85 so I have no real-world detonation limits to share.
Each power event is different as you accelerate to 8000 rpm it only takes a few to set up preignition and detonation.
My thought is to always use water in the mix to delay detonation.


This is my 8374 on the ragged edge. Boost is 18 psi with the correct amount of advance for 93 oct.

But the pressure is going to high (1430 psi). I feel that the Water/meth stabilizes the burn rate and allows this engine to live at these pressures (and higher).

I also endorse the 3rd gen plates.
Nice! the other pressure trace, I guess is compression without combustion? 1400 psi is somewhere what low-mid spec turbo piston engine run these days.

What Ign angle you have at this cycle?, to get an rough idea of ignition delay.

Would you say in this condition that you are knock limited, or maximum chamber pressure limited?
Rub20B is offline
Reply With Quote
Old 02-01-17, 03:01 PM
  #31
"Elusive, not deceptive!

Barry Bordes's Avatar

Join Date: May 2007
Location: Slidell, LA
Posts: 900
Thanks: 0
Thanked 1 Time in 1 Post
Rub,
Originally Posted by Rub20B View Post
Nice! the other pressure trace, I guess is compression without combustion?
Correct


1400 psi is somewhere what low-mid spec turbo piston engine run these days.

We have very little info on what the structural limit is. The highest I have experienced is 1600 psi.


What Ign angle you have at this cycle?, to get an rough idea of ignition delay.

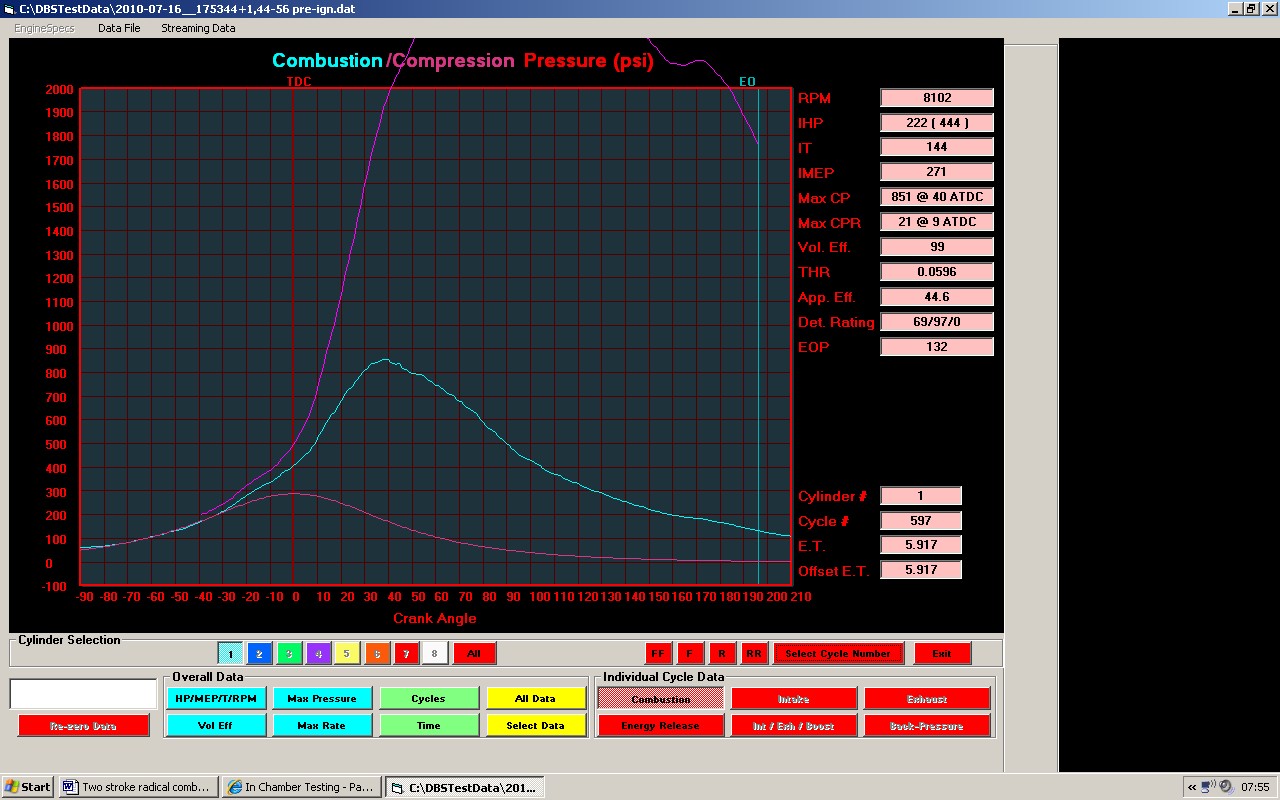

Attached are two burn rate cycles.... the first is a normal... followed by one with pre-ignition. It takes about 10 deg for the burn kernal to start to register on the sensor, the second is caused by (I think) active radicals from exhaust reversion and it starts 22 deg earlier with the same computer directed timing.

Would you say in this condition that you are knock limited, or maximum chamber pressure limited?
My guess is max chamber pressure. But I am a big chicken when it comes to blowing up engines.
On the earlier attachment did you notice the pulsing after peak pressure ... that is getting close to a detonation profile I think.
Attached Thumbnails Cast EFR 8374 IWG Large StreetPort FC3S Dyno 503rwhp @ 17.5psi-nornal-ignition.jpg   Cast EFR 8374 IWG Large StreetPort FC3S Dyno 503rwhp @ 17.5psi-preignition-pressure-curve.jpg

Last edited by Barry Bordes; 02-01-17 at 03:11 PM.
Barry Bordes is offline
Reply With Quote
Old 02-01-17, 03:19 PM
  #32
Exhaust Manifold Leak

Rub20B's Avatar

Join Date: Jun 2005
Location: western europe
Posts: 616
Thanks: 0
Thanked 0 Times in 0 Posts
Possible, to get a feel what it looks like I would run the motor into knock at part load, where it shouldnt cause immediate damage. to get a feel about the frequency of the oscialltion.

At work we use knock amplitude or knock peak to peak. this get calculated for as the difference between the unfiltered pressure trace and the pressure trace filtered over the average of the last x measurements (usually around 20 measurements with 0.1 deg resolution, varying with rpm). as a calibration guideline we use rpm/1000 for knock peak to peak signal in bar.

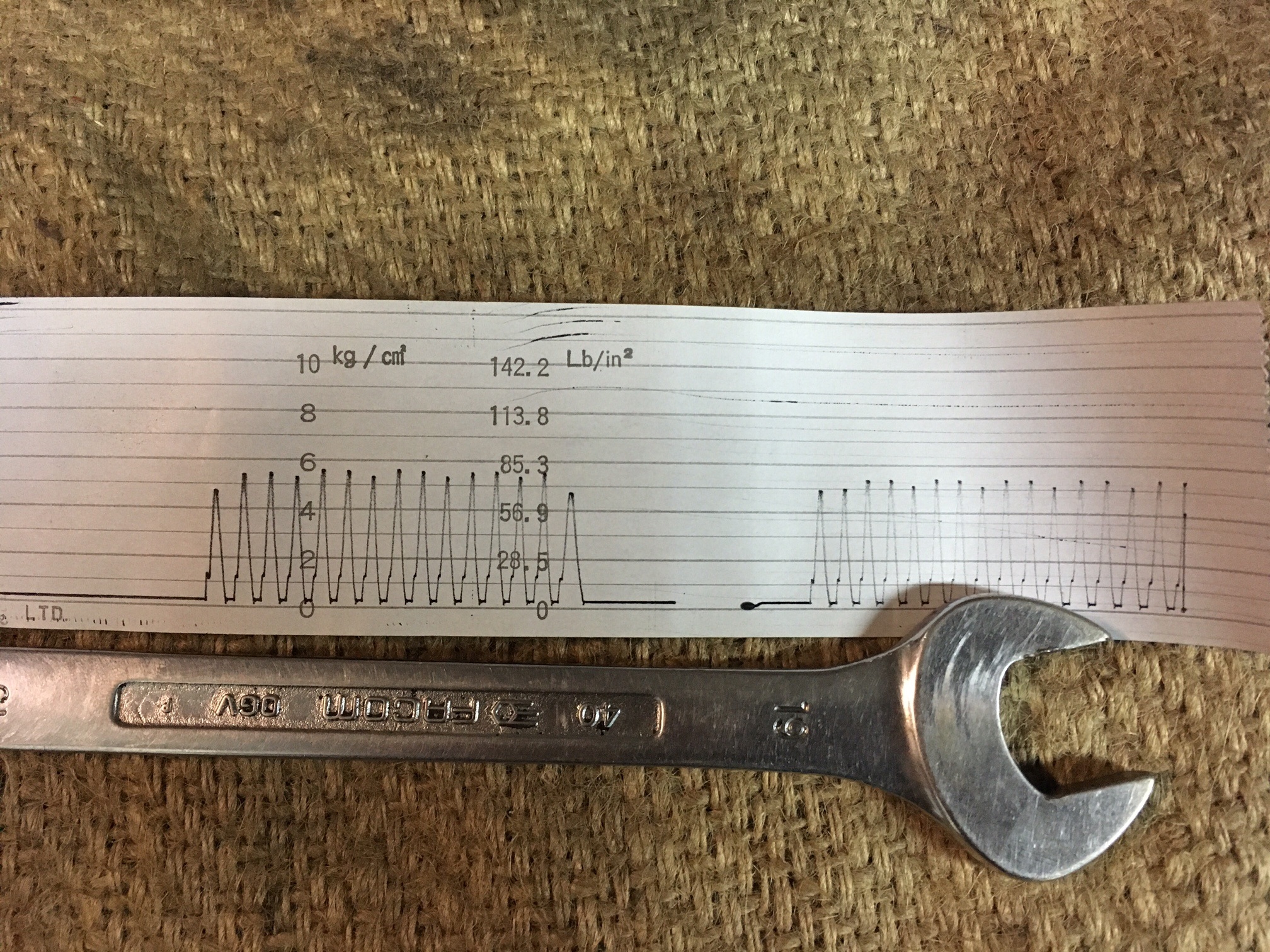

In the first pic of you previous post, do you have any idea why the chamrber pressure lies below the compression trace near TDC? do you think the apex is lifting? What funny is that on these old skool paper comrpession tester you can see where the seal passes the leading plug hole.
Attached Thumbnails Cast EFR 8374 IWG Large StreetPort FC3S Dyno 503rwhp @ 17.5psi-compression.jpg
Rub20B is offline
Reply With Quote
Old 02-02-17, 10:59 AM
  #33
"Elusive, not deceptive!

Barry Bordes's Avatar

Join Date: May 2007
Location: Slidell, LA
Posts: 900
Thanks: 0
Thanked 1 Time in 1 Post
"In the first pic of you previous post, do you have any idea why the chamber pressure lies below the compression trace near TDC?"
One is theoretical and the other is actual collected pressure data.

Great questions .. but let me apologize for taking this rabbit track away from Turblown's thread.

I should find some time to make a separate compression testing thread.
Barry
Barry Bordes is offline
Reply With Quote
Old 02-02-17, 11:55 AM
  #34
100% Rotary Since 1983
RX7Club Vendor
iTrader: (6)

Join Date: Oct 2001
Location: Wisconsin
Posts: 5,258
Thanked 13 Times in 10 Posts
"I should find some time to make a separate compression testing thread.
Barry"

Howard Coleman CPR is offline
Reply With Quote
Old 11-13-17, 12:16 PM
  #35
Let's get silly...
iTrader: (7)

RockLobster's Avatar

Join Date: May 2004
Location: Rosemount, MN
Posts: 1,692
Thanks: 0
Thanked 1 Time in 1 Post
Car is back togeather finally, scope creep ended up including a paint job....BMW sakhir orange metallic...will get it back on the dyno in the spring, it's now down for it's long winter's nap...
RockLobster is offline
Reply With Quote
Old 11-14-17, 01:56 PM
  #36
Lacks Ample Funds
iTrader: (1)

ACR_RX-7's Avatar

Join Date: May 2014
Location: PNW
Posts: 958
Thanked 8 Times in 7 Posts
Not to be "that guy", but the pic isn't loading for me.
ACR_RX-7 is offline
Reply With Quote
The Following User Says Thank You to ACR_RX-7 For This Useful Post:
FwkUiWN (11-15-17)
Old 11-14-17, 10:03 PM
  #37
Rotary Enthusiast

Havoc's Avatar

Join Date: Aug 2004
Location: Australia - Perth
Posts: 1,272
Thanked 4 Times in 3 Posts
I think we all "that guy"
Havoc is offline
Reply With Quote
The Following User Says Thank You to Havoc For This Useful Post:
FwkUiWN (11-15-17)




Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
jreynish
Adaptronic Engine Mgmt - AUS
10
07-26-16 07:23 PM
94touringFD
3rd Generation RX-7 (1993-2002) Parts
7
05-18-16 10:08 AM
rlee429
3rd Generation RX-7 (1993-2002) Parts
0
04-12-16 05:16 PM
Drobs42
3rd Generation RX-7 (1993-2002) Parts
2
03-30-16 02:51 PM
Justa2rotor
3rd Generation RX-7 (1993-2002) Parts
1
03-21-16 10:56 PM


Thread Tools
Search this Thread
Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -5. The time now is 11:19 AM.


All content Copyright 2007 by Internet Brands, Inc. We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.

  • Ask a Question
    Get answers from community experts
Question Title:
Description:
Your question will be posted in:
