Borg Warner S300 SXE 62

Old 11-27-17, 03:49 PM
  #26
Senior Member

Join Date: Mar 2001
Location: Walnut, CA
Posts: 704
Thanks: 0
Thanked 2 Times in 2 Posts
and for the 13009097049 with 66.11mm comp inducer, it seem to have similar efficiency for a 23psi and big street port 13b motor compare to 7008 and 7055.
with the ideal comp wheel trim that you mentioned, and a good wheel ratio too.
with the exception of comp/turbine avg area (how important is this relationship?)
i wonder if this is an even better turbo for this application?

13009097049
wheel ratio: 1.10
comp avg area / turbine avg area: 0.92
comp wheel trim: 52.27
Alpine is offline
Old 02-14-18, 07:56 PM
  #27
Senior Member
iTrader: (8)

Join Date: May 2007
Location: Canada
Posts: 274
Thanks: 0
Thanked 1 Time in 1 Post
Bump. Any updates to report on?
_Bahrx7_ is offline
Old 03-13-18, 04:46 PM
  #28
Full Member
iTrader: (1)

Join Date: May 2011
Location: Switzerland
Posts: 58
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by _Bahrx7_ View Post
Bump. Any updates to report on?
​​​​​​​Also interested
Jrm1005 is offline
Old 03-15-18, 05:17 PM
  #29
Adaptronic Distributor
RX7Club Vendor
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 6,840
Thanked 14 Times in 14 Posts
We should have some results in the next 2-3 weeks...
Turblown is offline
Old 03-21-18, 06:37 PM
  #30
Rotor or No Motor
iTrader: (4)

LongsTurboFB's Avatar

Join Date: Feb 2009
Location: Wilkesboro NC
Posts: 1,068
Thanks: 0
Thanked 0 Times in 0 Posts
So what everyone’s thoughts on my setup? 13b full Bridgeport I’m using an Borg Warner S369 SXE I’m planning on upping it up to 20psi. I believe it should do well.
LongsTurboFB is offline
Old 03-22-18, 01:57 AM
  #31
Automotive Designer

RGHTBrainDesign's Avatar

Join Date: Aug 2012
Location: San Jose, CA
Posts: 1,417
Thanked 40 Times in 37 Posts
Originally Posted by LongsTurboFB View Post
So what everyoneís thoughts on my setup? 13b full Bridgeport Iím using an Borg Warner S369 SXE Iím planning on upping it up to 20psi. I believe it should do well.
For a bridgeport, you want EMAP to be significantly lower than MAP to deal with the overlap, so your S369SX-E is essentially a slightly upsized EFR9180 w/ 69mm inducer and a very nice surge line. Should be great, especially if you plan on running EWG right off the turbine housing.
RGHTBrainDesign is offline
Old 04-12-18, 02:38 PM
  #32
Full Member

MaD^94Rx7's Avatar

Join Date: Dec 2002
Location: Malta (Europe)
Posts: 164
Thanked 2 Times in 2 Posts
Has anyone every tried fitting Howard's manifold on a RHD car ?
MaD^94Rx7 is offline
Old 04-12-18, 09:21 PM
  #33
Arrogant Wankeler

Slides's Avatar

Join Date: Nov 2006
Location: Newcastle NSW Australia
Posts: 365
Thanked 14 Times in 14 Posts
Originally Posted by MaD^94Rx7 View Post
Has anyone every tried fitting Howard's manifold on a RHD car ?
All the turblown stuff fits both.
Slides is offline
The Following User Says Thank You to Slides For This Useful Post:
MaD^94Rx7 (04-13-18)
Old 04-13-18, 12:28 AM
  #34
Full Member

MaD^94Rx7's Avatar

Join Date: Dec 2002
Location: Malta (Europe)
Posts: 164
Thanked 2 Times in 2 Posts
I know that, but I am genuiinly intrigued by Howard's manifold simplicity and straight runners.
Can anyone confirm please?

Originally Posted by Slides View Post
All the turblown stuff fits both.
MaD^94Rx7 is offline
Old 10-01-18, 12:37 AM
  #35
2SoonJr
iTrader: (8)

FD7KiD's Avatar

Join Date: Apr 2008
Location: OrangeCounty-Santa Ana
Posts: 494
Thanks: 0
Thanked 1 Time in 1 Post
any updates????
FD7KiD is offline
Old 10-01-18, 04:19 PM
  #36
Full Member
iTrader: (1)

Join Date: May 2011
Location: Switzerland
Posts: 58
Thanks: 0
Thanked 0 Times in 0 Posts
sorry wrong topic

Last edited by Jrm1005; 10-01-18 at 04:20 PM. Reason: wrong topic
Jrm1005 is offline
Old 11-06-18, 09:54 PM
  #37
Adaptronic Distributor
RX7Club Vendor
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 6,840
Thanked 14 Times in 14 Posts

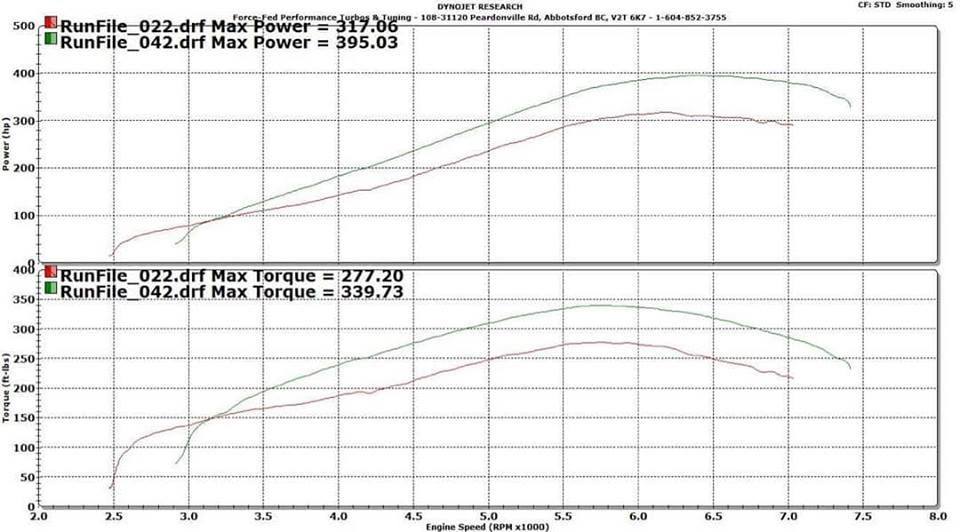

S363SXE cast long runner kit of ours ( 76mm turbine .91) in green( 14 psi) vs knightsports twins in red( 13 psi). Same setup, just turbo system swap.
2.5mm catback is holding this setup back on the top end, also a conservative tune at the moment until the map sensor gets upgraded etc.

Install and tune by ForceFed Racing in Canada.

Turblown is offline
Old 12-22-18, 06:22 PM
  #38
2SoonJr
iTrader: (8)

FD7KiD's Avatar

Join Date: Apr 2008
Location: OrangeCounty-Santa Ana
Posts: 494
Thanks: 0
Thanked 1 Time in 1 Post
Those are some really good numbers at 1 bar for the S363 6368; i think this could be the best setup for a daily-driving/weekend warrior at a cost effective price.

Was there ever an update with the new map sensor?? and any numbers on what it can do at the drag strip?? and or with FLEX FUEL E-85???
FD7KiD is offline
Old 01-04-19, 12:07 AM
  #39
Junior Member
iTrader: (1)

Join Date: Aug 2015
Location: DFW
Posts: 40
Thanked 1 Time in 1 Post
Hey Elliot,

My name is Steven, i have been discussing with Howard about my engine build and decided to go with a turbo, most likely an SXE362. I really like the idea of the EFR 8374 but i do not like how far to the right the surge line is for that compressor map, hence my decision for leaning towards the SXE362.

I have a quick question for you.
Do you have any experience with your cast EWG manifold fitting in an FB chassis?
stevo9494 is offline
Old 01-04-19, 03:48 AM
  #40
Automotive Designer

RGHTBrainDesign's Avatar

Join Date: Aug 2012
Location: San Jose, CA
Posts: 1,417
Thanked 40 Times in 37 Posts
Originally Posted by stevo9494 View Post
Hey Elliot,

My name is Steven, i have been discussing with Howard about my engine build and decided to go with a turbo, most likely an SXE362. I really like the idea of the EFR 8374 but i do not like how far to the right the surge line is for that compressor map, hence my decision for leaning towards the SXE362.

I have a quick question for you.
Do you have any experience with your cast EWG manifold fitting in an FB chassis?
You should check out my build to answer that better for yourself. Depends on if you're using FC Subframe w/ Turbo II Motor, or FC Subframe w/ REW, or FB Subframe w/ Turbo II, or FB Subframe w/ REW, etc. I can almost guarantee that the turblown stuff WILL fit.

Not wanting to comment on Turblown or Howard's thought process, so I'll leave it at that.
RGHTBrainDesign is offline
Old 01-04-19, 08:59 AM
  #41
Adaptronic Distributor
RX7Club Vendor
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 6,840
Thanked 14 Times in 14 Posts
Originally Posted by stevo9494 View Post
Hey Elliot,

My name is Steven, i have been discussing with Howard about my engine build and decided to go with a turbo, most likely an SXE362. I really like the idea of the EFR 8374 but i do not like how far to the right the surge line is for that compressor map, hence my decision for leaning towards the SXE362.

I have a quick question for you.
Do you have any experience with your cast EWG manifold fitting in an FB chassis?

I have only confirmed the iwg manifold fitment on the FB chassis. As mentiomed the ewg will probably fit, just depends on the engine mount. Please note it will only fit an cosmo or RE( wont clear a turbo2 LIM).
Turblown is offline
Old 01-05-19, 12:43 AM
  #42
Junior Member
iTrader: (1)

Join Date: Aug 2015
Location: DFW
Posts: 40
Thanked 1 Time in 1 Post
Nice build RGHTBrainDesign! Its nice to see another modded FB. Is yours Tender Metallic Blue too?

So my build is a bit more different, i am using a Holley 6 port manifold with the Terminator 4 barrel TBI with the motor mounted to the stock FB subframe. I have a GSLSE so i am going to use that front cover to mount the motor into the car.

Thank you Turblown, I am particularly curious about the EFR 8374, leaning towards running an external wastegate. On the EFR 8374, do you know what the spool (boost threshold) and manifold back pressure difference is between the 0.92 IWG and 1.05 EWG turbine housing across the rev range?
I have seen some of your work where you welded a wastegate to the SXE turbine housing, can the same be performed for the EFR 8374 1.05 EWG turbine housing?
stevo9494 is offline
Old 01-05-19, 07:47 PM
  #43
Adaptronic Distributor
RX7Club Vendor
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 6,840
Thanked 14 Times in 14 Posts
Originally Posted by stevo9494 View Post
Nice build RGHTBrainDesign! Its nice to see another modded FB. Is yours Tender Metallic Blue too?

So my build is a bit more different, i am using a Holley 6 port manifold with the Terminator 4 barrel TBI with the motor mounted to the stock FB subframe. I have a GSLSE so i am going to use that front cover to mount the motor into the car.

Thank you Turblown, I am particularly curious about the EFR 8374, leaning towards running an external wastegate. On the EFR 8374, do you know what the spool (boost threshold) and manifold back pressure difference is between the 0.92 IWG and 1.05 EWG turbine housing across the rev range?
I have seen some of your work where you welded a wastegate to the SXE turbine housing, can the same be performed for the EFR 8374 1.05 EWG turbine housing?
I do not know the exact difference between the .92 and 1.05 only, but I do know the difference( back to back ) between on iwg and ewg kit. This adds the variable of the manifolds( short vs long, and runner sizes).

There is a 600rpm difference favoring the iwg. This is mostly do to the manifold. Generally you only see 150rpm difference on this size turbine wheel from that size increase in AR.

I have not done enough EWG 8374 emap testing to have solid data on it. Most of our testing has been on the iwg. We have some more ewg testing coming soon with 8474.

Yes you can weld on the EFR turbine housings. Several AUS customers have added gates to our shorty cast with 1.05 housings.
Turblown is offline
