Single Turbo RX-7's Questions about all aspects of single turbo setups.

borg warner exhaust flange?

Old 02-15-10, 07:58 PM
  #1
Bubblicious DEF.
5 Year Member
Thread Starter
iTrader: (35)

muibubbles's Avatar

Join Date: May 2008
Location: 732
Posts: 4,252
Likes: 0
Liked 0 Times in 0 Posts
borg warner exhaust flange?

i heard that the borg warner vband flange for the exhaust side is a bit different then the normal ones.. is that true? anyone know where i can but the flange adn vband clamp for my dp to turbo? its an s366 btw with a 4.21" i believe
muibubbles is offline
Old 02-15-10, 10:53 PM
  #2
Still Waiting.......
5 Year Member
iTrader: (3)

SE\/EN's Avatar

Join Date: Nov 2008
Location: Utah
Posts: 216
Likes: 0
Liked 0 Times in 0 Posts
Yes they are a bit different. I had to change the flange on my down pipe from a greddy 4" or whatever to one that would fit my bw 475. The flange for my BW is slightly larger than the one that I was useing for my t88 setup.

I got mine from a local diesel shop here that is a dealer for borg warner. I would think any BW dealers here on the site would have them. If not I could help you get one.
SE\/EN is offline
Old 02-16-10, 02:21 AM
  #3
Stay tuned...
15 Year Member
iTrader: (3)

AnthonyNYC's Avatar

Join Date: Jul 1997
Location: West Islip, Long Island NY
Posts: 2,917
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by SE\/EN View Post
Yes they are a bit different. I had to change the flange on my down pipe from a greddy 4" or whatever to one that would fit my bw 475. The flange for my BW is slightly larger than the one that I was useing for my t88 setup.

I got mine from a local diesel shop here that is a dealer for borg warner. I would think any BW dealers here on the site would have them. If not I could help you get one.
The S475 comes with a T6 flange usually. Did you get one with a t4 flange? If so, did it fit on your greddy manifold?

Do you have any pics?

Thanks!!!

Anthony
AnthonyNYC is offline
Old 02-16-10, 01:44 PM
  #4
Still Waiting.......
5 Year Member
iTrader: (3)

SE\/EN's Avatar

Join Date: Nov 2008
Location: Utah
Posts: 216
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by AnthonyNYC View Post
The S475 comes with a T6 flange usually. Did you get one with a t4 flange? If so, did it fit on your greddy manifold?

Do you have any pics?

Thanks!!!

Anthony
Yes sir, my s475 has a devided t4 flange, and it matches up to my greddy manifold. However the downpipe flanges seem to be slightly larger as the OP has stated.

I do have pics, but I never took any of the greddy manifold sitting next to the turbine housing to compare flanges if that is what your curious about. Most of them are of the turbo already mounted to the greddy manifold. So they would be more of just an engine bay pic.
SE\/EN is offline
Old 02-16-10, 03:46 PM
  #5
Still Waiting.......
5 Year Member
iTrader: (3)

SE\/EN's Avatar

Join Date: Nov 2008
Location: Utah
Posts: 216
Likes: 0
Liked 0 Times in 0 Posts
Out for the post count today I guess

Sorry muibubbles I am really not trying to highjack your thread....

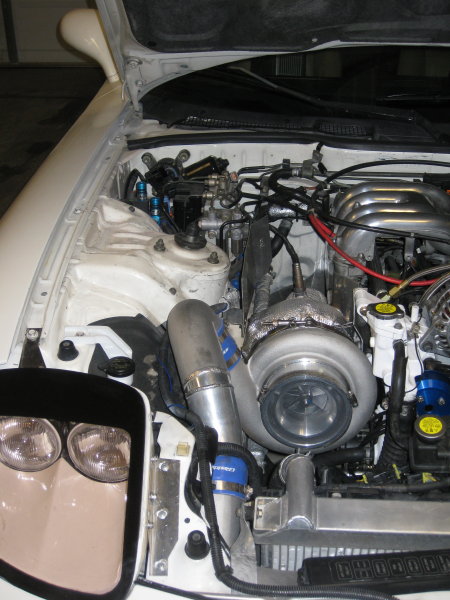

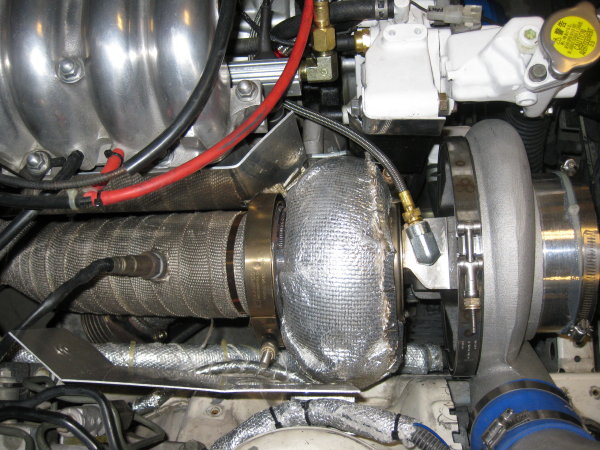

Anthony, they are nothing really special, but here are a couple pics that show the turbo mounted on a greddy manifold. However I had to have a spacer made for the manifold to allow the turbine housing to clear the lim.
Attached Thumbnails borg warner exhaust flange?-img_0672.jpg   borg warner exhaust flange?-img_0674.jpg
SE\/EN is offline
Old 02-17-10, 11:20 PM
  #6
Bubblicious DEF.
5 Year Member
Thread Starter
iTrader: (35)

muibubbles's Avatar

Join Date: May 2008
Location: 732
Posts: 4,252
Likes: 0
Liked 0 Times in 0 Posts
cool beans. no problem seven, thanks for the offer! actually just got them from a turbo diesel shop online
muibubbles is offline
Old 02-18-10, 08:51 AM
  #7
The king of the highway!
10 Year Member
iTrader: (2)

darkphantom's Avatar

Join Date: May 2004
Location: Home of the 305 Boyz(miami)
Posts: 2,989
Likes: 0
Liked 0 Times in 0 Posts
shouldnt a precision flange work as well on a borg warner??
darkphantom is offline
Old 02-18-10, 09:23 AM
  #8
dyno queen potentials
5 Year Member

killahrx7's Avatar

Join Date: Oct 2007
Location: ga
Posts: 445
Likes: 0
Liked 0 Times in 0 Posts
i bought a 4" v-band flange and clamp setup welded it on the turbo
killahrx7 is offline
Old 02-19-10, 10:32 AM
  #9
Stay tuned...
15 Year Member
iTrader: (3)

AnthonyNYC's Avatar

Join Date: Jul 1997
Location: West Islip, Long Island NY
Posts: 2,917
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by SE\/EN View Post
Yes sir, my s475 has a devided t4 flange, and it matches up to my greddy manifold. However the downpipe flanges seem to be slightly larger as the OP has stated.

I do have pics, but I never took any of the greddy manifold sitting next to the turbine housing to compare flanges if that is what your curious about. Most of them are of the turbo already mounted to the greddy manifold. So they would be more of just an engine bay pic.
Thanks Seven for the pics!

KillahRx7 - thats a good idea too.

Thanks!!!
AnthonyNYC is offline
Old 02-26-10, 01:58 PM
  #10
Registered User
iTrader: (4)

justturbo2's Avatar

Join Date: Jan 2005
Location: new york
Posts: 1,571
Liked 0 Times in 0 Posts
seven what lim are u using? factory or the excessive motorsports?
justturbo2 is offline
Old 02-27-10, 12:16 PM
  #11
Still Waiting.......
5 Year Member
iTrader: (3)

SE\/EN's Avatar

Join Date: Nov 2008
Location: Utah
Posts: 216
Likes: 0
Liked 0 Times in 0 Posts
I am just using a modified factory lim for now. We were able to get decent flow results through it but had to take alot of material out and had do a little welding. That is why I built the shield to help deflect heat, and to hide the ugly. ha ha
SE\/EN is offline
