BB Turbo Assembly
So as most of you know garrett doesnt sell **** for their bb turbos.
I have a fresh p trim chra but im missing 1 piece.
From what i can tell i need the oil slinger aka the collar in the backplate.
Maybe someone has a bad turbo or maybe one that is apart.
Bryan
I have a fresh p trim chra but im missing 1 piece.
From what i can tell i need the oil slinger aka the collar in the backplate.
Maybe someone has a bad turbo or maybe one that is apart.
Bryan
02-29-12, 03:44 PM
#2
Senior Member
Thread Starter
iTrader: (11)
Join Date: Feb 2008
Location: drifting .pa
Posts: 368
Likes: 0
Received 0 Likes
on
0 Posts
Even a picture of what im looking for. Someone has to have one that is damaged that they can take the compressor wheel and back plate off of.
I called a few shops with little feedback so i need help from the community.
Id really hate to buy a new turbo just for parts.
I called a few shops with little feedback so i need help from the community.
Id really hate to buy a new turbo just for parts.
03-06-12, 04:16 PM
#3
Senior Member
Thread Starter
iTrader: (11)
Join Date: Feb 2008
Location: drifting .pa
Posts: 368
Likes: 0
Received 0 Likes
on
0 Posts
Really??
Nobody has a reply i know there are guys on here that build turbos.
I guess its not worth messing with since it wouldnt bring anyone any cash??
Nobody has a reply i know there are guys on here that build turbos.
I guess its not worth messing with since it wouldnt bring anyone any cash??
Trending Topics
03-07-12, 02:47 PM
#8
Senior Member
Thread Starter
iTrader: (11)
Join Date: Feb 2008
Location: drifting .pa
Posts: 368
Likes: 0
Received 0 Likes
on
0 Posts
thats the thing garrettt has made it very difficult to even get a diagram of a bb turbo. its the peice that goes in the center of the backplate above what would be the thrust plate if it wasnt ball bearing.

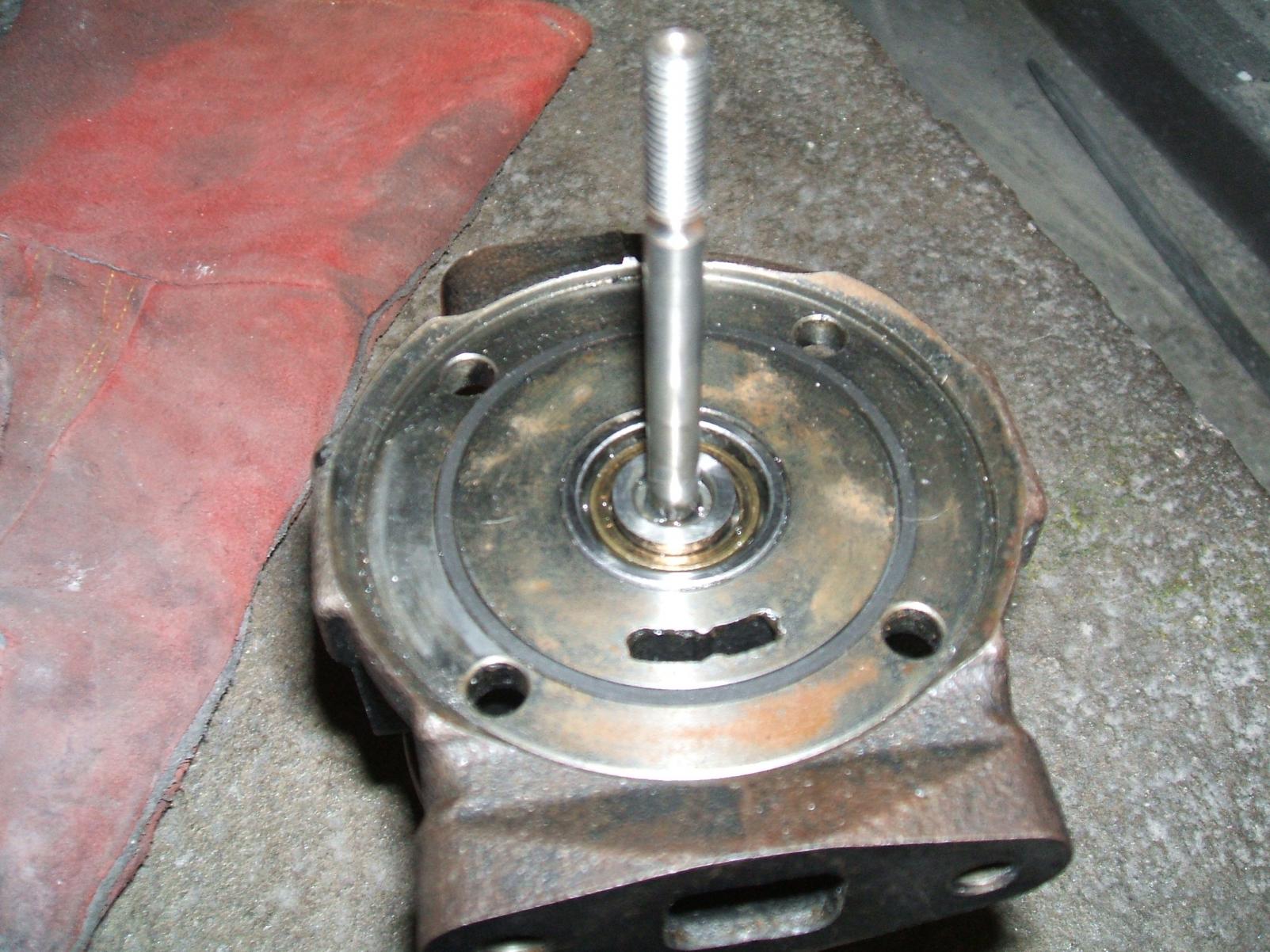

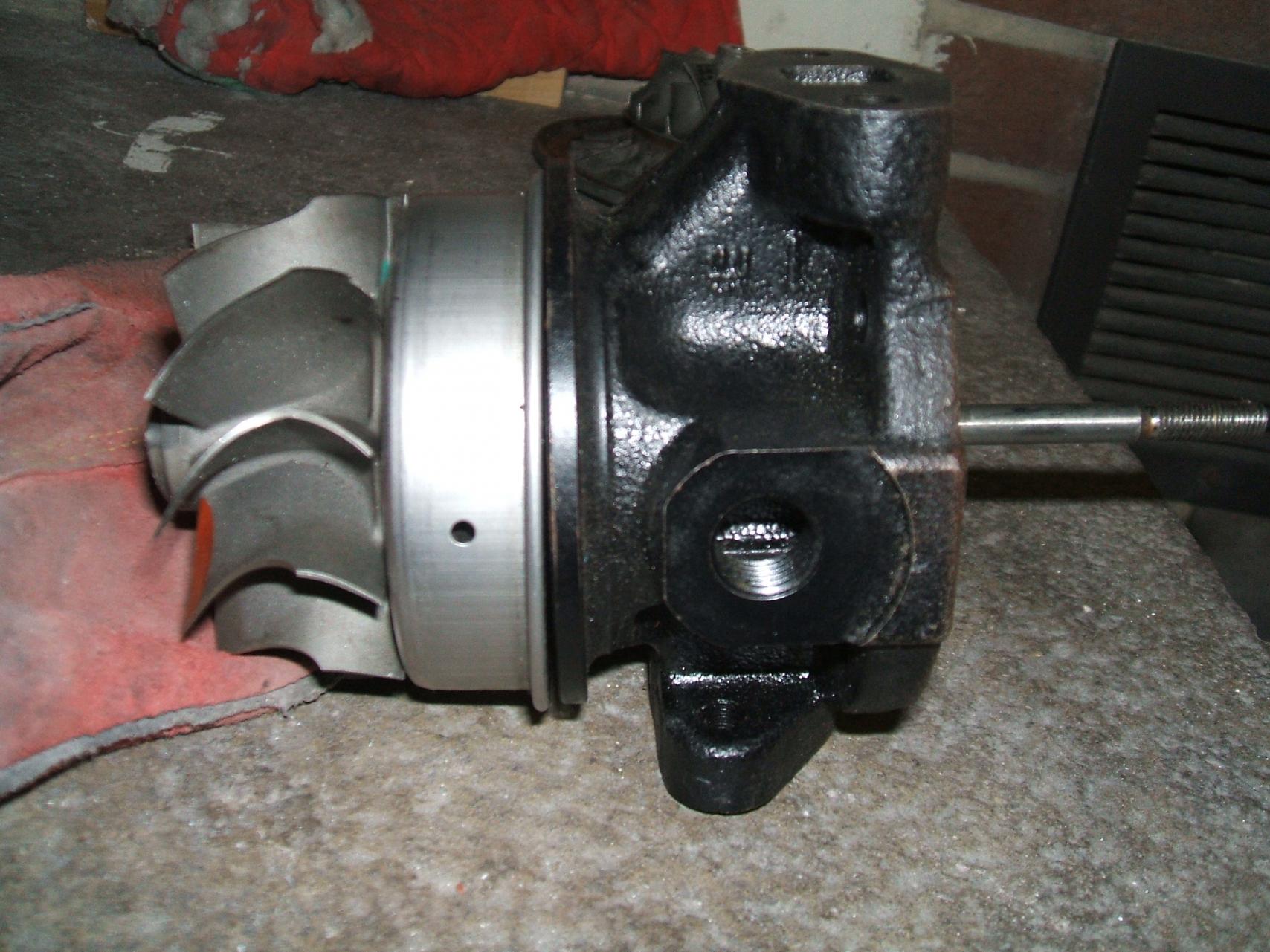

I would be so greatful if you could take the compressor and back plate off of your 35/40r and take a picture. does yours have the 4 bolts holding the backplate on or a snap ring?
I would be so greatful if you could take the compressor and back plate off of your 35/40r and take a picture. does yours have the 4 bolts holding the backplate on or a snap ring?
03-13-12, 08:09 AM
#9

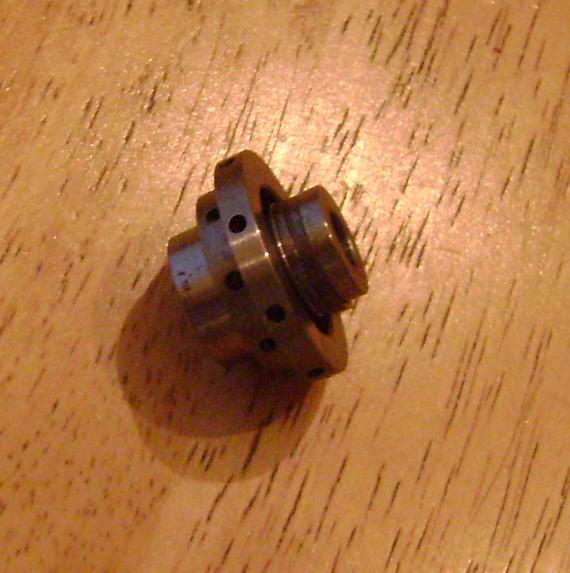

i believe this is the part you are looking for, front oil seal for a BB T3 turbo

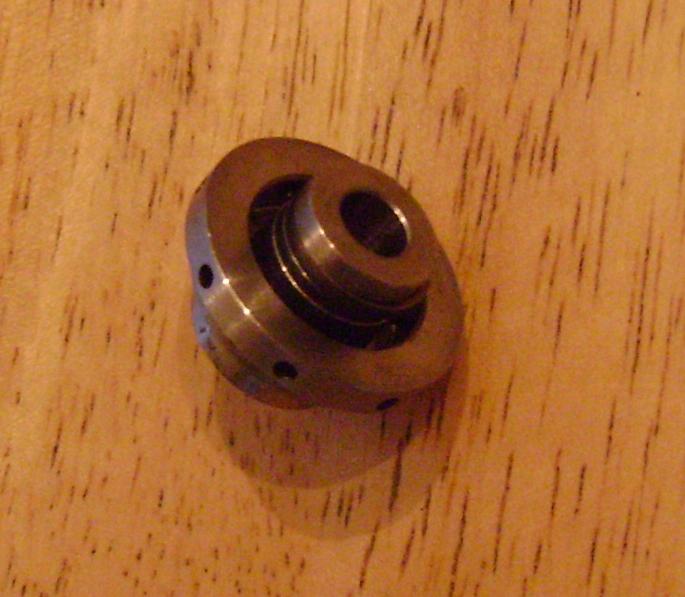

compare to a front oil seal for a journal bearing turbo.. the BB part is taller since there is no thrust bearing. I can sell you this one for $40, or you may be able to get by with a journal bearing seal, and just find the right spacer to put between the front oil seal and front bearing race
compare to a front oil seal for a journal bearing turbo.. the BB part is taller since there is no thrust bearing. I can sell you this one for $40, or you may be able to get by with a journal bearing seal, and just find the right spacer to put between the front oil seal and front bearing race
