Aspec 500R Installation

Do they come with an installation guide perchance? I purchased this used and I'm quite certain I can figure out where everything goes but a genuine guide, if available, would be lovely.

I understand Aspec can be difficult to reach hence my inquiry here.

Thank you.
Old 07-21-12, 03:08 PM
  #2
Lives on the Forum

iTrader: (8)

thewird's Avatar

Join Date: Oct 2006
Location: Toronto, Canada
Posts: 6,591
Likes: 0
Received 11 Likes on 11 Posts
There was no guide, its pretty standard lol.

manifold connects to engine, turbo sits on manifold, downpipe connects to turbo and midpipe, oil feed from front iron, oil drain to front cover, water lines, and wastegate goes to manifold.

thewird
Old 07-21-12, 08:26 PM
  #3
Rotary Revolutionary

iTrader: (16)

sharingan 19's Avatar

Join Date: May 2006
Location: Jacksonville, Tampa & Tallahassee
Posts: 3,881
Received 2 Likes on 2 Posts
Does the A-spec manifold fit the fc?
Old 07-21-12, 08:56 PM
  #4
Just in time to die

iTrader: (1)

Zero R's Avatar

Join Date: Nov 2001
Location: look behind you
Posts: 4,143
Likes: 0
Received 1 Like on 1 Post
If you need any questions answered email me sean@a-spec.com phones can be rough I wont lie, but unless something goes to spam I usually get to it pretty quickly.

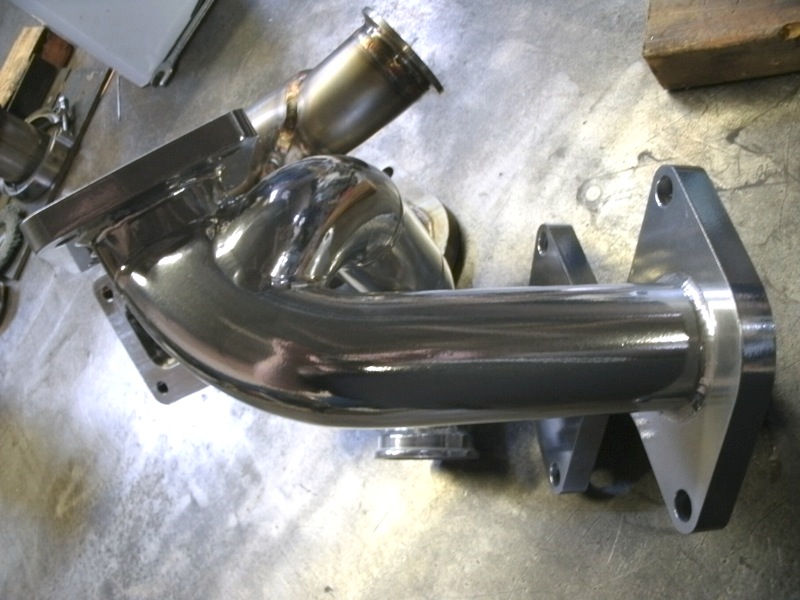

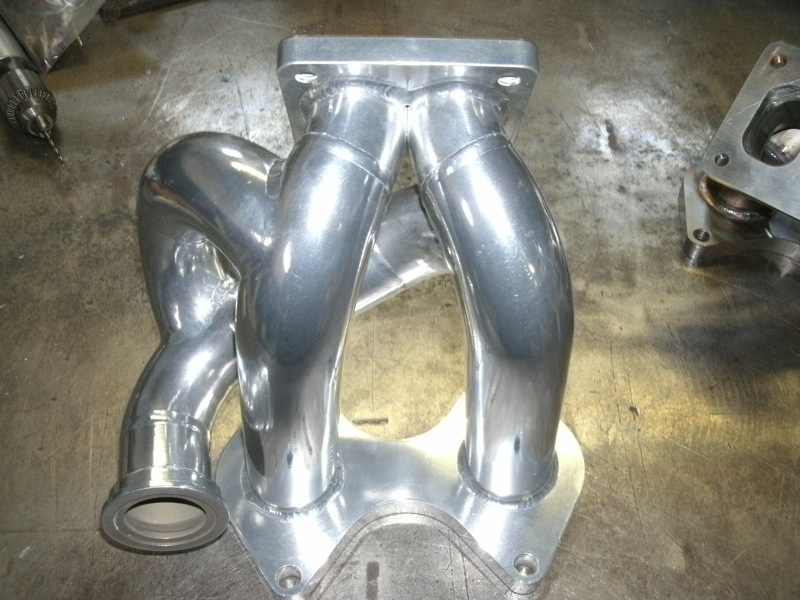

We make a FC specific manifold. It's a straight shot with minimal bends and offers excellent response even on non BB units.

~S~
Attached Thumbnails Aspec 500R Installation-gedc0339.jpg   Aspec 500R Installation-gedc0340.jpg
Old 07-25-12, 07:23 AM
  #5
1.5 Goodfella's Tall

Thread Starter
iTrader: (97)

Gringo Grande's Avatar

Join Date: Oct 2006
Location: Tampa, FL
Posts: 4,216
Likes: 0
Received 2 Likes on 2 Posts
Wird and Sean-

Thank you for the response. Everything seems logical, having never installed one before I've got no fear in asking and APPEARING to be an idiot instead of not asking and going full retard and BEING an idiot! =)
Old 07-25-12, 07:41 AM
  #6
Full Member
iTrader: (1)

BeanieTec's Avatar

Join Date: Aug 2011
Location: Ansonia, CT
Posts: 161
Likes: 0
Received 1 Like on 1 Post
Never go full retard!

I have faith in you Gringo, you got this.
Old 07-31-12, 10:35 PM
  #7
Retired Moderator, RIP

iTrader: (142)

misterstyx69's Avatar

Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes on 114 Posts
Originally Posted by Gringo Grande
Wird and Sean-

Thank you for the response. Everything seems logical, having never installed one before I've got no fear in asking and APPEARING to be an idiot instead of not asking and going full retard and BEING an idiot! =)
Going Full Retard would be giving up..
You are going "Full Advanced"!..and asking first so you can fix up later!!!
