Aluminum rad shield for Greddy 2&3 row FMIC's
08-20-02, 04:36 PM
#1
Rotary Freak
Thread Starter
iTrader: (15)
Aluminum rad shield for Greddy 2&3 row FMIC's

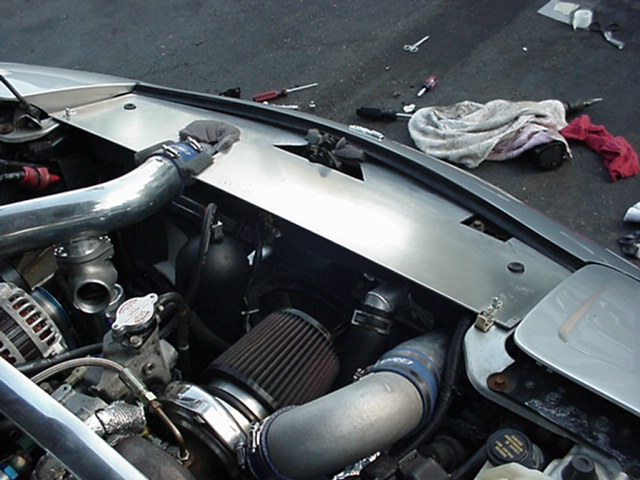

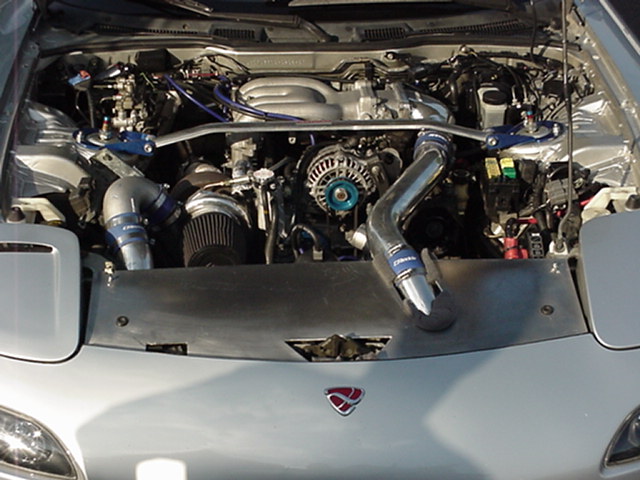

Ihor and I just finished the production of a prototype radiator shield that helps duct air through the radiator instead of over it. I guess pictures would better explain what I am talking about. We want to see what kind of interest there would be for such a unit. Leave some feedback.
08-20-02, 04:42 PM
#3
Rotary Freak
Thread Starter
iTrader: (15)
if there is enough interest we can start production within a week. preorder payments will be taken at that time. our target is yet to be determined at the time. it all depends on the feedback we get.
08-20-02, 08:23 PM
#7
Braap Braap Braap BOOM!
Join Date: Mar 2001
Location: Ft. Worth, TX
Posts: 843
Likes: 0
Received 0 Likes
on
0 Posts
What is that the panspeed setup? We're just making this one for now. Pricing has yet to be determined and is dependant on how many people are interested. I'm driving around with the prototype in my car now for testing and it runs a bit cooler than when I had the 2" gap between the radiator and front of car. If we could meet up with someone with the apexi front mount then we could easily take some measurements and alter the design to fit. It would probably be just a matter of moving the cutout for the intercooler outlet pipe.
Trending Topics
08-20-02, 08:57 PM
#8
I don't have single but interested if you don't cut the panel for the intake pipe on the driver side. I made something for myself using very thin alumninum sheet but i'ts not hoding up. Are these laser cuts?
What is the pricing? $100 is what I estimate is a good value with laser cuts though.
What is the pricing? $100 is what I estimate is a good value with laser cuts though.
08-20-02, 09:05 PM
#9
Braap Braap Braap BOOM!
Join Date: Mar 2001
Location: Ft. Worth, TX
Posts: 843
Likes: 0
Received 0 Likes
on
0 Posts
Does Rolls Royce use lasers? No they are all hand made. These are hand crafted jems in the finest old world tradition We don't have the facilities nor equipment for laser cutting. In my opinion it comes out pretty good this way.
Pricing is not set yet, but it will be more than $100. It takes quite a bit of time and labor to make just one.
Pricing is not set yet, but it will be more than $100. It takes quite a bit of time and labor to make just one.
08-20-02, 09:50 PM
#10
dear baby jesus...
Join Date: Mar 2001
Location: WA
Posts: 1,063
Likes: 0
Received 0 Likes
on
0 Posts
I'm not sure if it is made by Panspeed. Saw it at HIN. Just an FYI, R-magic makes a pretty nice radiator shroud for the FD. JT imports lists it for $135...so I'd aim to keep the price below that
08-20-02, 10:04 PM
#11
Braap Braap Braap BOOM!
Join Date: Mar 2001
Location: Ft. Worth, TX
Posts: 843
Likes: 0
Received 0 Likes
on
0 Posts
Yea I've seen that one and it will not fit with front mount intercooler setups because of interferance with the intercooler outlet pipe. It also has alot more holes and appears to be cut for a stock battery. I feel our design is superior to that one and looks much cleaner. Ours is going to come as a kit with all hardware and foam to seal it to the radiator. It will also most likely be fully polished. I'm not sure what the r magic one is made out of, but ours is beafy 1/8th" thick aluminum. It is sturdy and won't flap around. Pricing will be anounced soon, but it is going to cost more than $135. This is mainly due to the time investment it takes to make one. Also, sourcing high quality aluminum is not cheep.
08-21-02, 12:30 AM
#13
Rotary Poseur
Join Date: Feb 2001
Location: Richmond, BC, Canada
Posts: 718
Likes: 0
Received 0 Likes
on
0 Posts
the yellow FD is not a PanSpeed setup...it's a one-off made by www.staffsauto.com in Vancouver. There's an aluminum shield that is vertically mounted between the motor and the rad/IC. the rad is also custom-mounted.
08-21-02, 08:34 AM
#15
Passenger
Posts: n/a
If these were available in CF I would want one for sure..
Maybe you can consider this..
Maybe you can source it from these guys. These guys have some reallllllllly nice products..
Check this out this pic ..it kinda' looks like that KS intake duct -->>
http://carbontrix.com/naca.htm
http://carbontrix.com/
TIA,
Maybe you can consider this..
Maybe you can source it from these guys. These guys have some reallllllllly nice products..
Check this out this pic ..it kinda' looks like that KS intake duct -->>
http://carbontrix.com/naca.htm
http://carbontrix.com/
TIA,
08-21-02, 08:59 AM
#16
Full Member
Join Date: Jun 2002
Location: in a house in PA
Posts: 165
Likes: 0
Received 0 Likes
on
0 Posts
Will this significantly reduce heat? I have a problem under boost, the temps climb to 220-230. I'm afraid of hotspots.
Will it fit my FD? I have a Fluidyne radiator and a custom FMIC(griffen core/hks ends). I really need a new nose, but I don't have the cash.
here's pics of the engine bay. Think the intercooler inlet/outliet will get in the way?
http://unixweb.kutztown.edu/~pham2792/
Thanks, T
Will it fit my FD? I have a Fluidyne radiator and a custom FMIC(griffen core/hks ends). I really need a new nose, but I don't have the cash.
here's pics of the engine bay. Think the intercooler inlet/outliet will get in the way?
http://unixweb.kutztown.edu/~pham2792/
Thanks, T
08-21-02, 12:09 PM
#17
Braap Braap Braap BOOM!
Join Date: Mar 2001
Location: Ft. Worth, TX
Posts: 843
Likes: 0
Received 0 Likes
on
0 Posts
I'm looking into having them laser cut or milled. If we can get a number of units done at a reasonable cost, this would drop the price significantly.
RotorMagix, we might make a carbon fibre one. I think somone makes one already though. I remember seeing picks but I didn't like the design.
tbonerx7, your ast looks like it will get in the way. It would ahve ot be lovered or relocated. Same with the a/c dryer. We didn't want to cut a big hole for it so on my car we just pushed it down a bit. I'm working on a way to secure it better. The battery is also in the way. Its hard to tell from your pics how high the intercooler pipes come. We're located in NJ. We could always meet up and take some measurements and custom make something. As for your heat problem, where is your radiator? Seams to be stock mounted. I think that is your problem. Also, check that the water pump isn't slipping under hard throttle.
RotorMagix, we might make a carbon fibre one. I think somone makes one already though. I remember seeing picks but I didn't like the design.
tbonerx7, your ast looks like it will get in the way. It would ahve ot be lovered or relocated. Same with the a/c dryer. We didn't want to cut a big hole for it so on my car we just pushed it down a bit. I'm working on a way to secure it better. The battery is also in the way. Its hard to tell from your pics how high the intercooler pipes come. We're located in NJ. We could always meet up and take some measurements and custom make something. As for your heat problem, where is your radiator? Seams to be stock mounted. I think that is your problem. Also, check that the water pump isn't slipping under hard throttle.
08-22-02, 12:32 PM
#18
1993 RX7 R1
Join Date: Jul 2001
Location: SoCal
Posts: 1,266
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by Silver93TT
RotorMagix, we might make a carbon fibre one. I think somone makes one already though. I remember seeing picks but I didn't like the design.
RotorMagix, we might make a carbon fibre one. I think somone makes one already though. I remember seeing picks but I didn't like the design.
08-23-02, 12:55 AM
#21
Braap Braap Braap BOOM!
Join Date: Mar 2001
Location: Ft. Worth, TX
Posts: 843
Likes: 0
Received 0 Likes
on
0 Posts
Still not sure on the pricing, but I'm thinking around $150. This will include all hardware and material to seal it to the radiator. The final version will also be fully polished. Cost is gonna depend on interest and cost for us to laser cut or cnc it.
