AEM IGN-!A Coil location
I just recently bought 4 aem ign-1a coils for a turbo build and I am trying to figure out how to mount them. I would really like to mount them under the intake manifold but I am worried about the heat/vibration causing them to wear more excessively. i would really appreciate some input if anybody has any experience or knowledge on this. Thanks
#3
Senior Member
Thread Starter
iTrader: (17)
Join Date: Jan 2005
Location: Jackson, Mo
Posts: 441
Likes: 0
Received 0 Likes
on
0 Posts
Thanks, yeah I don't have ac or ps and the frame rail was going to be my second option. Thought it would look cool to "hide" them under the intake manifold but don't want to do it at the expensive of the coils.
#5
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts

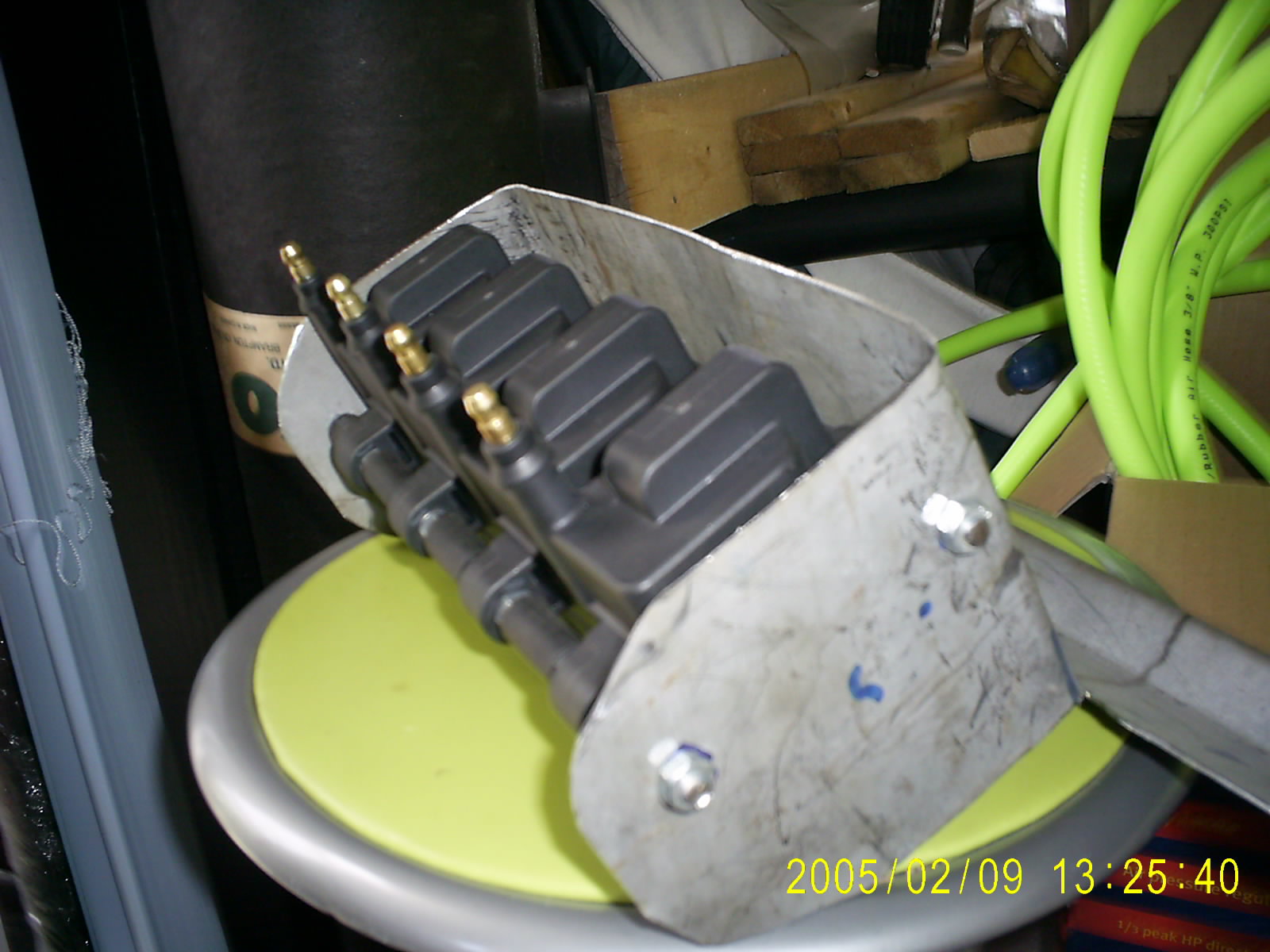

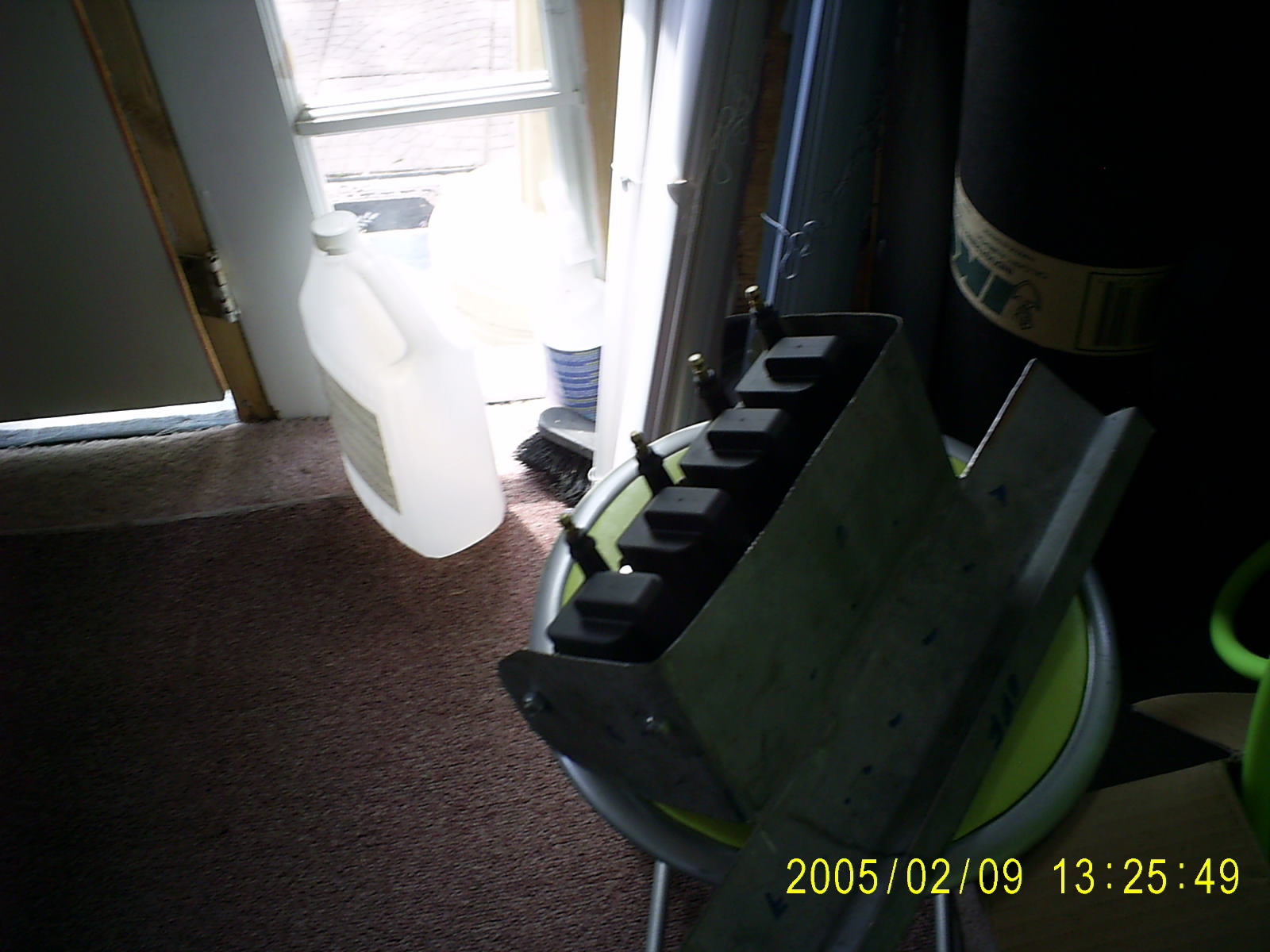

Aem Coils on an FC.

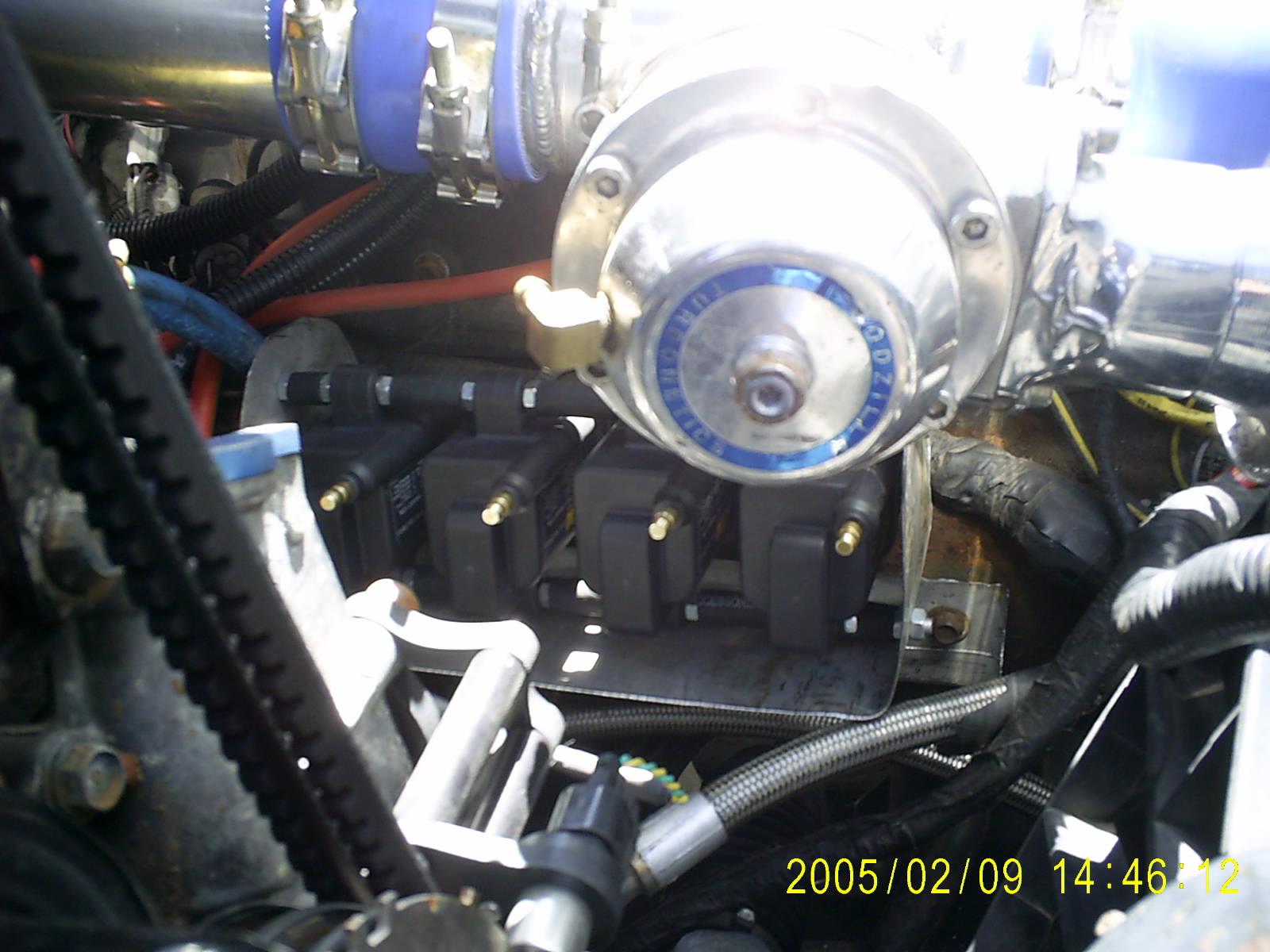

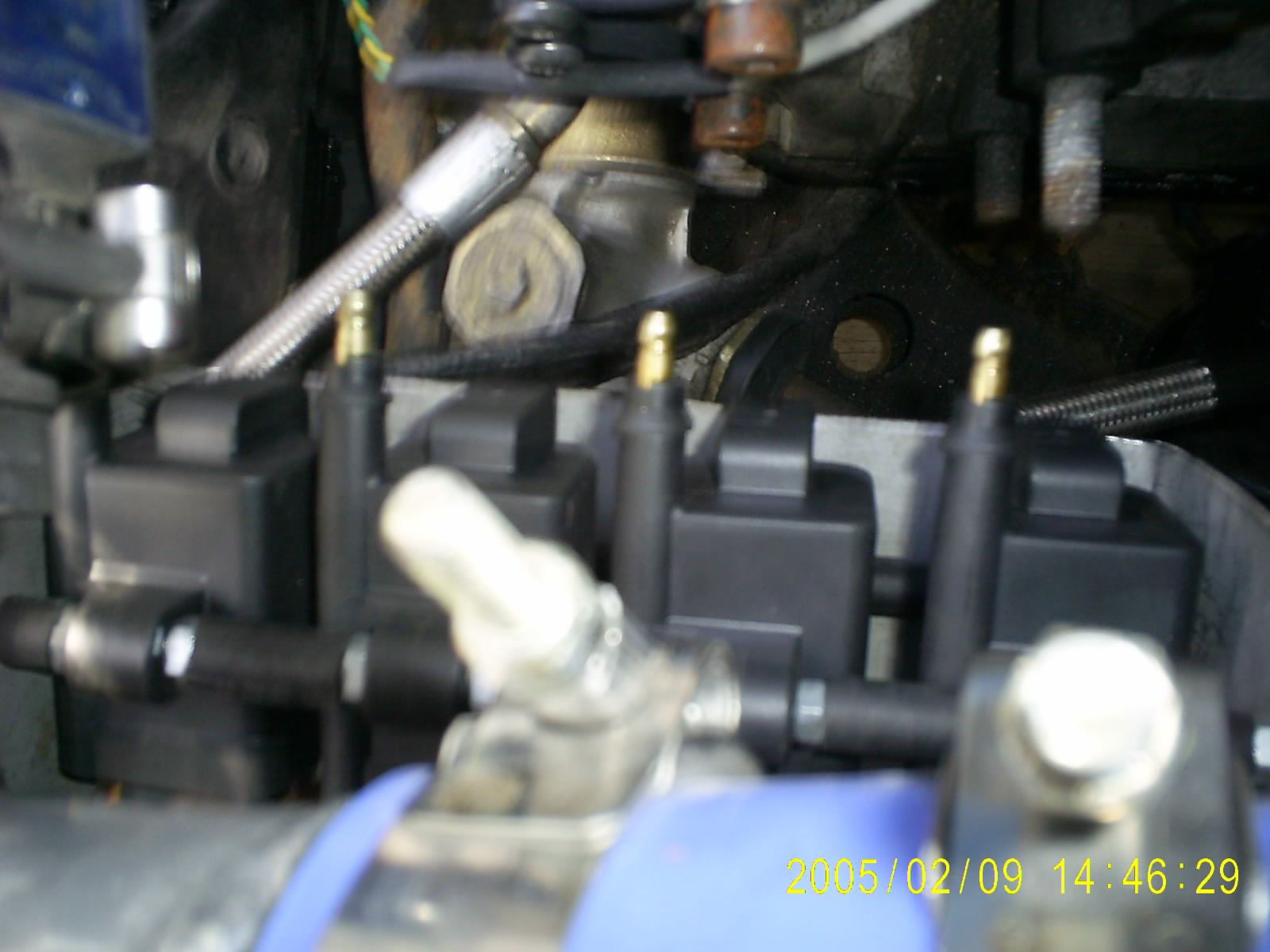

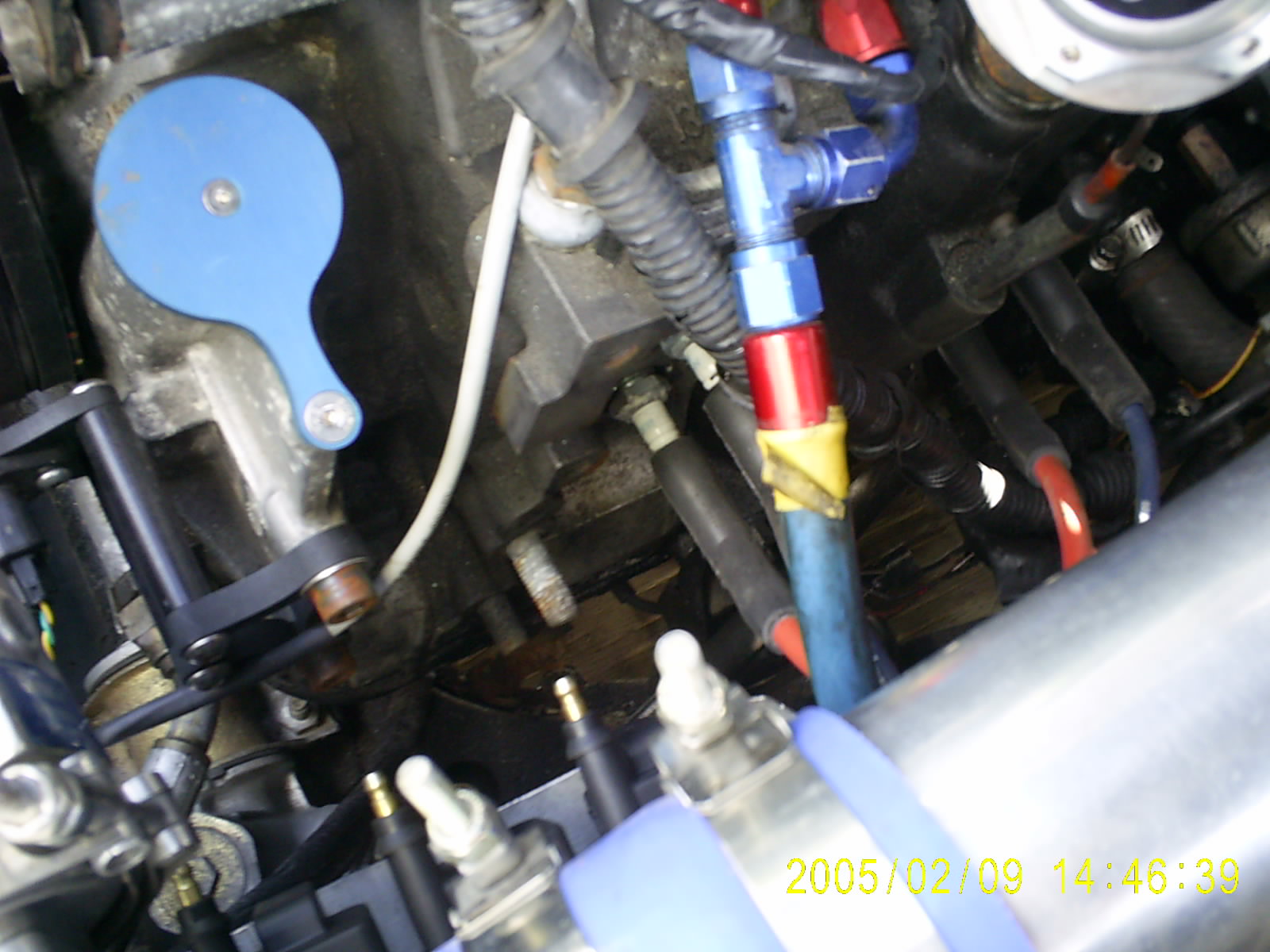

I made this mount last year,and put the setup on my FC on the driver's side Frame rail.
Mind you,I do not have any AC or Power steering.
I posted the parts involved...somewhere in the Haltech section.
Mind you,I do not have any AC or Power steering.
I posted the parts involved...somewhere in the Haltech section.
Trending Topics
#9
Senior Member
Thread Starter
iTrader: (17)
Join Date: Jan 2005
Location: Jackson, Mo
Posts: 441
Likes: 0
Received 0 Likes
on
0 Posts

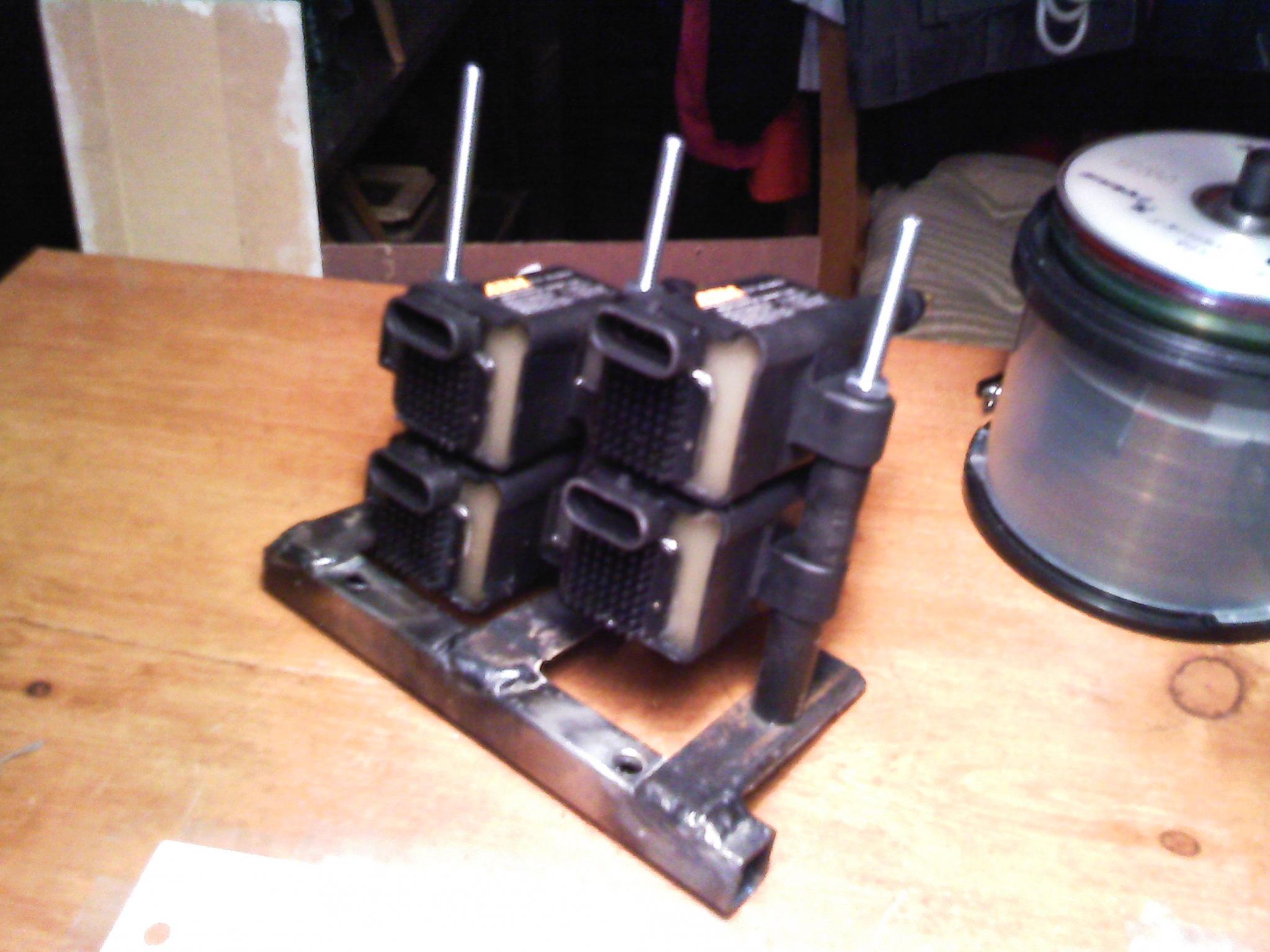

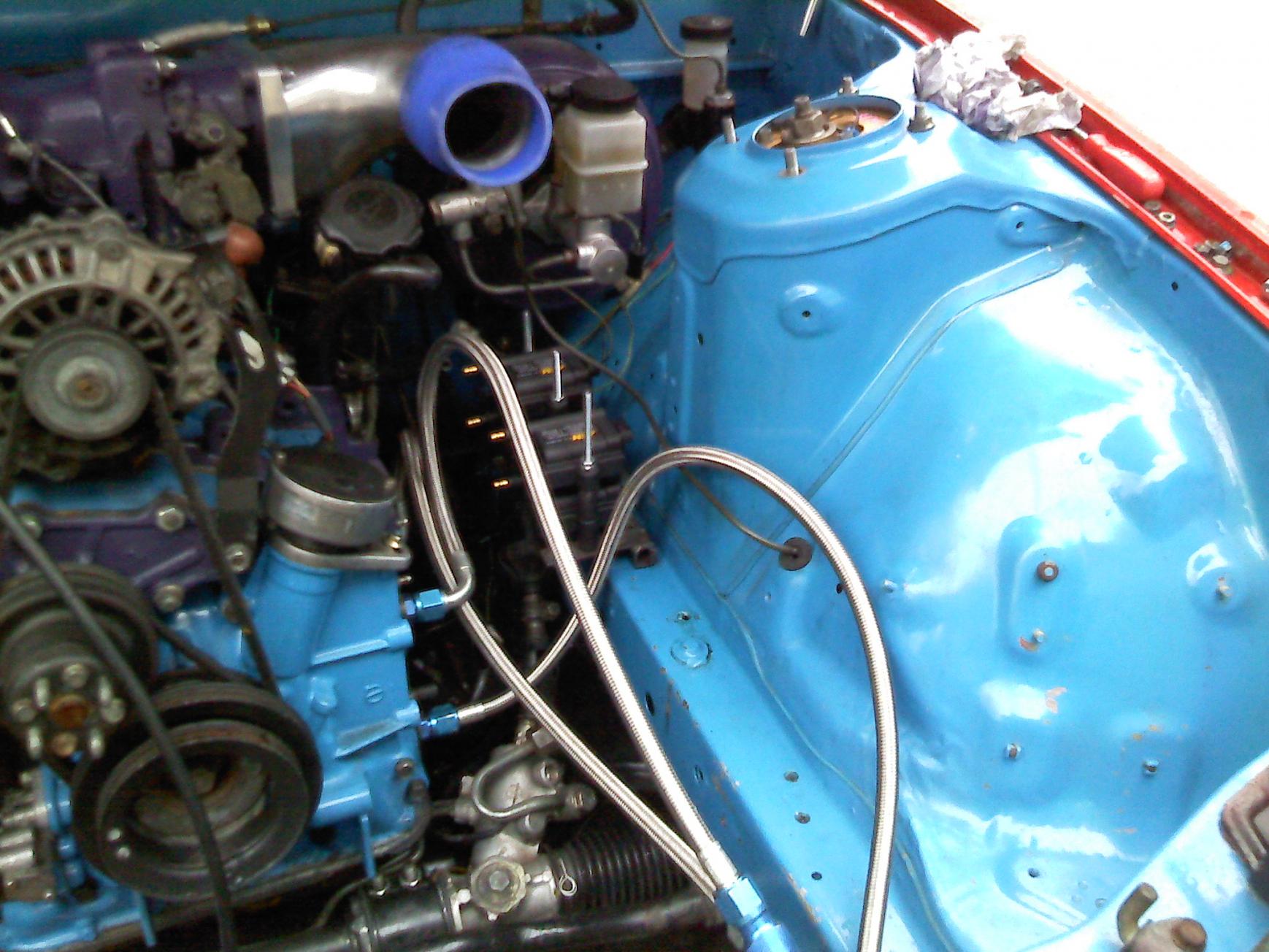

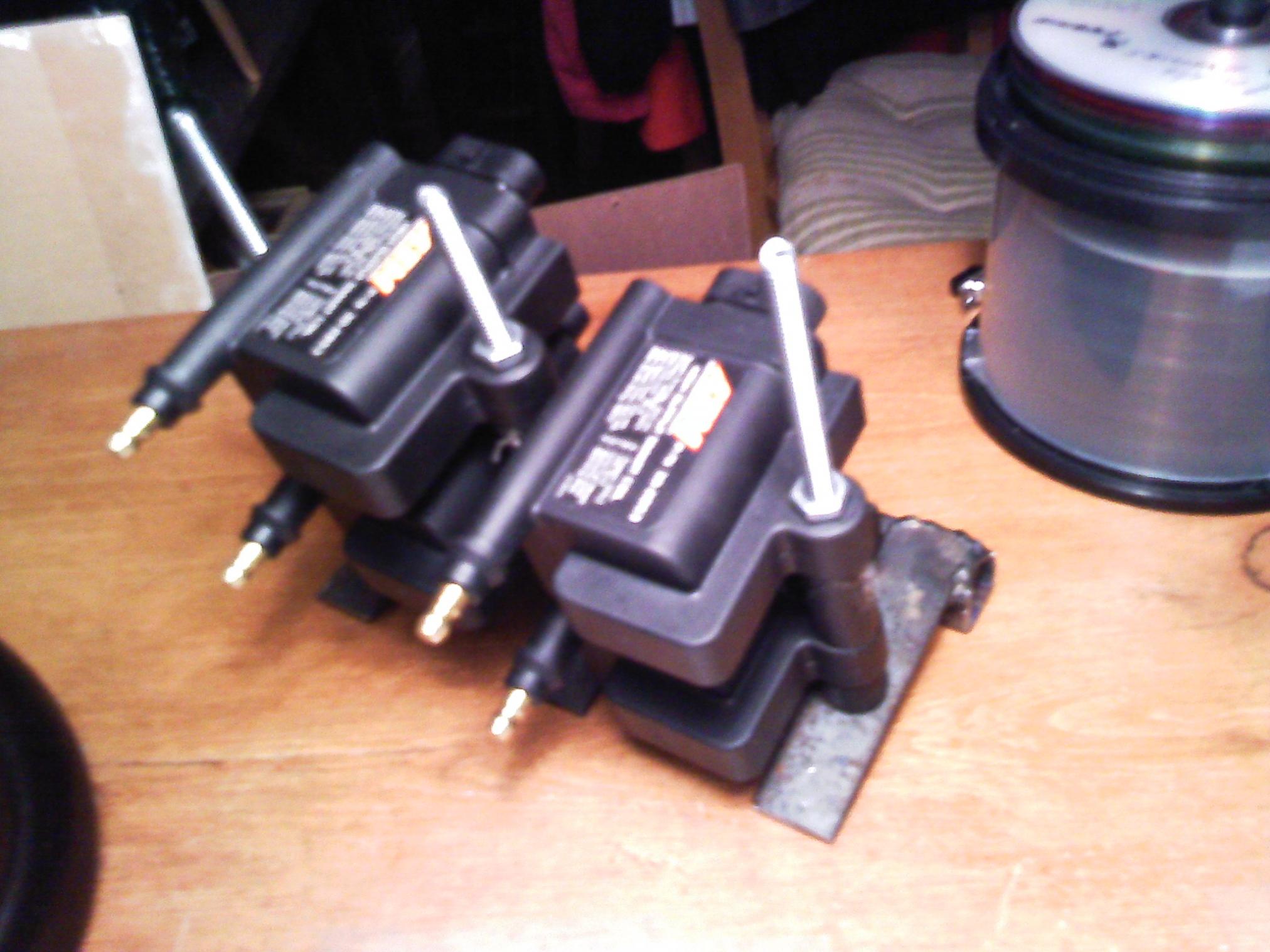

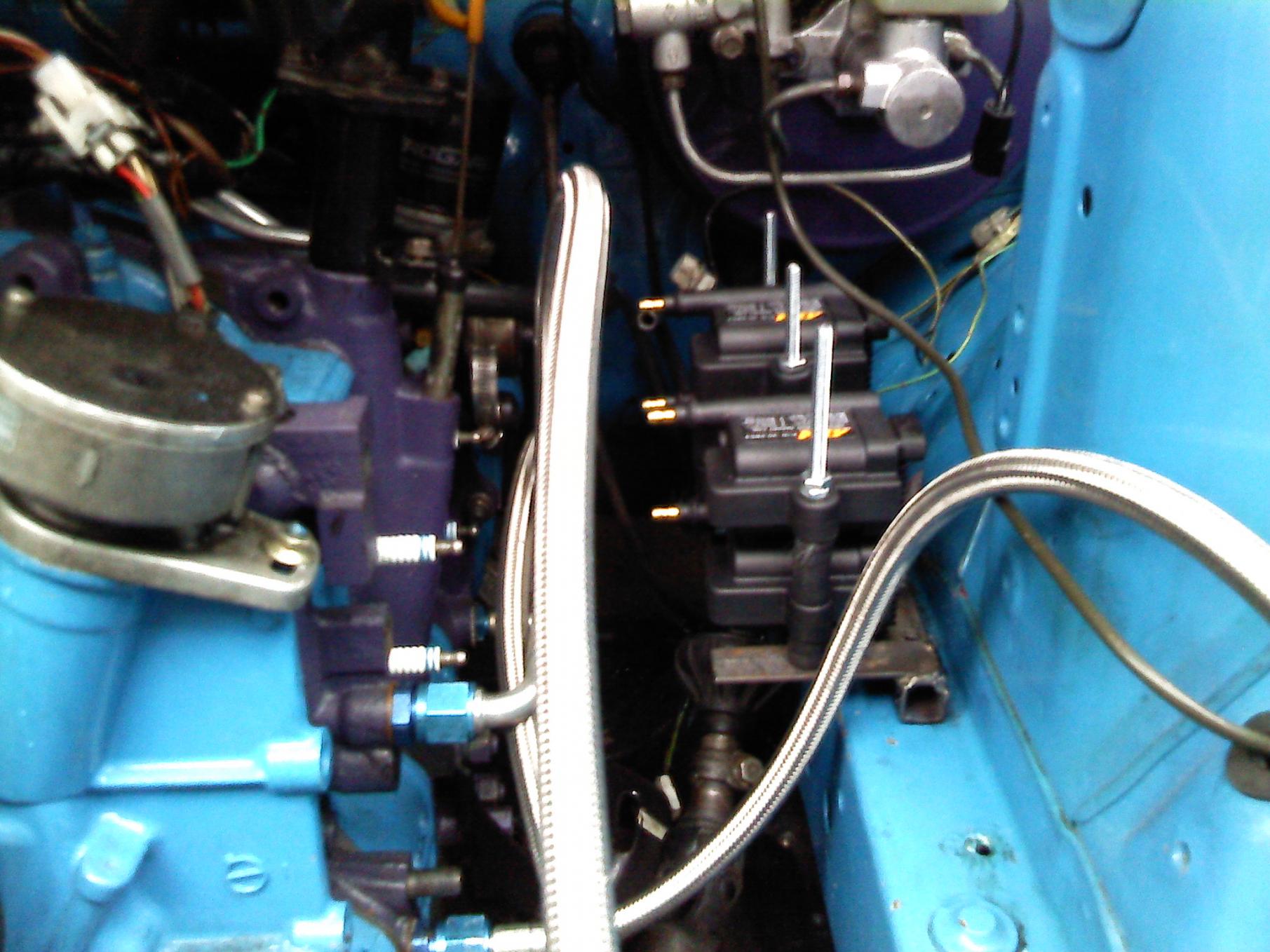

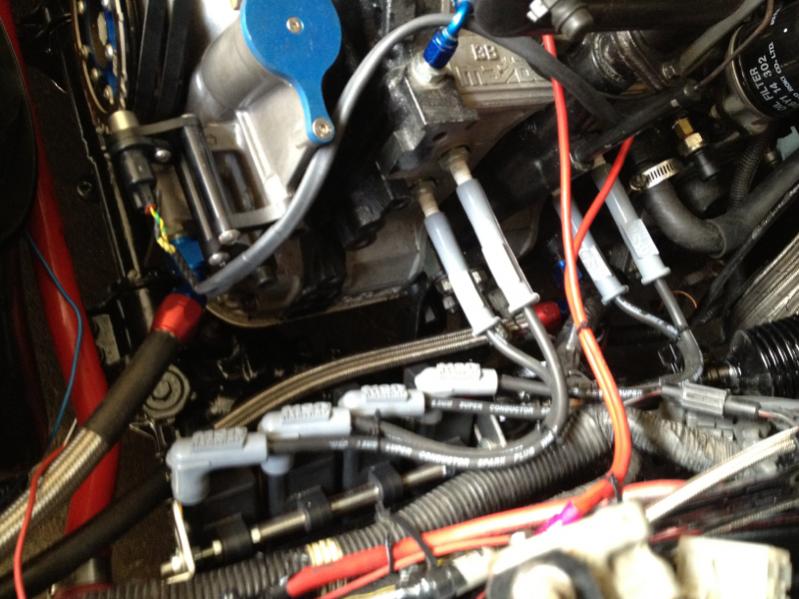

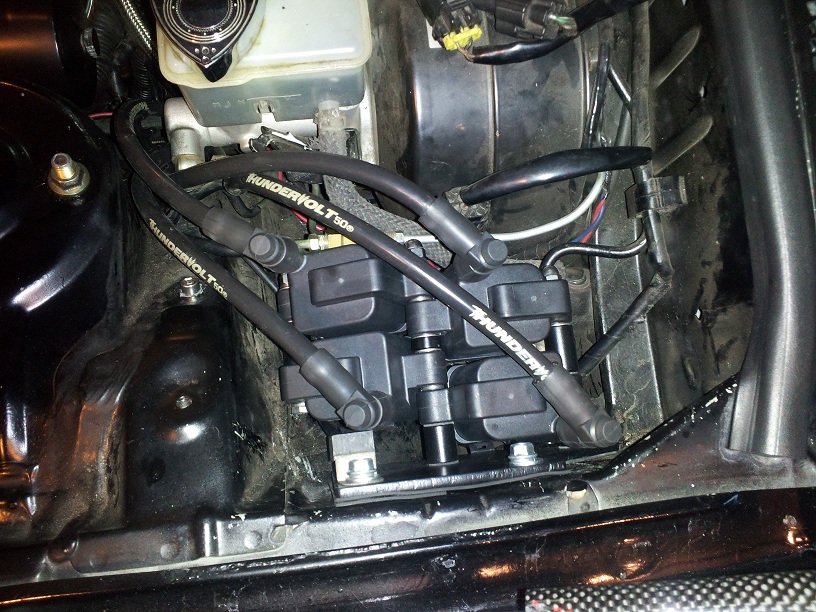

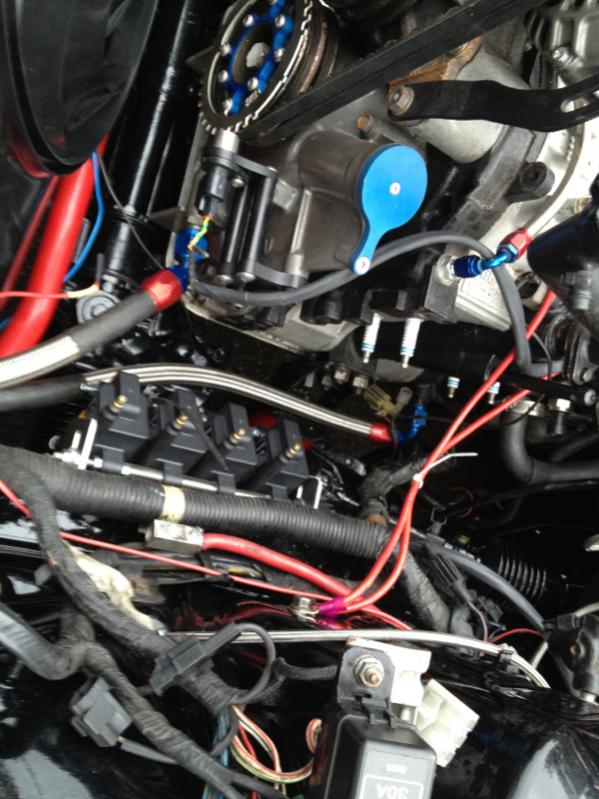

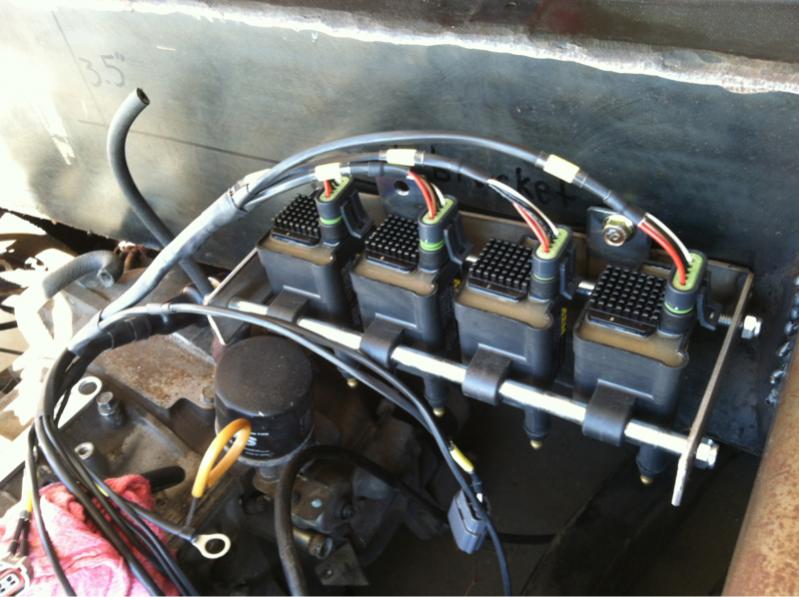

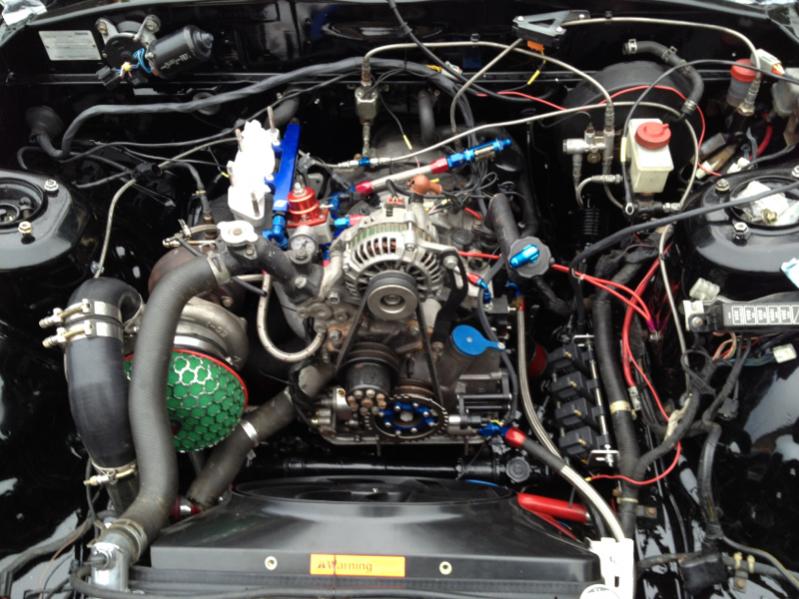

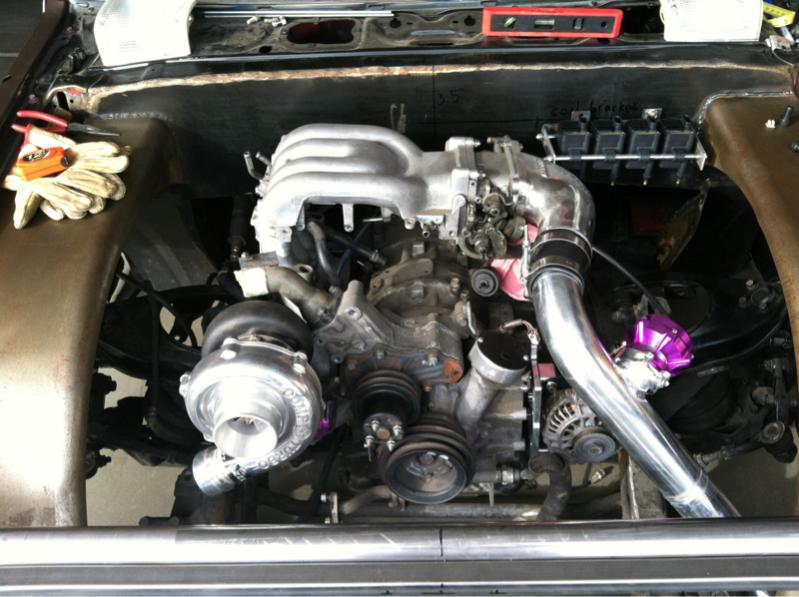

Thanks for all the pictures guys! I have an FC and C. Ludwig has steered me to mount them on the frame rail. I was thinking of doing something like misterstyx69 or JWteknix have done. Should have some time this weekend to get it fab'ed up and I'll post some pictures!
#19
www.lms-efi.com
iTrader: (27)
I'm asking because we've sold a couple hundred of these and have only had two failures. One failure was traced back to a faulty ECU that would clamp the charge time open with the key on and engine off. The other failure was due to an ECU that was not properly configured. Very odd that you experienced a high failure rate.
#21
Senior Member
Thread Starter
iTrader: (17)
Join Date: Jan 2005
Location: Jackson, Mo
Posts: 441
Likes: 0
Received 0 Likes
on
0 Posts
C. Ludwig, what size wire to you recommend running for power and ground to each of these coils? Will 12 gauge to each coil supply enough amperage to get the most out of the coils?
Thanks
Thanks
#22
www.lms-efi.com
iTrader: (27)
On the harnesses we build we use mil-spec Tefzel wire. So you can lean on the wire a little harder than you would common "hook up" wire because it has a higher heat rating. The coil has a 19 amp driver but it's not going to draw that much current under sensible use. When it is drawing current, the duration is less than 6 ms per event, so it's hard to really work over a wire unless you're running at constantly high RPM (high duty cycle). We build the harnesses with a 14g main feed (pin E) from the battery that splices to individual 18g feeds to the coils. Same for the power ground (pin D). Pin A - C are signal level, so we use 20g for those.
If you're using parts store spec hook up wire, I'd do a 10-12g main spliced to 18g.
#23
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
I'm asking because we've sold a couple hundred of these and have only had two failures. One failure was traced back to a faulty ECU that would clamp the charge time open with the key on and engine off. The other failure was due to an ECU that was not properly configured. Very odd that you experienced a high failure rate.
.Warning: you cannot Sit and configure the ECU From STOCK TII to AEM coils and Have the power to the coils ON!.
You will FRY the L1 coil( in my case).
It was Baaaad..like white goooo oozing out of the coil.
Unplug your Coils before doing any alterations!.I highly suggest it!
#24
Chris is correct, a 19 Amp IGBT is fitted though that rating is @125c.
The current rating @ 25c is 40 Amps (500 mJ clamp) with coil saturation holding 25 Amps of electrons. (280 mJ)
There is a 18 volt "clamping diode" also in the charging circuit, limit supply to 17 volts.
The first customer requested a high vibration, high RPM design for their Two Stroke racing engine.
Many "failed" coils have found problems in ECU/IGNITOR design with respect to Dwell Control.
These traces have helped manufactures find problems with their own hardware.
Lance
The current rating @ 25c is 40 Amps (500 mJ clamp) with coil saturation holding 25 Amps of electrons. (280 mJ)
There is a 18 volt "clamping diode" also in the charging circuit, limit supply to 17 volts.
The first customer requested a high vibration, high RPM design for their Two Stroke racing engine.
Many "failed" coils have found problems in ECU/IGNITOR design with respect to Dwell Control.
These traces have helped manufactures find problems with their own hardware.
Lance
