Acquired a Turbo but have no idea what it will fit

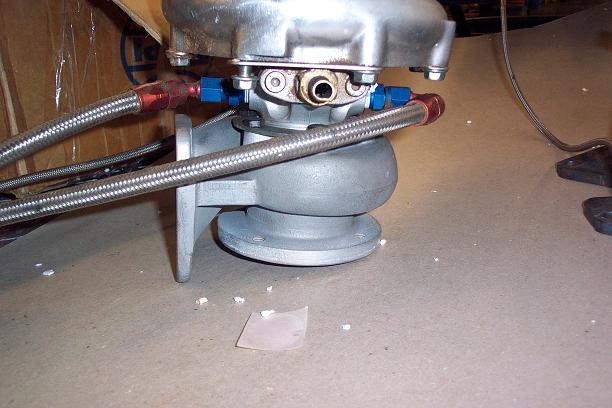

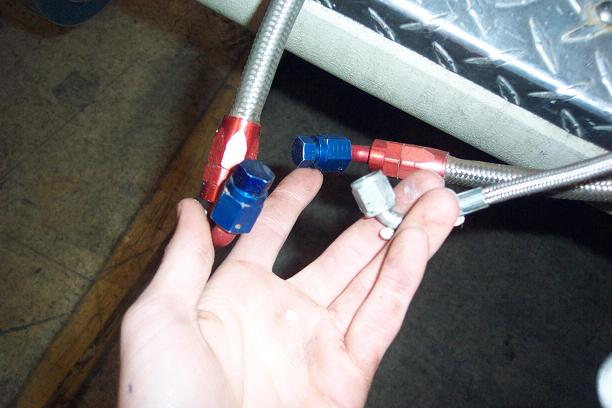

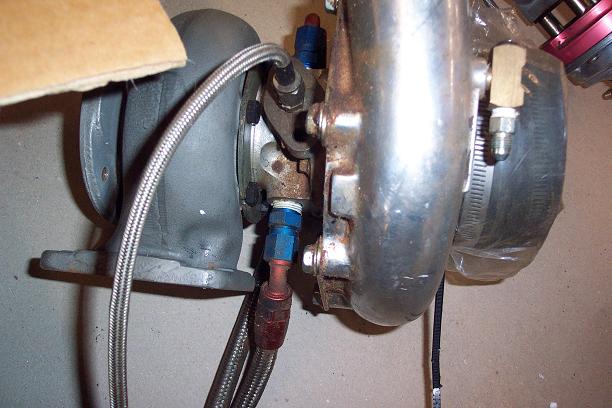

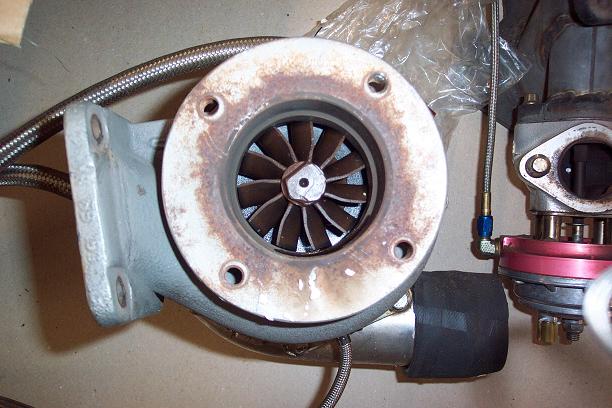

They guy who had this had it bolted up to a 78 13b four port with fuel injection. It has a external wastegate and everything but I'm not sure what engines it will bolt up to. If anyone has any information let me know.

Attached Thumbnails

Acquired a Turbo but have no idea what it will fit-t1.jpg

Acquired a Turbo but have no idea what it will fit-t2.jpg

Acquired a Turbo but have no idea what it will fit-t3.jpg

Acquired a Turbo but have no idea what it will fit-t4.jpg

Reply Like

01-12-07, 10:14 AM

liv

New User

Thread Starter

Join Date: Oct 2005

Location: Kansas City

Posts: 507

Likes: 0

Received 0 Likes on 0 Posts

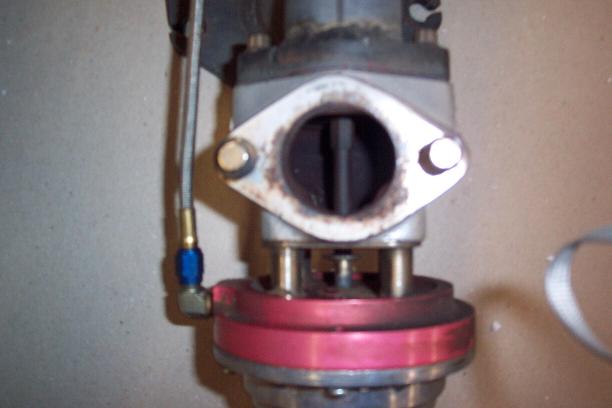

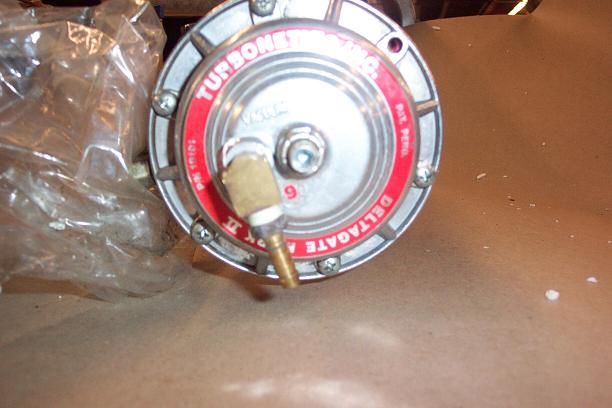

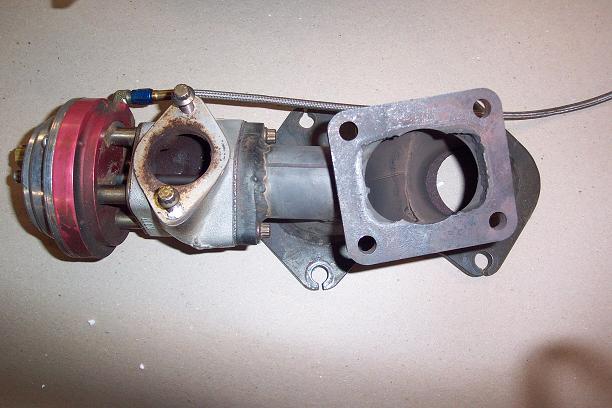

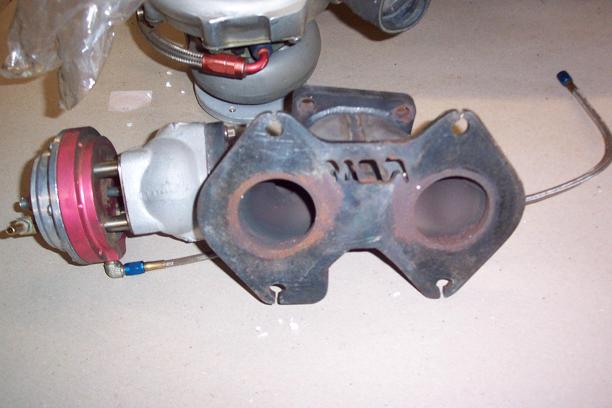

Pictures of wastegate.

I also have all of these pictures in high res. I can also take any more pictures that would help. Its a turbonetics T66 if I didn't say that before with a turbonetics wastegate

Attached Thumbnails

Acquired a Turbo but have no idea what it will fit-w1.jpg

Acquired a Turbo but have no idea what it will fit-w2.jpg

Acquired a Turbo but have no idea what it will fit-w3.jpg

Acquired a Turbo but have no idea what it will fit-w4.jpg

Reply Like

01-12-07, 10:15 AM

liv

New User

Thread Starter

Join Date: Oct 2005

Location: Kansas City

Posts: 507

Likes: 0

Received 0 Likes on 0 Posts

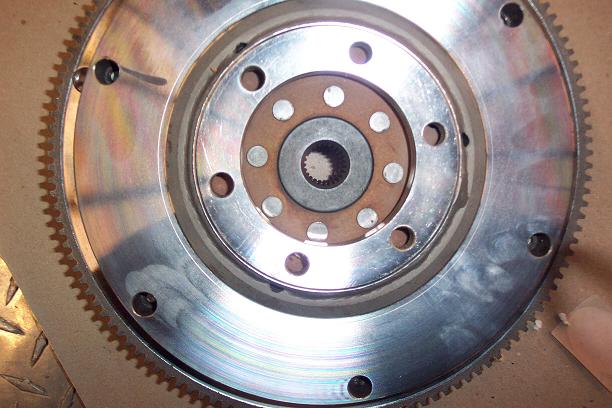

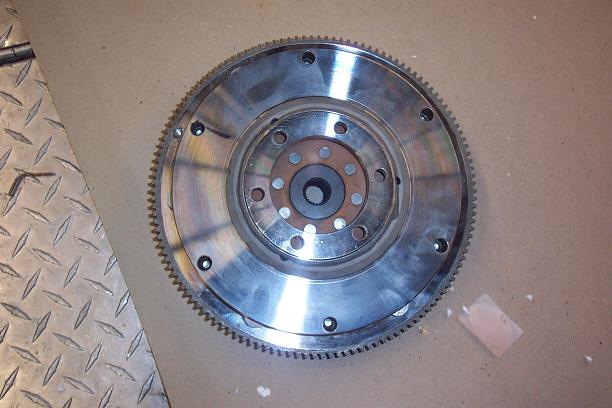

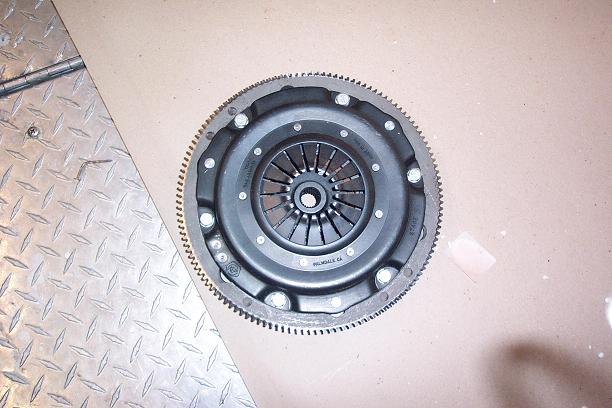

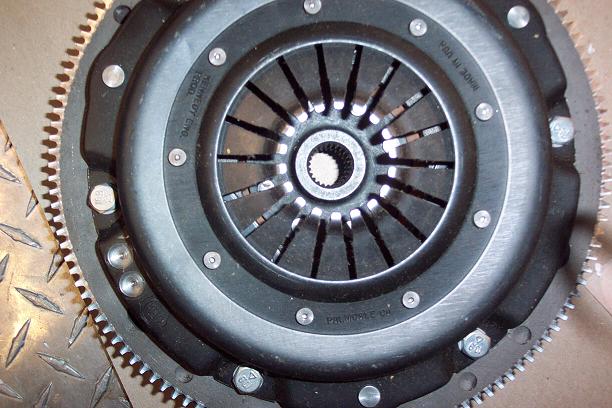

I also got this clutch its a stage 3 not sure what tranny it will bolt up too

Attached Thumbnails

Acquired a Turbo but have no idea what it will fit-c1.jpg

Acquired a Turbo but have no idea what it will fit-c2.jpg

Acquired a Turbo but have no idea what it will fit-c3.jpg

Acquired a Turbo but have no idea what it will fit-c4.jpg

Reply Like

01-12-07, 10:53 AM

RacerXtreme7

NASA geek

iTrader: (2)

Join Date: Mar 2002

Location: Virginia

Posts: 2,215

Likes: 0

Received 2 Likes on 2 Posts

The turbo is a standard T4 flange. So anything thats T4 manifold will bolt up.

~Mike.............

Reply Like

01-12-07, 11:09 AM

liv

New User

Thread Starter

Join Date: Oct 2005

Location: Kansas City

Posts: 507

Likes: 0

Received 0 Likes on 0 Posts

Awesome I appreciate it

Reply Like

01-12-07, 11:31 AM

hondahater

spending too much money..

iTrader: (2)

Join Date: Dec 2002

Location: louisiana

Posts: 10,117

Likes: 0

Received 1 Like on 1 Post

looks like an oncenter housing. Watch out for fitment issues. Also remember if you are sticking with that hotside that oncenter downpipe flanges are differant than standard 4 bolt tang flanges, or at least in my experience it was.
