I just finished my FD with single setup and I was wondering if anyone here would load picture for me. File is too big and i do not know how to reduce the file.

new mods,

new engine
single gt35r wastegate back to DP
pettit intercooler with custom mounts
fluidyne radiator
fuel system 4- 850cc
aem true boost controler
innovate LC-1
power FC with fc-loggit
carbonfiber drive shaft
exedy twin disk
tial 44mm WG
tial 50mm bov
racing beat dual tip exhaust
batter relocation
air pump delete
aluminum pullies etc... yadayada....



more



.



more



just a bit of constructive criticism....you need bigger secondary injectors and an upgraded fuel pump for that setup...just looking out for you. I also use the same intercooler and i absolutly love it, your engine bay looks very clean as well. good job!!

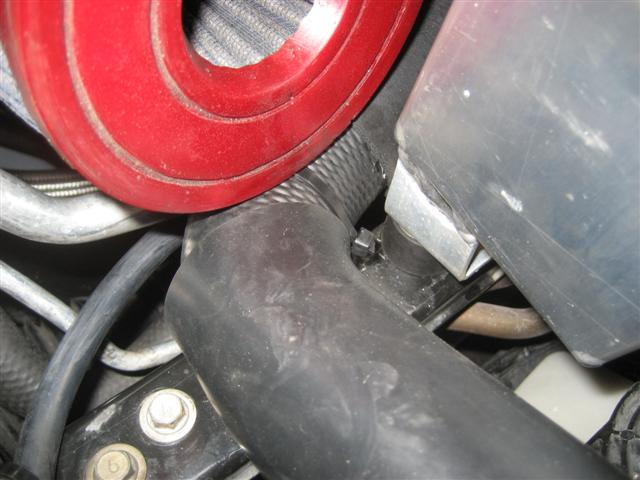

Did you make mount for your intercooler? I had to make intercooler mount with rubber bushing so it woundn't thouch the frame.

Yes, I might need bigger injectors but I did it this way because I'm only going to use pump gas. I do have bigger fuel pump in the car.



Why?


Not sure why you think that because your running pump gas you don't need larger injectors, because you will... Throw some 1680cc injectors in the secondaries and your set. Its always better to have more fuel capacity than you need, than running the bare minimum.



looks very similar to my 95


nice work



looks real good. when are you going to dyno. what kind of hp. are you looking for?



I really didnt make "mounts" for the intercooler, i did however take a piece of weather stripping and epoxied it to the crossmember so the intercooler wouldnt rattle. It seems to work fine so far. Please get some 1600cc secondaries, it will save you a lot of head aches rebuilding again, pump gas or not.



He'll be fine if he isn't looking for huge #'s...

12-14psi with gt35...is no slouch around town



yeah, I'll throw in some 1600 cc injectors.

thanks



So how do I get a Dubulup sticker for my ride ?

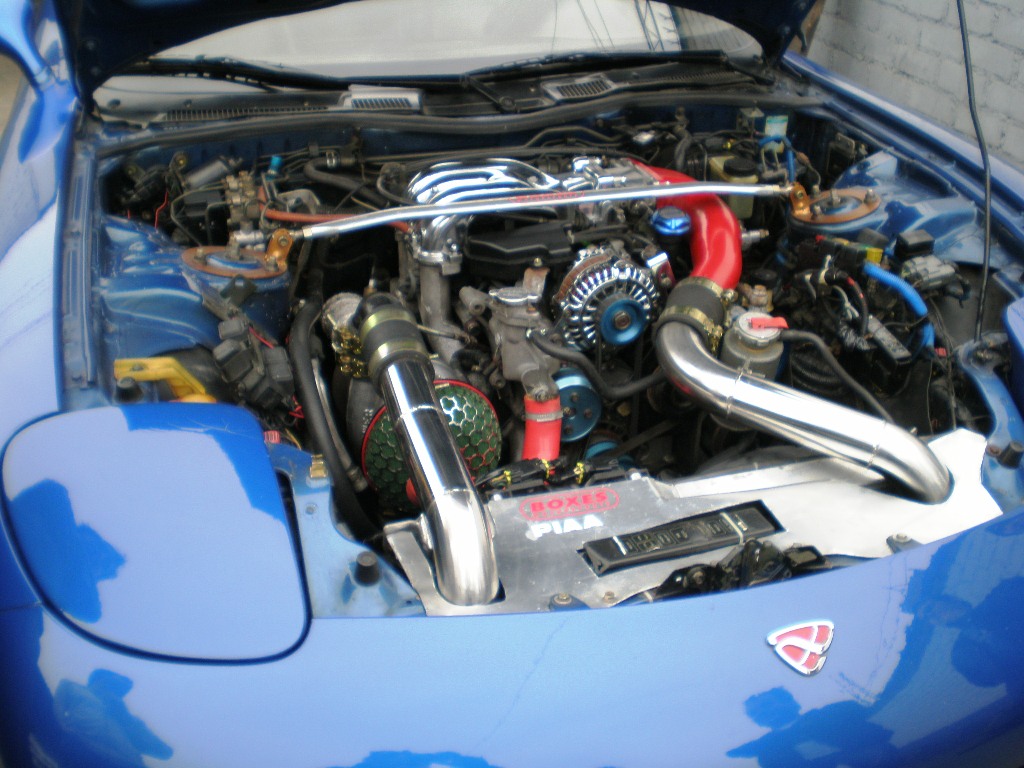

I think yours look great. Here is a pic of mine:

423 HP at 12 psi.

I just got done installing the FMIC a few weeks ago.



are you going to run meth instead of pump so you dont need the extra injector???



Wait a minute, that's not a 95



you're right, its a '93



Get a new secondary fuel system and youre set with the sickness! To run 1680's youll need an aftermarket rail, aftermarket FPR, and of course the injectors.

What is your fuel pump setup? It might could use another upgrade to run those 1680's.

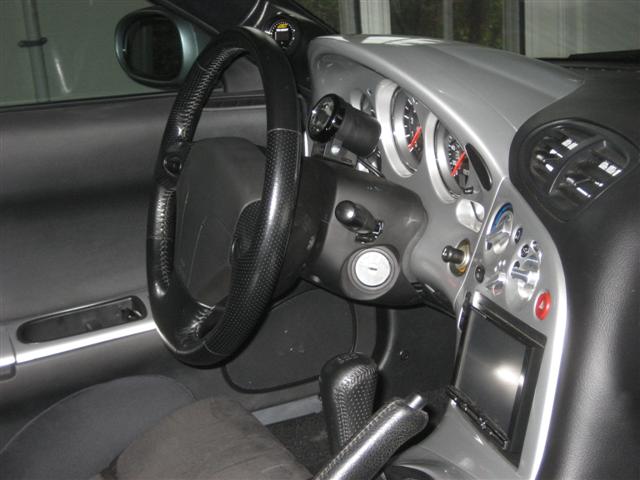

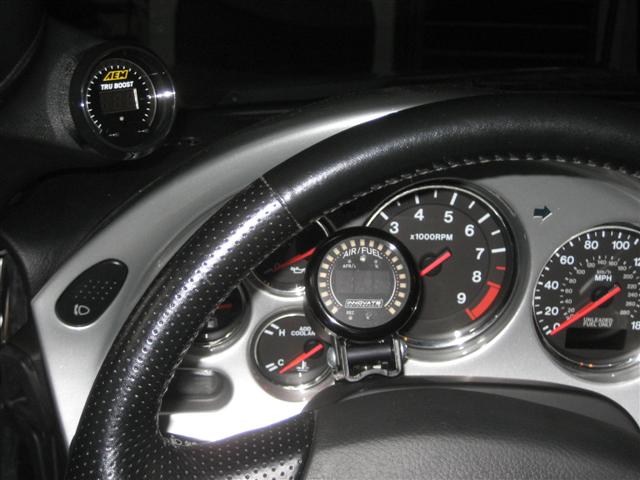

aem tru boost controller on pillar
innovate xd16 with LC-1 hooked up to dataloggit.

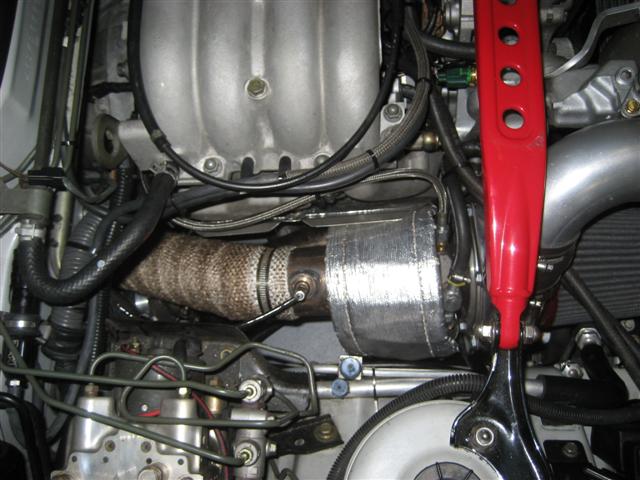

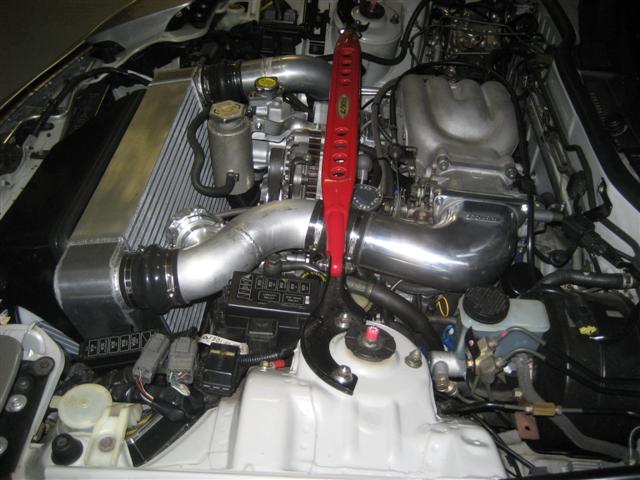

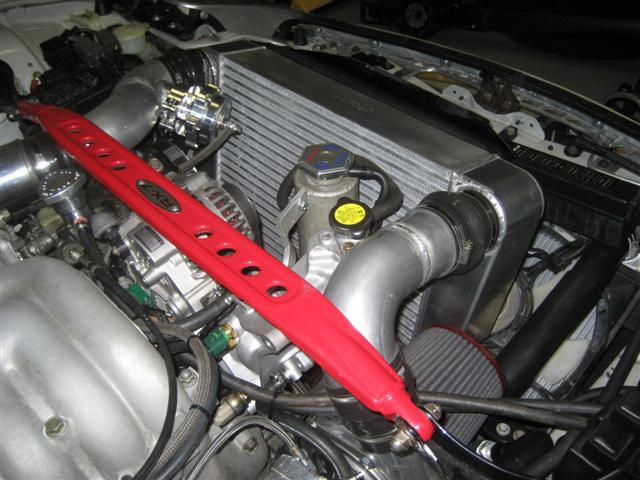

here are some pictures. I was thinking if I could feed analog signal output to power-fc through factory O2 sensor wire in engine bay. Will this analog output from dataloggit work with power-fc? I know, innovate xd-16 is feeding signal to dataloggit, so should this work?

anyway here are some pics.



Also, exedy twin disk is perfect for street and carbon drive shaft does make difference in boost lag and response.
