13BREW kit in the works...
Thread Starter
Joined: Dec 2001
Posts: 7,174
Likes: 236
From: Twin Cities, MN
Originally Posted by setzep

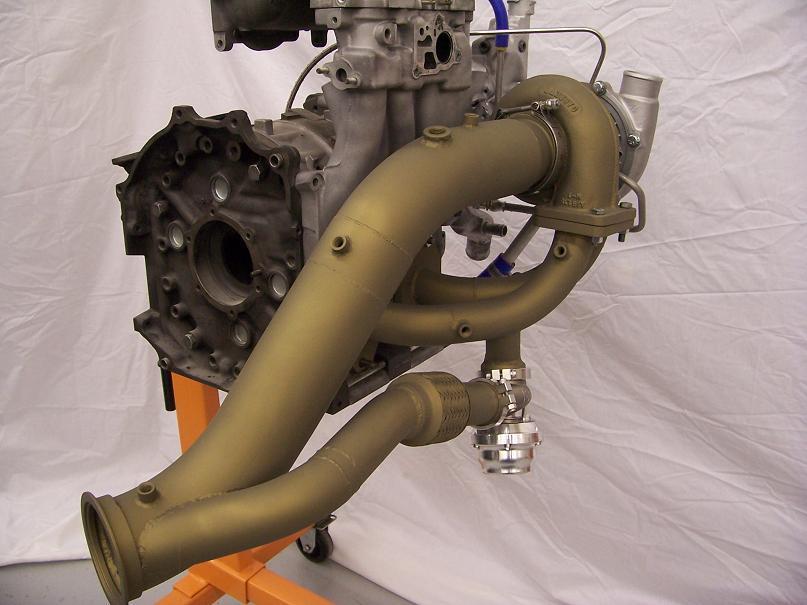

I think he's refering to the T where the WG taps from the main runners. The closer to the engine you go the worse off you are when controlling boost pressure and when you T it in there you only add to the problem. Depending how much boost pressure he runs he may not have a problem but if he's planning on holding a rock steady 10psi I'd also say he'll have boost problems.
Oh more pixs!
Originally Posted by cozmo kraemer
I am not looking for huge power out of this setup. My main objectives, which Elliot has been trying to build the setup to attain are first and foremost RELIABILITY!!! (and I am not joking there
)... a nice broad torque curve...good response...and adequate power (the arbitrary 400whp @ 15psi or less). He has paid a lot of attention to the little details and used quality components that will help this engine/turbo run cooler and more efficiently.
I am definately anxious to see the results!
)... a nice broad torque curve...good response...and adequate power (the arbitrary 400whp @ 15psi or less). He has paid a lot of attention to the little details and used quality components that will help this engine/turbo run cooler and more efficiently.I am definately anxious to see the results!
Joined: Mar 2001
Posts: 30,804
Likes: 646
From: FL-->NJ/NYC again!
Originally Posted by pomanferrari
Dude - did you get another motor? what happened to the last motor? Still running the GT3540?
https://www.rx7club.com/bad-fugly-members-185/horrible-experience-seth-scally-formerly-puresports-608852/
Darkside FD
Joined: Jan 2004
Posts: 1,175
Likes: 0
From: AZ
Yep...another engine. We will see what happens with this one. I have only driven the car about 2700 miles since I brought it home in October of 2005. And it was supposed to be an 'all problems solved' type car. Or atleast MOST problems solved. I would have been in much better shape buying the local LS1 RX7 I looked at before I bought this car.
Originally Posted by 1Revvin7
I remember seeing you build yours in person, did you ever get it perfect Cam?
Oh more pixs!
Oh more pixs!
Thread Starter
Joined: Dec 2001
Posts: 7,174
Likes: 236
From: Twin Cities, MN
If times allows, my plan is to datalog pre turbine backpressure in each runner, along with egt, and post turbine pressure along with a few egts downstream to make sure I'm not reading flame temperature. I'm only using one O2 in the DP. Would mind running a o2 per rotor, but that would be some complex diversion pipes because of the high heat. I plan on the same for intake tract, pressures and temperatures before and after the intercooler, same with manifold etc..
Thread Starter
Joined: Dec 2001
Posts: 7,174
Likes: 236
From: Twin Cities, MN
Diff broke, then we got that replaced and the HSF-5 system started to act up. Spool is quite nice, according to his defi gauge its about 2psi by 1900rpms in 4th gear..
Darkside FD
Joined: Jan 2004
Posts: 1,175
Likes: 0
From: AZ
Well it has about 400 miles on it now.
I made a heat shield for the intake, sort of using a template that Damian created but then doing a ton of modification to it so it will work with my setup. I would say it dropped my IAT at least 5 degrees C and when rolling almost 10 degrees C. I got 16.4 mpg on the last tank of gas...no real boosting and it is running crazy rich even in vacuum, so I think this engine should get "good for a rotary" gas mileage once it is tuned.
I haven't had time to sort out the issues with the water alcohol. The vacuum maps of the ecu are of a MUCH higher priority to me at this point. I think the HFS-5 system needs to be hooked up to the secondary injector wires and not the primary, if I am reading Richard at Aquamist accurately. I will have to fix this in the near term, and clean up a bit of the wiring for the system.
We will see where it stands after the weekend. I have to do some work to my other car and then sort out the RX7 tuning wise.
I made a heat shield for the intake, sort of using a template that Damian created but then doing a ton of modification to it so it will work with my setup. I would say it dropped my IAT at least 5 degrees C and when rolling almost 10 degrees C. I got 16.4 mpg on the last tank of gas...no real boosting and it is running crazy rich even in vacuum, so I think this engine should get "good for a rotary" gas mileage once it is tuned.
I haven't had time to sort out the issues with the water alcohol. The vacuum maps of the ecu are of a MUCH higher priority to me at this point. I think the HFS-5 system needs to be hooked up to the secondary injector wires and not the primary, if I am reading Richard at Aquamist accurately. I will have to fix this in the near term, and clean up a bit of the wiring for the system.
We will see where it stands after the weekend. I have to do some work to my other car and then sort out the RX7 tuning wise.
Joined: Mar 2001
Posts: 30,804
Likes: 646
From: FL-->NJ/NYC again!
Well it has about 400 miles on it now.
I made a heat shield for the intake, sort of using a template that Damian created but then doing a ton of modification to it so it will work with my setup. I would say it dropped my IAT at least 5 degrees C and when rolling almost 10 degrees C.
I made a heat shield for the intake, sort of using a template that Damian created but then doing a ton of modification to it so it will work with my setup. I would say it dropped my IAT at least 5 degrees C and when rolling almost 10 degrees C.
?
Darkside FD
Joined: Jan 2004
Posts: 1,175
Likes: 0
From: AZ
I would absolutely make another one but I dont know how it would fit with a front mount. Mine is pretty specific to my setup. I am building some ducting that should make the heat shield even more effective. We will see how it goes.
I finished my stereo setup and I am REALLY pleased with that (even though that is WAY off topic in this thread). I will post a series of pics on my car when every little project is buttoned up. Should be before the 28th of August cause that is when I go under for a fairly major ankle surger (hospital for 3 days) and I want all car stuff out of the way before that time.
Wish me luck...
I finished my stereo setup and I am REALLY pleased with that (even though that is WAY off topic in this thread). I will post a series of pics on my car when every little project is buttoned up. Should be before the 28th of August cause that is when I go under for a fairly major ankle surger (hospital for 3 days) and I want all car stuff out of the way before that time.
Wish me luck...
