Single Turbo RX-7's Questions about all aspects of single turbo setups.

12 A turbo dyno 338 WHP

Thread Tools

Search this Thread

Old 01-16-11, 08:58 AM
  #1
Retired First Sergeant


Thread Starter
iTrader: (18)

Boriquaguerrero's Avatar

Join Date: Jul 2007
Location: Fort Stewart, GA
Posts: 1,041
Received 43 Likes on 34 Posts
FL 12 A turbo dyno 338 WHP

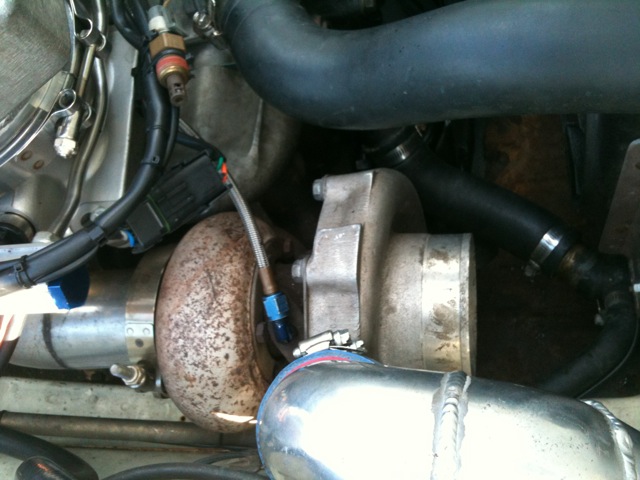

I took my car to the dyno day meet in sarasota. my car dyno 338 whp @7350 rpm 244 max torque @ 6900 rpm. engine is half bridge and fuel injected with a Turbonetics BB t72 @ 12 lbs of boost


http://www.youtube.com/watch?v=_n6loTAmaHw
Attached Thumbnails 12 A turbo dyno 338 WHP-get-attachment.aspx1.jpg   12 A turbo dyno 338 WHP-saturday-january-15-2011.jpg
Boriquaguerrero is offline
Reply Like
Old 01-16-11, 11:34 AM
  #2
rotorhead

iTrader: (3)

arghx's Avatar

Join Date: Aug 2004
Location: cold
Posts: 16,182
Received 429 Likes on 263 Posts
what kind of fuel injection system are you using?
arghx is offline
Reply Like
Old 01-16-11, 11:40 AM
  #3
Retired First Sergeant


Thread Starter
iTrader: (18)

Boriquaguerrero's Avatar

Join Date: Jul 2007
Location: Fort Stewart, GA
Posts: 1,041
Received 43 Likes on 34 Posts
Originally Posted by arghx
what kind of fuel injection system are you using?

RB intake, ACCEL TB and (4) 1100 injectors with a microtech
Attached Thumbnails 12 A turbo dyno 338 WHP-accel.jpg
Boriquaguerrero is offline
Reply Like
Old 01-16-11, 06:31 PM
  #4
Full Member


bori113's Avatar

Join Date: Nov 2006
Location: Suffolk, VA
Posts: 209
Likes: 0
Received 0 Likes on 0 Posts
Nice set up
bori113 is offline
Reply Like
Old 01-17-11, 01:13 PM
  #5
Moderator

iTrader: (3)

diabolical1's Avatar

Join Date: Feb 2002
Location: FL
Posts: 10,817
Received 306 Likes on 267 Posts
great results! are you running the stock tranny or a T2 unit? how is it on the road? i ask because i thought i heard some "funkiness" in the mid-RPM range, but i'm not sure if it was just the audio. anyway, i think it's an awesome little SA. good job.

i've got a question though, do your injectors discharge above or below the throttle plates? i'm just curious because it looks quite similar to the Autonomics unit, that's all.
diabolical1 is offline
Reply Like
Old 01-17-11, 02:59 PM
  #6
Retired First Sergeant


Thread Starter
iTrader: (18)

Boriquaguerrero's Avatar

Join Date: Jul 2007
Location: Fort Stewart, GA
Posts: 1,041
Received 43 Likes on 34 Posts
Originally Posted by diabolical1
great results! are you running the stock tranny or a T2 unit? how is it on the road? i ask because i thought i heard some "funkiness" in the mid-RPM range, but i'm not sure if it was just the audio. anyway, i think it's an awesome little SA. good job.

i've got a question though, do your injectors discharge above or below the throttle plates? i'm just curious because it looks quite similar to the Autonomics unit, that's all.
yes T2 tranny with RB flywheel and clutch and pp. i recorded the dyno with my i phone and i gues it got to loud for the phone to record it

dischard above the throttle plate
Boriquaguerrero is offline
Reply Like
Old 01-17-11, 03:04 PM
  #7
Retired First Sergeant


Thread Starter
iTrader: (18)

Boriquaguerrero's Avatar

Join Date: Jul 2007
Location: Fort Stewart, GA
Posts: 1,041
Received 43 Likes on 34 Posts
FL
here is a better video by pito13b


http://www.youtube.com/watch?v=Lw3VAALOH4M
Boriquaguerrero is offline
Reply Like

Trending Topics

Old 01-17-11, 06:31 PM
  #8
rotorhead

iTrader: (3)

arghx's Avatar

Join Date: Aug 2004
Location: cold
Posts: 16,182
Received 429 Likes on 263 Posts
props to the Puerto Ricans
arghx is offline
Reply Like
Old 01-17-11, 08:36 PM
  #9
Lenny

iTrader: (9)

Len-Len's Avatar

Join Date: Mar 2010
Location: Albuquerque
Posts: 472
Likes: 0
Received 2 Likes on 1 Post
Dope
Len-Len is offline
Reply Like
Old 01-17-11, 09:56 PM
  #10
Original Gangster/Rotary!


iTrader: (213)

GoodfellaFD3S's Avatar

Join Date: Mar 2001
Location: FL-->NJ/NYC again!
Posts: 30,528
Received 538 Likes on 325 Posts
That's a lot of power in a car that light, I'll bet you sneak up on some people
GoodfellaFD3S is offline
Reply Like
Old 01-17-11, 10:53 PM
  #11
1.5 Goodfella's Tall

iTrader: (97)

Gringo Grande's Avatar

Join Date: Oct 2006
Location: Tampa, FL
Posts: 4,216
Likes: 0
Received 2 Likes on 2 Posts
Was there for this...very nice.
Gringo Grande is offline
Reply Like
Old 01-18-11, 04:13 AM
  #12
SAE Junkie

iTrader: (2)

Jobro's Avatar

Join Date: Mar 2005
Location: OZ/AU
Posts: 1,282
Likes: 0
Received 8 Likes on 5 Posts
Put some boost into it!

Theres another 100+rwhp waiting for you, just need a couple hundred more rpm and 8-10psi more boost
Jobro is offline
Reply Like
Old 01-18-11, 06:17 AM
  #13
Retired First Sergeant


Thread Starter
iTrader: (18)

Boriquaguerrero's Avatar

Join Date: Jul 2007
Location: Fort Stewart, GA
Posts: 1,041
Received 43 Likes on 34 Posts
Originally Posted by GoodfellaFD3S
That's a lot of power in a car that light, I'll bet you sneak up on some people


yep!!!! especially loud V8 `s
Boriquaguerrero is offline
Reply Like
Old 03-10-12, 09:21 AM
  #14
Retired First Sergeant


Thread Starter
iTrader: (18)

Boriquaguerrero's Avatar

Join Date: Jul 2007
Location: Fort Stewart, GA
Posts: 1,041
Received 43 Likes on 34 Posts
http://www.youtube.com/watch?v=dxaaI0QgFUI http://www.youtube.com/watch?v=Lw3VAALOH4M
Boriquaguerrero is offline
Reply Like
Old 03-10-12, 06:27 PM
  #15
FD Project

iTrader: (58)

BLACK MAMBA's Avatar

Join Date: Apr 2009
Location: Palm Beach, FL
Posts: 2,376
Received 4 Likes on 4 Posts
nice hp numbers for low boost.

friend of mine is pushing 389 on his 12A at 18psi beating on the car for over 4 years and still going strong with bridge port, t70 and ems ecu, pump fuel.
BLACK MAMBA is offline
Reply Like
Old 03-10-12, 06:47 PM
  #16
******

iTrader: (7)

flaco's Avatar

Join Date: May 2009
Location: miami
Posts: 901
Likes: 0
Received 0 Likes on 0 Posts
awesome
flaco is offline
Reply Like
Old 03-11-12, 10:30 AM
  #17
Retired First Sergeant


Thread Starter
iTrader: (18)

Boriquaguerrero's Avatar

Join Date: Jul 2007
Location: Fort Stewart, GA
Posts: 1,041
Received 43 Likes on 34 Posts
CO
Originally Posted by FC3S1991
nice hp numbers for low boost.

friend of mine is pushing 389 on his 12A at 18psi beating on the car for over 4 years and still going strong with bridge port, t70 and ems ecu, pump fuel.
thanks! i barely drive the car probably less than 500 miles a year and the thirsty bridge turbo drinks a full tank of car in about 120 miles and my GSLSE is the other way around it last forever!!!!
Boriquaguerrero is offline
Reply Like
Old 03-11-12, 03:26 PM
  #18
500+hp club

iTrader: (26)

silverfdturbo6port's Avatar

Join Date: Sep 2007
Location: .
Posts: 2,211
Likes: 0
Received 4 Likes on 4 Posts
very impressive. I always wanted to build up the 12a and get some power out of it like yours
silverfdturbo6port is offline
Reply Like
Old 01-01-13, 04:02 PM
  #19
Stewiefied Racing CEO

iTrader: (36)

rotorhead_izzy's Avatar

Join Date: Jun 2006
Location: Kenosha area, WI
Posts: 1,848
Received 24 Likes on 16 Posts
you wouldn't happen to have a part number for that tb assembly would you?
rotorhead_izzy is offline
Reply Like
Old 01-01-13, 07:42 PM
  #20
Retired First Sergeant


Thread Starter
iTrader: (18)

Boriquaguerrero's Avatar

Join Date: Jul 2007
Location: Fort Stewart, GA
Posts: 1,041
Received 43 Likes on 34 Posts
Originally Posted by rotorhead_izzy
you wouldn't happen to have a part number for that tb assembly would you?
DFI 74135B


DFI #310-74135B
Digital Fuel Injection (DFI) TBI SYS 4 BBL W/O ELECT.
$387.99 Ships 01/09/13 *
Click for JEGS Online Price Match
Boriquaguerrero is offline
Reply Like
Old 01-01-13, 08:31 PM
  #21
Stewiefied Racing CEO

iTrader: (36)

rotorhead_izzy's Avatar

Join Date: Jun 2006
Location: Kenosha area, WI
Posts: 1,848
Received 24 Likes on 16 Posts
Also what are you doing for a tps signal for the microtech. Im doing a 6 port turbo on my gsl-se, running a microtech lt-10s
rotorhead_izzy is offline
Reply Like
Old 01-02-13, 07:29 PM
  #22
Retired First Sergeant


Thread Starter
iTrader: (18)

Boriquaguerrero's Avatar

Join Date: Jul 2007
Location: Fort Stewart, GA
Posts: 1,041
Received 43 Likes on 34 Posts

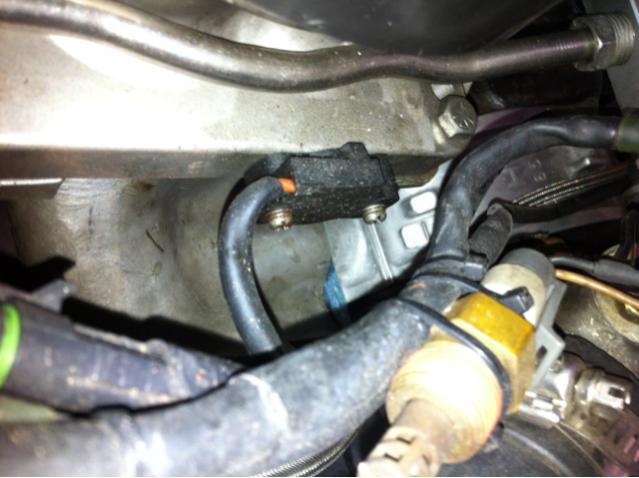

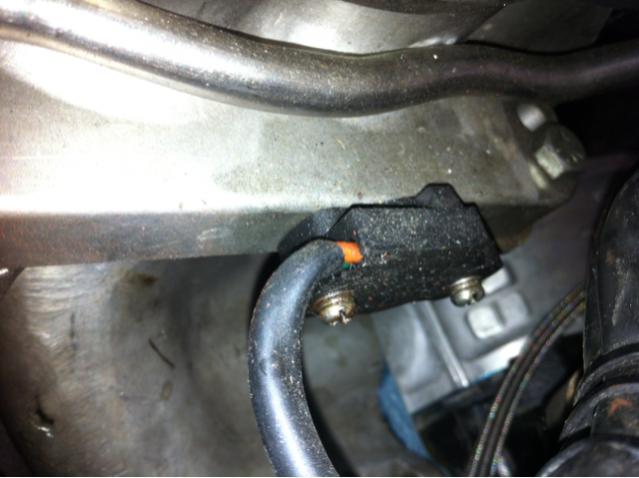

im using a GM TPS

12 A turbo dyno 338 WHP-image-860533240.jpg



12 A turbo dyno 338 WHP-image-1955101928.jpg
Boriquaguerrero is offline
Reply Like
Old 01-03-13, 08:59 AM
  #23
Stewiefied Racing CEO

iTrader: (36)

rotorhead_izzy's Avatar

Join Date: Jun 2006
Location: Kenosha area, WI
Posts: 1,848
Received 24 Likes on 16 Posts
Is there a mounting location on the tb itself or did you have to make a bracket? The reason i ask is because the description says "no electronics".
rotorhead_izzy is offline
Reply Like
Old 01-03-13, 11:22 AM
  #24
Retired First Sergeant


Thread Starter
iTrader: (18)

Boriquaguerrero's Avatar

Join Date: Jul 2007
Location: Fort Stewart, GA
Posts: 1,041
Received 43 Likes on 34 Posts
Originally Posted by rotorhead_izzy
Is there a mounting location on the tb itself or did you have to make a bracket? The reason i ask is because the description says "no electronics".
it says no electronics because it doesnt come with it you could order http://www.jegs.com/i/DFI/310/74202S2/10002/-1 it cones with tps but it cost more. on mine the tps fits without bracket
Boriquaguerrero is offline
Reply Like
Old 01-03-13, 11:23 AM
  #25
Retired First Sergeant


Thread Starter
iTrader: (18)

Boriquaguerrero's Avatar

Join Date: Jul 2007
Location: Fort Stewart, GA
Posts: 1,041
Received 43 Likes on 34 Posts
I'm going to take better pictures of mine
