1600 rail secondary, 850 stock primary w/ FPR.. which way should I hook it up?

Single Turbo FAQ Single turbo Archive

1600 rail secondary, 850 stock primary w/ FPR.. which way should I hook it up?





Old 07-07-03, 02:10 AM
  #1
I Sold My Car 2 the Devil
10 Year Member
Thread Starter

wonder1and's Avatar

Join Date: Oct 2001
Location: Duncanville, Tx
Posts: 2,361
Likes: 0
Received 0 Likes on 0 Posts
1600 rail secondary, 850 stock primary w/ FPR.. which way should I hook it up?

I was wondering should I hook up the rails like stock or do them in parallel? I've heard mixed opinions on this looking for more. I'm using the keiths rails secondary rail...

also I was wondering if anyone know off the top of their head what size lines and fittings I will need to run the stock rail w/ the keiths rail, Aeromotive FPR, and stock from their back? I've never used braided lines so I'm unsure of fittings and such and need help!

TIA,
Ryker
wonder1and is offline
Old 07-07-03, 04:02 PM
  #2
Lives on the Forum
10 Year Member

rxrotary2_7's Avatar

Join Date: May 2001
Location: southern NJ
Posts: 5,097
Likes: 0
Received 0 Likes on 0 Posts
ryker, did i ever email you a list? if not, so sorry! i will do it asap.
rxrotary2_7 is offline
Old 07-07-03, 10:35 PM
  #3
I Sold My Car 2 the Devil
10 Year Member
Thread Starter

wonder1and's Avatar

Join Date: Oct 2001
Location: Duncanville, Tx
Posts: 2,361
Likes: 0
Received 0 Likes on 0 Posts
nope!
wonder1and is offline
Old 07-07-03, 10:47 PM
  #4
Adaptronic Distributor
RX7Club Vendor
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 6,878
Received 24 Likes on 22 Posts
Make sure you get O-ring fittings for the lines that goto your rails/fpr.
__________________
Rx7 Rotary Performance Parts
Turblown is offline
Old 07-08-03, 02:07 AM
  #5
I Sold My Car 2 the Devil
10 Year Member
Thread Starter

wonder1and's Avatar

Join Date: Oct 2001
Location: Duncanville, Tx
Posts: 2,361
Likes: 0
Received 0 Likes on 0 Posts
may sounds stupid but where can I find them, mcmaster carr? Any idea what model or what to look for... 1st timer in modding fuel rail crap
thanks!
wonder1and is offline
Old 07-08-03, 03:18 AM
  #6
Adaptronic Distributor
RX7Club Vendor
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 6,878
Received 24 Likes on 22 Posts
http://www.jegs.com/cgi-bin/ncommerc...46&prmenbr=361

You should try to find a local hot rod place, so you don't get ripped off fittings/hose and shipping. Plus they would be able to help you out so much. I have atleast an extra $100 worth of fittings that will never get used...
Does the fpr you have, have 2 inlets? If so then run the system in parrell, thats what I did, and most of the guys with real power have it setup that way.
How much power are you planning on putting down?
__________________
Rx7 Rotary Performance Parts
Turblown is offline
Old 07-08-03, 12:17 PM
  #7
I Sold My Car 2 the Devil
10 Year Member
Thread Starter

wonder1and's Avatar

Join Date: Oct 2001
Location: Duncanville, Tx
Posts: 2,361
Likes: 0
Received 0 Likes on 0 Posts
I know my car will support over 400 but I'm looking for numbers that will be right in there. I think that should be plenty for now on pump gas. I'm going to plug one of the outlets on the FPR going by keiths directions... Damn I need to switch this thing soon... tired of looking at my turbo laying on the floor! I've got a shop hookup that can get me the lines and fittings for at cost instead of getting raped by a performance shop. Thanks for the help!
Ryker
wonder1and is offline
Old 07-08-03, 05:08 PM
  #8
Full Member
5 Year Member

Join Date: Jan 2003
Location: UK
Posts: 68
Likes: 0
Received 0 Likes on 0 Posts
Keith, I asked the same question, and never got a reply.

Dan
Fishy is offline
Old 07-08-03, 06:55 PM
  #9
I Sold My Car 2 the Devil
10 Year Member
Thread Starter

wonder1and's Avatar

Join Date: Oct 2001
Location: Duncanville, Tx
Posts: 2,361
Likes: 0
Received 0 Likes on 0 Posts
parts list for fuel
ryker,
sorry i did not send you a list already. i could have sworn i did....
here is a quick list to help you order. i wont give you part numbers, because i dont know what brands you will use, but i would recomend russells fittings and aeroquip lines.... russells fittings are the esiest to use because of longer threads, so they do the work for you.
you need:
8= -6 stright hose ends
1= 1/4 90*
1= 1/4 45*
1= -6 90* hose end
2= -6 to -4 union reducers
1= 3/8 -6 90*
1= 3/8 -6 straight
2= -6 unions
1= -6 union with 1/8 fuel port (for guage)
1= 100psi VDO fuel guage
1= 6ft of -6 line (more than enough and gives room for error. 3 would do the job, but i am factoring this is your first time working with the stuff and you *could* mess up a few times along the way)
2= -4 barbed. (i *think* earls is the only one who makes this.... its a -4 female on one end and a barbed fitting on the other)
you also need a few -6 O-rings for the regulator ports, and a plug if you dont already have one and your regulator has 2 inlets....
-also will need to tap the primary rail w/ 1/4NPT. this is easy and the holes dont need to be drilled out, it will thread fine without drilling.


Here ya go...
wonder1and is offline
Old 07-09-03, 06:36 PM
  #10
Rotary Enthusiast
10 Year Member
iTrader: (3)

silvr94r2's Avatar

Join Date: Apr 2001
Location: las vegas, NV
Posts: 936
Likes: 0
Received 0 Likes on 0 Posts
Originally posted by rxrotary2_7
ryker, did i ever email you a list? if not, so sorry! i will do it asap.
Keith,

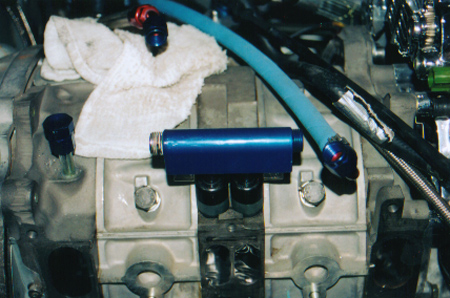

Here are a couple of pics of your rails after i got them powder coated. I got the brackets polished also. These aren't the greatest shots but i'll have more soon. I have some now but I don't want to show my new tricks anymore until the car is up and running.
silvr94r2 is offline
Old 07-09-03, 06:38 PM
  #11
Rotary Enthusiast
10 Year Member
iTrader: (3)

silvr94r2's Avatar

Join Date: Apr 2001
Location: las vegas, NV
Posts: 936
Likes: 0
Received 0 Likes on 0 Posts

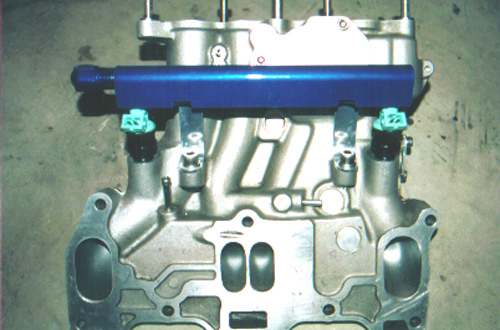

the primary......
silvr94r2 is offline
Old 07-10-03, 07:38 AM
  #12
Lives on the Forum
10 Year Member

rxrotary2_7's Avatar

Join Date: May 2001
Location: southern NJ
Posts: 5,097
Likes: 0
Received 0 Likes on 0 Posts
damn elliot, i have not seen you around in a very LONG time!! how have ya been? looks good! i haev anodized some of the rails, and they look great when they are done.
email me privately.
rxrotary2_7 is offline
Old 07-10-03, 03:33 PM
  #13
Full Member
5 Year Member

Join Date: Jan 2003
Location: UK
Posts: 68
Likes: 0
Received 0 Likes on 0 Posts
These are quality products, just waiting for the engine to be finished then they shall be fitted.

Dan
Fishy is offline
