FD 4-POINT bolt-in ROLL BAR

Reply




Old 04-30-18, 08:18 PM
  #1
.
Thread Starter

justin samberg's Avatar

Join Date: Jan 2008
Location: benicia ca
Posts: 38
Thanks: 0
Thanked 10 Times in 6 Posts
FD 4-POINT bolt-in ROLL BAR

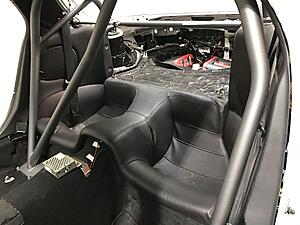

We just sent out a few of these. I have 15 in stock right now. There $975 plus shipping and the turnaround time is about a week.



justin samberg is offline
Reply With Quote
The Following User Says Thank You to justin samberg For This Useful Post:
Natey (05-10-18)
Old 05-01-18, 10:23 PM
  #2
Form > Function
iTrader: (100)

MattGold's Avatar

Join Date: Dec 2003
Location: Metro Detroit
Posts: 1,525
Thanked 101 Times in 64 Posts
This is BY FAR the best cage for the FD3S.

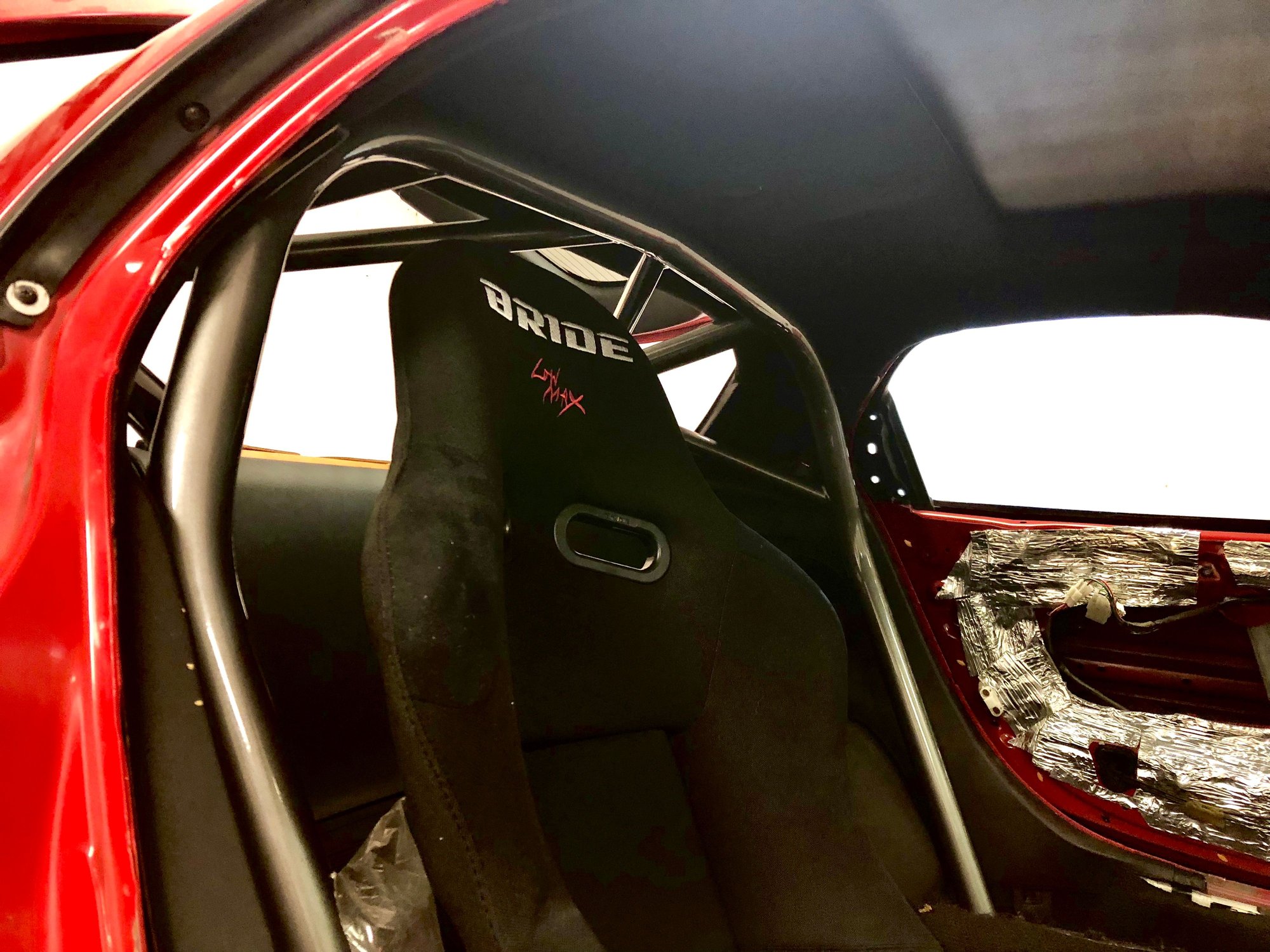

Not a great shot, but here's one from a while ago:
MattGold is offline
Reply With Quote
Old 05-02-18, 01:00 PM
  #3
Lives on the Forum
iTrader: (4)

David Hayes's Avatar

Join Date: Jun 2002
Location: FL
Posts: 6,188
Thanked 37 Times in 26 Posts
Matt, the back attachments connect to the strut towers, right? And how did you bolt down the fronts? Finally, what is the seat clearance like? Thanks!
David Hayes is offline
Reply With Quote
Old 05-03-18, 02:22 AM
  #4
Senior Member
iTrader: (3)

Join Date: Oct 2008
Location: los angeles
Posts: 695
Thanked 3 Times in 3 Posts
Originally Posted by justin samberg View Post
We just sent out a few of these. I have 15 in stock right now. There $975 plus shipping and the turnaround time is about a week.



safe for a street car without helmet?
MILOS7 is offline
Reply With Quote
Old 05-03-18, 12:38 PM
  #5
Senior Member
iTrader: (1)

Mikelivi91's Avatar

Join Date: May 2017
Location: Youngstown, OH
Posts: 261
Thanked 26 Times in 23 Posts
Installed mine a few weekends back. Fitment is perfect and bolts right in place very snug. I would recommend this cage to any FD owner...

Mikelivi91 is offline
Reply With Quote
Old 05-03-18, 12:57 PM
  #6
Form > Function
iTrader: (100)

MattGold's Avatar

Join Date: Dec 2003
Location: Metro Detroit
Posts: 1,525
Thanked 101 Times in 64 Posts
Originally Posted by David Hayes View Post
Matt, the back attachments connect to the strut towers, right?
Correct.

Originally Posted by David Hayes View Post
And how did you bolt down the fronts?
Drilled and attached to reinforcement plate on the other (outside) side of the car.

Originally Posted by David Hayes View Post
Finally, what is the seat clearance like? Thanks!
Not too bad. I have Spirit-R seats and sit pretty close, but no issues.
MattGold is offline
Reply With Quote
Old 05-05-18, 05:46 AM
  #7
Full Member

403rx7's Avatar

Join Date: Aug 2017
Location: Alberta, Canada
Posts: 102
Thanked 6 Times in 6 Posts
It's too bad there isnt a harness mount...
403rx7 is offline
Reply With Quote
Old 05-06-18, 08:01 PM
  #8
Full Member
iTrader: (2)

Join Date: Aug 2012
Location: Dallas, TX
Posts: 200
Thanked 3 Times in 3 Posts
Can you confirm what is suppose to come in the hardware kit?

I currently have nothing to attach the cage to the strut tower boxes. The boxes are tapped, but there is no hardware that fits it.
briansfd is online now
Reply With Quote
Old 05-07-18, 12:28 PM
  #9
.
Thread Starter

justin samberg's Avatar

Join Date: Jan 2008
Location: benicia ca
Posts: 38
Thanks: 0
Thanked 10 Times in 6 Posts
justin samberg is offline
Reply With Quote
Old 05-08-18, 04:54 PM
  #10
Senior Member
iTrader: (6)

WeaponRX7's Avatar

Join Date: Aug 2002
Location: ATL, GA
Posts: 319
Thanks: 0
Thanked 0 Times in 0 Posts
do you have an option for a harness bar
WeaponRX7 is offline
Reply With Quote
Old 05-09-18, 02:07 PM
  #11
.
Thread Starter

justin samberg's Avatar

Join Date: Jan 2008
Location: benicia ca
Posts: 38
Thanks: 0
Thanked 10 Times in 6 Posts
You can wrap the Harness around the strut bar.
justin samberg is offline
Reply With Quote
Old 05-09-18, 03:22 PM
  #12
#FakeCarEnthusaist
iTrader: (10)

Brody8877's Avatar

Join Date: Sep 2005
Location: San Francisco
Posts: 1,788
Thanked 6 Times in 6 Posts
Will this fit with sunroof model (Touring)?
Brody8877 is online now
Reply With Quote
Old 05-09-18, 03:31 PM
  #13
.
Thread Starter

justin samberg's Avatar

Join Date: Jan 2008
Location: benicia ca
Posts: 38
Thanks: 0
Thanked 10 Times in 6 Posts
We could add a small laser cut bracket with a 9/16" hole. Very few people have requested that. I think its because these are mostly used on the street.

It also fits the sunroof cars. The top of the Hoop is Approximately 4" forward of the rear hatch.
justin samberg is offline
Reply With Quote
Old 05-09-18, 05:54 PM
  #14
.
Thread Starter

justin samberg's Avatar

Join Date: Jan 2008
Location: benicia ca
Posts: 38
Thanks: 0
Thanked 10 Times in 6 Posts
I know its hard to see but if you look through the window youíll see the harness wrapped around the strut tower bar. What do you think? Is that too ghetto for you?



justin samberg is offline
Reply With Quote
Old 05-09-18, 09:54 PM
  #15
Form > Function
iTrader: (100)

MattGold's Avatar

Join Date: Dec 2003
Location: Metro Detroit
Posts: 1,525
Thanked 101 Times in 64 Posts
Originally Posted by justin samberg View Post
We could add a small laser cut bracket with a 9/16" hole. Very few people have requested that. I think its because these are mostly used on the street.

It also fits the sunroof cars. The top of the Hoop is Approximately 4" forward of the rear hatch.
Originally Posted by justin samberg View Post
I know its hard to see but if you look through the window youíll see the harness wrapped around the strut tower bar. What do you think? Is that too ghetto for you?


I think the harness question pertains to something limiting lateral movement of the harness after it's wrapped around the bar.

MattGold is offline
Reply With Quote
Old 05-10-18, 12:48 AM
  #16
Full Member

403rx7's Avatar

Join Date: Aug 2017
Location: Alberta, Canada
Posts: 102
Thanked 6 Times in 6 Posts
Originally Posted by justin samberg View Post
I know its hard to see but if you look through the window youíll see the harness wrapped around the strut tower bar. What do you think? Is that too ghetto for you?



short answer - yes.
403rx7 is offline
Reply With Quote
Old 05-10-18, 10:42 AM
  #17
Long time on-looker
iTrader: (33)

Join Date: Oct 2005
Location: Columbus, OH
Posts: 830
Thanked 16 Times in 16 Posts
Originally Posted by 403rx7 View Post
short answer - yes.
correct. Anyone who will track their car will want a proper harness bar.

Looks like you’ve got a good product. Add a height adjustable harness bar to it and it’ll be great.
Smokey The Talon is offline
Reply With Quote
Old 05-10-18, 04:46 PM
  #18
Full Member
iTrader: (7)

Join Date: Nov 2004
Location: somewhere
Posts: 60
Thanked 2 Times in 2 Posts
Hey Justin,

Can you show a picture of how it is mounted to the rear strut bar area?
SpeedCrazie is offline
Reply With Quote
Old 05-10-18, 05:38 PM
  #19
Playing Well
iTrader: (19)

Natey's Avatar

Join Date: Aug 2004
Location: Santa Cruz
Posts: 3,878
Thanked 53 Times in 43 Posts
They wont let you on the track with your harness attached to the STB. I saw a guy get meatballed for that.

Originally Posted by Hot Rod Magazine
SHOULDER STRAPS
The purpose of the shoulder straps is to anchor the driverís torso against the seat. Although brevity is necessary with all the belts, you especially want to keep the shoulder straps as short as possible because they are the longest pieces of the system. Any safety harness will allow a certain percentage of stretch, so the longer the belt, the more overall stretch it will allow. To minimize shoulder-belt length, the belts should mount to a rollcage bar almost directly behind the driverís seat and approximately level with his or her shoulder blades (or slightly higher).
From here:
Racing Seat and Harness Installation - Car Racing Safety Tech - Anchor In - Hot Rod Network
Natey is offline
Reply With Quote
The Following 2 Users Say Thank You to Natey For This Useful Post:
403rx7 (05-16-18), RW Atelier (05-13-18)
Old 05-26-18, 02:50 PM
  #20
.
Thread Starter

justin samberg's Avatar

Join Date: Jan 2008
Location: benicia ca
Posts: 38
Thanks: 0
Thanked 10 Times in 6 Posts
I think the simplest solution is to weld in a piece of 1 1/4" X.120 or larger dom tube. It only needs one 1/2" bung for the drivers harness. Im not really sure of the best way to make that adjustable or if its really necessary. I'm open to new ideas?
justin samberg is offline
Reply With Quote
Old 06-20-18, 04:59 PM
  #21
Racing Rotary Since 1983
iTrader: (6)

Join Date: Oct 2001
Location: Wisconsin
Posts: 5,295
Thanked 28 Times in 20 Posts
Hi Justin,
nice to see you offering something on our board. it appears to be your usual really well engineered piece. i may have a need to order your bolt in rollbar for delivery in August. do you anticipate availability? also, i would need a lateral belt bar which i can fab or you can fab.
LMK on avail.

i run a T56 behind my 2 rotor and your rear diff mount has been onboard since 2012.

thanks,

Howard
Howard Coleman CPR is offline
Reply With Quote
Old 06-21-18, 12:56 PM
  #22
.
Thread Starter

justin samberg's Avatar

Join Date: Jan 2008
Location: benicia ca
Posts: 38
Thanks: 0
Thanked 10 Times in 6 Posts
Hi Howard,

The parts for these are in stock and try and keep one bar that has been assembled in stock at all times.

Its good to here that you are still running the stock rear end housing without issue...
justin samberg is offline
Reply With Quote
Old 06-23-18, 08:27 AM
  #23
Racing Rotary Since 1983
iTrader: (6)

Join Date: Oct 2001
Location: Wisconsin
Posts: 5,295
Thanked 28 Times in 20 Posts
i run a plate type LSD (Mazda) and the Mcleod double disc has a very friendly feather engagement plus no drag racing from a stop so the gears see easy duty.
Howard Coleman CPR is offline
Reply With Quote
Old 08-09-18, 11:57 AM
  #24
.
Thread Starter

justin samberg's Avatar

Join Date: Jan 2008
Location: benicia ca
Posts: 38
Thanks: 0
Thanked 10 Times in 6 Posts
We are working on a harness bar that can be adjusted height wise. I should have something soon..
justin samberg is offline
Reply With Quote
The Following 3 Users Say Thank You to justin samberg For This Useful Post:
cloud9 (08-09-18), David Hayes (08-09-18), MK3Brent (08-09-18)
Old 08-09-18, 02:29 PM
  #25
Lives on the Forum
iTrader: (4)

David Hayes's Avatar

Join Date: Jun 2002
Location: FL
Posts: 6,188
Thanked 37 Times in 26 Posts
Was just talking about this to a fellow car enthusiast. Good to hear you are working on a solution.
