The quest for 9's all motor

Thread Tools

Search this Thread

Old 01-17-16, 07:34 PM
  #701
My job is to blow **** up

iTrader: (8)

lastphaseofthis's Avatar

Join Date: Jan 2005
Location: palmyra Indiana
Posts: 2,900
Received 3 Likes on 3 Posts
you know i looked for those exhaust sleeve inserts, and they're so not on the site grr..
lastphaseofthis is offline
Reply Like
Old 01-17-16, 07:52 PM
  #702
Eats, Sleeps, Dreams Rotary

Thread Starter
iTrader: (1)

ultimatejay's Avatar

Join Date: Nov 2006
Location: California
Posts: 4,148
Likes: 0
Received 2 Likes on 2 Posts
[QUOTE=lastphaseofthis;12016371]you know i looked for those exhaust sleeve inserts, and they're so not on the site grr..[/QUOTE
rotary-works.com: Titanium Parts
ultimatejay is offline
Reply Like
Old 01-17-16, 07:53 PM
  #703
Eats, Sleeps, Dreams Rotary

Thread Starter
iTrader: (1)

ultimatejay's Avatar

Join Date: Nov 2006
Location: California
Posts: 4,148
Likes: 0
Received 2 Likes on 2 Posts
Originally Posted by drag 7
Nice isn't that the shop Rene works at
Yes
ultimatejay is offline
Reply Like
Old 01-17-16, 08:58 PM
  #704
My job is to blow **** up

iTrader: (8)

lastphaseofthis's Avatar

Join Date: Jan 2005
Location: palmyra Indiana
Posts: 2,900
Received 3 Likes on 3 Posts
you say they were from a new Sponsor- CXRACING...? i guess cs gave you rw stuff??
lastphaseofthis is offline
Reply Like
Old 01-18-16, 02:48 PM
  #705
Eats, Sleeps, Dreams Rotary

Thread Starter
iTrader: (1)

ultimatejay's Avatar

Join Date: Nov 2006
Location: California
Posts: 4,148
Likes: 0
Received 2 Likes on 2 Posts
Originally Posted by lastphaseofthis
you say they were from a new Sponsor- CXRACING...? i guess cs gave you rw stuff??
Same company- rotary-works is the rotary dept.
ultimatejay is offline
Reply Like
Old 01-19-16, 11:48 AM
  #706
Rx2 > FD

iTrader: (10)

sen2two's Avatar

Join Date: Apr 2005
Location: Florida, Orlando
Posts: 3,359
Likes: 0
Received 8 Likes on 8 Posts
Some serious stuff going on here...

RB aluminum plates... Extra serious. Going to go for the Aluminum rotors as well?
sen2two is offline
Reply Like
Old 01-19-16, 02:15 PM
  #707
DPG Burnout

iTrader: (53)

rotorholic's Avatar

Join Date: Jul 2005
Location: DALLAS TX
Posts: 2,384
Likes: 0
Received 7 Likes on 7 Posts
Originally Posted by sen2two
Some serious stuff going on here...

RB aluminum plates... Extra serious. Going to go for the Aluminum rotors as well?
Baller status
rotorholic is offline
Reply Like
Old 01-23-16, 09:37 PM
  #708
Eats, Sleeps, Dreams Rotary

Thread Starter
iTrader: (1)

ultimatejay's Avatar

Join Date: Nov 2006
Location: California
Posts: 4,148
Likes: 0
Received 2 Likes on 2 Posts

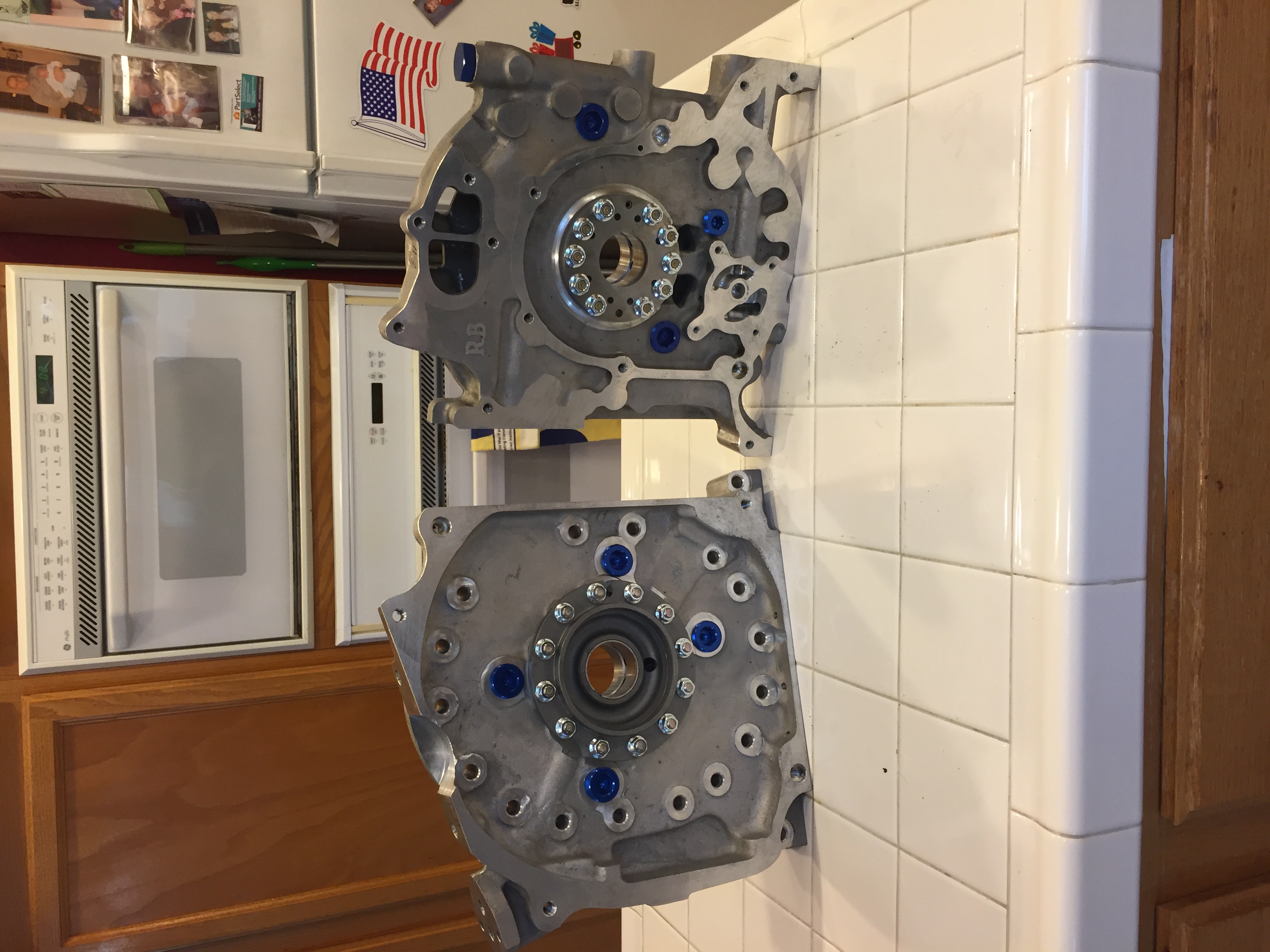

Stage II stationary gears clearanced and installed. The stationary gears have a clearance fit and thus to install them you have to heat housings in oven to 300 degrees. Extra studs are used for extra strength needed due to weaker properties of aluminum.
Attached Thumbnails The quest for 9's all motor-image.jpeg
ultimatejay is offline
Reply Like
Old 01-24-16, 03:59 AM
  #709
Exhaust Manifold Leak


Rub20B's Avatar

Join Date: Jun 2005
Location: western europe
Posts: 760
Received 18 Likes on 14 Posts
Originally Posted by ultimatejay
Stage II stationary gears clearanced and installed. The stationary gears have a clearance fit and thus to install them you have to heat housings in oven to 300 degrees. Extra studs are used for extra strength needed due to weaker properties of aluminum.
Nice, did you drill though the trust plate? Or edm? Real hard *** material..
Rub20B is offline
Reply Like
Old 01-24-16, 12:41 PM
  #710
Eats, Sleeps, Dreams Rotary

Thread Starter
iTrader: (1)

ultimatejay's Avatar

Join Date: Nov 2006
Location: California
Posts: 4,148
Likes: 0
Received 2 Likes on 2 Posts
Originally Posted by Rub20B
Nice, did you drill though the trust plate? Or edm? Real hard *** material..
It's done by lazer
ultimatejay is offline
Reply Like
Old 01-25-16, 01:47 AM
  #711
Senior Member

iTrader: (1)

mazda1200's Avatar

Join Date: Dec 2006
Location: fontana CA.
Posts: 610
Likes: 0
Received 0 Likes on 0 Posts
looking nice
mazda1200 is offline
Reply Like
Old 01-25-16, 03:42 PM
  #712
Rotary Enthusiast

iTrader: (14)

freddyrx3's Avatar

Join Date: Oct 2005
Location: new jersey
Posts: 1,099
Received 3 Likes on 2 Posts
Really nice Irons(aluminum).
freddyrx3 is offline
Reply Like
Old 01-31-16, 08:27 PM
  #713
Eats, Sleeps, Dreams Rotary

Thread Starter
iTrader: (1)

ultimatejay's Avatar

Join Date: Nov 2006
Location: California
Posts: 4,148
Likes: 0
Received 2 Likes on 2 Posts

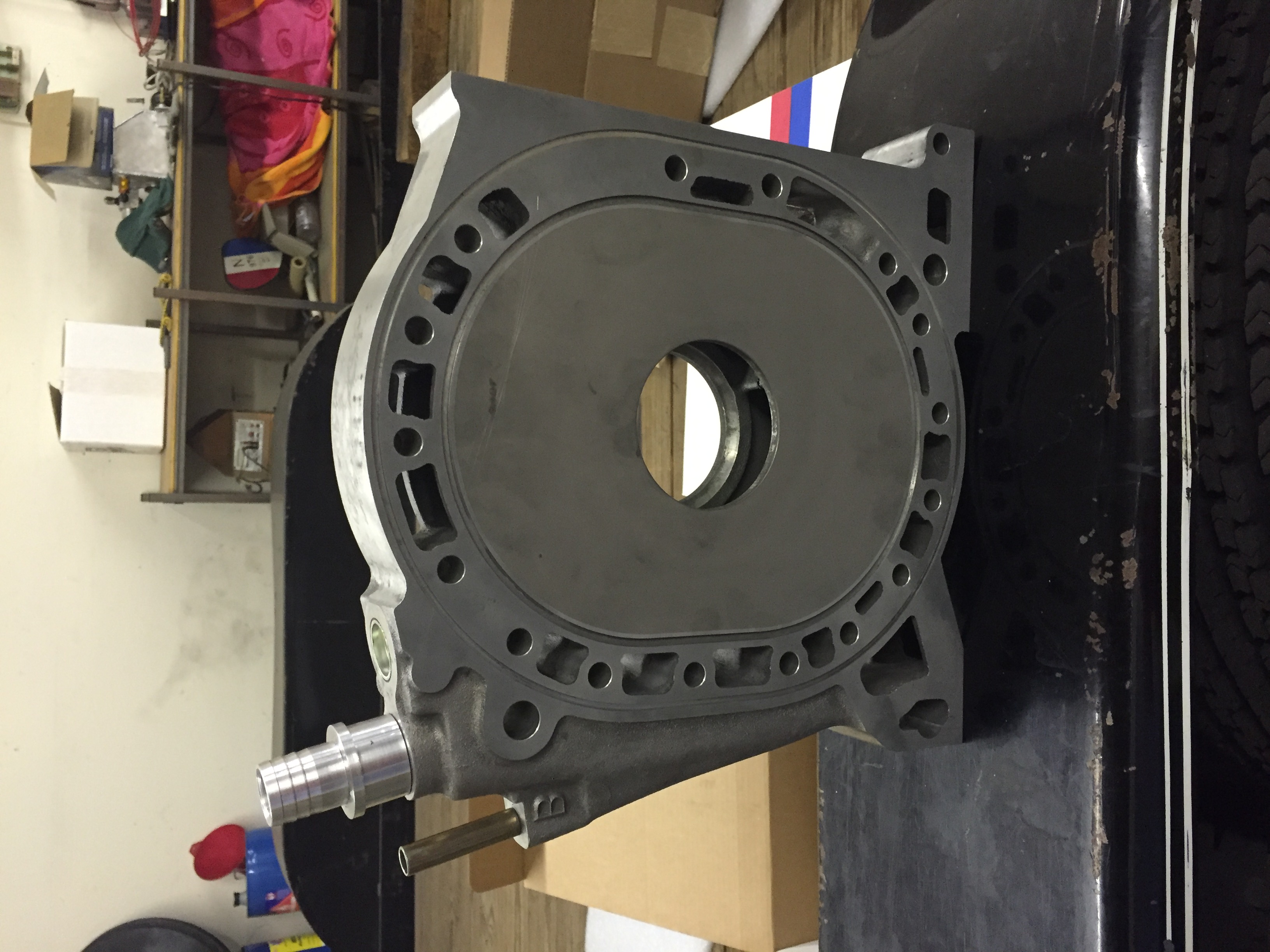

Pic of center aluminum housing with custome made breather adaptor.
Attached Thumbnails The quest for 9's all motor-image.jpeg
ultimatejay is offline
Reply Like
Old 02-05-16, 11:42 PM
  #714
Eats, Sleeps, Dreams Rotary

Thread Starter
iTrader: (1)

ultimatejay's Avatar

Join Date: Nov 2006
Location: California
Posts: 4,148
Likes: 0
Received 2 Likes on 2 Posts

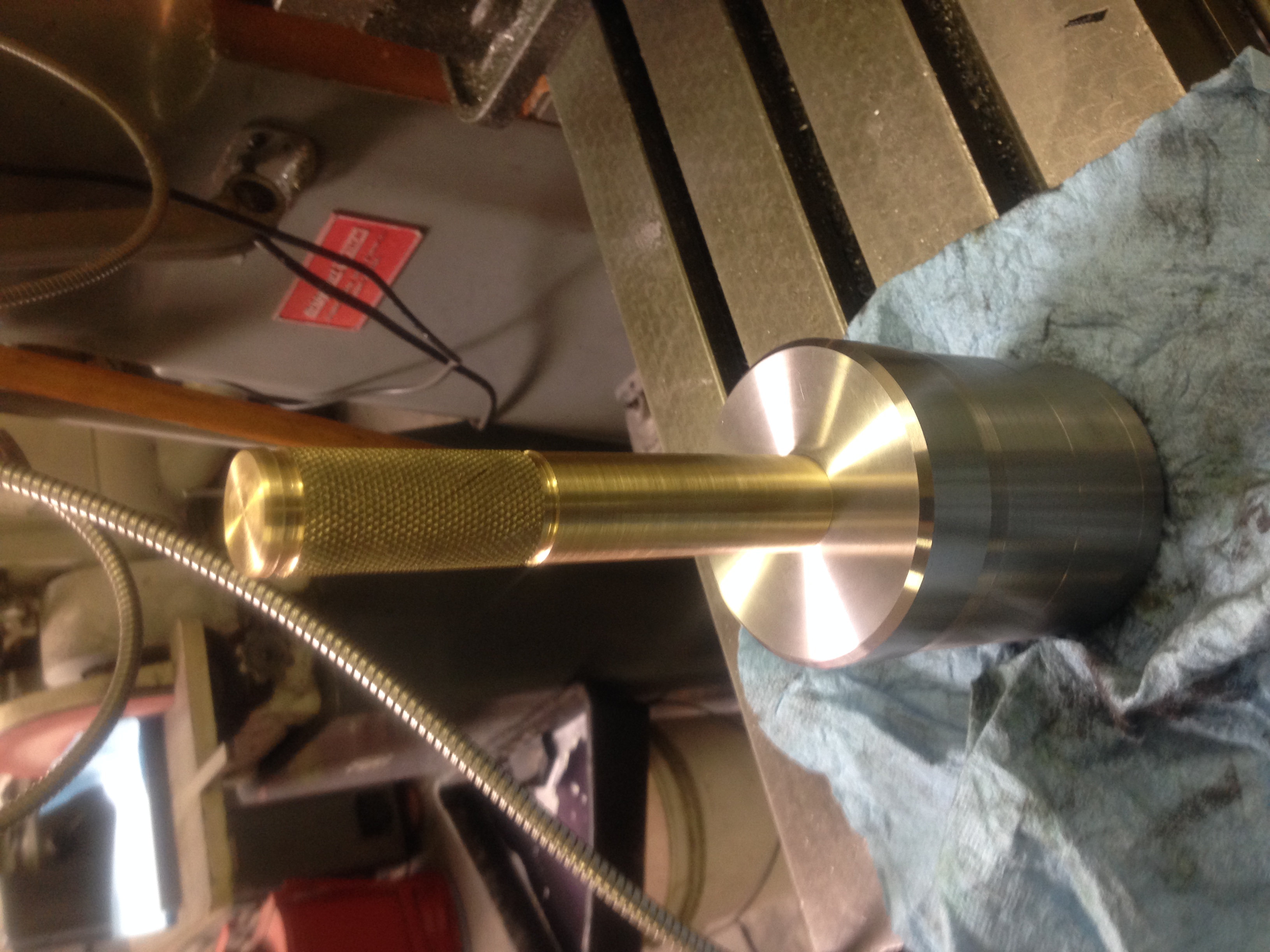

Tired of dicking around with inaccurate bore gauges so I made this go no go gauge. It has three different sizes machined into it so that when I can slide it into the rotor bearing to the third step I know I'm at my race clearance that I run. Works great!
Attached Thumbnails The quest for 9's all motor-image.jpeg
ultimatejay is offline
Reply Like
Old 02-07-16, 11:21 PM
  #715
Eats, Sleeps, Dreams Rotary

Thread Starter
iTrader: (1)

ultimatejay's Avatar

Join Date: Nov 2006
Location: California
Posts: 4,148
Likes: 0
Received 2 Likes on 2 Posts

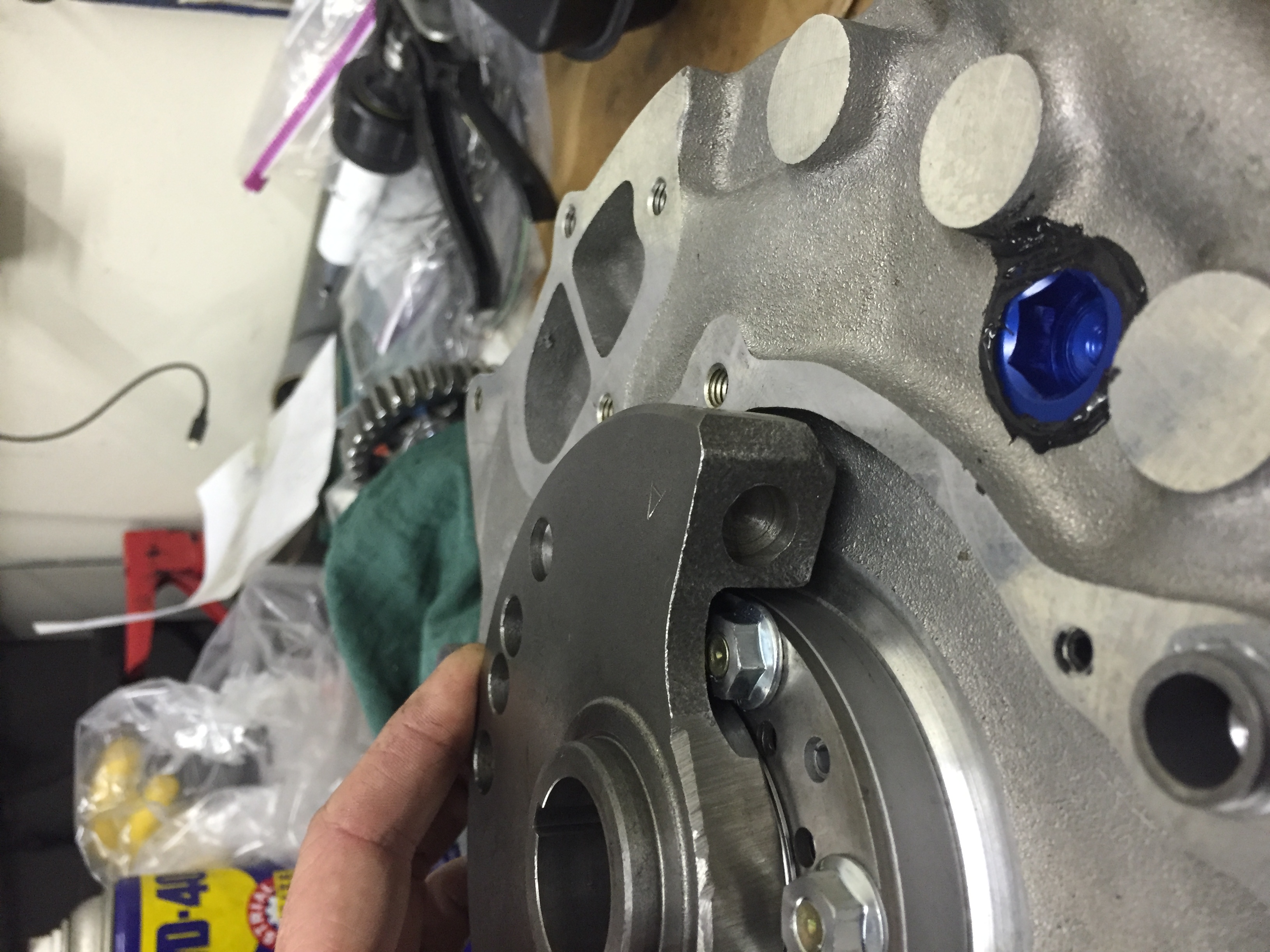

Getting close to assembling the motor. Here I had to clearance the front stationary gear nuts on the lathe.
Attached Thumbnails The quest for 9's all motor-image.jpeg
ultimatejay is offline
Reply Like
Old 02-08-16, 05:31 AM
  #716
B O R I C U A

iTrader: (14)

KNONFS's Avatar

Join Date: Mar 2001
Location: VA
Posts: 5,480
Received 35 Likes on 29 Posts
Originally Posted by ultimatejay
Tired of dicking around with inaccurate bore gauges so I made this go no go gauge. It has three different sizes machined into it so that when I can slide it into the rotor bearing to the third step I know I'm at my race clearance that I run. Works great!

Nice!

Originally Posted by ultimatejay
Getting close to assembling the motor. Here I had to clearance the front stationary gear nuts on the lathe.
Looking good Jay!
KNONFS is offline
Reply Like
Old 02-10-16, 10:40 PM
  #717
Eats, Sleeps, Dreams Rotary

Thread Starter
iTrader: (1)

ultimatejay's Avatar

Join Date: Nov 2006
Location: California
Posts: 4,148
Likes: 0
Received 2 Likes on 2 Posts

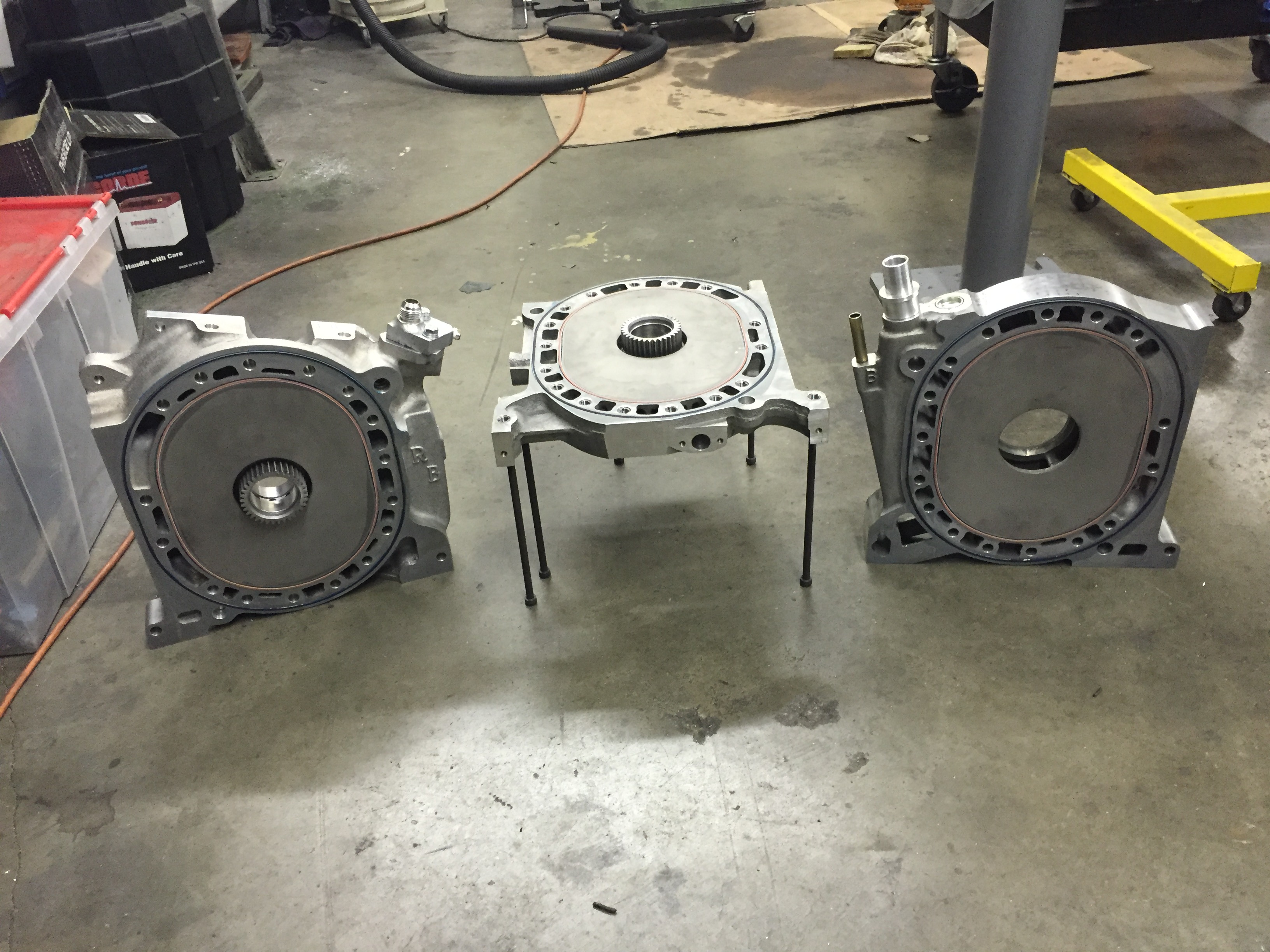

Motor **** 😄
Attached Thumbnails The quest for 9's all motor-image.jpeg
ultimatejay is offline
Reply Like
Old 02-10-16, 10:46 PM
  #718
Eats, Sleeps, Dreams Rotary

Thread Starter
iTrader: (1)

ultimatejay's Avatar

Join Date: Nov 2006
Location: California
Posts: 4,148
Likes: 0
Received 2 Likes on 2 Posts

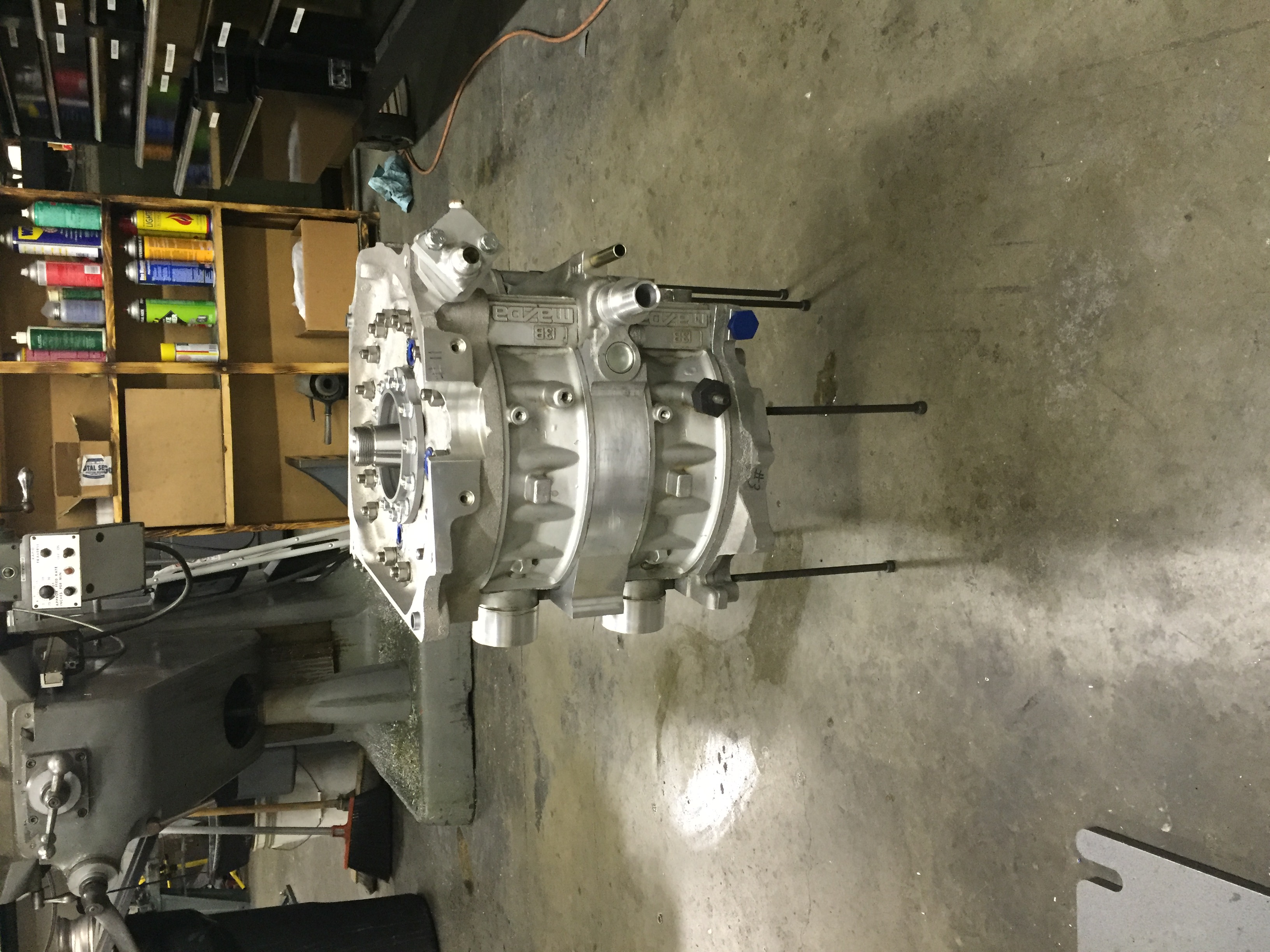

More..... Front housing doesn't have stock bolt holes to mount on engine stand so I had to improvise.
Attached Thumbnails The quest for 9's all motor-image.jpeg
ultimatejay is offline
Reply Like
Old 02-11-16, 07:27 AM
  #719
Rotary Enthusiast


sleeper7's Avatar

Join Date: Aug 2006
Location: Melbourne FL/San Antonio TX/Okinawa Japan
Posts: 1,216
Likes: 0
Received 10 Likes on 10 Posts
Wow! Very cool.
sleeper7 is offline
Reply Like
Old 02-11-16, 02:08 PM
  #720
B O R I C U A

iTrader: (14)

KNONFS's Avatar

Join Date: Mar 2001
Location: VA
Posts: 5,480
Received 35 Likes on 29 Posts
Originally Posted by sleeper7
Wow! Very cool.
AGREE!
KNONFS is offline
Reply Like
Old 02-11-16, 08:56 PM
  #721
Eats, Sleeps, Dreams Rotary

Thread Starter
iTrader: (1)

ultimatejay's Avatar

Join Date: Nov 2006
Location: California
Posts: 4,148
Likes: 0
Received 2 Likes on 2 Posts
Thanks, you might be wondering why it is assembled on the long bolts. Well, these side housings don't have the bolt holes on the side where you would normally mount to engine stand, so I had to use long bolts to clear eshaft. How did I get to the front? Easy, just lift the light motor up and turn it over lol, it's really that light. I estimated at 100lbs
ultimatejay is offline
Reply Like
Old 02-14-16, 10:33 PM
  #722
Eats, Sleeps, Dreams Rotary

Thread Starter
iTrader: (1)

ultimatejay's Avatar

Join Date: Nov 2006
Location: California
Posts: 4,148
Likes: 0
Received 2 Likes on 2 Posts

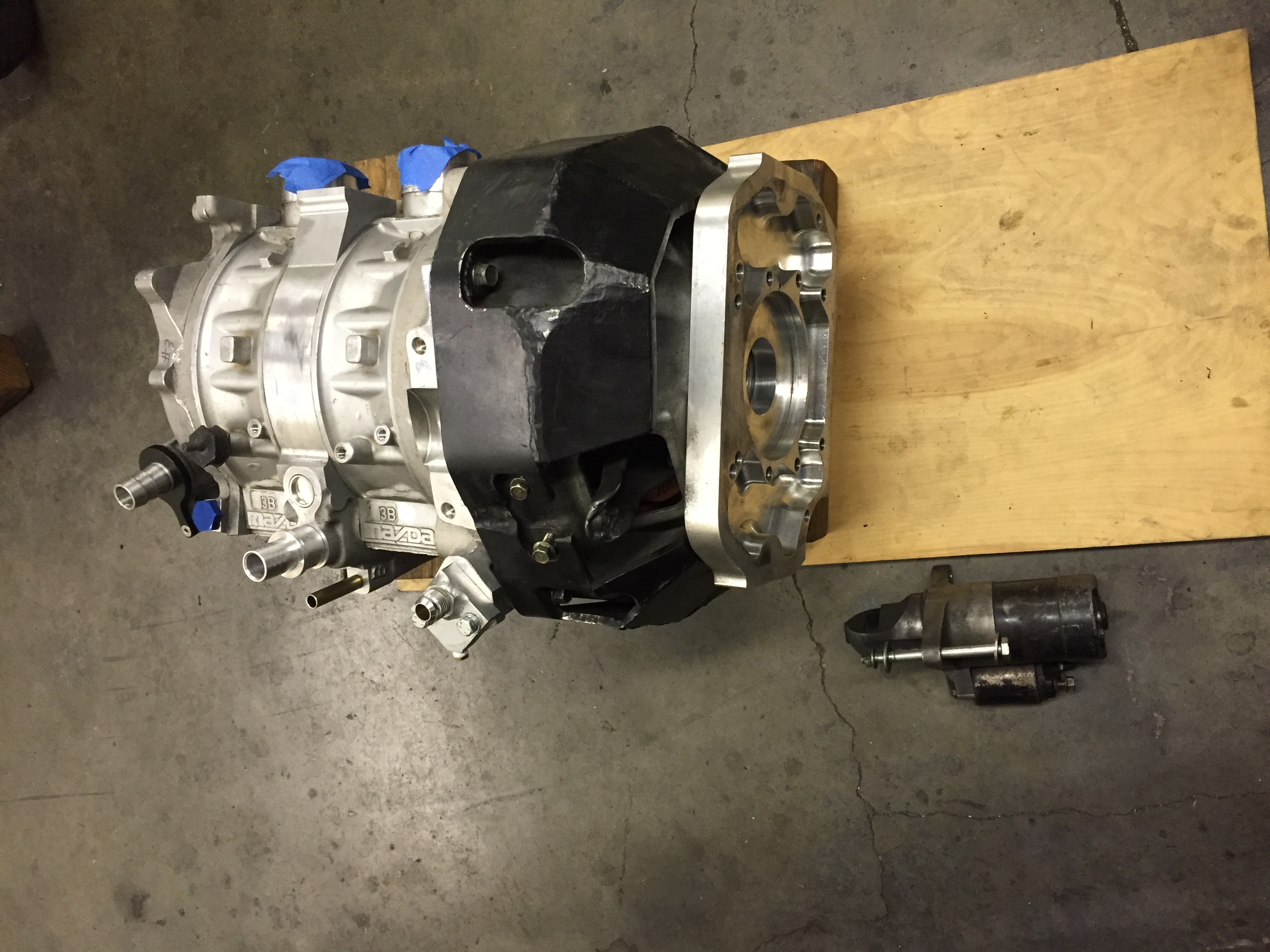

Ready to stab it in the engine bay
Attached Thumbnails The quest for 9's all motor-image.jpeg
ultimatejay is offline
Reply Like
Old 02-15-16, 02:26 AM
  #723
Bridge Port Freak

iTrader: (12)

ArmyOfOne's Avatar

Join Date: Oct 2003
Location: Alzey, Germany
Posts: 1,029
Received 1 Like on 1 Post
Looking good Jay!
ArmyOfOne is offline
Reply Like
Old 02-15-16, 03:03 AM
  #724
Exhaust Manifold Leak


Rub20B's Avatar

Join Date: Jun 2005
Location: western europe
Posts: 760
Received 18 Likes on 14 Posts
looking really good, for a moment I had the idea you would bolt a 12" tall water pump on that front plate :p
Rub20B is offline
Reply Like
Old 02-16-16, 10:25 PM
  #725
Eats, Sleeps, Dreams Rotary

Thread Starter
iTrader: (1)

ultimatejay's Avatar

Join Date: Nov 2006
Location: California
Posts: 4,148
Likes: 0
Received 2 Likes on 2 Posts

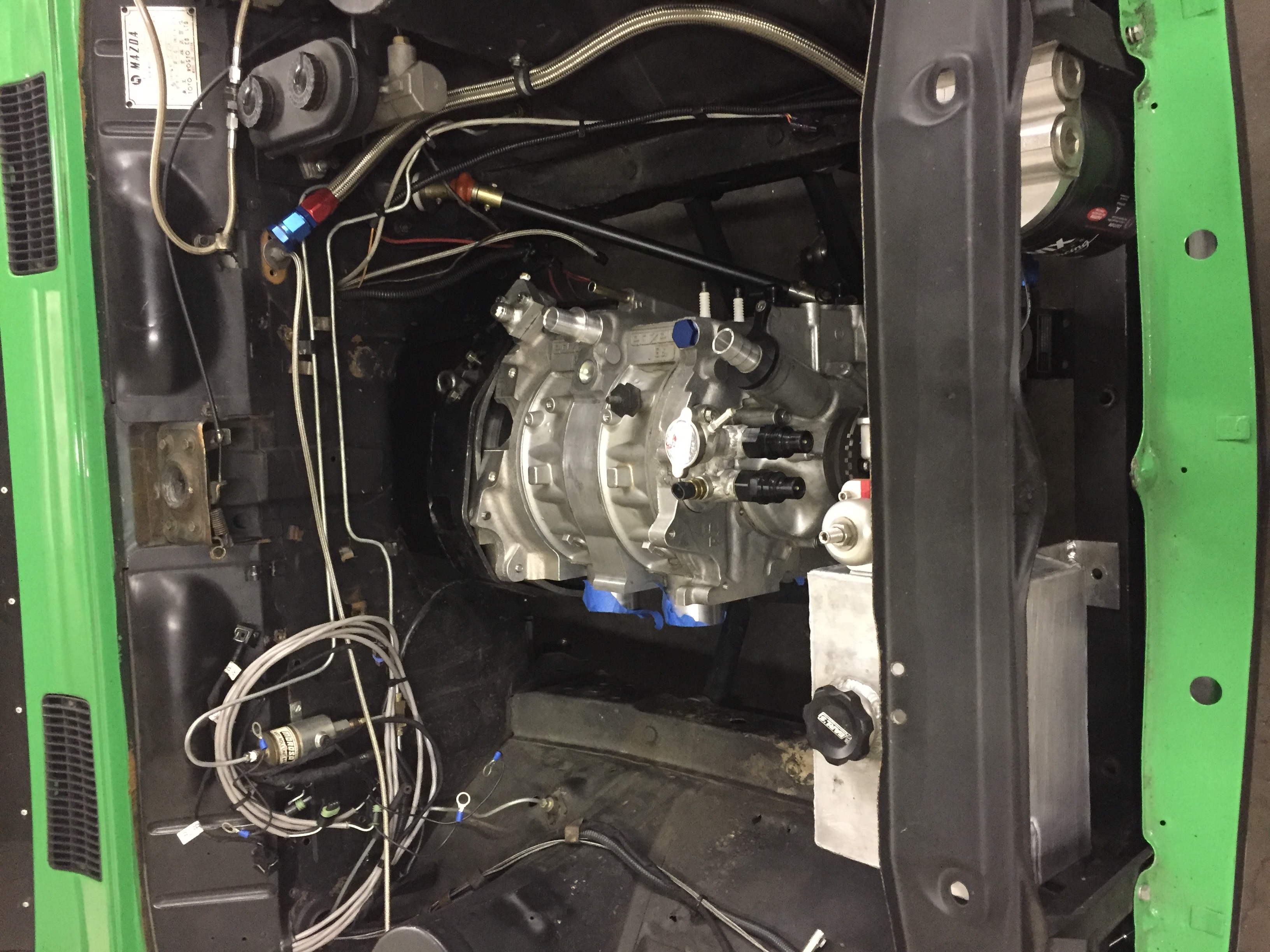

She's in her new home
Attached Thumbnails The quest for 9's all motor-image.jpeg
ultimatejay is offline
Reply Like
