sk8world

iTrader: (5)

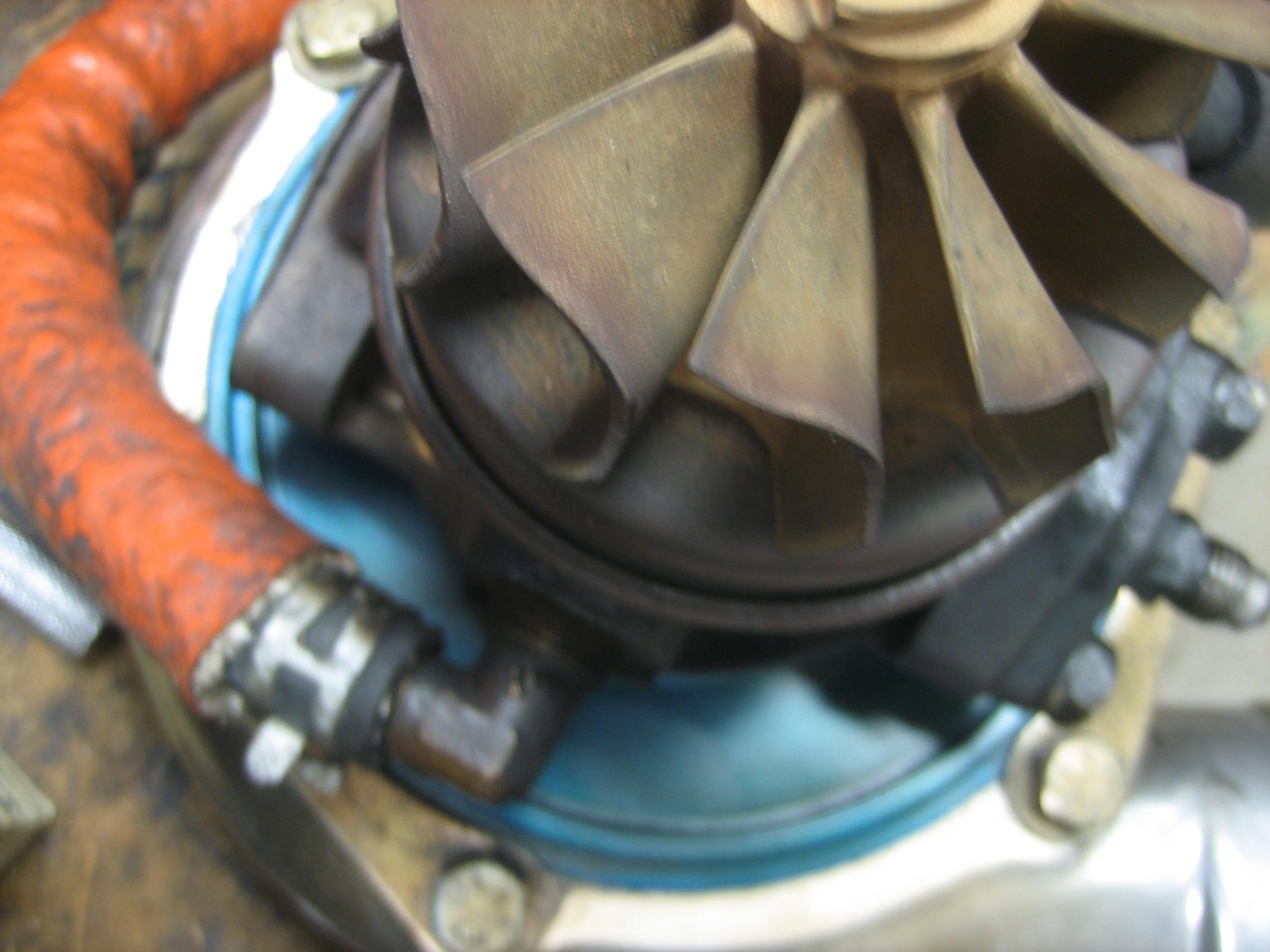

Pulled it apart last night only because my car started to smoke like a mother. This damage was done 2 years ago so I been running this **** since!!

ultimatejay

iTrader: (1)

No wonder your car was so slow.... kidding.

rx71king

iTrader: (6)

is your engine blown ? .........that sucks

13B-RX3

iTrader: (2)

Hahah you're so bad!

sk8world

iTrader: (5)

Motor is fine. This damage was done on a old motor that cough cough I tuned

rx71king

iTrader: (6)

so i guess you new that the turbo would rattled it bearings apart

sk8world

iTrader: (5)

No. I never pulled the exhaust housing off to inspect, just visual look from rear and thought it was good. Glad I didnt pull it apart as I would have never ran it and bought a new one instead of beating on it for another 2 years!

rx71king

iTrader: (6)

how good did it boost.........like any power lost..?

sk8world

iTrader: (5)

Felt fine to me

beefcake

haha thats sic mate, imagine it coming on boost with a new rear end in that turbo , its gonna as mr t said, blow your ***** out the back of your sack hahahaha

enzo250

Believe it or not power is the same with those bite marks.

The balencing gets screwed and eventually your turbo would fail.

beefcake

wow , i was thinking it would be a downer .

sk8world

iTrader: (5)

Yeah. I would have thought the loss in area surface would yield to to spool a tad quicker but that would make any differance on the track since its always in boost.

Just a thought but could the 2-step have added to the damage? I have heard this before but never saw pics or explained what the 2 step effects on the turbo?

Trots*88TII-AE*

iTrader: (11)

mmmm, apex seals for breakfast said the turbo.

So..... upgrade time?

sk8world

iTrader: (5)

Pretty sure I will just do another 4094. I was really pleased with the last outing with the car so dont want to make any changes yet.

sk8world

iTrader: (5)

Woot! Just found out Garrett's exchange program for the 4094r is only $639! Damage wheel is ok.

Barry Bordes

Mike, my guess is that it ate a rock or small metal piece like a nut.

I have been running over 1050ºC and the inconel turbine wheel looks great.
The turbine housing unfortunately hasn't fare as well. Heavy cracks and scale.

Barry

sk8world

iTrader: (5)

Barry, I know I passed a seal thru this turbo 2 years ago. I was running the Atkins seals and car started to detenate chipping away at the seal. When Ray Wilson came to tune my new motor he told me that he was 100% sure there would be damage on the wheel if I took it apart to check.

I know you like busting my ***** for not running a filter...

enzo250

apex seals and turbine wheels spinning over 100k rpm is not a good combination..

sucking a rock in would destroy the comp wheel, have to go thru the comp housing, thru intercooler, thru engine, then make it's way to the turbine wheel. Highly unlikely that your turbine was damaged from anything that was sucked in.. It was damaged from what was spit out (apex).

Barry Bordes

No Mike,

I just meant that something with light mass had ping-ponged the blades multiple times till it had room to escape.

The usual suspect is an apex seal.

Barry

GoodfellaFD3S

iTrader: (213)

yup, this is why i always recommend pulling the housing..... you wouldnt believe the number of classifieds posts where guys are selling supposedly 'used but good shape' turbos that end up having fragged turbine wheels.

So you wanna give me a ride in this thing at DGRR this year or what ?

sk8world

iTrader: (5)

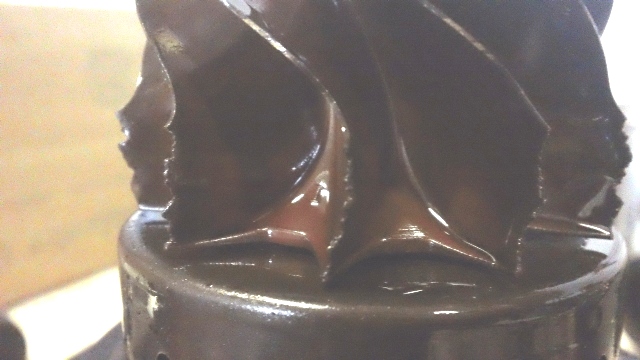

Barry, I was a bit surprised at the amount of damage to the wheel .... On ever blade. I didn't loose but a small section of the seal and found most of it on top of the waste gate.


As Enzo mentioned a rock would have Hurt the comp wheel which was perfect.


You got it Rich. I will bring some gas along and maybe some tires. I never had it out on kill mode with street tires.
