IRS Adjustment

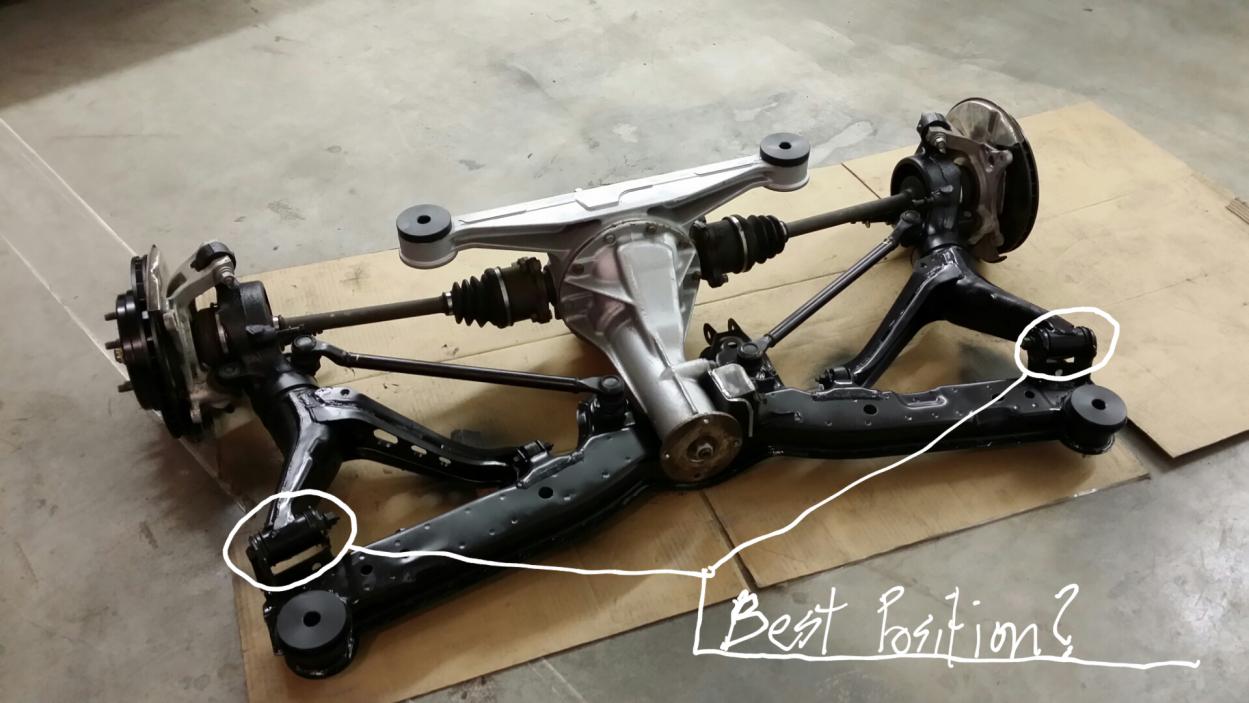

What would be the best adjustment point to start with the blot? I assume the bolt being in the center large hash mark is natural with no in or out. When I disassembled the rear it was on the second hash mark on drivers side and center on the passenger either way I would like a common starting point or any input on best practices.
Attached Thumbnails IRS Adjustment-screenshots_2014-04-26-22-18-06.jpg
Reply
Old Apr 27, 2014 | 10:25 AM
  #2
C. Ludwig's Avatar
www.lms-efi.com
Tenured Member: 25 Years
Liked
Loved
iTrader: (27)

Joined: Mar 2001
Posts: 5,269
Likes: 149
From: Floyds Knobs. IN
That adjustment is for toe. You'll need to get the subframe in the car and the car at race weigh and proper ride height to make a proper adjustment. There is no adjustment that someone can recommend that is known to work on your car. Once you get the car going, have it aligned. You'll probably want a slight amount of toe-in on the rear. When the suspension is loaded, it will tend to pull toward toe-out. So a little toe-in will allow it to pull toward 0 toe under load.
Reply
Old Apr 27, 2014 | 11:56 AM
  #3
janousekmike's Avatar
Thread Starter
Senior Member
iTrader: (3)

Joined: Apr 2010
Posts: 274
Likes: 0
From: Duluth
Originally Posted by C. Ludwig
That adjustment is for toe. You'll need to get the subframe in the car and the car at race weigh and proper ride height to make a proper adjustment. There is no adjustment that someone can recommend that is known to work on your car. Once you get the car going, have it aligned. You'll probably want a slight amount of toe-in on the rear. When the suspension is loaded, it will tend to pull toward toe-out. So a little toe-in will allow it to pull toward 0 toe under load.
Sweet deal that works for me thanks Chris
