Diff Brace
10-04-06, 11:18 AM
#1
Full Member
Thread Starter
Join Date: Dec 2003
Location: Tucson AZ
Posts: 59
Likes: 0
Received 0 Likes
on
0 Posts
Diff Brace
Hey, just wondering is a diff brace absolutely necessary for drag racing? If so I ordered one but it will not be on the car the first time I take it to the track, so what rpm should I launch at? Thanks Ryan
street port motor
99 twins 12.5psi
et streets 10.5
bla bla bla
street port motor
99 twins 12.5psi
et streets 10.5
bla bla bla
10-04-06, 11:33 AM
#3
Full Member
Thread Starter
Join Date: Dec 2003
Location: Tucson AZ
Posts: 59
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by 1wide7
a diff brace is not necessary
do you have an upgraded diff? i blew mine out on the stock twins the second time i went to the track
do you have an upgraded diff? i blew mine out on the stock twins the second time i went to the track
10-04-06, 01:30 PM
#4
NYC's Loudest FD
A diff brace IS a necessity when drag racing an FD! Once you install a stronger differential in the FD casing, the casing itself becomes the weak point. Differential housings break ue to the diff case moving and flexing causing it to crack open.
The only way to stop it from moving/flexing is by installing a brace to hold it in place.
The only way to stop it from moving/flexing is by installing a brace to hold it in place.
10-05-06, 04:44 PM
#6
NYC's Loudest FD
Originally Posted by 1wide7
i would save for the diff then buy the brace i can assure you the diff will go first and ive never seen a case crack with the diff still intact.
10-05-06, 11:01 PM
#7
NYC's Loudest FD

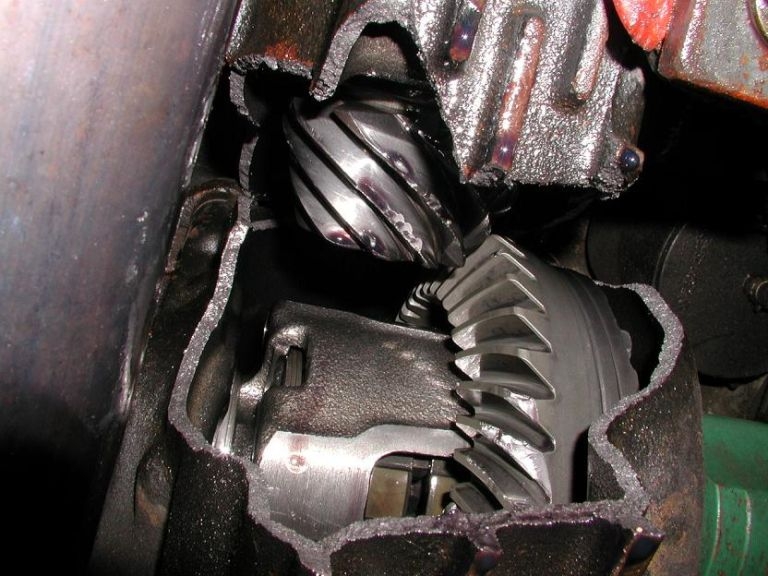

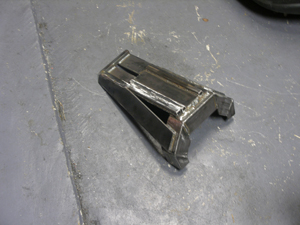

Witness the carnage of launching hard at the dragstrip(As you can see the differential is still in place and not broken but the casing is broken!, NOTE this car also had a brace and it still broke the casing!) This is all too common a scene with FD's that hit the dragstrip and are making power when launched hard.
Last edited by RX794; 10-05-06 at 11:06 PM.
Trending Topics
10-06-06, 07:51 AM
#10
Rotary Enthusiast
iTrader: (1)
Join Date: Jul 2003
Location: balto
Posts: 866
Likes: 0
Received 0 Likes
on
0 Posts
wow like ive said i never saw that happen!(until now) when i blew mine the center limited slip shatered which caused the housing to crack i blew all those little gears in the limited slip apart the ring and pinion were fine!
I also just noticed you have a clutch type diff in there not the stock lsd which is probably why it stayed together
I also just noticed you have a clutch type diff in there not the stock lsd which is probably why it stayed together
10-06-06, 11:28 AM
#11
NYC's Loudest FD
Originally Posted by lotta-boost
What kind of power do you put down RX794? And at what rpm lanch did all this take place? Thanks Ryan
10-06-06, 12:09 PM
#12
I had this happen to me at arround 400whp, almost identical to the pics posted above. i have since installed a brace and have had no more issues with diff casings even tho im making more power now.
i wouldnt recomend drag racing an fd without a brace unless you dont mind towing the car from the strip.
im just glad that mine broke on the first to second gear shift and i wasnt going very fast. when the casing broke, the rear end locked up and started fish tailing. luckilly i was able to keep the car out of the wall.
on a side note there was a forum member in australia about a year or so ago that lost his life when the diff casing on his fd broke and locked up on the top end of the track, sending his car into a wall. he was in a coma for about 2 weeks before he passed away. theres a thread somewhere here about the incident with comments from his wife.
in short, BUY A BRACE. you can never be too carefull
i wouldnt recomend drag racing an fd without a brace unless you dont mind towing the car from the strip.
im just glad that mine broke on the first to second gear shift and i wasnt going very fast. when the casing broke, the rear end locked up and started fish tailing. luckilly i was able to keep the car out of the wall.
on a side note there was a forum member in australia about a year or so ago that lost his life when the diff casing on his fd broke and locked up on the top end of the track, sending his car into a wall. he was in a coma for about 2 weeks before he passed away. theres a thread somewhere here about the incident with comments from his wife.
in short, BUY A BRACE. you can never be too carefull
10-06-06, 04:15 PM
#14
Just Call Me Terminator!
iTrader: (4)
Join Date: Feb 2001
Location: NJ
Posts: 7,848
Likes: 0
Received 0 Likes
on
0 Posts
i also snapped my diff casing in half before i got trans and diff braces. all i did was try and do a burnout on street tires and it exploded.... upgrade your diff and while you are under buy the braces they are worth the money!
10-15-06, 11:08 PM
#20
JIGSAWRX7
Join Date: Apr 2001
Location: Celina, TX
Posts: 333
Likes: 0
Received 0 Likes
on
0 Posts
He's right, the brace does nothing. I haven't been on the forum much lately due to the fact that I have been non stop on the car ever since Moroso. I have been breaking the differential just the same as posted earlier in this thread. Unfortunately, I have gone through 4 diffs in the past month and a half, 2 axles, and 3 mainshafts since Denver in June. There has been much debate on exactly why the diffs are breaking, and it seems to be all to common lately. I have been talking with Josi, Ari, Greg, Ken, Jesus, and many others trying to find a cure for this problem. It seems that the pinion wants to drive forward and up (due to the cut of the gear) and splits the case in half right at the pinion head. I have tried a few cradles and braces, changing suspension, setting ride height, different clutches, tire pressure, and many other trials to cure this problem, but so far have had no luck. The one thing I found that may help is that I just recently noticed that my PPF is slightly bent. I made a brace that goes from the case snout to the subframe to keep the pinion down, but it just "sucked" the bolts right out of the housing on the first launch and stripped out the case threads! I am now currently making a thicker, stronger cradle to try to encase the diff and keep it together. I leave for NHRA finals in Pomona in 4 days, so I hope it works! Attached are a few pics of:

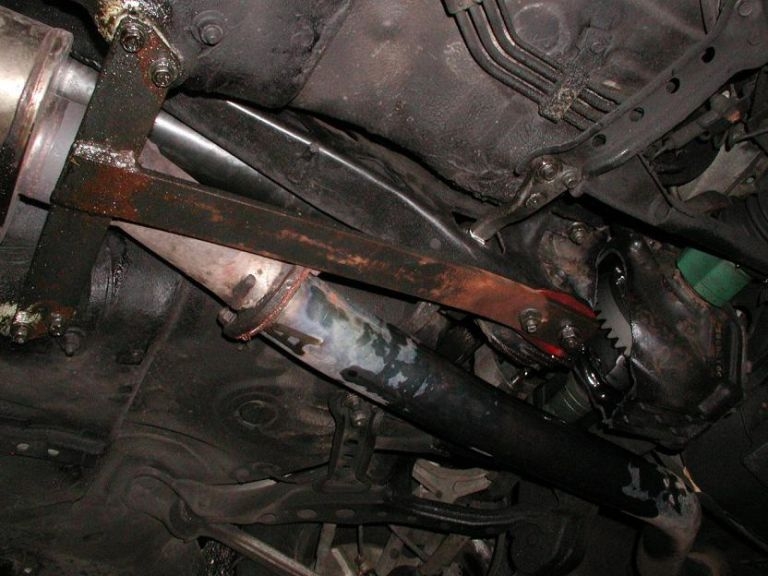

1. Brace to hold the pinion

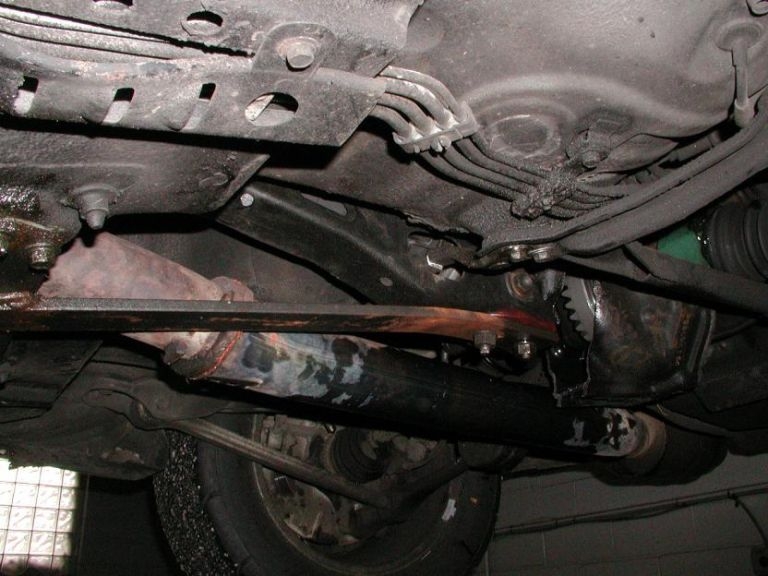

2. Broken diff with a secondary brace on top bent like the Terminator got it

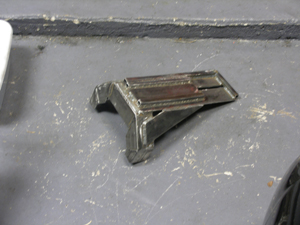

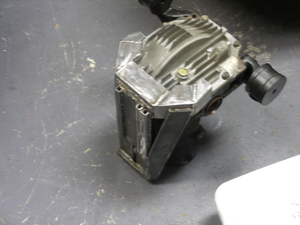

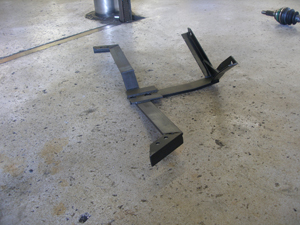

3. The new cradle in the making.
1. Brace to hold the pinion
2. Broken diff with a secondary brace on top bent like the Terminator got it
3. The new cradle in the making.
Last edited by Dan Schechter; 10-15-06 at 11:11 PM.
10-16-06, 06:53 AM
#22
...
Join Date: Aug 2004
Location: md
Posts: 802
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Dan Schechter

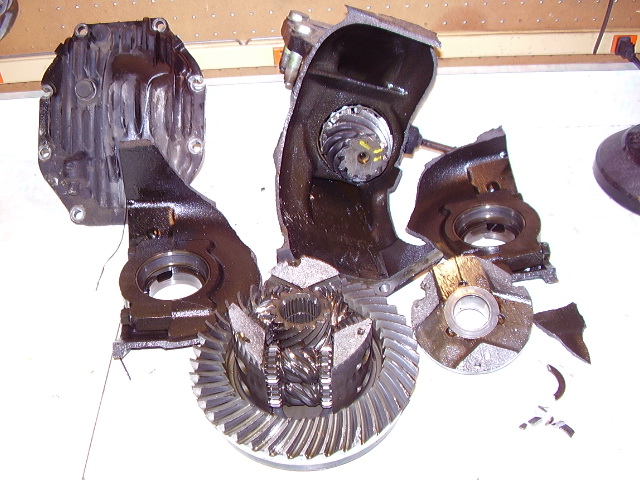

More Pics.....
10-16-06, 11:00 AM
#23
JIGSAWRX7
Join Date: Apr 2001
Location: Celina, TX
Posts: 333
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by BLitzed33

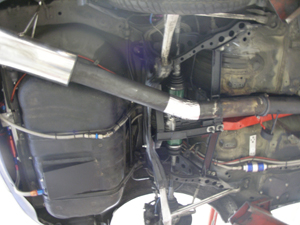

Hey Dan, the last two pics of the craddle should be your best bet, since it encases the whole diff and transfers the load all the way to the back, and will want to raise the whole diff instead of breaking it in the middle or near the front of the pinion.
. (Haha, I love these smileys).
10-16-06, 11:06 AM
#24
Rotary For Life
Join Date: Jan 2004
Location: Fort Worth, TX
Posts: 21
Likes: 0
Received 0 Likes
on
0 Posts
As with many I learned the hard way. Last Friday I blew the rear diff at the drag strip. With street tires, diff. brace and solid mounts the LSD became the weakest link along with the case.
_________________
'93 R1 177k miles
Ported motor
Power FC
Greddy SMIC
'99 non-seq twins
_________________
'93 R1 177k miles
Ported motor
Power FC
Greddy SMIC
'99 non-seq twins
10-16-06, 12:00 PM
#25
NYC's Loudest FD
Stating that the brace doesn't work at all isn't true. Maybe at the level that Dan is at it doesn't work anymore which I can understand because he's reaching the limits of the entire powertrain in the FD, BUT for people making less power it's proved itself beneficial in preventing breakage. Me as well as alot of my friends have seen this benefit firsthand after breaking so many diffs w/o any brace.
