Why dont they make rotor housings sleeved? Or do they?
#1
2355lbs...
Thread Starter
iTrader: (2)
Join Date: Jan 2003
Location: Santa Clara CA
Posts: 1,420
Likes: 0
Received 0 Likes
on
0 Posts
Why dont they make rotor housings sleeved? Or do they?
Just like a real engine, i mean piston engine. The sleeves can be pressed out and have new ones or solid deck sleeves installed, ETC. Except do that with the rotor housings? I saw a pic of a polished 13b, and thought to myself, what a waste of time/$ when it blows in like 10k. Then i thought it would be a great idea (if not already done) to have the rotor housings "sleeved" like a piston engine.
Or is there some wierd issues with the rotor sleeves (il call em that) walking or whatever?
I dunno, first rotary topic ive posted in a while, not like i keep up on this ish, but i had something to say/ask.
Any thoughts/comments?
Or is there some wierd issues with the rotor sleeves (il call em that) walking or whatever?
I dunno, first rotary topic ive posted in a while, not like i keep up on this ish, but i had something to say/ask.
Any thoughts/comments?
#2
Sharp Claws
iTrader: (30)
the sleeve is meshed with the aluminum during the casting process and there is no way to press them out and replace them that i know of, the expansion and contraction of the aluminum requires that they be bound together or it could cause a few issues with the coolant seals, the steel/chrome sleeve is actually what keeps the housings somewhat rigid or they would probably float around alot and have tons of sealing issues.
i would like to see ceramic coated housings become a more widely accepted alternative but so far they are tough to come by and somewhat expensive if you can even find a supplier.
i would like to see ceramic coated housings become a more widely accepted alternative but so far they are tough to come by and somewhat expensive if you can even find a supplier.
#6
spoon!
The steel strips that make the inner surface of the rotor housings have what looks like a tiny sawblade section on their back side to keep everything stuck together. So they're not getting pressed out. And the shape is rather complicated to machine out. And making a new wear surface is kind of complicated because of the geometry, need for a smooth weld, and need to be very very hard chromed (though there's some that are working on that last part actually) And there's no way to get a new steel inner wear surface thing to bond as securely to the rotor housing as the old one.
So overall, you rapidly get to the point where it would be easier just to cast a new rotor housing from scratch... which, unless you have unholy amounts of expertise and the facilities to do so, really means just buying a new damn housing would be cheaper/easier/better.
So overall, you rapidly get to the point where it would be easier just to cast a new rotor housing from scratch... which, unless you have unholy amounts of expertise and the facilities to do so, really means just buying a new damn housing would be cheaper/easier/better.
#7
'Last Minute' Rallying
Join Date: May 2002
Location: Lincoln, England
Posts: 1,193
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by rotaryfreak3
Well, with piston engines, the sleeves are cast into the block as well. IIRC, they are cut out.
some have no liners at all, some have liners that 'float' trapped between the bottom of the block and the head, some are pressed in etc. etc. its all down to what was decided at the design stage.
some of the more modern engines even have the casting around the bore modified via some tricky casting methods to improve the material properties
Trending Topics
#9
Full Member
Join Date: Aug 2004
Location: New Zealand
Posts: 51
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by GUITARJUNKIE28
remember the renault's with the aluminum cylinder walls? frog crackheads!!
#10
Originally Posted by MikeLMR
some of the more modern engines even have the casting around the bore modified via some tricky casting methods to improve the material properties
-Max
#13
Full Member
Join Date: Aug 2004
Location: New Zealand
Posts: 51
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by GUITARJUNKIE28
dimme see! dimme see!!
ill try and dig them out of tonight and take a picture, needs a rebuild at mo which will not be happening anytime soon though, its periferal ported and ides at about 700 rpm. That will keep you guessing.
#14
multipersonality disorder
Join Date: Feb 2002
Location: so. cal
Posts: 5,656
Likes: 0
Received 0 Likes
on
0 Posts
all about the port timing
are those the RB aluminum side housings? i've heard people talk about them, but never met anyone who's used them.....actually, i've never met anyone who's even met anyone who's used them :p
are those the RB aluminum side housings? i've heard people talk about them, but never met anyone who's used them.....actually, i've never met anyone who's even met anyone who's used them :p
#15
Rotors still spinning
iTrader: (1)
The rotor housings would be harder to do than the side plates. You could jsut design a sideplate like a flywheel with a replacable friction surface. Just figure out the cooling ability.
http://home.earthlink.net/~rotaryeng...-end-house.jpg
http://home.earthlink.net/~rotaryeng/2pc-end-house.gif
http://home.earthlink.net/~rotaryeng...-end-house.jpg
http://home.earthlink.net/~rotaryeng/2pc-end-house.gif
#16
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,829
Received 2,597 Likes
on
1,845 Posts
Originally Posted by t-von
I think the guy is talking about engineering the housings so they can be re-sleeved if necessary. Not re-sleeving the stock housings. If Mazda re-engineered the housings, this could be possible.
#18
Rotor Head Extreme
iTrader: (8)
Originally Posted by j9fd3s
the early housings arent saw bladed and they had problems keeping it together, hence the sawblade.
Yes but there is a hugh differance in todays technology when compared to back then. I think now it could easily be done. It's all about the $$$$$$$$$$$$
#19
multipersonality disorder
Join Date: Feb 2002
Location: so. cal
Posts: 5,656
Likes: 0
Received 0 Likes
on
0 Posts
i think they rely on eachother to hold shape. without one, there's nothing to hold the other in shape.
so while you pressed the "sleeve" out, it's possible the housing could tweak and not provide an accurate shape for the new sleeve to be pressed into.
it'd be great if someone could make it work, but i think if it were feasable, mazda would have done it already. cost-to-benefit...
so while you pressed the "sleeve" out, it's possible the housing could tweak and not provide an accurate shape for the new sleeve to be pressed into.
it'd be great if someone could make it work, but i think if it were feasable, mazda would have done it already. cost-to-benefit...
#20
Full Member
Join Date: Aug 2004
Location: New Zealand
Posts: 51
Likes: 0
Received 0 Likes
on
0 Posts
When people get the grinding of old housings completely sorted that will be the way to go. There are hundreds of materials that can be plasma sprayed that would be suitable. Plasma sprayed coatings would most likely be better on Al side plates than an insert as well, no thermal conduction problems etc and fewer parts to make
#22
spoon!
Originally Posted by rotarygod
The rotor housings would be harder to do than the side plates. You could jsut design a sideplate like a flywheel with a replacable friction surface. Just figure out the cooling ability.
http://home.earthlink.net/~rotaryeng...-end-house.jpg
http://home.earthlink.net/~rotaryeng/2pc-end-house.gif
http://home.earthlink.net/~rotaryeng...-end-house.jpg
http://home.earthlink.net/~rotaryeng/2pc-end-house.gif
#24
spoon!
Well, if you mean why do they have to be cast, because there's all sorts of coolant passages running around back there. if you mean why do it at all, signifigant weight savings.
#25
Full Member
Join Date: Aug 2004
Location: New Zealand
Posts: 51
Likes: 0
Received 0 Likes
on
0 Posts

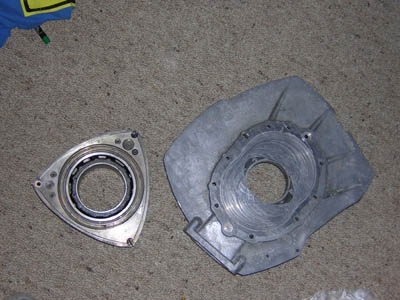

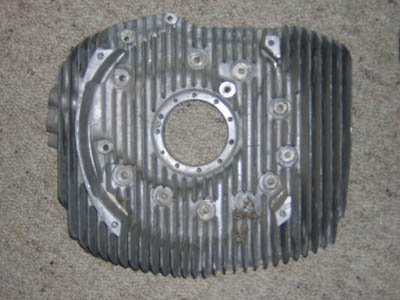

Aluminium side plates, the 13b rotor is to give an idea of the size. They are from the air cooled Norton rotary these specific ones are from the Interpol II ploice bike. Time and money and ill get it back together some time. In fact with this type of Al I could just get them reground and etch them again but a plasma spray coating would be much better
