NA peripheral port intake box/plenum pics
Anyone got pictures of diffrent designs on NA peripheral port intake box/plenum chambers?
My 4 rotor build is on it's way and would like some ideas on how to build it.
So if anyone got some pictures of intake boxes/plenum chambers for a peripheral port 2, 3 or 4 rotor engine please post them here.
Pics of race cars would be the best.
JT
My 4 rotor build is on it's way and would like some ideas on how to build it.
So if anyone got some pictures of intake boxes/plenum chambers for a peripheral port 2, 3 or 4 rotor engine please post them here.
Pics of race cars would be the best.
JT
#2
Banned. I got OWNED!!!
Join Date: Dec 2007
Location: paradise Florida
Posts: 946
Likes: 0
Received 0 Likes
on
0 Posts
hard to see, but you kinda get the idea
you can see whats under that intake pretty clearly in this pic:
or mabey without a plenum at all
these aren't for rotaries, but they show what i think would be good:
ferarri F40 plenum
#4
Rotary Enthusiast
Thread Starter
Thanks for the pics but not what im looking for.
Im looking for pictures of NA PP intake boxes from Mazda cars. Pref 2nd gen, 3rd gen and RX8. The thing is to come up with a solution of moving the engine 5 inches back, and then getting clear of the firewall without having to cutting it.
So pref pictures of Mazda RX cars with PP intake boxes.
JT
Im looking for pictures of NA PP intake boxes from Mazda cars. Pref 2nd gen, 3rd gen and RX8. The thing is to come up with a solution of moving the engine 5 inches back, and then getting clear of the firewall without having to cutting it.
So pref pictures of Mazda RX cars with PP intake boxes.
JT
Trending Topics
#9
In the burnout box...
iTrader: (32)

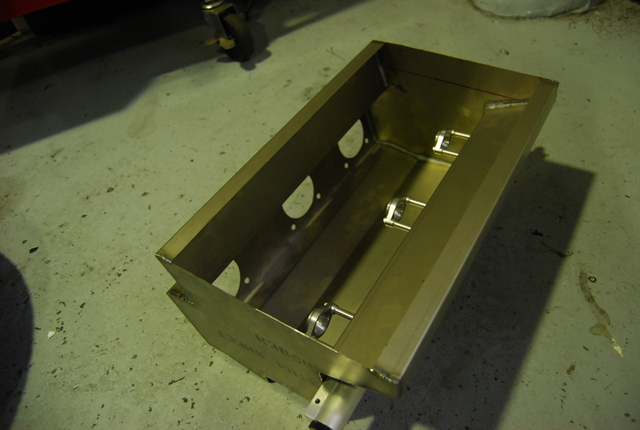

Aluminum Sheet is my guess because it says it on the front of plenum. Nice touch by adding injectors in front of what will be inlet trumpets!! Not enough racers use the benefits of going this route and there is quit a bit of power to be gained by this.
~Mike...............
~Mike...............
Anyway Jantore, just make sure to have a raised velocity stack inside the plenum and try your best to make it a symmetrical manifold. Depending on your budget and throttle response tastes you can employ multiple throttle bodies into your design. List what you want out of the car and I can help make some solid recommendations. I've built a couple of intake manifolds for boosted and NA applications and I've been pretty spot on each time
#10
NASA geek
iTrader: (2)
If you looked at those welds you'd know they're everything but aluminum. Looks like a mild steel because of the gray color to the metal (mill scale). But it could possibly be stainless.
Anyway Jantore, just make sure to have a raised velocity stack inside the plenum and try your best to make it a symmetrical manifold. Depending on your budget and throttle response tastes you can employ multiple throttle bodies into your design. List what you want out of the car and I can help make some solid recommendations. I've built a couple of intake manifolds for boosted and NA applications and I've been pretty spot on each time
Anyway Jantore, just make sure to have a raised velocity stack inside the plenum and try your best to make it a symmetrical manifold. Depending on your budget and throttle response tastes you can employ multiple throttle bodies into your design. List what you want out of the car and I can help make some solid recommendations. I've built a couple of intake manifolds for boosted and NA applications and I've been pretty spot on each time
Your right, I didn't look that close at it. I just saw "MIUM SHEET" which can read "Aluminium sheet". Some countries use Aluminium rather then aluminum. Also, there is "alumi-nium" clad sheet steel. But yeah, after lookng closer at the pics it does look like steel/stainless due to the welds.
~Mike...........
#14
Rotary Enthusiast
Thread Starter
more pics please
looking good so far hehe. Want som more designs, the intake will be from the front or the side of the box as i will be taking the air from infront of the radiator. So the air box that will catch the air will go over the radiator.
JT
looking good so far hehe. Want som more designs, the intake will be from the front or the side of the box as i will be taking the air from infront of the radiator. So the air box that will catch the air will go over the radiator.
JT
#20
Full Member
Hey guys yeah that is my AIRBOX i was thinking of putting some pics up but i saw it was done for me thanks heaps i hate uploading photo's. It is definatly aircraft grade TITANIUM and as for welding i didn't have any filler rod so i had to fuse it all together and once there is a gap in titanium it get really hard without filler!!!
As for welding titanium it is **** easy just as easy as stainless the only thing is to keep the titanium from going brittle it needs to be purge welded, which means the welds can not be exposed to oxygen till they have reached a certain temprature.
dave
As for welding titanium it is **** easy just as easy as stainless the only thing is to keep the titanium from going brittle it needs to be purge welded, which means the welds can not be exposed to oxygen till they have reached a certain temprature.
dave
#21
Eats, Sleeps, Dreams Rotary
iTrader: (1)
Hey guys yeah that is my AIRBOX i was thinking of putting some pics up but i saw it was done for me thanks heaps i hate uploading photo's. It is definatly aircraft grade TITANIUM and as for welding i didn't have any filler rod so i had to fuse it all together and once there is a gap in titanium it get really hard without filler!!!
As for welding titanium it is **** easy just as easy as stainless the only thing is to keep the titanium from going brittle it needs to be purge welded, which means the welds can not be exposed to oxygen till they have reached a certain temprature.
dave
As for welding titanium it is **** easy just as easy as stainless the only thing is to keep the titanium from going brittle it needs to be purge welded, which means the welds can not be exposed to oxygen till they have reached a certain temprature.
dave
#22
Banned. I got OWNED!!!
iTrader: (2)
Hey guys yeah that is my AIRBOX i was thinking of putting some pics up but i saw it was done for me thanks heaps i hate uploading photo's. It is definatly aircraft grade TITANIUM and as for welding i didn't have any filler rod so i had to fuse it all together and once there is a gap in titanium it get really hard without filler!!!
As for welding titanium it is **** easy just as easy as stainless the only thing is to keep the titanium from going brittle it needs to be purge welded, which means the welds can not be exposed to oxygen till they have reached a certain temprature.
dave
As for welding titanium it is **** easy just as easy as stainless the only thing is to keep the titanium from going brittle it needs to be purge welded, which means the welds can not be exposed to oxygen till they have reached a certain temprature.
dave
#23
Banned. I got OWNED!!!
Join Date: Dec 2007
Location: paradise Florida
Posts: 946
Likes: 0
Received 0 Likes
on
0 Posts
heres RE amemiya super GTs 20bpp engine
http://www.braptv.com/play.php?vid=930
you have to go to the 2:45 mark
http://www.braptv.com/play.php?vid=930
you have to go to the 2:45 mark
