Intake manifold insulator/spacer?
04-24-07, 05:11 AM
#1
Senior Member
Thread Starter
Join Date: Mar 2007
Location: Boston MA
Posts: 438
Likes: 0
Received 0 Likes
on
0 Posts
Intake manifold insulator/spacer?
Just curious has anyone here considered the benefits of using a manifold insulator or spacer to bring down intake temps, and keep things cool?
This a common bolt on, in piston engines, and I think it might work well with our high temp rotaries.... I looked around but didn't see that anyone made these. However I do have a friend that custom makes them for other cars. He could easily whip one up off a design of a stock gasket, with thicker more resistant materials.
Any thoughts?
This a common bolt on, in piston engines, and I think it might work well with our high temp rotaries.... I looked around but didn't see that anyone made these. However I do have a friend that custom makes them for other cars. He could easily whip one up off a design of a stock gasket, with thicker more resistant materials.
Any thoughts?
04-24-07, 11:52 AM
#4
Rotary Enthusiast
Join Date: Aug 2004
Location: The World
Posts: 1,100
Likes: 0
Received 0 Likes
on
0 Posts
Mmmm... air is flowing in really fast fresh from outside... heat is naturally going to soak into everything over a period of time, so I Can't think of it helping... maybe a little for a short while, but once everything eventually reaches a stable temp it will be the same.. right?
04-24-07, 07:35 PM
#6
Senior Member
Thread Starter
Join Date: Mar 2007
Location: Boston MA
Posts: 438
Likes: 0
Received 0 Likes
on
0 Posts
BTW the purpose is to keep the manifold from heating, thus keeping the air flowing through it denser. The idea is to seperate (space out) the metal on metal so that they can't conduct heat to one another.
04-24-07, 10:11 PM
#7
Red Pill Dealer
iTrader: (10)
I have experience with insulator plates reducing temperature soak in industrial applications. I know that the they work.
Trending Topics
04-24-07, 10:16 PM
#8
The General RE
A phenolic spacer would mainly keep fuel cooler by isolating the fuel in a carb from heat conducting through the intake manifold.
An intake manifold heat shield would reduce heat in the intake. Radiant heat from the header is significant.
An intake manifold heat shield would reduce heat in the intake. Radiant heat from the header is significant.
04-24-07, 10:31 PM
#10
Senior Member
Thread Starter
Join Date: Mar 2007
Location: Boston MA
Posts: 438
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by 13BT_RX3
A phenolic spacer would mainly keep fuel cooler by isolating the fuel in a carb from heat conducting through the intake manifold.
An intake manifold heat shield would reduce heat in the intake. Radiant heat from the header is significant.
An intake manifold heat shield would reduce heat in the intake. Radiant heat from the header is significant.
Originally Posted by TonyD89
I have experience with insulator plates reducing temperature soak in industrial applications. I know that the they work.
04-25-07, 10:34 PM
#12
The General RE
Originally Posted by RETed
I've never seen them on a single race car in my life...
-Ted
-Ted

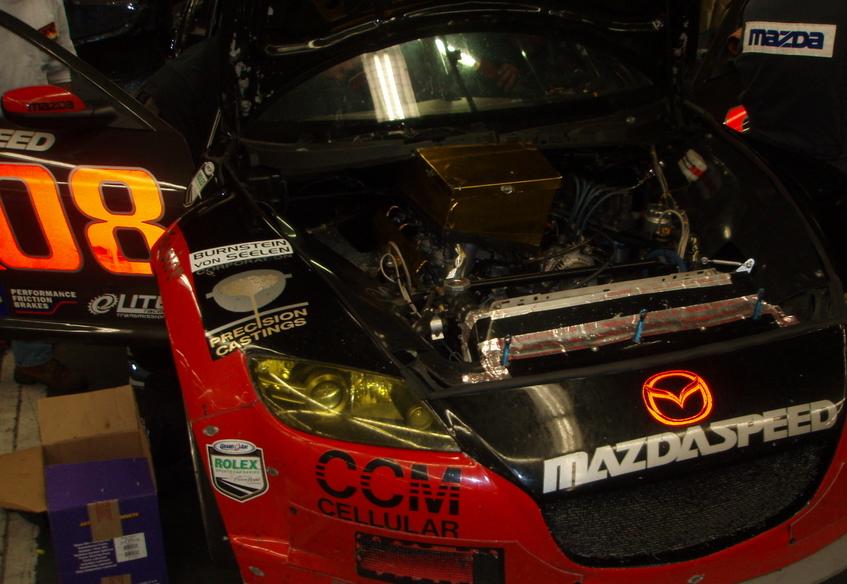

Check out the gold foil on the airbox. Certainly not a carb spacer, but it is proof that race cars use thermal barriers on their intakes.
Last edited by 13BT_RX3; 04-25-07 at 10:42 PM.
04-26-07, 05:54 AM
#13
Lives on the Forum
Originally Posted by 13BT_RX3
Have you seen a P-port with the manifold connected to the housings with a rubber tube? I believe they put those in racecars.
Never seen them on F1, F3, Indy, NASCAR, IMSA, etc.
Anyone got a pic of one of them?
Or are they all banned?
-Ted
04-27-07, 09:40 AM
#15
adiabaticly inefficient
Join Date: Aug 2001
Location: nw houston,TX or w. hollywood,CA
Posts: 386
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by RETed
Nope, I'm talking about piston cars...
Never seen them on F1, F3, Indy, NASCAR, IMSA, etc.
Anyone got a pic of one of them?
Or are they all banned?
-Ted
Never seen them on F1, F3, Indy, NASCAR, IMSA, etc.
Anyone got a pic of one of them?
Or are they all banned?
-Ted
i would have lost my job if i took pic's sorry...
04-30-07, 05:30 AM
#16
Adolf Hitler Verfechter
Join Date: Sep 2002
Location: Northern South Africa
Posts: 969
Likes: 0
Received 0 Likes
on
0 Posts
It will definately help with keeping the intake manifold cooler,but is it worth the gain?
I would rather focus on isolating the Exhaust heat from the intake.It will help a great deal more.Keeping enginebay heat down is turning into a bigger problem than before,seeing that more HP equals more Heat.
Karis
I would rather focus on isolating the Exhaust heat from the intake.It will help a great deal more.Keeping enginebay heat down is turning into a bigger problem than before,seeing that more HP equals more Heat.
Karis
04-30-07, 08:38 AM
#17
boost > *
Join Date: Aug 2004
Location: buffalo, ny
Posts: 1,527
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by RETed
I always thought those things were bullshit, even on piston engines...
-Ted
-Ted
04-30-07, 06:43 PM
#18
Senior Member
Thread Starter
Join Date: Mar 2007
Location: Boston MA
Posts: 438
Likes: 0
Received 0 Likes
on
0 Posts
I think I might have my friend do some research developement, and see if I can score any gains, or atleast cut back on heat soak. I know these work well on piston engines, I'd love to see what benefits would come to a rotary. For starters how hot does the "block" and manifold ussually get on both FI and NA apps?
05-01-07, 08:59 PM
#20
Senior Member
Thread Starter
Join Date: Mar 2007
Location: Boston MA
Posts: 438
Likes: 0
Received 0 Likes
on
0 Posts
I've emailed my friend back and forth and he's got a few questions:
I totally forgot about this message, had a draft ready to send and all. Sorry about that.
We can definitly look into it. I'll need some help from you though. To keep the price down it would be very nice if you could get a few more people interested in buying them. If I have to order small quantities of materials it is going to increase the price. Other than that I need the rough dimimensions of the flange so I know how much material one insulator is going to take up. I also need to know how thick the insulator can be. This may require replacement of studs in your engine. You'll have to measure them.
Anyone know the stud length? Or the rough dimentions of the gasket? I'll order a spare one for him to play with, but he needs to know the temps to get the right material as well.
For the RX7, I was thinking of getting a manifold insulator for it. But there don't seem to be any on the market, would you have any interest in producing one? Any thoughts?
The manifold:
http://cgi.ebay.com/S4-S5-rx7-intake...ayphotohosting
The manifold:
http://cgi.ebay.com/S4-S5-rx7-intake...ayphotohosting
We can definitly look into it. I'll need some help from you though. To keep the price down it would be very nice if you could get a few more people interested in buying them. If I have to order small quantities of materials it is going to increase the price. Other than that I need the rough dimimensions of the flange so I know how much material one insulator is going to take up. I also need to know how thick the insulator can be. This may require replacement of studs in your engine. You'll have to measure them.
05-01-07, 09:15 PM
#21
Rotary Freak
iTrader: (2)
Join Date: Mar 2006
Location: Wayne NJ
Posts: 2,508
Likes: 0
Received 0 Likes
on
0 Posts
i have one on my 88tII but it is used as an adaptor for an fd uim intake temps are nice and cool, it about 3/4 of an inch thick, there is a ton of room under the uim i can even change my injectors w/o removing the uim its great
05-23-07, 02:29 PM
#24
doesn't make enough money
Join Date: Dec 2006
Location: Lilburn, GA
Posts: 116
Likes: 0
Received 0 Likes
on
0 Posts
I can only speak for the second gen RX7, but yes, there are 2 parts: one upper and one lower intake manifold that join together to form Voltron. Hahahaha, I couldn't resist. But seriously, series 4 and 5 13Bs utilize a 2 piece intake manifold.
05-23-07, 03:21 PM
#25
there *kinda* is a "spacer" in the FC to begin with.
I've noticed that while gauging the efficiency of my intercooler setup, that my UIM will get *warm* (not hot by any means) while the throttle body right up until the exit side of the intercooler is all cool (20ish degrees) But the little black "spacer" that is mounted between the UIM and the TB seems to keep the heat soak to a minimum (at least for everything further upstream then the UIM)
I've noticed that while gauging the efficiency of my intercooler setup, that my UIM will get *warm* (not hot by any means) while the throttle body right up until the exit side of the intercooler is all cool (20ish degrees) But the little black "spacer" that is mounted between the UIM and the TB seems to keep the heat soak to a minimum (at least for everything further upstream then the UIM)
