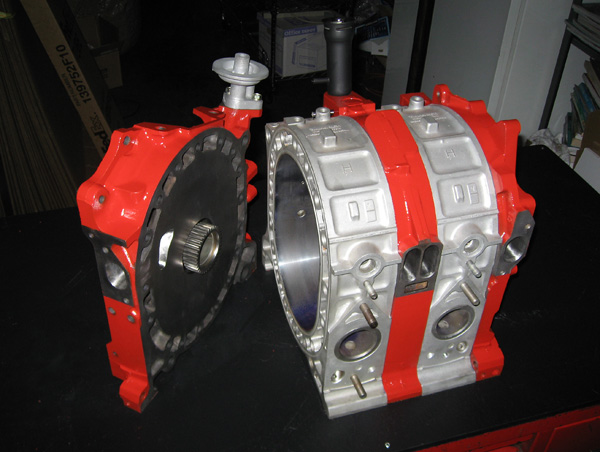

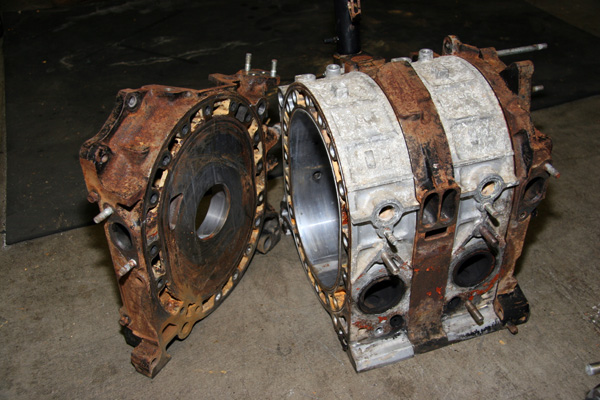

I had an old 13B sitting around from a Rotary Truck. It's actually a 12A converted to a 13B. At one time, it was a nice motor but then it sat for years after losing a coolant seal. I needed an engine for my MazdaSport Magazine project car, so I tore it down and cleaned it up. It's not ready for assembly yet, but I took another picture of it to compare the before and after refurbishing. Startling how far it has come.
I media blasted the plates and had them surface ground and lapped, ported them and painted them red. The rotor housings were just media blasted and will be ported shortly. It's not an extreme engine but the transformation is pretty cool.
I media blasted the plates and had them surface ground and lapped, ported them and painted them red. The rotor housings were just media blasted and will be ported shortly. It's not an extreme engine but the transformation is pretty cool.
#3
Originally Posted by Kim
Looks nice, what paint do you use?
#5

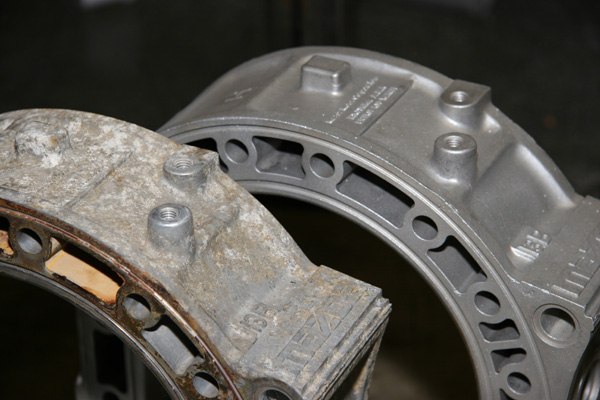

Here is the side-by-side before and after of the rotor housings. Cleanup only required media blasting with glass bead.

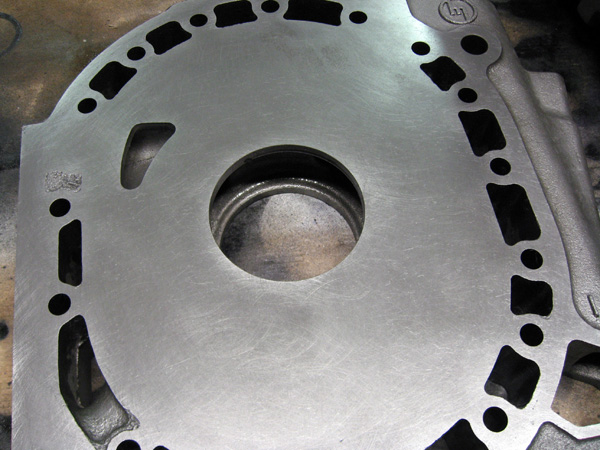

The side housings were surface ground and lapped, then I finished them off by hand with a stone, so there was a bit of crosshatching for oil retention.

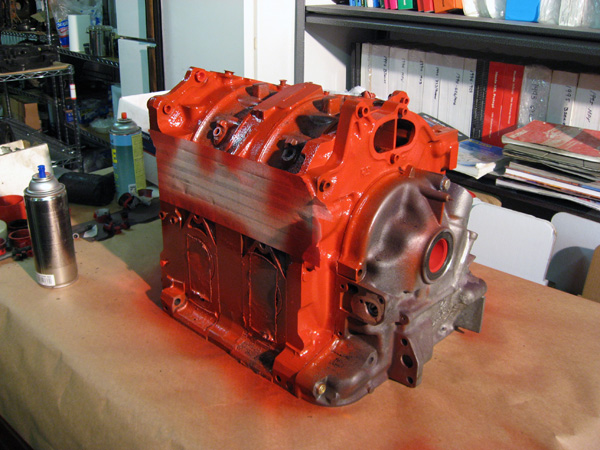

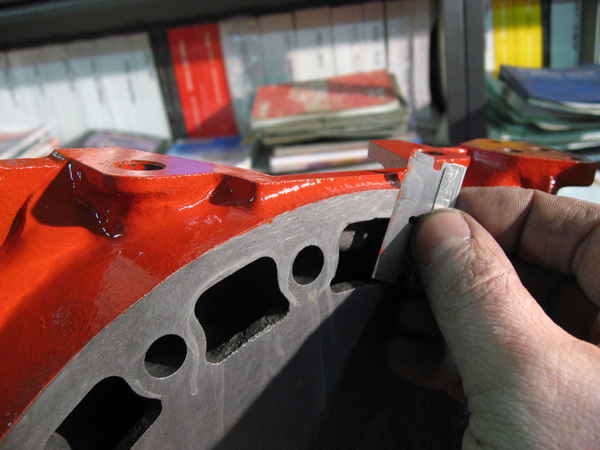

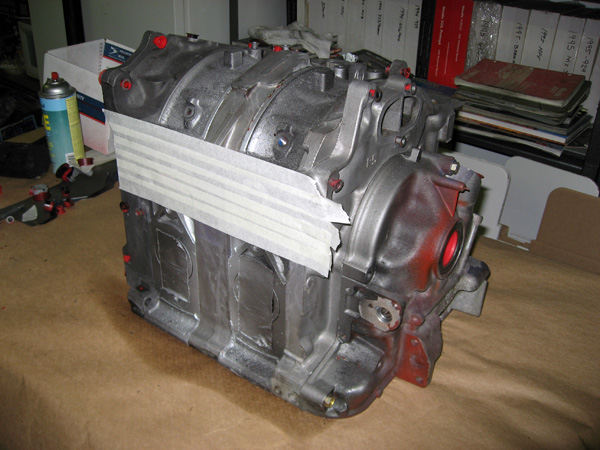

For painting the side housings, I mocked up a motor with junk rotor housings and front cover, then blocked off all the openings and capped the threaded holes. Finally, I scraped any excess paint off with a razor blade.
The side housings were surface ground and lapped, then I finished them off by hand with a stone, so there was a bit of crosshatching for oil retention.
For painting the side housings, I mocked up a motor with junk rotor housings and front cover, then blocked off all the openings and capped the threaded holes. Finally, I scraped any excess paint off with a razor blade.
