Anyone have experience with Rotary Extreme V-Mount IC/Rad?
03-13-03, 01:40 AM
#1
texasrxs.org
Thread Starter
Join Date: Jun 2002
Location: Austin, TX
Posts: 1,267
Likes: 0
Received 0 Likes
on
0 Posts
Anyone have experience with Rotary Extreme V-Mount IC/Rad?
http://www.rotaryextreme.com/vmount.html
Looks cool, and seems like it would be effective, particularly with a vented hood.
Seems like it would do better if there was something to keep the air from flowing inbetween their ends.
Blake
Looks cool, and seems like it would be effective, particularly with a vented hood.
Seems like it would do better if there was something to keep the air from flowing inbetween their ends.
Blake
03-15-03, 12:19 AM
#2
no
Join Date: Apr 2001
Location: Dallas, TX / Tokyo, Japan currently
Posts: 2,295
Likes: 0
Received 0 Likes
on
0 Posts
ya works great
low intake temps
consistent water temps
even without the shrouding. I think chuck has finished the shrouding now and is now selling it with the kit though. email him and ask for sure.
low intake temps
consistent water temps
even without the shrouding. I think chuck has finished the shrouding now and is now selling it with the kit though. email him and ask for sure.
03-15-03, 05:03 PM
#4
no
Join Date: Apr 2001
Location: Dallas, TX / Tokyo, Japan currently
Posts: 2,295
Likes: 0
Received 0 Likes
on
0 Posts
umm....
only pics i have are kinda old and in this thread
https://www.rx7club.com/forum/showth...5&pagenumber=2
and there is a more updated piping one (without the temporary ghetto rigging to get the car up and running) posted on chuck's site.
oh, and the fans mount up on the backside of the radiator pulling the air down and towards the rear of the car.
only pics i have are kinda old and in this thread
https://www.rx7club.com/forum/showth...5&pagenumber=2
and there is a more updated piping one (without the temporary ghetto rigging to get the car up and running) posted on chuck's site.
oh, and the fans mount up on the backside of the radiator pulling the air down and towards the rear of the car.
03-15-03, 06:15 PM
#5
probably so you don't get all of that radiator heat on your intercooler at a stop.
JT Imports has a used KS one for $2200.
But other than that, it's probably best to get the Rotary Extreme one, same price as a USED Knightsports.
As stated before, keeps temps low, best for extended track racing, and extended periods of boost.
If you don't do that too often, most people say go with the standard setup of stock mount radiator (id assume upgraded) and a nice FMIC.
Question: how big is the intercooler core?
JT Imports has a used KS one for $2200.
But other than that, it's probably best to get the Rotary Extreme one, same price as a USED Knightsports.
As stated before, keeps temps low, best for extended track racing, and extended periods of boost.
If you don't do that too often, most people say go with the standard setup of stock mount radiator (id assume upgraded) and a nice FMIC.
Question: how big is the intercooler core?
Last edited by Node; 03-15-03 at 06:19 PM.
03-15-03, 06:54 PM
#7
http://www.rotaryextreme.com/vmount.html
V-mount content: Intercooler with piping, 2" racing twin-row radiator, Samco radiator hose, silicon hose connectors, brackets, hose clamps.
Intercooler Spec: Newest tube-and-fin intercooler core, with internal fins, flows 935 CFM at 15 psi, enough to support 600HP.
Radiator Spec: 2" thick twin row racing radiator.
Requirement: Greddy elbow, smaller battery or battery relocation, aftermarket intake such as Rotary Extreme cold air intake specially made for V-mount application (coming soon), Greddy, M2, Pettit Racing, etc.
V-mount content: Intercooler with piping, 2" racing twin-row radiator, Samco radiator hose, silicon hose connectors, brackets, hose clamps.
Intercooler Spec: Newest tube-and-fin intercooler core, with internal fins, flows 935 CFM at 15 psi, enough to support 600HP.
Radiator Spec: 2" thick twin row racing radiator.
Requirement: Greddy elbow, smaller battery or battery relocation, aftermarket intake such as Rotary Extreme cold air intake specially made for V-mount application (coming soon), Greddy, M2, Pettit Racing, etc.
Trending Topics
03-15-03, 07:09 PM
#8
texasrxs.org
Thread Starter
Join Date: Jun 2002
Location: Austin, TX
Posts: 1,267
Likes: 0
Received 0 Likes
on
0 Posts
One question I couldn't get answered (Maybe I didn't look hard enough) but do you still have to remove the A/C?
Also, there were a lot more responses in the #rd Gen specific forum in regards to this.
Blake
Also, there were a lot more responses in the #rd Gen specific forum in regards to this.
Blake
03-16-03, 02:41 AM
#11
Eats, Sleeps, Dreams Rotary
iTrader: (2)

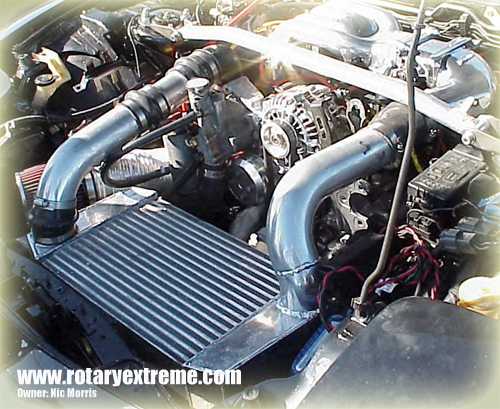

You don't have to remove the A/C anymore. I will have a lot more pictures of the new V mount I am making later but here is a spy photo for you.
I am trying to finish the new version this weekend. I am going to make another monster one which only works with single turbo next weekend.
Chuck Huang
I am trying to finish the new version this weekend. I am going to make another monster one which only works with single turbo next weekend.
Chuck Huang
Originally posted by infinitebass
One question I couldn't get answered (Maybe I didn't look hard enough) but do you still have to remove the A/C?
Also, there were a lot more responses in the #rd Gen specific forum in regards to this.
Blake
One question I couldn't get answered (Maybe I didn't look hard enough) but do you still have to remove the A/C?
Also, there were a lot more responses in the #rd Gen specific forum in regards to this.
Blake
03-16-03, 04:05 AM
#13
Eats, Sleeps, Dreams Rotary
iTrader: (2)
Yup, that one is not even done yet. I have the intercooler made on the car to ensure proper fitment.
After it's done, it will be nicely polished before I send it to the prepaid customer and more pix will be posted again.
Chuck Huang
After it's done, it will be nicely polished before I send it to the prepaid customer and more pix will be posted again.
Chuck Huang
Originally posted by infinitebass
Cool! Looks good! Now if only you polished the entire intercooler...
Blake
Cool! Looks good! Now if only you polished the entire intercooler...
Blake
03-16-03, 04:11 AM
#15
i don't know, my knowledge of physics says that since the intercooler is mounted at an angle, it has less airflow b/c of the overall surface area being tilted from onflowing air, therefore both the radiator and intercooler suffer. It might be better than having one or the other suffer. But it looks damn good.
03-16-03, 12:55 PM
#16
Rotary Enthusiast
Join Date: Aug 2001
Location: Tallahassee, FL
Posts: 1,402
Likes: 0
Received 0 Likes
on
0 Posts
T88 - there's a lot that goes into it. I've got an ASME paper here that details a few different oblique heat exchanger configurations. They're not as good as a perpendicular configuration, but in a few more-esoteric configurations (two-pass parallel flow and folded core) they do quite well. What's critical here is the inlet and outlet header setup (concerning nonuniformity in air flow).
If you're interested, the paper is "Oblique Flow Headers for Heat Exchangers" A. L. London, G. Klopfer, S. Wolf in Journal of Engineering for Power, p 271 July 1968. It's really dense stuff, so be forewarned.
Brandon
If you're interested, the paper is "Oblique Flow Headers for Heat Exchangers" A. L. London, G. Klopfer, S. Wolf in Journal of Engineering for Power, p 271 July 1968. It's really dense stuff, so be forewarned.
Brandon
03-28-03, 09:56 PM
#22
Lives on the Forum
Join Date: Dec 2001
Location: San Lorenzo, California
Posts: 14,716
Likes: 0
Received 8 Likes
on
8 Posts
Hey everyone, Chuck just posted pics of the version II V-mount. The pics actually show the placement of the shrouding, intake, battery, and a/c condenser. It is looking like a VERY sweet set-up.
http://www.rotaryextreme.com/vmount.html
http://www.rotaryextreme.com/vmount.html
03-28-03, 10:24 PM
#24
Eats, Sleeps, Dreams Rotary
iTrader: (2)
I am going to install one on a customer's car sometime next week. The car has all the bolt on upgrades for the stock turbo so it will have a better presentation than the photos I have on the website now with the single turbo.
More photos will be posted after the car is done.
Chuck Huang
More photos will be posted after the car is done.
Chuck Huang
