Will lightened flywheel + 3" Exhaust = 50 hp

Race Car Tech Discuss anything related to road racing and auto X.

Will lightened flywheel + 3" Exhaust = 50 hp

Old 02-09-10, 03:58 PM
  #1
Senior Member
5 Year Member
Thread Starter
iTrader: (3)

Join Date: Apr 2003
Location: scottsdale, az
Posts: 542
Likes: 0
Received 0 Likes on 0 Posts
Will lightened flywheel + 3" Exhaust = 50 hp

I have a street ported s4 NA motor with big exhaust ports, 49mm ITBs w/ 850 cc primaries and 1000 cc secondaries planted in a lightened FC. I have an RB header back to the stock Y-piping w/ stock mufflers. I also have the stock flywheel presently. The ECU is a Haltech e6x.

If I change up to a 3" straight exhaust and a flow-through muffler w/ a lightened flywheel, do you think I will gain another 50 hp? Presently dyno'd the car at 118 rear wheel hp. It pulls great in certain sections of the track, but blows down any long strait. I think I need at least another 50 hp to get the lap times I think the car should deliver.
jd to rescue is offline
Old 02-09-10, 04:15 PM
  #2
GET OFF MY LAWN
10 Year Member
iTrader: (1)

jgrewe's Avatar

Join Date: Feb 2005
Location: Fla.
Posts: 2,838
Likes: 0
Received 0 Likes on 0 Posts
I think you could find more power to the wheels somewhere in there but I don't think 50. I think you are way over fueled with those injectors. We use the stock injectors on street port engines making just over 200 at the wheels, about 235 at the shaft. And that is breathing through a stock S5 manifold.

Besides a good dyno tuning the stock mufflers could be killing power but as low as your numbers are I would maximize what you have.
jgrewe is offline
Old 02-09-10, 06:43 PM
  #3
Senior Member
5 Year Member
Thread Starter
iTrader: (3)

Join Date: Apr 2003
Location: scottsdale, az
Posts: 542
Likes: 0
Received 0 Likes on 0 Posts
^^So what combination of injectors would you recommend as the optimum setup with ITBs? 550s all around? I have to believe this has to breath better than a stock manifold. And, yes, I was expecting something in the vicinity of 200 hp to the wheels.
jd to rescue is offline
Old 02-09-10, 07:00 PM
  #4
GET OFF MY LAWN
10 Year Member
iTrader: (1)

jgrewe's Avatar

Join Date: Feb 2005
Location: Fla.
Posts: 2,838
Likes: 0
Received 0 Likes on 0 Posts
Your limits aren't the TB's it's the porting. The exhaust will be a huge step in the right direction. With the same ports and a Weber carb with 42mm venturis the engine should be able to make close to 250 at the shaft(250 for sure with S5 rotors). The Weber makes a little more power on top over the stock manifold just because of the length of the runners. So, your 49's aren't an issue. The stock injectors flow enough to feed 250hp with no problem, not even the turbo injectors are needed until then really.

Your trade off with the exhaust will be noise. We have a hard time getting under the SCCA db limit with a freeflowing exhaust. Usually two mufflers and some magic is needed.
jgrewe is offline
Old 02-10-10, 12:14 AM
  #5
Senior Member
iTrader: (1)

Join Date: Jan 2008
Location: Scottsdale, AZ
Posts: 323
Likes: 0
Received 0 Likes on 0 Posts
^^Thanks for the input. I'll play around w/ some things, see if we can't get to that magic 200+ hp. It's got to be in there somewhere. I think at 200hp this thing could be pretty awesome with the rest of my setup.

JD to rescue = getgone (home pc)
getgone is offline
Old 02-10-10, 12:17 AM
  #6
Love Thy Rotor
5 Year Member

Join Date: Nov 2006
Location: Yuba City, Ca
Posts: 93
Likes: 0
Received 0 Likes on 0 Posts
Does anyone make a complete ITB setup?
2ndgencab is offline
Old 02-10-10, 11:28 AM
  #7
Armchair engineer
iTrader: (2)

j9fd3s's Avatar

Join Date: Mar 2001
Location: http://www.k2rd.com
Posts: 24,603
Likes: 0
Received 123 Likes on 112 Posts
Originally Posted by jd to rescue View Post
I have a street ported s4 NA motor with big exhaust ports, 49mm ITBs w/ 850 cc primaries and 1000 cc secondaries planted in a lightened FC. I have an RB header back to the stock Y-piping w/ stock mufflers. I also have the stock flywheel presently. The ECU is a Haltech e6x.

If I change up to a 3" straight exhaust and a flow-through muffler w/ a lightened flywheel, do you think I will gain another 50 hp? Presently dyno'd the car at 118 rear wheel hp. It pulls great in certain sections of the track, but blows down any long strait. I think I need at least another 50 hp to get the lap times I think the car should deliver.
118hp is like stock HP, i would try unhooking the mufflers and see what happens, and go from there.
j9fd3s is offline
Old 02-10-10, 10:09 PM
  #8
Senior Member
iTrader: (1)

Join Date: Jan 2008
Location: Scottsdale, AZ
Posts: 323
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by 2ndgencab View Post
Does anyone make a complete ITB setup?
I don't know what you consider "complete", but you can purchase an ITB from Tweakit or Fuji Racing. Both are high quality.
getgone is offline
Old 02-10-10, 10:27 PM
  #9
Rotary Enthusiast
5 Year Member
iTrader: (1)

ncfc3s's Avatar

Join Date: Mar 2007
Location: sc
Posts: 816
Likes: 0
Received 0 Likes on 0 Posts
i would consider

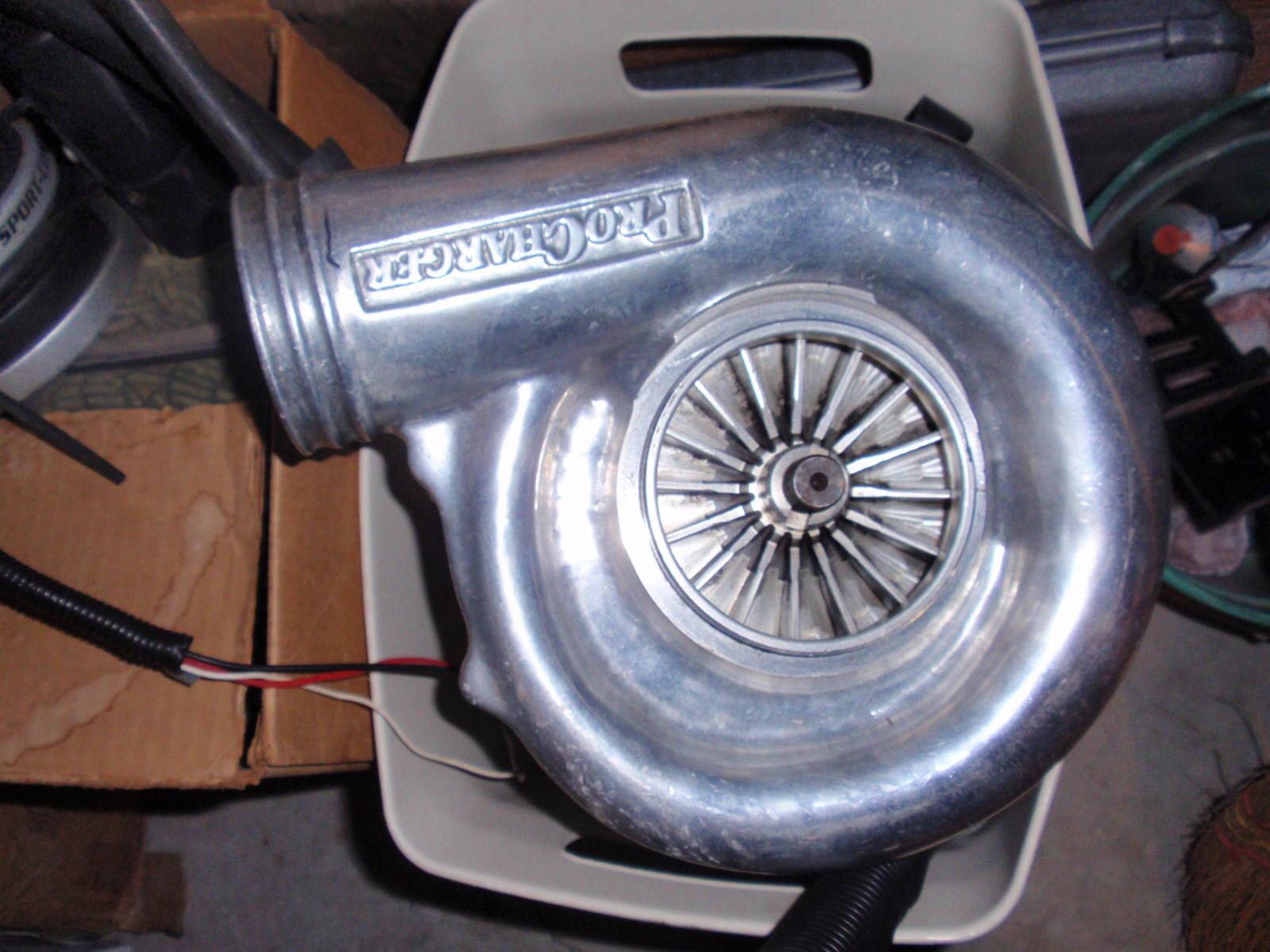

Attached Thumbnails Will lightened flywheel + 3" Exhaust = 50 hp-p1270564.jpg
ncfc3s is offline
Old 02-11-10, 01:01 AM
  #10
The Shadetree Project
iTrader: (40)

Hyper4mance2k's Avatar

Join Date: Jul 2002
Location: District of Columbia
Posts: 7,301
Received 1 Like on 1 Post
lighweight flywheels do not put more hp to the wheels. I have before and after dyno's where the only change was from the RB steel flywheel to their aluminum one and a new clutch. I only say a .8whp increase and that isn't considered a gain due to changes in temperature and humidity between the days.
Hyper4mance2k is offline
Old 02-11-10, 11:00 AM
  #11
Senior Member
5 Year Member
Thread Starter
iTrader: (3)

Join Date: Apr 2003
Location: scottsdale, az
Posts: 542
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Hyper4mance2k View Post
lighweight flywheels do not put more hp to the wheels. I have before and after dyno's where the only change was from the RB steel flywheel to their aluminum one and a new clutch. I only say a .8whp increase and that isn't considered a gain due to changes in temperature and humidity between the days.
So just quicker revs?
jd to rescue is offline
Old 02-14-10, 11:48 AM
  #12
80's car lover
5 Year Member

Join Date: Jul 2008
Location: Lemont, IL
Posts: 145
Likes: 0
Received 0 Likes on 0 Posts
Just quicker revs
88blkiroc is offline
Old 02-18-10, 02:53 AM
  #13
The Shadetree Project
iTrader: (40)

Hyper4mance2k's Avatar

Join Date: Jul 2002
Location: District of Columbia
Posts: 7,301
Received 1 Like on 1 Post
a 800lb car with 100whp will accelerate faster than a 1000lb car w 100whp. same logic applies to drivetrain weight reduction such as flywheel, lighter wheels, aluminum driveshafts...
Hyper4mance2k is offline
Old 02-18-10, 01:52 PM
  #14
Senior Member
5 Year Member
Thread Starter
iTrader: (3)

Join Date: Apr 2003
Location: scottsdale, az
Posts: 542
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Hyper4mance2k View Post
a 800lb car with 100whp will accelerate faster than a 1000lb car w 100whp. same logic applies to drivetrain weight reduction such as flywheel, lighter wheels, aluminum driveshafts...
Working on that side of the equation as well, but need to get the HP optimized also.
jd to rescue is offline
