Widebody FC ready to hit the track (almost) Pics inside

Race Car Tech Discuss anything related to road racing and auto X.

Widebody FC ready to hit the track (almost) Pics inside

Old 09-12-04, 06:04 PM
  #1
Mad Man

Thread Starter

Carl Byck's Avatar

Join Date: Jan 2002
Location: Big Island Hawaii
Posts: 2,758
Likes: 0
Received 0 Likes on 0 Posts
Widebody FC ready to hit the track (almost) Pics inside

If you do track days in Norcal, get used to this

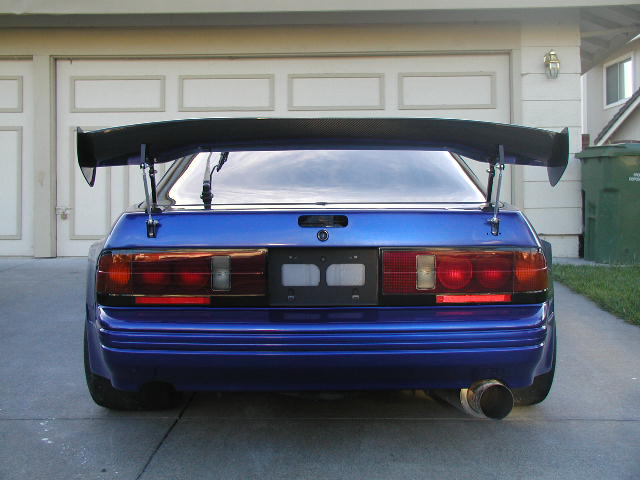

Attached Thumbnails Widebody FC ready to hit the track (almost) Pics inside-p1010150.jpg
Carl Byck is offline
Old 09-12-04, 06:32 PM
  #2
Junior Member
5 Year Member

johnyrengo's Avatar

Join Date: Mar 2004
Location: oregon
Posts: 11
Likes: 0
Received 0 Likes on 0 Posts
Dang that's looks pretty sweet. Have any more pics?
johnyrengo is offline
Old 09-12-04, 06:45 PM
  #3
Mad Man

Thread Starter

Carl Byck's Avatar

Join Date: Jan 2002
Location: Big Island Hawaii
Posts: 2,758
Likes: 0
Received 0 Likes on 0 Posts
Carl Byck is offline
Old 09-12-04, 10:29 PM
  #4
Full Member
5 Year Member

Huero's Avatar

Join Date: Mar 2004
Location: Long Beach
Posts: 150
Likes: 0
Received 0 Likes on 0 Posts
Awesome looking beast
Huero is offline
Old 09-12-04, 10:53 PM
  #5
Insane Burnout
5 Year Member

ROTORhead93's Avatar

Join Date: Oct 2003
Location: Pleasanton, CA
Posts: 1,569
Likes: 0
Received 0 Likes on 0 Posts
your car looks simply amazing, where did you get the mazdaspeed front bumper?
ROTORhead93 is offline
Old 09-12-04, 11:23 PM
  #6
Mad Man

Thread Starter

Carl Byck's Avatar

Join Date: Jan 2002
Location: Big Island Hawaii
Posts: 2,758
Likes: 0
Received 0 Likes on 0 Posts
Best to search my threads, but the nose, and the hood are custom, each is one of 6-10 built to justify the production cost. As far as I know there are none of either currently in use. The nose was actually used on one car which was since wrecked. The car is an absolute one off, nothing like it in AU, USA, or Japan that I know of. That means nothing on the net, that combines the widebody with the other features. Hours were spent getting the angular lines of the FC to mate to the rounded shapes of the FD nose, and hood. Many of the angles on the stock FC were softened, while the FD parts were made slightly more angular to come up with one cohesive shape. Carl
Carl Byck is offline
Old 09-13-04, 01:19 AM
  #7
Banned. I got OWNED!!!

christaylor's Avatar

Join Date: Mar 2003
Location: Austin, Texas
Posts: 1,546
Likes: 0
Received 0 Likes on 0 Posts
Sharp looking car, Carl. The nose on that thing definitely takes some getting used to, tho!

Oh, and nice color. My street car is almost identical but with lots of metalflake.
christaylor is offline
Old 09-13-04, 06:11 PM
  #8
Insane Burnout
5 Year Member

ROTORhead93's Avatar

Join Date: Oct 2003
Location: Pleasanton, CA
Posts: 1,569
Likes: 0
Received 0 Likes on 0 Posts
So whats the first track day your going to be taking it to? I'm pretty close to you and I would love to see that thing in person. Maybe even take a ride in it???
ROTORhead93 is offline
Old 09-13-04, 06:25 PM
  #9
7s bein a pain in the ass
5 Year Member

aka_rocket's Avatar

Join Date: Nov 2003
Location: Chico, CA
Posts: 704
Likes: 0
Received 0 Likes on 0 Posts
that is truely an awesome blend you got there.
props to you.
aka_rocket is offline
Old 09-13-04, 06:56 PM
  #10
M's
Senior Member
5 Year Member

Join Date: Aug 2002
Location: Vtech
Posts: 372
Likes: 0
Received 0 Likes on 0 Posts
Carl, looks good. I'd appreciate it if you'd respond to the PM i sent you a few months back about suspension components. Thanks
M's is offline
Old 09-13-04, 07:05 PM
  #11
Mad Man

Thread Starter

Carl Byck's Avatar

Join Date: Jan 2002
Location: Big Island Hawaii
Posts: 2,758
Likes: 0
Received 0 Likes on 0 Posts
Thank you for the comments gentlemen. M's, I checked my PMs back to April, I do not see your post. Drop me a line at 707-696-2705, and we can talk about the suspension. Carl


Figure late October for the track, I am building a 700rwhp Supra currently, and will not have time to have this car track ready until then.
Carl Byck is offline
Old 09-14-04, 08:58 AM
  #12
Rotary Enthusiast
iTrader: (1)

Join Date: Jul 2004
Location: Rocket City, Alabama
Posts: 1,035
Likes: 0
Received 1 Like on 1 Post
Where is the air going from the openings on each side intercooler? Do I see the tubing going into/out of the intercooler passing thru these openings? Does the air going thru these openings have any other place to go besides the center of the brake rotors? If the openings are not completely sealed, then it is going to cause front lift.
speedturn is offline
Old 09-14-04, 10:02 AM
  #13
Lives on the Forum

rynberg's Avatar

Join Date: Dec 2001
Location: San Lorenzo, California
Posts: 14,717
Likes: 0
Received 2 Likes on 2 Posts
Hey Carl,

Glad you're getting close to finishing the car! I look forward to seeing it in action, sometime.

Tyler
rynberg is offline
Old 09-14-04, 01:14 PM
  #14
Mad Man

Thread Starter

Carl Byck's Avatar

Join Date: Jan 2002
Location: Big Island Hawaii
Posts: 2,758
Likes: 0
Received 0 Likes on 0 Posts
The side openings will have ducts in them (which will be sealed)to direct all that air to the brakes via AWR ducting. The center openings will be boxed, partioned(IC/Raditor/oil coolers) and sealed to the undertray(and directted up to the hood ducts). The front undertray is a flat bottom that extends to the front cross member. The top surface of the hood will have additional openings ALA the EVO VIII. These openings will have a marginally larger total area than the front openings to further aid in evacuating the under hood air. The front fenders may be louvered to add front downforce as required, and I anticipate a slightly larger wing in the future to balance the DF created by the splitter, any louvering we do, and any additional winglets we add to the sides of the nose, or dams added to the splitter. We will be experimenting with wing height as well. We are on the low side in terms of wing placement currently. As you can tell we have a tremendous amount testing to do to dial in the aero. Expect at least a diffuser (like the World Challenge Vipers) , and perhaps a venturi tunnel in the rear of the car in its final iteration. Hopefully that begins to answer your concerns Re the aero properties of the car. We also intend to replace tghe splitter with a more substantial piece. I will now begin the search for sponsors to aid me in bringing the Aero end of things to full fruition. LOTS OF TESTING to follow...
Carl Byck is offline
Old 09-15-04, 12:05 AM
  #15
spoon!

Kenku's Avatar

Join Date: Sep 2002
Location: Dousman, WI
Posts: 1,084
Received 10 Likes on 7 Posts
Mein gott. First FC I've seen that I flat out like. Aero's going to be a headache to do well and truly right, but still. Might want to look at some of what Mazda was doing with the IMSA cars, but just a random thought.
Kenku is offline
Old 09-15-04, 10:40 AM
  #16
Mad Man

Thread Starter

Carl Byck's Avatar

Join Date: Jan 2002
Location: Big Island Hawaii
Posts: 2,758
Likes: 0
Received 0 Likes on 0 Posts
I am using old IMSA, and alot of Japanese GT cars as general guides. It will be a huge project to get the aero right, but since I run in an unlimited class, design is open. In fact if anyone has pictures with detail that would be useful to this end please post them, or email them to me at [email protected]
Carl Byck is offline
Old 09-15-04, 01:21 PM
  #17
Mad Man

Thread Starter

Carl Byck's Avatar

Join Date: Jan 2002
Location: Big Island Hawaii
Posts: 2,758
Likes: 0
Received 0 Likes on 0 Posts
To continue, I am taking alot of leads from the Lemans GT cars with similar chassis profiles(long nose short cabin, hatch back, like the ferrari, and the viper). Ultimately, alot will be a guess, since I will never have the 50K worth of datalogging equipment/a wind tunnel required to really anylize the efficasy of my design. It will be functional, but certainly not optimized. At this point a major goal is to make it safe, ie, that I do not do something that make either end unstable, or light at speed.
Carl Byck is offline
Old 09-15-04, 03:19 PM
  #18
RE for life

diyman25's Avatar

Join Date: May 2002
Location: sca
Posts: 1,180
Likes: 0
Received 18 Likes on 15 Posts
Hope one day I can see your Monster in SCA's race track...
diyman25 is offline
Old 09-15-04, 08:55 PM
  #19
WTF is wrong with it now?
10 Year Member

TYSON's Avatar

Join Date: Oct 2001
Location: London, ON
Posts: 1,492
Likes: 0
Received 0 Likes on 0 Posts
OTC next year Carl?
TYSON is offline
Old 09-16-04, 11:08 AM
  #20
Mad Man

Thread Starter

Carl Byck's Avatar

Join Date: Jan 2002
Location: Big Island Hawaii
Posts: 2,758
Likes: 0
Received 0 Likes on 0 Posts
I hope so Tyson, I would only do it if I could pull it off driving it track to track. I am thinking 335 TOYO RA-1s all around, possibly two sets of V710s. I need to read the rules, and see what my options are. It is a distinct possibilty(likelyhood even). I would get killed in the race trailered classes, but I think I can hang (maybe even do well) with the street driven cars. That would be the ultimate in laying the myth of Rotary unreliability to rest. Imagine a ~450rwhp 17 year old rotary doing well in that venue, now that would be very satisfying
Now that the exterior is done, I can move forward in my quest for partners(sponsors), to help tweak, and maximize the reliability of the mechanicals.
"I have a dream"... Some day I will drive my RX7 to the track equiped only with a bottle of Armorall, and a California Duster
Carl Byck is offline
Old 09-16-04, 11:24 AM
  #21
WTF is wrong with it now?
10 Year Member

TYSON's Avatar

Join Date: Oct 2001
Location: London, ON
Posts: 1,492
Likes: 0
Received 0 Likes on 0 Posts
Rules for this year were 140 treadwear plus for the Touring (no trailer) class.
TYSON is offline
Old 09-16-04, 01:51 PM
  #22
Mad Man

Thread Starter

Carl Byck's Avatar

Join Date: Jan 2002
Location: Big Island Hawaii
Posts: 2,758
Likes: 0
Received 0 Likes on 0 Posts
Well then I guess it would be 315-35-17 BFG TA KD all around. Unless someone knows of another option. I suppose the tires have to be DOT, ie no JDM tires... Yes?
Carl Byck is offline
Old 09-16-04, 02:07 PM
  #23
Mad Man

Thread Starter

Carl Byck's Avatar

Join Date: Jan 2002
Location: Big Island Hawaii
Posts: 2,758
Likes: 0
Received 0 Likes on 0 Posts
looks like I could run T3, looking at the '04 times, I think I could be competitive, although I have never driven those tracks on street tires, so it is hard to say. I will shut up now, since this type of bench racing will see me flamed to the ground in short order (and would be well deserved )
Carl Byck is offline
Old 09-16-04, 03:24 PM
  #24
Full Member
5 Year Member

Join Date: Dec 2003
Location: Bay Area
Posts: 235
Likes: 0
Received 0 Likes on 0 Posts
just looked at the otc, something i will try to get into in the future. does anyone have any info on the currect FC on OTC? i couldnt find any.
dreamnshadow is offline
Old 09-16-04, 04:49 PM
  #25
Mad Man

Thread Starter

Carl Byck's Avatar

Join Date: Jan 2002
Location: Big Island Hawaii
Posts: 2,758
Likes: 0
Received 0 Likes on 0 Posts
Those guys won their class two years ago, read their bio on the site. It is a very modest car, close to stock. They basicly ran the event like an endurance event, and outlasted their competition. Carl
