What clutch is this? 13b or 13btt?

Old 11-19-15, 12:25 AM
  #1
R.I.P. DAVE
10 Year Member
Thread Starter

RX7_Fanatic's Avatar

Join Date: Aug 2004
Location: Newport Beach, California
Posts: 408
Likes: 0
Liked 0 Times in 0 Posts
What clutch is this? 13b or 13btt?

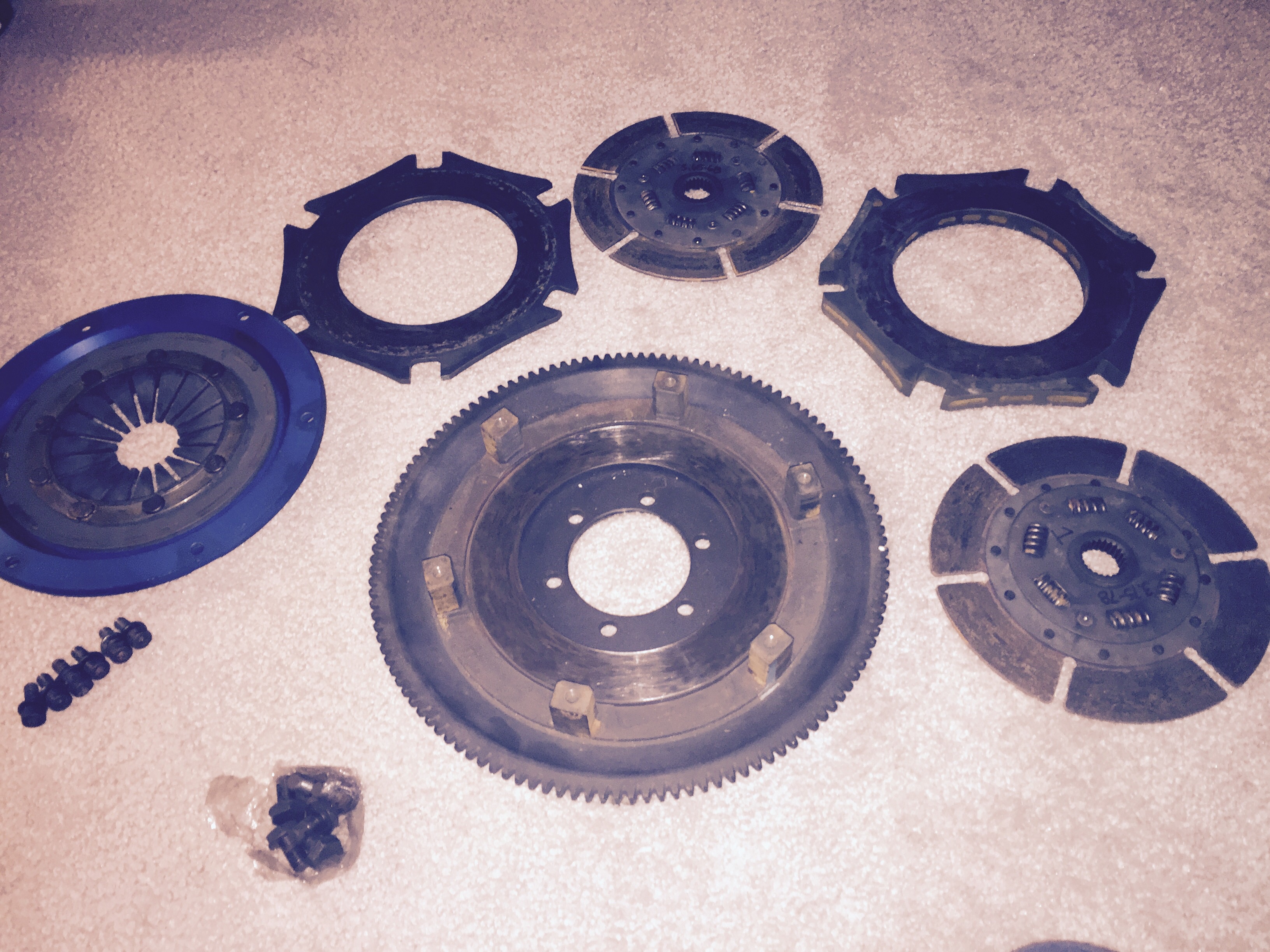

I have had this clutch sitting in a sealed box unsprung for many years and want to know what it is as I've had many conflicting opinions on the matter. Thank you.
Attached Thumbnails What clutch is this? 13b or 13btt?-image.jpg
RX7_Fanatic is offline
Old 11-19-15, 12:27 AM
  #2
heynoman
iTrader: (5)

heynoman's Avatar

Join Date: Jul 2009
Location: Illinois
Posts: 475
Likes: 0
Liked 0 Times in 0 Posts
Looks like the 13bt pressure plate .


^ corrected^

Last edited by heynoman; 11-19-15 at 12:49 AM.
heynoman is offline
Old 11-19-15, 12:29 AM
  #3
R.I.P. DAVE
10 Year Member
Thread Starter

RX7_Fanatic's Avatar

Join Date: Aug 2004
Location: Newport Beach, California
Posts: 408
Likes: 0
Liked 0 Times in 0 Posts
I was told it was an fd twin plate by the person I got it from but you know...
RX7_Fanatic is offline
Old 11-19-15, 12:30 AM
  #4
R.I.P. DAVE
10 Year Member
Thread Starter

RX7_Fanatic's Avatar

Join Date: Aug 2004
Location: Newport Beach, California
Posts: 408
Likes: 0
Liked 0 Times in 0 Posts



Top view
RX7_Fanatic is offline
Old 11-19-15, 12:39 AM
  #5
heynoman
iTrader: (5)

heynoman's Avatar

Join Date: Jul 2009
Location: Illinois
Posts: 475
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by RX7_Fanatic View Post
Top view
sorry definitely not a pull type clutch (I'm half asleep right now) its for a single turbo engine. The fd pressure plate has the center fun part caved inwards.

Last edited by heynoman; 11-19-15 at 12:43 AM.
heynoman is offline
Old 11-19-15, 01:15 AM
  #6
R.I.P. DAVE
10 Year Member
Thread Starter

RX7_Fanatic's Avatar

Join Date: Aug 2004
Location: Newport Beach, California
Posts: 408
Likes: 0
Liked 0 Times in 0 Posts
Thought so thank you, Kyle Mohan already confirmed this for me but I had to know before I sell it, I'll be back to this rotary life at some point but it's time to pay bills
RX7_Fanatic is offline
Old 11-19-15, 07:14 AM
  #7
Sharp Claws
iTrader: (30)

RotaryEvolution's Avatar

Join Date: Oct 2003
Location: Central Florida
Posts: 5,135
Likes: 0
Liked 12 Times in 11 Posts
no such thing as a non turbo twin disc clutch so it would have to be turbo, and being non pull type is obviously a FC turbo II clutch set.
RotaryEvolution is offline
Old 02-01-16, 08:35 PM
  #8
R.I.P. DAVE
10 Year Member
Thread Starter

RX7_Fanatic's Avatar

Join Date: Aug 2004
Location: Newport Beach, California
Posts: 408
Likes: 0
Liked 0 Times in 0 Posts
Random yet very insightful discussion. I am selling this clutch for 600+shipping, didn't know about the new custom discs but makes this an awesome entry level twin plate for someone looking to do that. I've driven an exedy twin plate and they have a very much stock feel with an aggressive grab. I've driven an HKS twin plate and felt like I was at the gym driving that thing.
RX7_Fanatic is offline
Old 02-01-16, 08:40 PM
  #9
R.I.P. DAVE
10 Year Member
Thread Starter

RX7_Fanatic's Avatar

Join Date: Aug 2004
Location: Newport Beach, California
Posts: 408
Likes: 0
Liked 0 Times in 0 Posts
Almost makes me want to keep it and go pick up a turbo ii
RX7_Fanatic is offline
Old 02-04-16, 09:37 PM
  #10
Resident Know-it-All
10 Year Member
iTrader: (3)

patman's Avatar

Join Date: Aug 2002
Location: Richland, WA
Posts: 3,098
Likes: 0
Liked 0 Times in 0 Posts
Many/most of the FD twin plate setups include a conversion to push type throwout bearing, so this could also be an FD part. Should be pretty easy to google the exedy fd twin plate setup and see which way it is...
patman is offline
