Upgrading our road course Rx7 with a proper fuel cell

Last season we used a fuel cell with no internal baffling, just foam. We used an external fuel pump with the pickup at the back bottom. I assumed this would be enough for anything above 1/4 tank, but I was wrong. Anything below 1/2 would starve the fuel system completely dry. The car would lose all power, and the datalogs showed fuel pressure dropping off completely. Keeping the tank above 1/2 would prevent most of this.

We were going to cut the tank in half and baffle it, but I learned there is a lot more to it that just adding trap doors here and there, drilling holes etc.

We are installing one of Aftermarket Industries Fuel cells instead. These are a proven unit in Australia, and it makes sense as we carry them now. They spent a lot of time studying F1, Nasa, and the Oil industries published studies in addition to their own in house work. They have spent near 1 million in R & D on their products.

They also offer a bunch of surge tanks for guys using their stock tanks.

You can read more about them in my signature link to our inline blog.

Here is also a cool link showing how much a fuel really sloshes inside a tank;

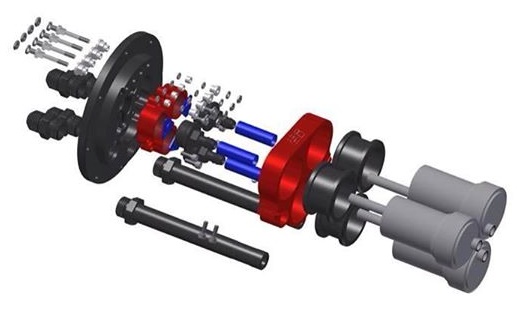

Attached Thumbnails Upgrading our road course Rx7 with a proper fuel cell-aftermarket-industries-fuel-cell-internals.jpg   Upgrading our road course Rx7 with a proper fuel cell-aifuelcell.jpg   Upgrading our road course Rx7 with a proper fuel cell-sp1200-internals.jpg
__________________
Rx7 Rotary Performance Parts
Turblown is offline
Old 01-06-15, 01:24 PM
  #2
Junior Member

Join Date: Nov 2013
Location: Ma
Posts: 35
Likes: 0
Received 0 Likes on 0 Posts
this is a great topic and something people have been trying to overcome for ever in fuel cells....interesting to see the baffles.

i have seen everything from secondary pumps feeding a chamber with a primary pump to the snow mobile pick up screens like below.



and a REALLY cool new product from Holley that works using magic and unicorn blood.

Georgethefierce is offline
Old 01-06-15, 03:54 PM
  #3
Adaptronic Distributor
RX7Club Vendor
Thread Starter
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 6,884
Received 26 Likes on 24 Posts
I forgot to mention these fuel cells have their built in SP1200 5 litre surge tank. The single walbro 460lph is the lifter pump, and the SP1200 fits inside the arrangement above it.

I have played with Holley unit at the PRI show. If all the possible problems are worked out with them, then we might add them to the fuel cells too.
Attached Thumbnails Upgrading our road course Rx7 with a proper fuel cell-internal-surge-tank.jpg
__________________
Rx7 Rotary Performance Parts
Turblown is offline
Old 01-06-15, 04:05 PM
  #4
Rotary Enthusiast

Join Date: Jan 2005
Location: hsv al
Posts: 828
Received 7 Likes on 6 Posts
How the hell do you spend a million on R&D and not have any certs?
Gilgamesh is offline
Old 01-06-15, 06:59 PM
  #5
Full Member
iTrader: (5)

finger lock's Avatar

Join Date: Feb 2009
Location: Bay Area
Posts: 249
Likes: 0
Received 0 Likes on 0 Posts
In my track only FD I run a 25 gal Fuel Safe Enduro fuel cell and their in-tank collector (surge tank) with a Bosch 044 inside the collector. My return line from the pressure regulator dumps back into the collector. I have never had a problem with this setup and have run the tank down to a gallon or two during events.

Before I installed the fuel cell, I used an external (1/2 gallon) surge tank in addition to the OEM tank. I used the OEM pump as a lift pump and an external Bosch 044 as the pressure pump. This setup was goofy looking with all the fuel lines, but it also worked very well.

In both setups, I used the OEM hard fuel lines to bring the fuel to the regulator. From the front and rear of the OEM fuel lines I use Earls hard line to AN 6 adapters. This delivers plenty of fuel for 415 RWHP.


Guy
finger lock is offline
Old 01-07-15, 05:15 AM
  #6
www.lms-efi.com
iTrader: (27)

C. Ludwig's Avatar

Join Date: Mar 2001
Location: Floyds Knobs. IN
Posts: 5,106
Received 30 Likes on 23 Posts
^

What he said. There are plenty of proven solutions from ATL and Fuelsafe. When we had the road race car, we ran a Fuelsafe in tank surge tank along with an external one quart tank. Foam alone isn't going to cut it. Return line ran through the external into the internal. Ran out of fuel twice on track in practice sessions after forgetting to gas up. Both times I got about 1 mile warning from the first lean hiccup until we were bone dry. Really no reason to reinvent the wheel.
C. Ludwig is offline
Old 01-07-15, 08:25 AM
  #7
I love my FD
10 Year Member
iTrader: (10)

3rdgensleeper's Avatar

Join Date: Aug 2003
Location: saint michael, MN
Posts: 907
Likes: 0
Received 0 Likes on 0 Posts
^

While I agree there are other options, how is it a bad thing to have more options out there? What I see is a company trying to improve upon a already good design... That's progress. If we didn't want to improve on current designs we are all driving the wrong platform cars to start with, I mean really we already know the rotary works... Why mess with it?.... Cause we can always make it better. I don't see why you guys are trying to be negative about progress...

Turblown. Good job bringing new products to the table and introducing us to other options.
3rdgensleeper is offline
Old 01-07-15, 02:47 PM
  #8
Full Member
iTrader: (5)

finger lock's Avatar

Join Date: Feb 2009
Location: Bay Area
Posts: 249
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by 3rdgensleeper View Post
^

While I agree there are other options, how is it a bad thing to have more options out there?
I certainly am not trying to stifle creativity. My post is more directed toward individuals who may not know of the solutions that already exist.

Guy
finger lock is offline
Old 01-11-15, 12:44 PM
  #9
needs more track time
iTrader: (14)

gracer7-rx7's Avatar

Join Date: Mar 2006
Location: Bay Area CA
Posts: 7,833
Received 14 Likes on 13 Posts
Originally Posted by finger lock View Post
I certainly am not trying to stifle creativity. My post is more directed toward individuals who may not know of the solutions that already exist.

Guy

+1 to that.


An important item to consider in the purchase price and install costs associated with a fuel cell is whether you'll be able to use it in. Race organizers like NHRA, SCCA, NASA have requirements on certification and such so do consider that when selecting a fuel cell.
gracer7-rx7 is offline
Old 01-20-15, 09:30 PM
  #10
Adaptronic Distributor
RX7Club Vendor
Thread Starter
iTrader: (12)

Turblown's Avatar

Join Date: Dec 2001
Location: Twin Cities, MN
Posts: 6,884
Received 26 Likes on 24 Posts
We are switching gears to the new for 2015 fia approved fuel cell inserts by AI. We are using an ATl fuel cell.
Turblown is offline
Old 02-17-15, 09:07 AM
  #11
Racer

Chuck Baader's Avatar

Join Date: Sep 2013
Location: Trussville, Heart of Dixie, Al.
Posts: 97
Likes: 0
Received 0 Likes on 0 Posts
Cell

Old cell for sale?
Chuck Baader is offline
Old 02-19-15, 10:33 PM
  #12
Rotary Enthusiast
iTrader: (1)

Join Date: Feb 2012
Location: CA
Posts: 1,075
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Georgethefierce View Post
this is a great topic and something people have been trying to overcome for ever in fuel cells....interesting to see the baffles.

i have seen everything from secondary pumps feeding a chamber with a primary pump to the snow mobile pick up screens like below.



and a REALLY cool new product from Holley that works using magic and unicorn blood.

Holley HydraMat BangShift Sneak Peek PRI 2014 - YouTube
I just did a search on the Holley Hydramat because I thought it was an awesome idea. Then I read the bottom and it said " not compatible with Diesel fuel, Methanol or oils". Darnnit
GrossPolluter is offline
Old 02-21-15, 08:31 PM
  #13
JustAnotherFC
iTrader: (2)

Join Date: Sep 2011
Location: Houston
Posts: 348
Likes: 0
Received 1 Like on 1 Post
Wow! Hydramat sounds great!
$699.95 sounds like a bust!
https://www.holley.com/products/fuel_systems/hydramat/
mach.80 is offline
Old 02-22-15, 08:56 AM
  #14
Goodfalla Engine Complete
iTrader: (28)

Monkman33's Avatar

Join Date: May 2005
Location: Kennewick, Washington
Posts: 3,203
Received 11 Likes on 9 Posts
Wow. .... not paying that
Monkman33 is offline
Old 03-03-15, 02:30 PM
  #15
Full Member
iTrader: (2)

Join Date: Jan 2004
Location: Wimberly, TX & Mazon, Il
Posts: 137
Received 0 Likes on 0 Posts
https://www.holley.com/products/fuel_systems/hydramat/

Holley has introduced some more affordable configurations.

Cheers, Philip
RX7M5GUY is offline
Old 03-04-15, 08:15 AM
  #16
Junior Member

Join Date: Nov 2013
Location: Ma
Posts: 35
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by RX7M5GUY View Post
https://www.holley.com/products/fuel_systems/hydramat/

Holley has introduced some more affordable configurations.

Cheers, Philip
That's more like it, I think that's a pretty doable price point.
Georgethefierce is offline
