Oil pressure drop at Track

Old 12-03-13, 03:36 AM
  #1
RE for life
Thread Starter

diyman25's Avatar

Join Date: May 2002
Location: sca
Posts: 1,180
Likes: 0
Received 18 Likes on 15 Posts
Oil pressure drop at Track

my car is 13B PP 290WHP at 8500 RPM . with Comp oil pump n comp regulator

one thing really bother me is

althought i shim my regulator on 130PSI at idle

but after few lap on track the pressure will drop between 95-105 on main straigh way

that really bother me a bit i know one reason is oil foaming on high speed

but i already have oil pan plate n accusump(100 psi)

any suggestion on how to keep my oil psi above 120 at WOT ?

btw i am using liqu molly 10-60w( sponser) i am thinking to change to different type of oil next time like 20-50

thanks for your time
J
diyman25 is offline
Old 12-03-13, 05:22 AM
  #2
RE for life
Thread Starter

diyman25's Avatar

Join Date: May 2002
Location: sca
Posts: 1,180
Likes: 0
Received 18 Likes on 15 Posts

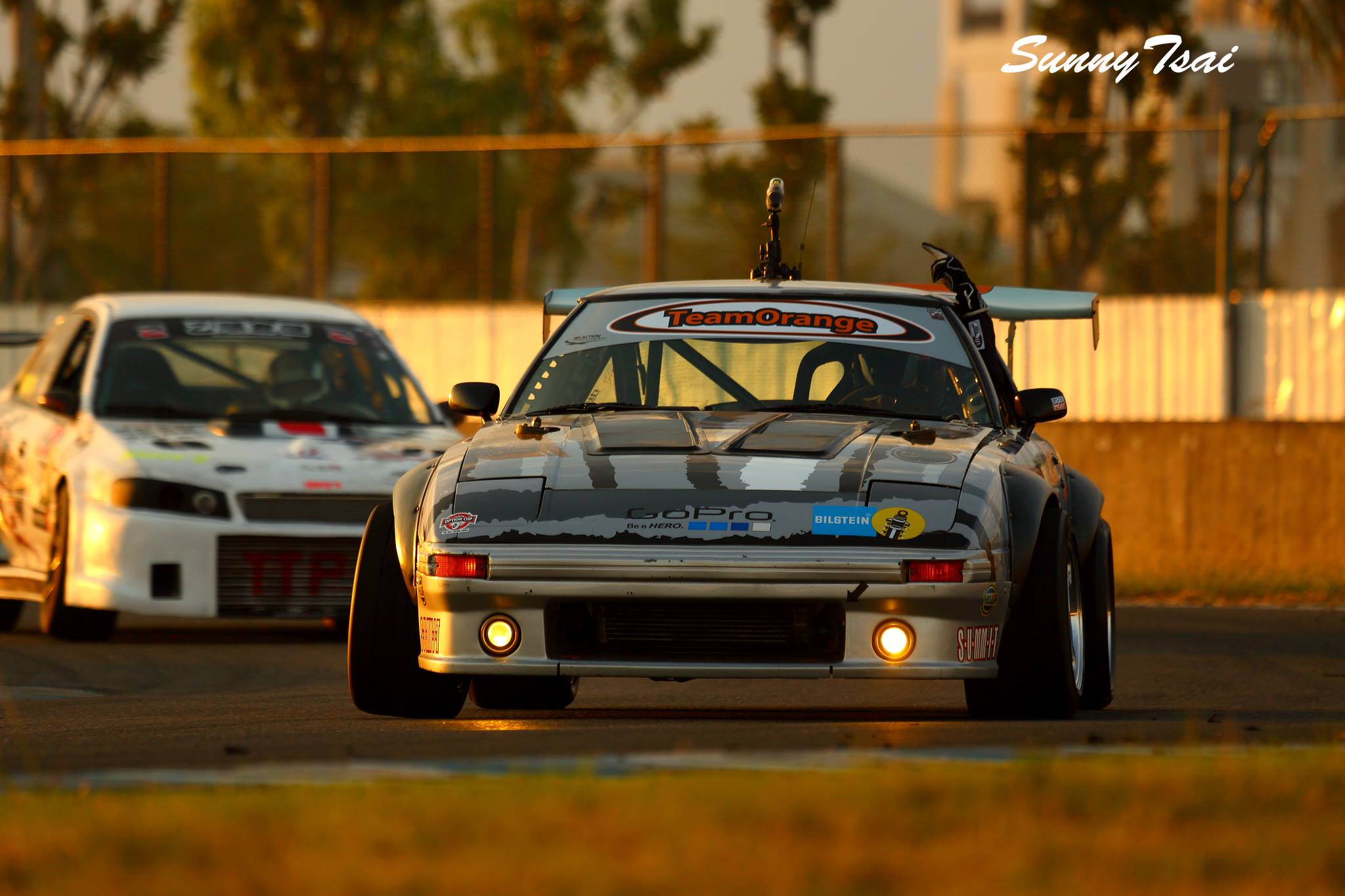

here are my lastest pic of my race car

thing to do at off season better aero balance

cover up front wheel more

solve my oil pressure problem n my tri link suspension

https://www.rx7club.com/attachment.p...1&d=1386069652
Attached Thumbnails Oil pressure drop at Track-1462571_433941300062195_554722715_o.jpg
diyman25 is offline
Old 12-03-13, 08:14 AM
  #3
Senior Member
iTrader: (3)

Join Date: Mar 2007
Location: Orrtanna,Pa
Posts: 276
Likes: 0
Received 1 Like on 1 Post
I use Redline 50w racing synthetic in mine and maintain 120+ even when it's hot. This is the recommendation from my engine builder, Jesse Prather.
Don49 is offline
Old 12-03-13, 10:35 AM
  #4
Rotary Freak
iTrader: (5)

Join Date: Sep 2011
Location: Miami
Posts: 2,824
Likes: 0
Received 0 Likes on 0 Posts
i'm a bit curious is oil pressure that high really bad ? I thought anything about above 60 is good.

Why do you guys run somuch more ?? sorry I know this is off topic but just curious .

And does this happen in every track is your engine temps going up

have you checked for excessive fuel dilution ?
Tem120 is offline
Old 12-03-13, 11:46 AM
  #5
Armchair engineer
iTrader: (2)

j9fd3s's Avatar

Join Date: Mar 2001
Location: http://www.k2rd.com
Posts: 24,603
Likes: 0
Received 123 Likes on 112 Posts
Originally Posted by Don49 View Post
I use Redline 50w racing synthetic in mine and maintain 120+ even when it's hot. This is the recommendation from my engine builder, Jesse Prather.
+1, try a straight weight oil, 50w is a good choice. 40w is the minimum
j9fd3s is online now
Old 12-03-13, 05:21 PM
  #6
Senior Member
iTrader: (3)

Join Date: Mar 2007
Location: Orrtanna,Pa
Posts: 276
Likes: 0
Received 1 Like on 1 Post
TEM120,
This is a motor that runs to 9K on track and is seldom below 6K. My understanding is that 120PSI is the standard for a high revving race motor.
Don49 is offline
Old 12-03-13, 09:12 PM
  #7
Living on the North Coast
iTrader: (30)

DeaconBlue's Avatar

Join Date: Mar 2009
Location: Avon Lake
Posts: 602
Received 4 Likes on 4 Posts
Originally Posted by j9fd3s View Post
+1, try a straight weight oil, 50w is a good choice. 40w is the minimum
^^ Agreed!!
DeaconBlue is offline
Old 12-03-13, 11:57 PM
  #8
RE for life
Thread Starter

diyman25's Avatar

Join Date: May 2002
Location: sca
Posts: 1,180
Likes: 0
Received 18 Likes on 15 Posts
Dont think i can get REdline 50WT in my area

might need to custom order from state

will try it at next year race


what is every one PSI on track ?

J
diyman25 is offline
Old 12-04-13, 11:41 AM
  #9
Rotary Freak
iTrader: (5)

Join Date: Sep 2011
Location: Miami
Posts: 2,824
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by diyman25 View Post
Dont think i can get REdline 50WT in my area

might need to custom order from state

will try it at next year race


what is every one PSI on track ?

J
Originally Posted by Don49 View Post
TEM120,
This is a motor that runs to 9K on track and is seldom below 6K. My understanding is that 120PSI is the standard for a high revving race motor.

Oh I see thanks..

i'd also be interested in knowing what most people run PSI wise , and what RPM.

say my motor is balanced and rotated to run to 9000 ,

But I set the limit at 8600 for safety margin .

but now with the whole PSI question I wonder if my Oil pressure is up to snuff at those levels .

Also I do know that the centrifugal forces push oil out of the Eshaft at such high rpms . but I didn't know people ran that much oil pressure.

Last edited by Tem120; 12-04-13 at 11:45 AM.
Tem120 is offline
Old 12-04-13, 07:20 PM
  #10
RE for life
Thread Starter

diyman25's Avatar

Join Date: May 2002
Location: sca
Posts: 1,180
Likes: 0
Received 18 Likes on 15 Posts
Originally Posted by Tem120 View Post
Oh I see thanks..

i'd also be interested in knowing what most people run PSI wise , and what RPM.

say my motor is balanced and rotated to run to 9000 ,

But I set the limit at 8600 for safety margin .

but now with the whole PSI question I wonder if my Oil pressure is up to snuff at those levels .

Also I do know that the centrifugal forces push oil out of the Eshaft at such high rpms . but I didn't know people ran that much oil pressure.
Well the last RX-8 Oil pressure set at 115 psi
Then u know in order to safely rev pass 8000
For extended of time
That is oil psi u need
diyman25 is offline
Old 12-04-13, 07:57 PM
  #11
RE for life
Thread Starter

diyman25's Avatar

Join Date: May 2002
Location: sca
Posts: 1,180
Likes: 0
Received 18 Likes on 15 Posts
Originally Posted by Tem120 View Post
Oh I see thanks..

i'd also be interested in knowing what most people run PSI wise , and what RPM.

say my motor is balanced and rotated to run to 9000 ,

But I set the limit at 8600 for safety margin .

but now with the whole PSI question I wonder if my Oil pressure is up to snuff at those levels .

Also I do know that the centrifugal forces push oil out of the Eshaft at such high rpms . but I didn't know people ran that much oil pressure.
Well the last RX-8 Oil pressure set at 115 psi
Then u know in order to safely rev pass 8000
For extended of time
That is oil psi u need
diyman25 is offline
Old 12-05-13, 08:42 AM
  #12
Rotary Freak
iTrader: (5)

Join Date: Sep 2011
Location: Miami
Posts: 2,824
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by diyman25 View Post
Well the last RX-8 Oil pressure set at 115 psi
Then u know in order to safely rev pass 8000
For extended of time
That is oil psi u need

oh i see, whats the downside of running somuch oil pressure ???

on a regular car , running such higher oil pressure doesn't that put stress on the oil seals ?

my builder did do some oil pressure mods so I believe my oilpressure is at like 90psi . but thats at around 3000 rpms I havent had a chance to abuse the motor since it was getting broken in still .

And again , I feel like I'm hijacking your thread so I apologize.
Tem120 is offline
Old 12-05-13, 01:47 PM
  #13
Rotary Freak

23Racer's Avatar

Join Date: Jul 2003
Location: Oakville, Ontario
Posts: 2,192
Likes: 0
Received 3 Likes on 3 Posts
This is very interesting as I confirmed the same thing myself without even knowing this. When my engine was brand new it would pull 130+psi at idle and cold. When hot it would drop to about 80 psi at idle using 10-40 any brand. After about 20 hours of running time the engine would still pull 120 at idle cold but hot (900 to 1000 rpm) the idle pressure would be about 40 psi and jump to 100+ when I picked up the rpm a bit. On track with the 10-40 the oil pressures would fluctuate a fair bit when temps got up higher, so I swapped to 20-50 Q Racing oil. That would work great for the first weekend, but for the second weekend pressures would drop again.

For my last race this past fall, I changed back to the Redline straight 40w again and bingo all pressures were like it originally was when the engine was first built and I didn't see a pressure drop even when oil temps got above 240 degrees (drafting too close for too long).

The only downside is the oil warm up does take longer in the morning.

Eric
23Racer is offline
Old 12-05-13, 10:12 PM
  #14
Living on the North Coast
iTrader: (30)

DeaconBlue's Avatar

Join Date: Mar 2009
Location: Avon Lake
Posts: 602
Received 4 Likes on 4 Posts
Originally Posted by 23Racer View Post

The only downside is the oil warm up does take longer in the morning.

Eric
You can always run an oil heat like this for improved cold start;

https://www.wolverineheater.com/Engi...ars-s/1814.htm
DeaconBlue is offline
Old 12-05-13, 10:14 PM
  #15
RE for life
Thread Starter

diyman25's Avatar

Join Date: May 2002
Location: sca
Posts: 1,180
Likes: 0
Received 18 Likes on 15 Posts
Originally Posted by 23Racer View Post
This is very interesting as I confirmed the same thing myself without even knowing this. When my engine was brand new it would pull 130+psi at idle and cold. When hot it would drop to about 80 psi at idle using 10-40 any brand. After about 20 hours of running time the engine would still pull 120 at idle cold but hot (900 to 1000 rpm) the idle pressure would be about 40 psi and jump to 100+ when I picked up the rpm a bit. On track with the 10-40 the oil pressures would fluctuate a fair bit when temps got up higher, so I swapped to 20-50 Q Racing oil. That would work great for the first weekend, but for the second weekend pressures would drop again.

For my last race this past fall, I changed back to the Redline straight 40w again and bingo all pressures were like it originally was when the engine was first built and I didn't see a pressure drop even when oil temps got above 240 degrees (drafting too close for too long).

The only downside is the oil warm up does take longer in the morning.

Eric
Sounds Great !! I will try to use redline next season. during this year the Liqui moly guy from german told me there is really no Replacement for Straight race oil like 50WT compare to 10-60
this mean from next year on i will be import my oil from state............. the only car use 20-50 here is the disel truck..............
diyman25 is offline
Old 12-05-13, 10:16 PM
  #16
RE for life
Thread Starter

diyman25's Avatar

Join Date: May 2002
Location: sca
Posts: 1,180
Likes: 0
Received 18 Likes on 15 Posts
Originally Posted by Tem120 View Post
oh i see, whats the downside of running somuch oil pressure ???

on a regular car , running such higher oil pressure doesn't that put stress on the oil seals ?

my builder did do some oil pressure mods so I believe my oilpressure is at like 90psi . but thats at around 3000 rpms I havent had a chance to abuse the motor since it was getting broken in still .

And again , I feel like I'm hijacking your thread so I apologize.
The downside would be your oil pump wear out quicker

What kind of engine u have u what hp n rpm u rev ?
diyman25 is offline
Old 12-05-13, 10:36 PM
  #17
Rotary Freak
iTrader: (5)

Join Date: Sep 2011
Location: Miami
Posts: 2,824
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by diyman25 View Post
The downside would be your oil pump wear out quicker

What kind of engine u have u what hp n rpm u rev ?
13b REW , recently rebuilt balanced and rotated till 9300 rpms ,

But I set my limit at 8600 for a safe margin of error , but now I'm wondering if i have enough oil pressure for that . I have a soft limiter at 8600 timing retard and then a hard fuel cut at 9k

power should end up being somewhere between 330-350

medium street port

new oil pump , since a bad oil pump and low oil pressure is what caused my motor to blow in the first place .

my oil reads about 90 while cruising at 3k , I haven't revd past 6k yet .

Last edited by Tem120; 12-05-13 at 10:42 PM.
Tem120 is offline
Old 12-05-13, 11:56 PM
  #18
RE for life
Thread Starter

diyman25's Avatar

Join Date: May 2002
Location: sca
Posts: 1,180
Likes: 0
Received 18 Likes on 15 Posts
Originally Posted by Tem120 View Post
13b REW , recently rebuilt balanced and rotated till 9300 rpms ,

But I set my limit at 8600 for a safe margin of error , but now I'm wondering if i have enough oil pressure for that . I have a soft limiter at 8600 timing retard and then a hard fuel cut at 9k

power should end up being somewhere between 330-350

medium street port

new oil pump , since a bad oil pump and low oil pressure is what caused my motor to blow in the first place .

my oil reads about 90 while cruising at 3k , I haven't revd past 6k yet .


Rotary Tech Tips: Oil Cooling Tips


If stock FD have 115 PSI at WOT

so i suggest to shim it to get higher oil pressure
diyman25 is offline
Old 12-06-13, 09:40 AM
  #19
Rotary Freak
iTrader: (5)

Join Date: Sep 2011
Location: Miami
Posts: 2,824
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by diyman25 View Post
Rotary Tech Tips: Oil Cooling Tips


If stock FD have 115 PSI at WOT

so i suggest to shim it to get higher oil pressure

thank you , and I believe it was shimmed

But my car had such terrible oil pressure before that I dont know if its higher then stock or normal LOL

I used to have 30 psi at WOT till 8k

And 10 psi at idle
Tem120 is offline
Old 12-08-13, 05:58 AM
  #20
RE for life
Thread Starter

diyman25's Avatar

Join Date: May 2002
Location: sca
Posts: 1,180
Likes: 0
Received 18 Likes on 15 Posts
Originally Posted by Tem120 View Post
thank you , and I believe it was shimmed

But my car had such terrible oil pressure before that I dont know if its higher then stock or normal LOL

I used to have 30 psi at WOT till 8k

And 10 psi at idle
The engine won't last at this kind of psi

Put a know good mechanical gauge to confirm ur oil psi
diyman25 is offline
Old 12-08-13, 06:37 AM
  #21
Rotary Freak
iTrader: (5)

Join Date: Sep 2011
Location: Miami
Posts: 2,824
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by diyman25 View Post
The engine won't last at this kind of psi

Put a know good mechanical gauge to confirm ur oil psi
that engine went boom new engine has a new oil pump the old pump was toast i thought it was just a bad sensor but i was wrong
Tem120 is offline
Old 12-10-13, 03:21 AM
  #22
RE for life
Thread Starter

diyman25's Avatar

Join Date: May 2002
Location: sca
Posts: 1,180
Likes: 0
Received 18 Likes on 15 Posts
Originally Posted by Tem120 View Post
that engine went boom new engine has a new oil pump the old pump was toast i thought it was just a bad sensor but i was wrong
Could be ur front oil pressure regulator did not set it rights
It happend to my friended motor once
So all the oil let go to front
Cause engine seeze at the Raer
diyman25 is offline
Old 12-10-13, 08:41 AM
  #23
Rotary Freak
iTrader: (5)

Join Date: Sep 2011
Location: Miami
Posts: 2,824
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by diyman25 View Post
Could be ur front oil pressure regulator did not set it rights
It happend to my friended motor once
So all the oil let go to front
Cause engine seeze at the Raer
Front stationary bearing was what spun ever since I bought the engine it had low oil pressure. I figured it was a bad sensor

maybe I hoped thats what it was . it lasted like that for a year . But eventually gave out

it was 100% my fault . ignorance caused the blow .
Tem120 is offline
Old 12-15-13, 04:43 PM
  #24
****** of disaster
10 Year Member
iTrader: (1)

thetech's Avatar

Join Date: Aug 2001
Location: Santa Monica, CA
Posts: 1,115
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by j9fd3s View Post
+1, try a straight weight oil, 50w is a good choice. 40w is the minimum
Redline racing 50wt is actually a 15w50 oil.
thetech is offline
Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
stickmantijuana
Microtech
30
04-23-16 06:37 PM
Snoopy FD
Build Threads
25
12-08-15 01:45 PM
andyvideopro
General Rotary Tech Support
3
08-20-15 10:55 AM


Thread Tools
Search this Thread
Quick Reply: Oil pressure drop at Track


Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

© 2019 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.

  • Ask a Question
    Get answers from community experts
Question Title:
Description:
Your question will be posted in:
