Looking for Pictures of the White Pettit Track Car's Engine Bay

Race Car Tech Discuss anything related to road racing and auto X.

Looking for Pictures of the White Pettit Track Car's Engine Bay

Old 07-10-05, 08:53 PM
  #1
Rebreaking things
10 Year Member
Thread Starter

CCarlisi's Avatar

Join Date: Jun 2001
Location: 1 foot in Boston 1 in NJ
Posts: 2,586
Likes: 0
Received 0 Likes on 0 Posts
Looking for Pictures of the White Pettit Track Car's Engine Bay

I want to see how they mounted the radiator and intercooler.
CCarlisi is offline
Old 07-11-05, 12:59 PM
  #2
Kim
OBEY YOUR MAZDA

Kim's Avatar

Join Date: Oct 2002
Location: Denmark
Posts: 3,059
Likes: 0
Received 0 Likes on 0 Posts
https://www.rx7club.com/attachment.p...hmentid=101858

The ex-pettit car was recently bought by a Belgian raceteam.
After a few engine screw ups they seem to be running strong, only downside is that in European racing they actually have competetion
Kim is offline
Old 07-12-05, 10:53 AM
  #3
Rebreaking things
10 Year Member
Thread Starter

CCarlisi's Avatar

Join Date: Jun 2001
Location: 1 foot in Boston 1 in NJ
Posts: 2,586
Likes: 0
Received 0 Likes on 0 Posts
Hi Kim,

Thanks for posting the picture. I am trying to figure out how they positioned the radiator. Do you have any other shots of it?
CCarlisi is offline
Old 07-12-05, 03:43 PM
  #4
Kim
OBEY YOUR MAZDA

Kim's Avatar

Join Date: Oct 2002
Location: Denmark
Posts: 3,059
Likes: 0
Received 0 Likes on 0 Posts
Sorry man, what I know about the car is all to be read in this thread
https://www.rx7club.com/showthread.p...12#post4553812
Kim is offline
Old 07-12-05, 07:43 PM
  #5
Plastic Jedi
5 Year Member

JEC-31's Avatar

Join Date: Sep 2002
Location: Kentwood, Michigan
Posts: 583
Likes: 0
Received 0 Likes on 0 Posts
Well in Kim's first pic we see that the massive intercooler is nearly flat in front of the engine, tilted front end up, and we know now much radiator a motor like that needs (as much as possible)...

I wold go out on a limb and postulate that there's a massive radiator mounted under the IC, perhaps on the same angle or maybe flatter. Lots of fan too.
JEC-31 is offline
Old 07-14-05, 12:44 AM
  #6
Mad Man


Carl Byck's Avatar

Join Date: Jan 2002
Location: Big Island Hawaii
Posts: 2,758
Likes: 0
Received 0 Likes on 0 Posts
I'm cooling 500rwhp with a conventional FMIC set-up in my FC, the V mount is not required, but it is one option. Carl
Carl Byck is offline
Old 07-28-05, 09:38 PM
  #7
Rebreaking things
10 Year Member
Thread Starter

CCarlisi's Avatar

Join Date: Jun 2001
Location: 1 foot in Boston 1 in NJ
Posts: 2,586
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Carl Byck
I'm cooling 500rwhp with a conventional FMIC set-up in my FC, the V mount is not required, but it is one option. Carl
This is for my FD 20b Project. I am also considering a FMIC, but my water temps are marginal on the street during the summer in my 2 rotor with a fmic, and a 20b FD owner with a FMIC that I spoke to said he was having a lot of trouble keeping his water temps in check on the street. I am planning on doing drivers' ed events with the car and would like to build in enough capacity so I can keep the boost up on the track.

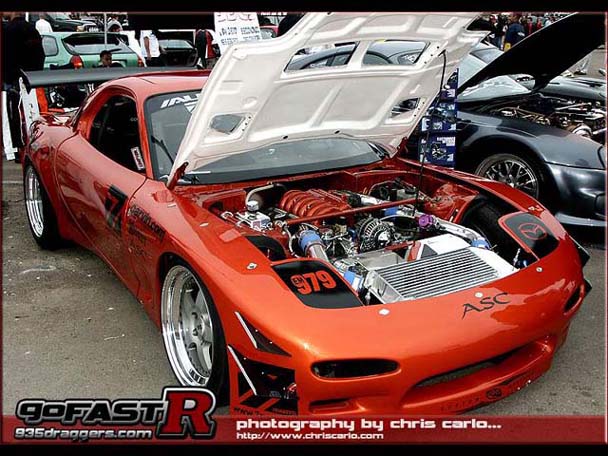

Here is another car that I am curious about. This picture is from seven stock. I can't find any additional info on the car. If anybody knows who it belongs to please tell me.
Attached Thumbnails Looking for Pictures of the White Pettit Track Car's Engine Bay-red-pettit-20b-track-car.jpg
CCarlisi is offline
Old 07-28-05, 11:03 PM
  #8
Rotor Head Extreme
iTrader: (8)

t-von's Avatar

Join Date: Apr 2002
Location: Midland Texas
Posts: 6,707
Likes: 0
Received 9 Likes on 7 Posts
That orange car has the engine moved back. Isn't that the way you were going to do it? If so, just use a Rotaryextreme V-mount set-up. As with any cooling system, ducting and air flow through the radiator is the biggest key in keeping things cool under the hood. Also how much boost you plan on running at the track? With the right single turbo, a 20b making 8psi would put down some really great numbers at the track while keeping the intake charge down.

Last edited by t-von; 07-28-05 at 11:07 PM.
t-von is offline
Old 08-01-05, 08:05 PM
  #9
Banned. I got OWNED!!!

alberto_mg's Avatar

Join Date: Aug 2002
Location: nyc+li, ny
Posts: 2,691
Likes: 0
Received 0 Likes on 0 Posts
Chris,

have you thought of an electric water pump at all?
alberto_mg is offline
