Ideas on connecting cage to front strut

Old 02-16-04, 12:52 AM
  #1
Rotary Enthusiast
15 Year Member
Thread Starter

abeomid's Avatar

Join Date: Mar 2001
Location: Vancouver, BC, Canada
Posts: 815
Likes: 0
Received 0 Likes on 0 Posts

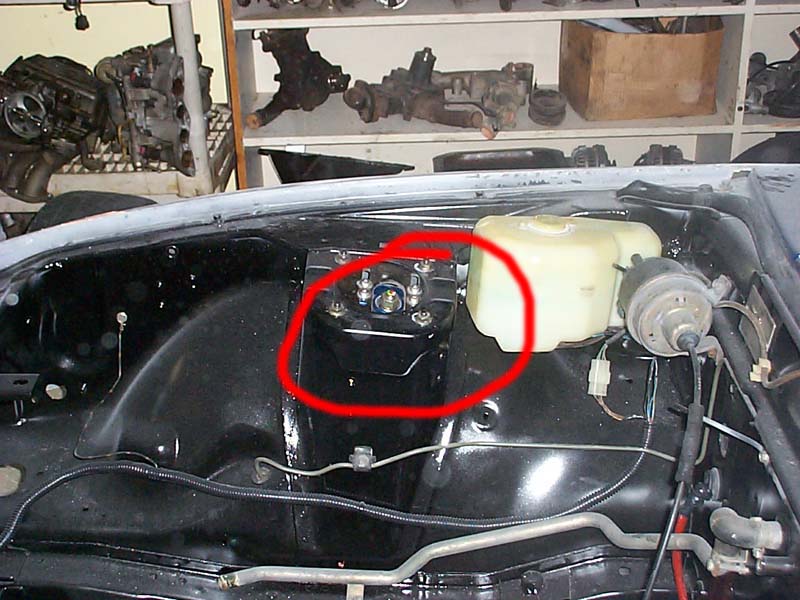

Ideas on connecting cage to front strut



How do you guys think I should weld the cage on there? Just one connection to back with a reinforcing plate?

Just give me some idea as I am working on finishing the design so I can take it down to shop and get the cage done in next couple of weeks.

Thanks

abeomid is offline
Old 02-16-04, 02:25 AM
  #2
Has been.. hangin' around
10 Year Member

Silkworm's Avatar

Join Date: Mar 2001
Location: Milpitas, CA
Posts: 2,618
Likes: 0
Received 0 Likes on 0 Posts
What class?
Silkworm is offline
Old 02-16-04, 09:14 AM
  #3
Rotary Enthusiast
15 Year Member
Thread Starter

abeomid's Avatar

Join Date: Mar 2001
Location: Vancouver, BC, Canada
Posts: 815
Likes: 0
Received 0 Likes on 0 Posts
Oh yeah I forgot about that. This might be crazy, but when I started the car I was planning for GT classes, so there are some stuff on the car that probably won't make it anything under GT. So for now it will be GTM or GTO or GTS.
I think most of the issues I will have with classing is the front subframe and suspension being from 2ND gen which puts me in GT.
abeomid is offline
Old 02-16-04, 11:19 AM
  #4
Has been.. hangin' around
10 Year Member

Silkworm's Avatar

Join Date: Mar 2001
Location: Milpitas, CA
Posts: 2,618
Likes: 0
Received 0 Likes on 0 Posts
If you're running a GT class, thats a 100% for sure I'd be triangulating from the A pillar and dash bar out to the strut towers.

PaulC
Silkworm is offline
Old 02-16-04, 11:52 PM
  #5
Rotary Enthusiast
15 Year Member
Thread Starter

abeomid's Avatar

Join Date: Mar 2001
Location: Vancouver, BC, Canada
Posts: 815
Likes: 0
Received 0 Likes on 0 Posts
Thanks mate,

You have any pictures of such a setup?
abeomid is offline
Old 02-17-04, 06:43 PM
  #6
Senior Member

TrentO's Avatar

Join Date: Jul 2003
Location: Edmonton, AB, Canada
Posts: 408
Likes: 0
Received 0 Likes on 0 Posts
I ran bracing from my roll cage uprights to the back of the struts. I also built a triangle bolt in brace which came from the strut towers and met right where the stock hood latch went. I basically have a 8"by 2" section of 1/8" flat iron there for a mount. If I did it again I'd probably make the mount larger and see if there was some way to further brace the top center of the firewall. ASCII art below:


Firewall
.....__
....../\
..../....\
.../.......\
O--------O
Strut towers are "O's"

-Trent
TrentO is offline
Old 02-18-04, 11:55 AM
  #7
trying to build a racecar

Travis R's Avatar

Join Date: Sep 2002
Location: Austin, Tx.
Posts: 579
Received 1 Like on 1 Post
That's very similar to what I was thinking.
Strut towers straight back to the front down tubes.
Then triangulate it to the middle of the firewall.
Travis R is offline
Old 02-18-04, 06:50 PM
  #8
Rotary Enthusiast
15 Year Member
Thread Starter

abeomid's Avatar

Join Date: Mar 2001
Location: Vancouver, BC, Canada
Posts: 815
Likes: 0
Received 0 Likes on 0 Posts
oh I see. So someting similar to the tower brace from racing beat. Cool

Thanks guys
abeomid is offline
Old 02-18-04, 07:10 PM
  #9
Rotary Enthusiast
15 Year Member
Thread Starter

abeomid's Avatar

Join Date: Mar 2001
Location: Vancouver, BC, Canada
Posts: 815
Likes: 0
Received 0 Likes on 0 Posts
oh I see. So someting similar to the tower brace from racing beat. Cool

Thanks guys
abeomid is offline
Old 02-18-04, 07:10 PM
  #10
Rotary Enthusiast
15 Year Member
Thread Starter

abeomid's Avatar

Join Date: Mar 2001
Location: Vancouver, BC, Canada
Posts: 815
Likes: 0
Received 0 Likes on 0 Posts
oh I see. So someting similar to the tower brace from racing beat. Cool

Thanks guys
abeomid is offline
Old 02-18-04, 07:14 PM
  #11
Has been.. hangin' around
10 Year Member

Silkworm's Avatar

Join Date: Mar 2001
Location: Milpitas, CA
Posts: 2,618
Likes: 0
Received 0 Likes on 0 Posts
Exactly. Run it back from the strut tower to the a-pillar bar, and a diagnoal back to the firewall.

Sorry, no pics offhand.

PaulC
Silkworm is offline
Old 02-18-04, 09:14 PM
  #12
Senior Member
10 Year Member

yallgotboost's Avatar

Join Date: Dec 2002
Location: Fairless Hills,PA
Posts: 317
Likes: 0
Received 0 Likes on 0 Posts
I have a pic of a guys car that might help not sure whos car it is i hope they dont mind i post this http://www.angelfire.com/extreme4/rt...ng/rx7cage.JPG
yallgotboost is offline
Old 02-18-04, 09:29 PM
  #13
Senior Member
10 Year Member

EProdRx7's Avatar

Join Date: Nov 2001
Location: Rochester NY
Posts: 576
Likes: 0
Received 0 Likes on 0 Posts
Hey that's my car! BTW what you can't see in that pic is that there is a third bar running from the bend/intersection point down to the forward leg of the cage inside the car. let me know if you want some more pics.
EProdRx7 is offline
Old 02-18-04, 11:58 PM
  #14
Rotary Enthusiast
15 Year Member
Thread Starter

abeomid's Avatar

Join Date: Mar 2001
Location: Vancouver, BC, Canada
Posts: 815
Likes: 0
Received 0 Likes on 0 Posts
Originally posted by EProdRx7
Hey that's my car! BTW what you can't see in that pic is that there is a third bar running from the bend/intersection point down to the forward leg of the cage inside the car. let me know if you want some more pics.
Man I love this section, ppl are actually willing to help. Thanks again guys.
Great pictures and great car, I would like to see some more pictures of your car and the cage.

Cheers,
Omid
abeomid is offline
Old 02-19-04, 01:12 PM
  #15
Senior Member
10 Year Member

EProdRx7's Avatar

Join Date: Nov 2001
Location: Rochester NY
Posts: 576
Likes: 0
Received 0 Likes on 0 Posts
If anyone wants to host the rest let me know and I'll shoot them out. The one above is pretty old, I think it was just after the 2001 runoffs and the car is slightly different now. The basic structure is the same though. BTW it's also for sale.
EProdRx7 is offline
Old 02-19-04, 07:19 PM
  #16
Rotary Enthusiast
15 Year Member
Thread Starter

abeomid's Avatar

Join Date: Mar 2001
Location: Vancouver, BC, Canada
Posts: 815
Likes: 0
Received 0 Likes on 0 Posts
Send them to me, I can host it on my site:
[email protected]
abeomid is offline
Old 02-19-04, 10:53 PM
  #17
Senior Member
10 Year Member

EProdRx7's Avatar

Join Date: Nov 2001
Location: Rochester NY
Posts: 576
Likes: 0
Received 0 Likes on 0 Posts
your server kicked it back to me as spam
EProdRx7 is offline
Old 02-19-04, 11:09 PM
  #18
Rotary Enthusiast
15 Year Member
Thread Starter

abeomid's Avatar

Join Date: Mar 2001
Location: Vancouver, BC, Canada
Posts: 815
Likes: 0
Received 0 Likes on 0 Posts
wierd, how about sending it to [email protected]
abeomid is offline
Old 02-22-04, 01:14 AM
  #19
Full Member
5 Year Member

Tree25is's Avatar

Join Date: Jan 2004
Location: LaCrescenta Ca/Fort Hood Tx
Posts: 184
Likes: 0
Received 0 Likes on 0 Posts
sounds good to me! try it maybe make a tube and bolt it to the fire wall. try not to weld it so that it will be removeable. know what i mean? i wouldnt make it permanant so that it case it wasnt legal for your class or a later engine swap. NE ways thats my two cent's
Tree25is is offline
Old 02-22-04, 09:49 AM
  #20
Senior Member
10 Year Member

yallgotboost's Avatar

Join Date: Dec 2002
Location: Fairless Hills,PA
Posts: 317
Likes: 0
Received 0 Likes on 0 Posts
yallgotboost is offline
